◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#38077) — 21 parça
çizim 114945
5 1 9 6 8 8 5 2
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK 8-97358-770-2 01 1 1202-1302
1 04.680 HOSE; FLEX,FRT BRK 8-97358-770-3 01 1 1303-
1 04.680 HOSE; FLEX,FRT BRK 8-97358-771-2 01 1 1202-1302
1 04.680 HOSE; FLEX,FRT BRK 8-97358-771-3 01 1 1303-
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-635-1 01 1 1202-
2 04.681 BRACKET; FLEX HOSE,FRT BRK
04.686 		8-97369-636-1 01 1 1202-
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1202-
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
(A) M10X22 		8-98014-005-0 02 1 1202-
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 1202-
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1202-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1202-

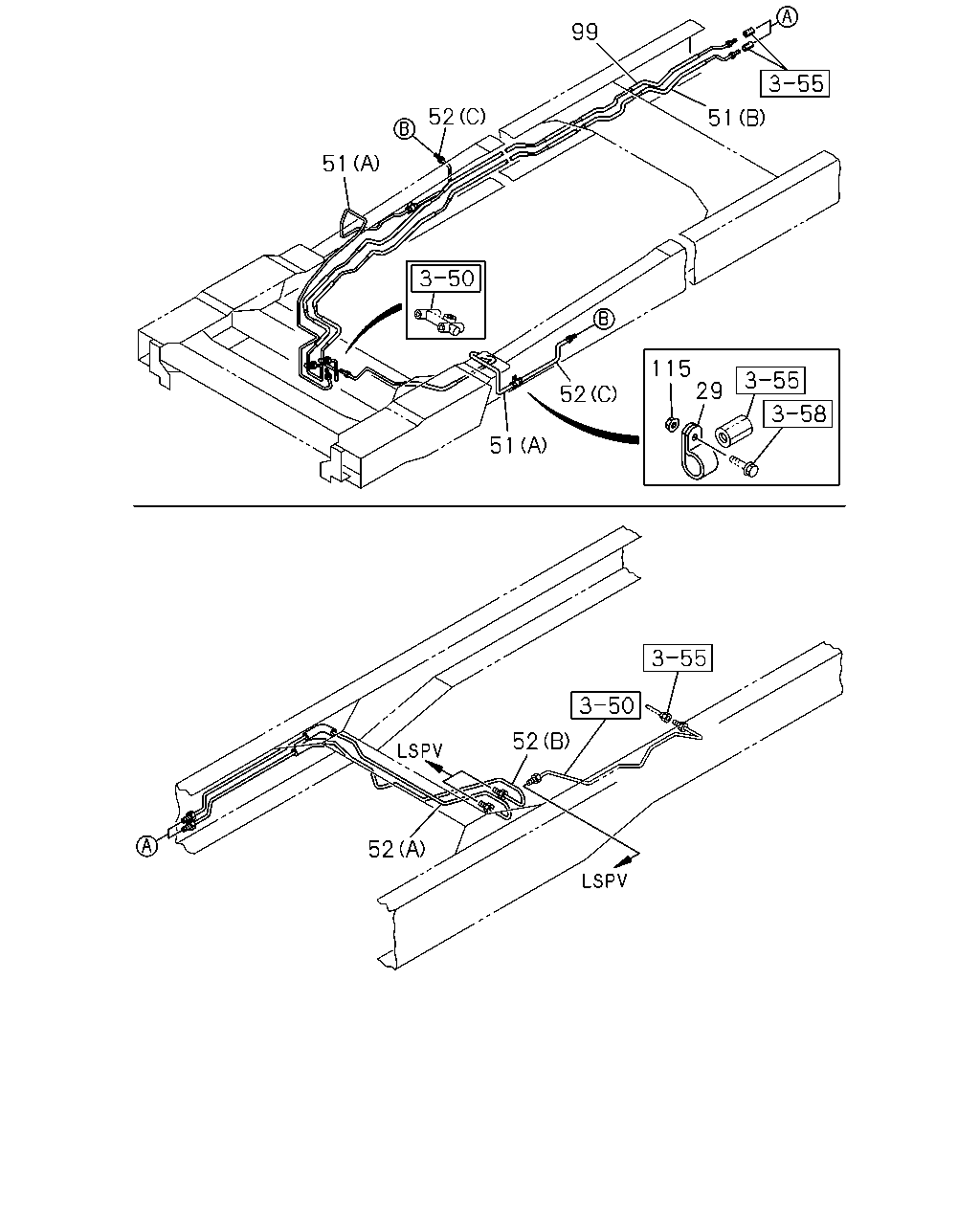

çizim 114954
99 52 51 51 115 29 52 51 52 52
BalonParca AdiParca NoAdetTipApplied Date
29 04.686 CLIP; UNION
ID=16 L=20 		0-95235-532-0 02 1 1202-
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1202-
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 		8-98176-419-0 01 1 1202-
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 		8-98188-616-1 01 1 1202-
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH 2WAY TO FRONT BRAKE 		8-98026-082-1 01 1 1202-
52 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT BRAKE 		8-98026-083-0 01 1 1202-
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1202-
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1202-
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1202-
115 04.680 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1202-
