Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

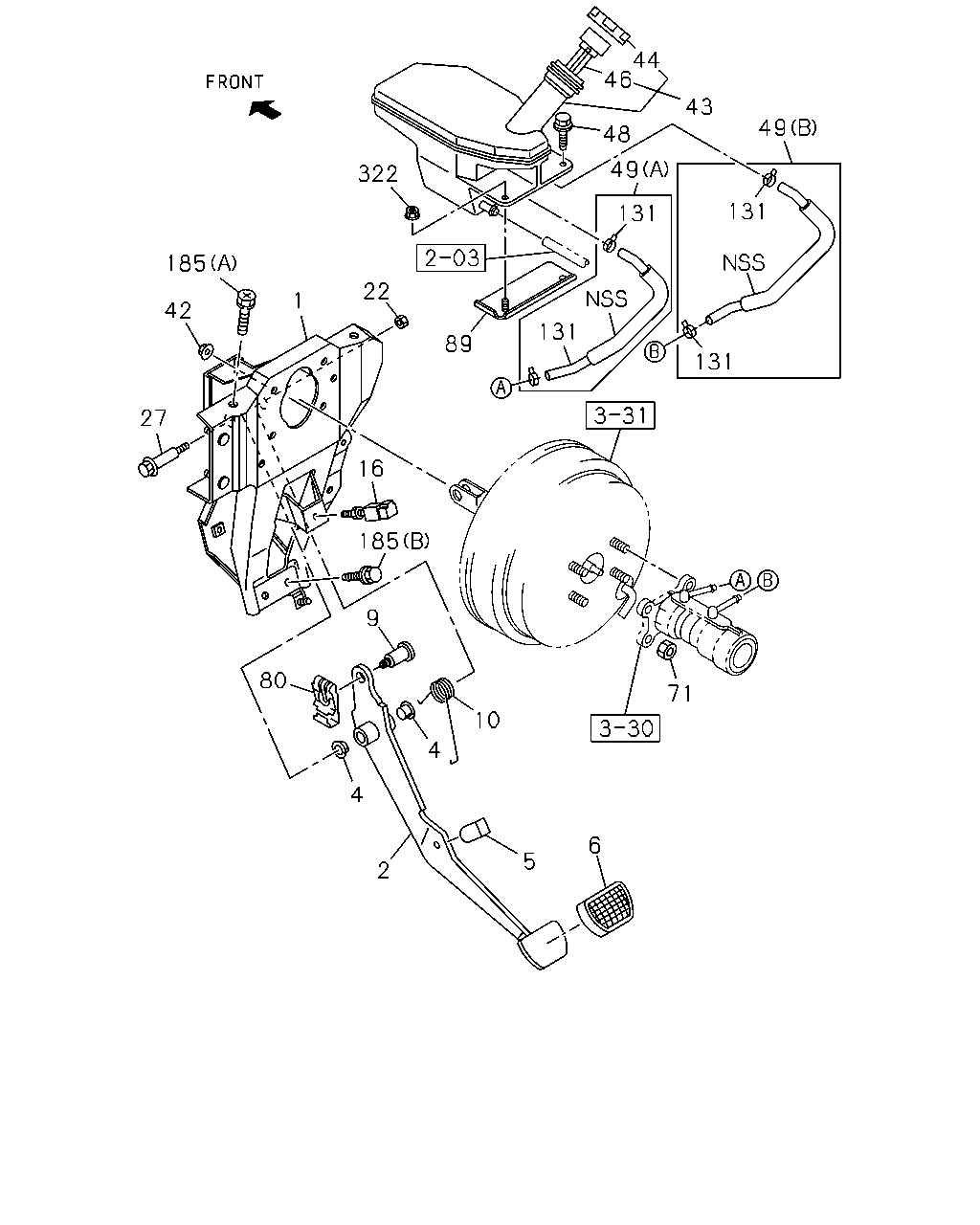

3-10 — BRAKE PEDAL AND CONTROL
(#38070) — 24 parça
44
46
43
49
48
49
322
131
131
185
22
1
42
131
89
131
27
16
185
9
80
71
10
4
4
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.634 BRACKET ASM; PEDAL
8-98008-271-2
01
1
1202-
2
04.625 PEDAL; BRK
8-97853-210-3
01
1
1202-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
1202-
5
04.634 STOPPER; BRK PEDAL
8-97853-602-1
01
1
1202-
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
1202-
9
04.634 PIN; JAW JOINT
8-98147-657-0
01
1
1202-
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
1202-
16
02.447 SWITCH; STOP LAMP
8-98000-028-0
01
1
1202-
22
04.634 NUT; SHAFT
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1202-
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
1202-
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
1202-
43
04.651 TANK ASM; OIL
8-97387-217-3
01
1
1202-
44
04.651 CAP; OIL TANK
8-98022-268-0
01
1
1202-
46
04.651 FILTER; RESERVOIR,BRK
8-98022-269-0
01
1
1202-
48
04.651 BOLT; OIL TANK TO BRKT
08.077 M6X20 W/PL WASHER
8-97370-668-0
01
1
1202-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(A)
8-98002-011-2
01
1
1202-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(B)
8-98002-012-3
01
1
1202-
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
1202-
80
04.634 PIN; SNAP,BRK PEDAL
00.833
8-98007-161-0
01
1
1202-
89
04.901 BRACKET; M/CYL
8-98014-337-1
01
1
1202-
131
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
8-98031-178-0
04
1
1202-
185
04.634 BOLT; BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
02
1
1202-
185
04.634 BOLT; BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
02
1
1202-
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE
0-91180-106-0
01
1
1202-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
