Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#3807) — 420 parça

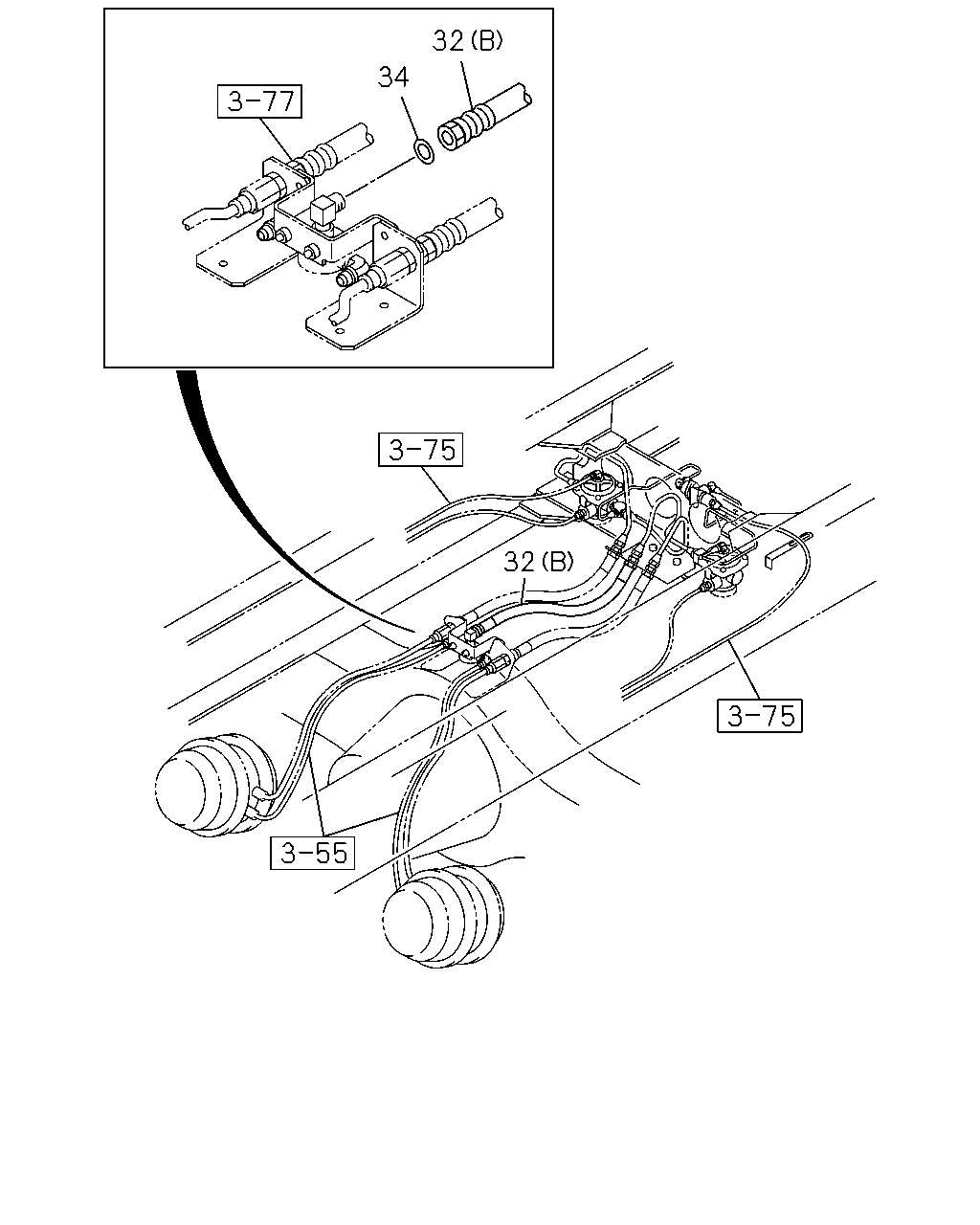

32 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0004	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=630	0-07475-630-1	02	1	9804-0004		●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0004	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=610	0-07807-610-1	01	1	9804-0004		●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9601-9803	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9804-0004	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9804-0004		●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-	●	●

98 98 24 25 37 98 98 98 26 24 98 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49113-326-0	01	1	9601-0004	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-326-0	01	1	0005-	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49113-324-0	01	1	9601-0004	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49113-324-0	01	1	0005-0301	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-49124-019-0	01	1	0302-	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42	9-09233-010-1	02	1	9601-0004	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 L=42	9-09233-010-1	02	1	0005-0607	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=332	1-49113-325-0	01	1	9601-0004	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-325-0	01	1	0005-	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=332	1-49113-327-0	01	1	9601-0004	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=332	1-49113-327-0	01	1	0005-	●	●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0004	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●

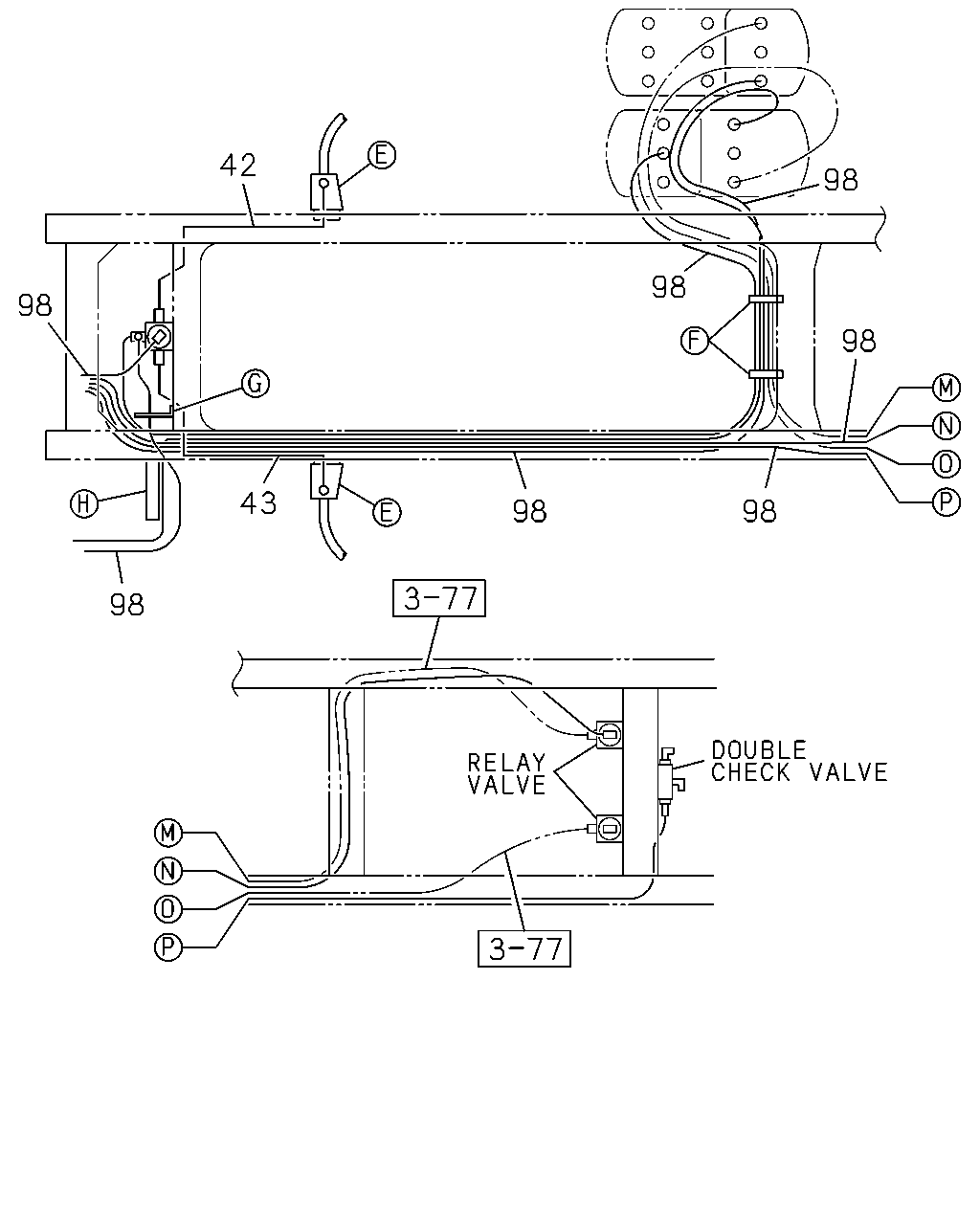

42 98 98 98 98 43 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9705	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9706-9806	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9706-9806		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9807-0004	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	9807-0004		●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0607	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0608-	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0608-		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9601-9705	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9706-9806	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9706-9806		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9807-0004	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	9807-0004		●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0005-0607	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0608-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) L=1194 SERVICED BY L=1250	1-47426-388-0	01	1	0608-		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0004	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●

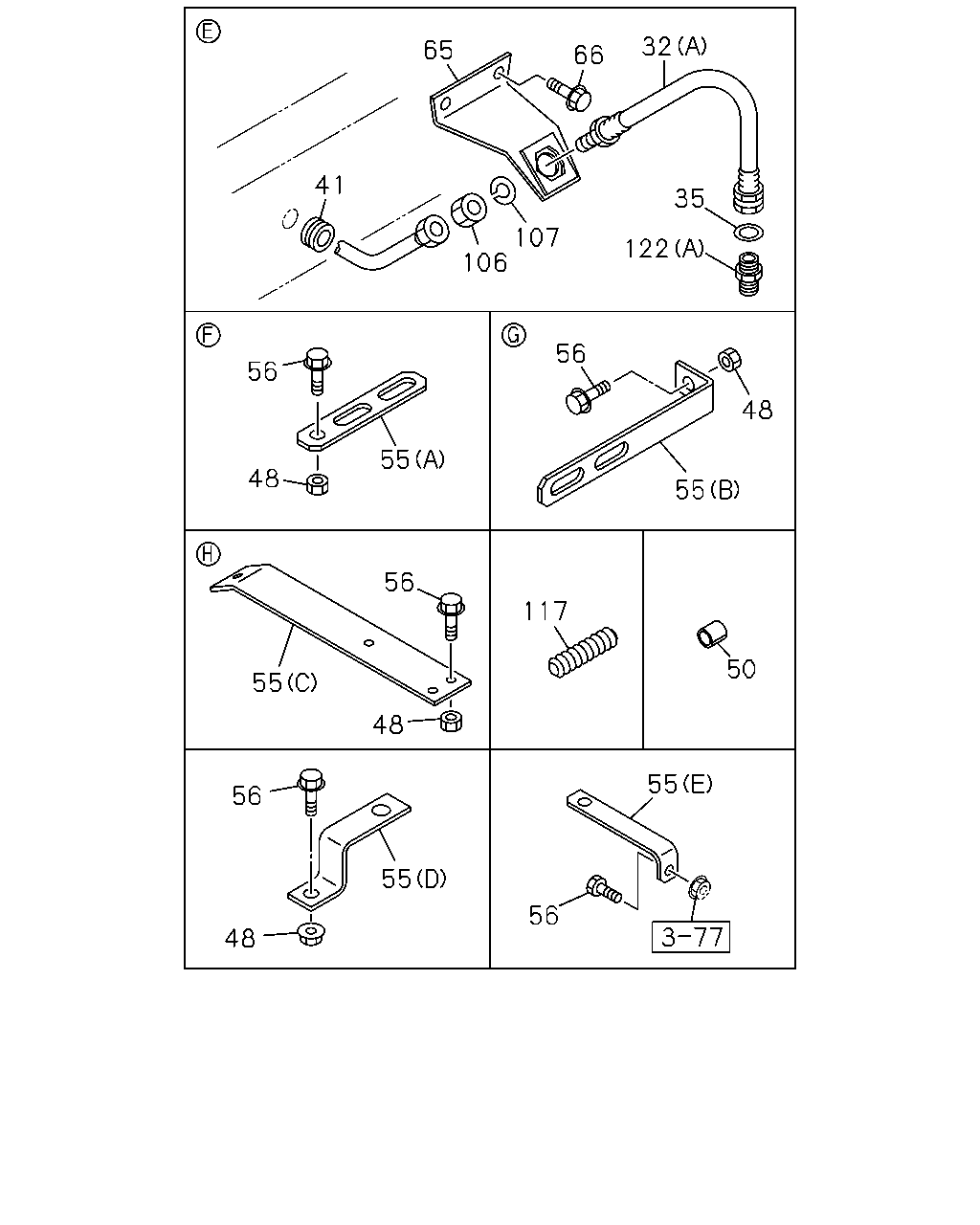

32 65 66 41 35 107 106 122 56 56 48 55 48 55 56 117 50 55 48 55 56 55 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=630	0-07475-630-1	02	1	9601-9803	●	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	9804-0004	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=630	0-07475-630-1	02	1	9804-0004		●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=610	0-07807-610-1	01	1	9601-9803	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	9804-0004	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=610	0-07807-610-1	01	1	9804-0004		●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●	●
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9804-0004	●
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9804-0004		●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-	●	●
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9803	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9804-0004	●
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9804-0004		●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-	●	●
48	NUT; UNION BRKT M8	9-09110-408-0	04	1	9601-9606	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9601-9606		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9704	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9607-9704		●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9705-9905	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9906-0004	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	0005-0105	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0106-0106	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0106-0112	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0201-0201	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0202-0602	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0104	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0105-0105	●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0106-0106		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0106-0602		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0603-		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0106-0112	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0202-0602	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	03	1	0603-0607	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	03	1	0608-	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0608-		●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9705-9705	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9806	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9706-9806		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9807-9905	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9807-9905		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0104		●
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3060P A/T(Y4G) ID=29 OD=39 L=40	1-09337-013-0	02	1	0105-		●
55	BRACKET; TUBE UNION (C)	1-47477-650-0	01	1	9601-9803	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-650-0	01	1	9601-9803		●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-650-0	01	1	9804-0004	●	●
55	BRACKET; TUBE UNION (C)	1-47477-650-0	01	1	0005-	●	●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-2	03	1	9601-9704	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	9705-9806	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	9705-9806		●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	9807-0004	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	02	1	9807-0004		●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	0005-0607	●	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47477-514-3	02	1	0608-	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A)	1-47477-514-3	02	1	0608-		●
55	BRACKET; TUBE UNION 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-1	01	1	9601-9704	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (E) L=60 H=30	1-47477-716-1	01	1	0202-	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-514-3	01	1	9601-0004	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-47477-514-3	01	1	0005-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (A)	1-47477-514-3	01	1	0005-		●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=225	1-47477-646-3	01	1	9601-0004	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=225	1-47477-646-3	01	1	0005-0105	●	●
55	BRACKET; TUBE UNION (B) L=225	1-47477-646-3	01	1	0106-	●	●
55	BRACKET; TUBE UNION A/T<X9D> (D)	1-47477-908-1	01	1	0005-		●
55	BRACKET; TUBE UNION ALLISON MD3060P A/T(Y4G) (B) L=100 H=30	1-47477-645-2	01	1	0105-		●
56	BOLT; UNION BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606		●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9704	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9607-9704		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9705-9905	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9906-0004	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	02	1	0005-0104	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105	●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	02	1	0105-0105		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0106-0106	●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	02	1	0106-0106		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28181-016-0	02	1	9601-9803	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16 FLANGE	0-28181-016-0	02	1	9601-9803		●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16 FLANGE	0-28181-016-0	02	1	9804-0004	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28181-016-0	02	1	0005-0512	●	●
56	BOLT; UNION BRKT M10X16 FLANGE	0-28151-016-0	02	1	0601-	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	03	1	0106-0512	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	03	1	0601-0607	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	03	1	0608-	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X25 FLANGE	0-28650-825-0	03	1	0608-		●
56	BOLT; UNION BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9705-9705	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9706-9806	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9706-9806		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9807-9905	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9807-9905		●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0202-0512	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0005-0104		●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512		●
56	BOLT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	9601-9803	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9804-0004	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	9804-0004		●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0005-	●	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	9601-9803	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9804-0004	●
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	9804-0004		●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0005-	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9601-9602	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 FLANGE	0-28080-812-0	04	1	9603-0004	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0005-0512	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801		●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9802-9803		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9601-0004		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9601-9803	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0004	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9804-0004		●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9601-0004		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0004	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9804-0004		●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0610-		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0608-0609		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0608-0609		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0610-0612		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0610-0612		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0608-0609		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0610-0612		●
117	TUBE; CORRUGATE 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0608-0612		●
117	TUBE; CORRUGATE 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0701-		●
117	TUBE; CORRUGATE 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	0701-		●
117	TUBE; CORRUGATE L=2000 ID=10	1-87410-088-0	AR	1	9601-9803	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9804-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9804-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0608-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0608-	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-0004	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=35	1-09660-039-0	02	1	9601-0004		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	0005-0211	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0212-0609	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0610-	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09656-700-0	01	1	9601-9811	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-	●	●

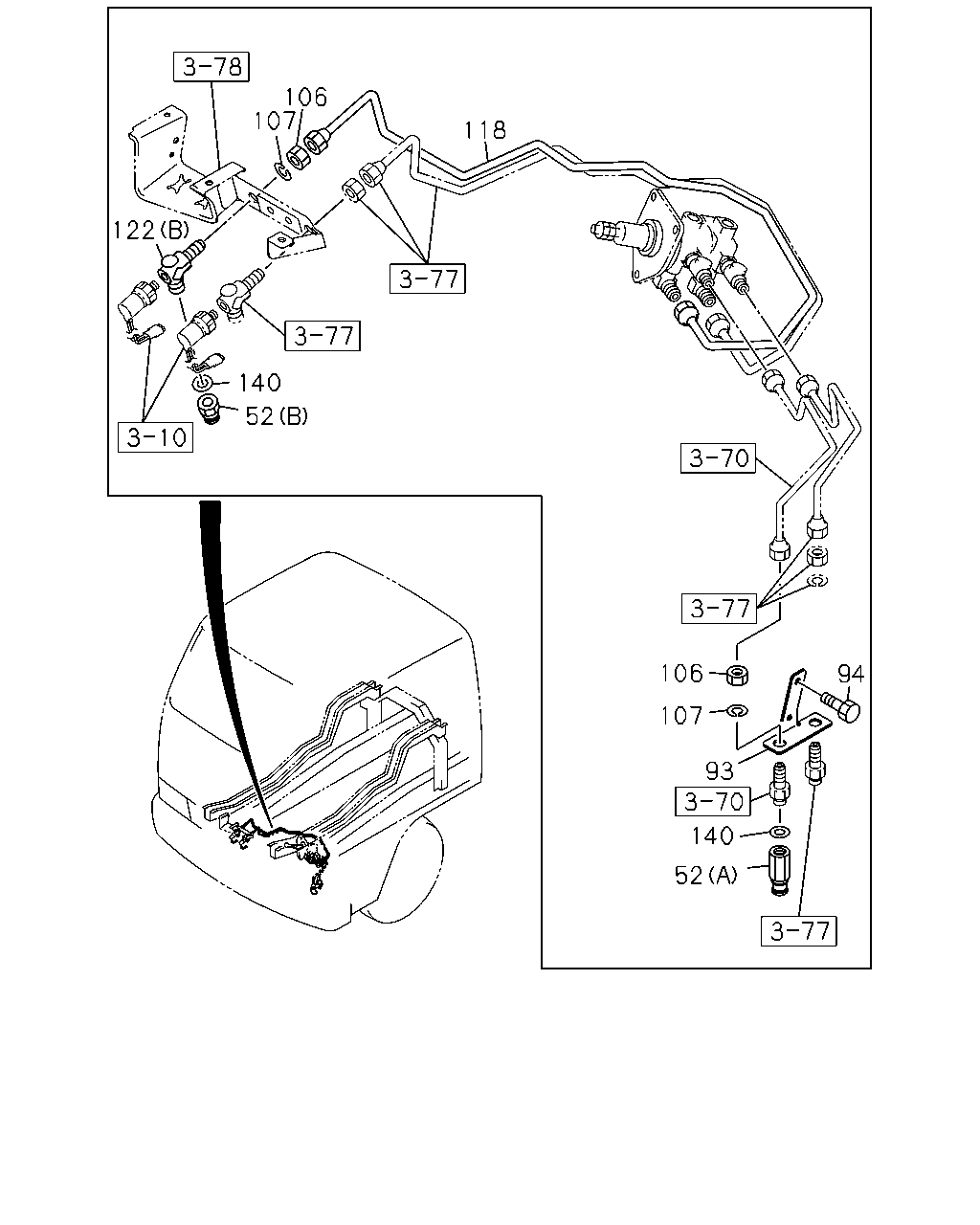

106 107 118 122 140 52 106 94 107 93 140 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE (A),(B)	1-09660-728-1	02	1	9601-9803	●	●
52	CONNECTOR; NYLON TUBE (B)	1-09660-728-1	01	1	9804-9811	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
52	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-0007	●	●
52	CONNECTOR; NYLON TUBE (A),(B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
52	CONNECTOR; NYLON TUBE (A),(B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
93	BRACKET; UNION,TUBE	1-71996-119-0	01	1	9601-	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0904	●	●
94	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9601-0004	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9601-0004		●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0512	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-	●	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9601-9803	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9804-0004	●
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9804-0004		●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9601-0004	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9601-0004		●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-	●	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9601-9803	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9804-0004	●
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9804-0004		●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=1303	1-49116-437-0	01	1	9601-0004	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=989	1-49121-666-0	01	1	0005-	●	●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	9601-0004	●
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=35	1-09660-039-0	02	1	9601-0004		●
122	CONNECTOR; FLEX HOSE (A) L=35	1-09660-039-0	02	1	0005-0211	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0212-0609	●	●
122	CONNECTOR; FLEX HOSE HUB LUBRICATION OIL BATH<C5K> (A) L=35	1-09660-039-0	02	1	0610-	●	●
122	CONNECTOR; FLEX HOSE (B)	1-09656-700-0	01	1	9601-9811	●	●
122	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9804-9811	●	●

87 76 1 5 98 98 98 66 75 76 5 48 68 120 2 98 75 98 36 3 77 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49115-523-0	01	1	9601-9803		●
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09660-807-2	01	1	9601-9803		●
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW	9-09235-210-1	02	1	9601-9803		●
3	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2804 SERVICED BY L=3000	1-47426-397-0	01	1	9601-9605		●
5	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2804 SERVICED BY L=2900	1-47426-425-0	01	1	9606-9803		●
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9601-9606		●
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9803		●
48	NUT; UNION BRKT M8	9-09110-408-0	04	1	9601-9606	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9601-9606		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9704	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9607-9704		●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9705-9905	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9906-0004	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	03	1	0005-0105	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0106-0106	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0106-0112	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	03	1	0201-0201	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	04	1	0202-0602	●	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0104	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0105-0105	●	●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0105-0105		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	02	1	0106-0106		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0106-0602		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0603-		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0106-0112	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	03	1	0202-0602	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	03	1	0603-0607	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	03	1	0608-	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0608-		●
48	NUT; UNION BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9705-9705	●	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9806	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9706-9806		●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9807-9905	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9807-9905		●
48	NUT; UNION BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0104		●
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9601-9602	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 FLANGE	0-28080-812-0	04	1	9603-0004	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0005-0512	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801		●
66	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9802-9803		●
68	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-487-2	01	1	9601-9803		●
75	BRACKET; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-642-2	01	1	9601-9803		●
76	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2667 SERVICED BY L=2900	1-47426-425-0	01	1	9601-9803		●
77	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9802-9803		●
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49115-524-0	01	1	9601-9803		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0610-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=8000 OD=12	1-87411-014-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0608-0609		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0610-0612		●
98	TUBE; NYLON 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON 6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) SERVICED BY L=12000 OD=12	1-87411-015-0	01	1	0701-		●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-0004	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9601-0105	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	9601-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09660-807-2	01	1	9601-9803		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
