Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
2 - Clutch, Transmission, Trans Axle
▶

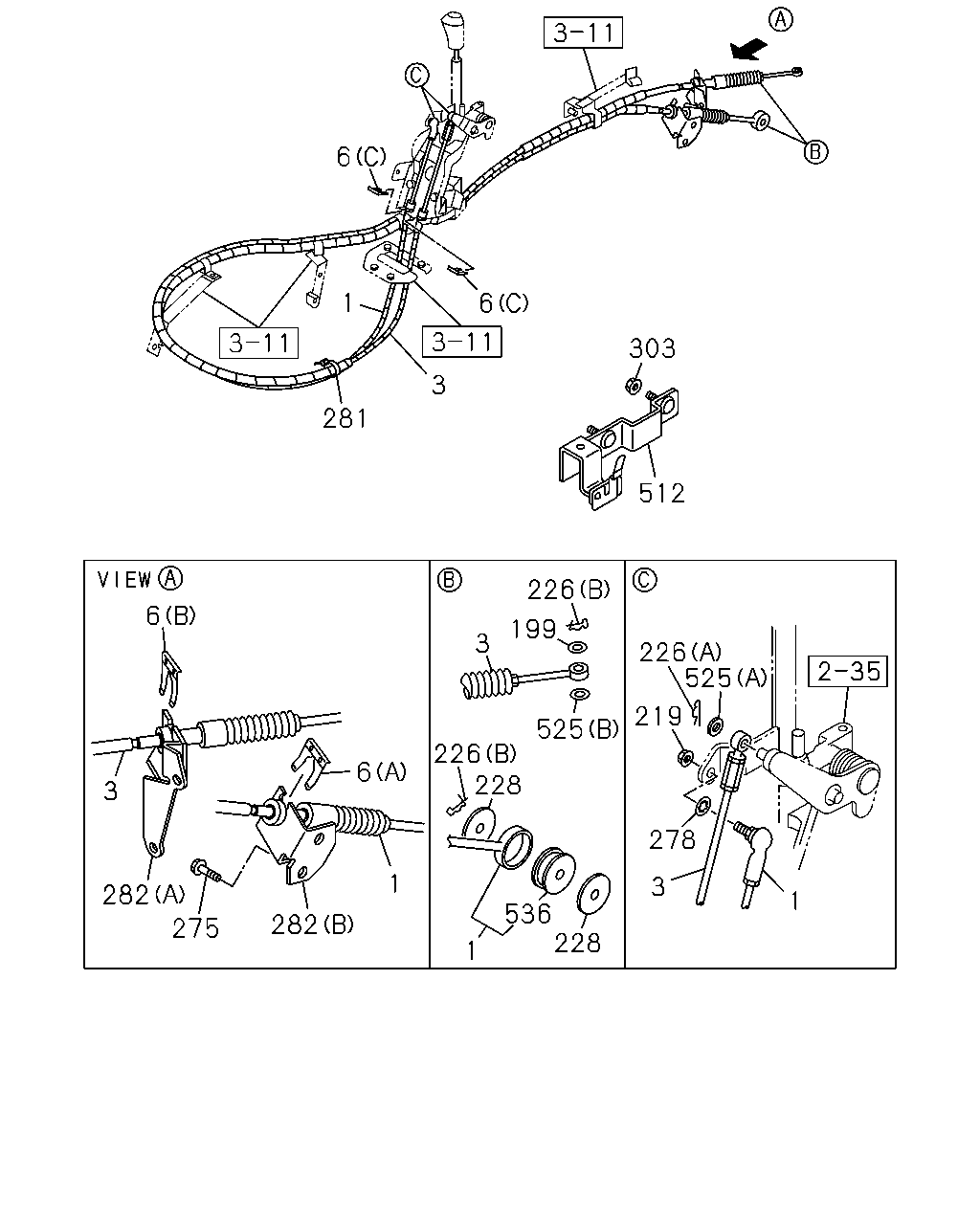

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#38066) — 22 parça
6
1
6
303
3
281
512
226
6
199
3
226
525
219
525
226
228
6
3
278
1
3
282
1
536
228
282
275
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
L=3095
8-98172-362-1
01
1
1202-1411
1
00.854 CABLE; SHIFT,TRANS CONT
L=3095
8-98292-918-0
01
1
1412-
3
00.852 CABLE; SELECT,TRANS CONT
L=2972
8-98172-372-1
01
1
1202-1411
3
00.852 CABLE; SELECT,TRANS CONT
L=2972
8-98286-137-0
01
1
1412-
6
04.047 CLIP; CABLE
00.854 (A) ID=22.2
1-09701-209-1
01
1
1202-
6
04.047 CLIP; CABLE
(C)
8-97011-448-0
02
1
1202-
6
04.047 CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1202-
199
04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16
0-91610-508-0
01
1
1202-
219
04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0
8-94363-045-0
01
1
1202-
226
04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7
8-94111-137-0
01
1
1202-
226
04.047 PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
1202-
228
04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
1202-
275
04.047 BOLT; CONT CABLE CLIP
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1202-
278
00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1202-
281
04.042 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
1202-
282
04.010 BRACKET; TRANS SIDE
(A)
8-98172-375-0
01
1
1202-
282
04.010 BRACKET; TRANS SIDE
(B)
8-98172-376-0
01
1
1202-
303
00.855 NUT; CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1202-
512
04.012 GUIDE; CABLE,GEAR CONT
8-98111-916-0
01
1
1202-
525
04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16
0-91614-508-0
01
1
1202-
525
04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14
5-09550-002-0
01
1
1202-
536
00.854 DAMPER; CABLE
8-98097-681-0
01
1
1202-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
