Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

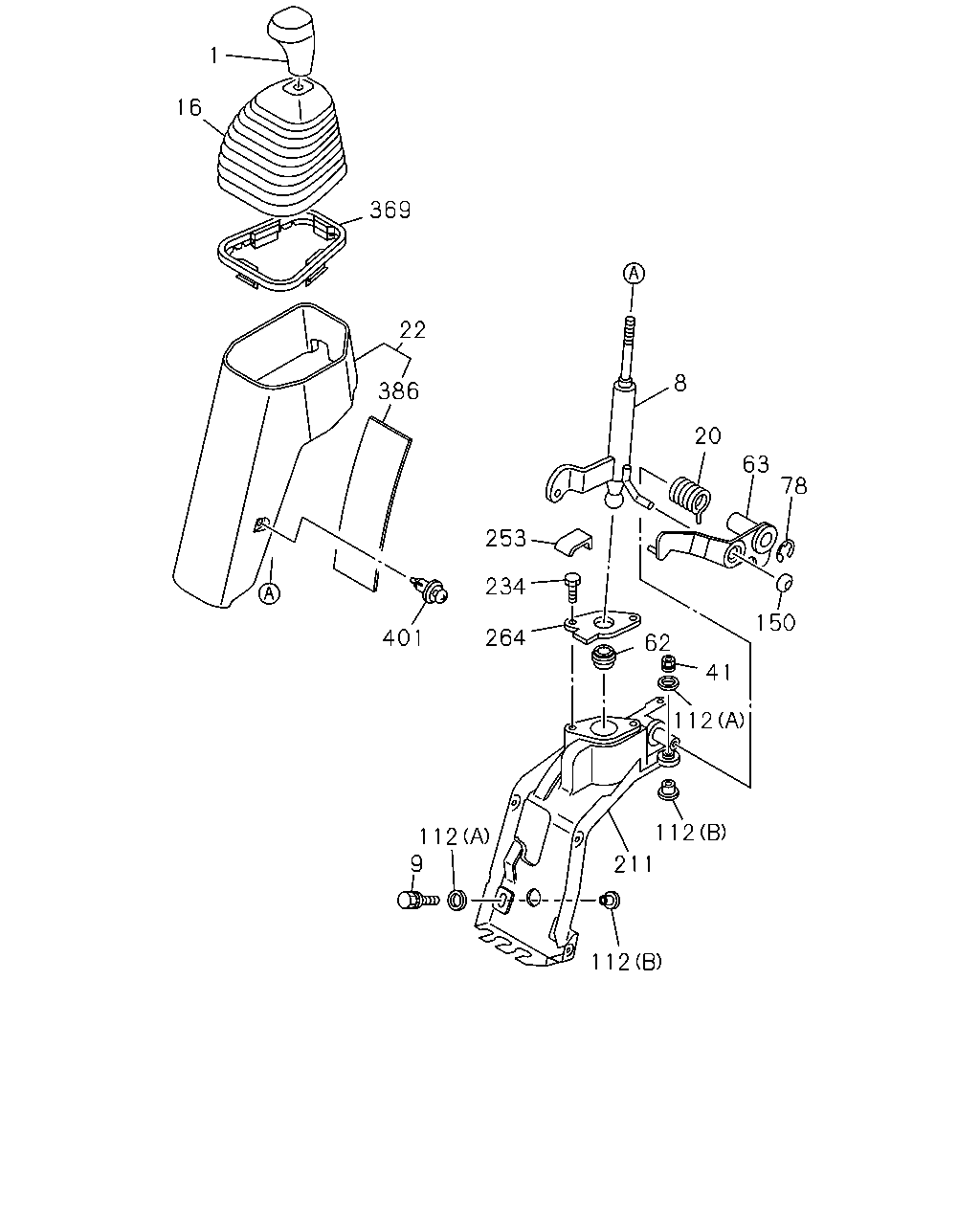

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#38065) — 20 parça
1
16
369
22
8
386
20
63
78
253
234
150
264
401
62
41
112
112
112
9
211
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.006 KNOB; CHANGE LEVER
BLACK
8-97196-285-1
01
1
1202-
8
04.006 LEVER; CHANGE
8-97204-506-0
01
1
1202-
9
04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
1202-
16
04.015 BOOT; CHANGE LEVER
8-98035-063-0
01
1
1202-
20
04.012 SPRING; CHANGE LEVER
8-97204-514-1
01
1
1202-
22
04.015 COVER; DUST,CHANGE LEVER
GRAY
8-97406-176-1
01
1
1202-
41
04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
1202-
62
04.012 SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
1202-
63
04.006 LEVER; RELAY,SELECT
8-97143-199-0
01
1
1202-
78
04.008 RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
1202-
112
04.012 RUBBER; CUSHION
(A)
8-97091-426-0
04
1
1202-
112
04.012 RUBBER; CUSHION
(B)
8-97091-427-0
04
1
1202-
150
04.008 BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
1202-
211
04.010 BRACKET; CHANGE LEVER
8-97204-505-1
01
1
1202-
234
04.010 BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
1202-
253
04.012 STOPPER; CHANGE LEVER
8-97204-510-0
01
1
1202-
264
04.015 PLATE; COVER
8-97204-511-0
01
1
1202-
369
04.012 RETAINER; REINF
8-98032-213-1
01
1
1202-
386
04.015 INSULATION; CHANGE LEVER
8-97867-282-1
01
1
1202-
401
04.012 CLIP; COVER
GRAY
8-97406-179-0
03
1
1202-
