◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#38061) — 33 parça

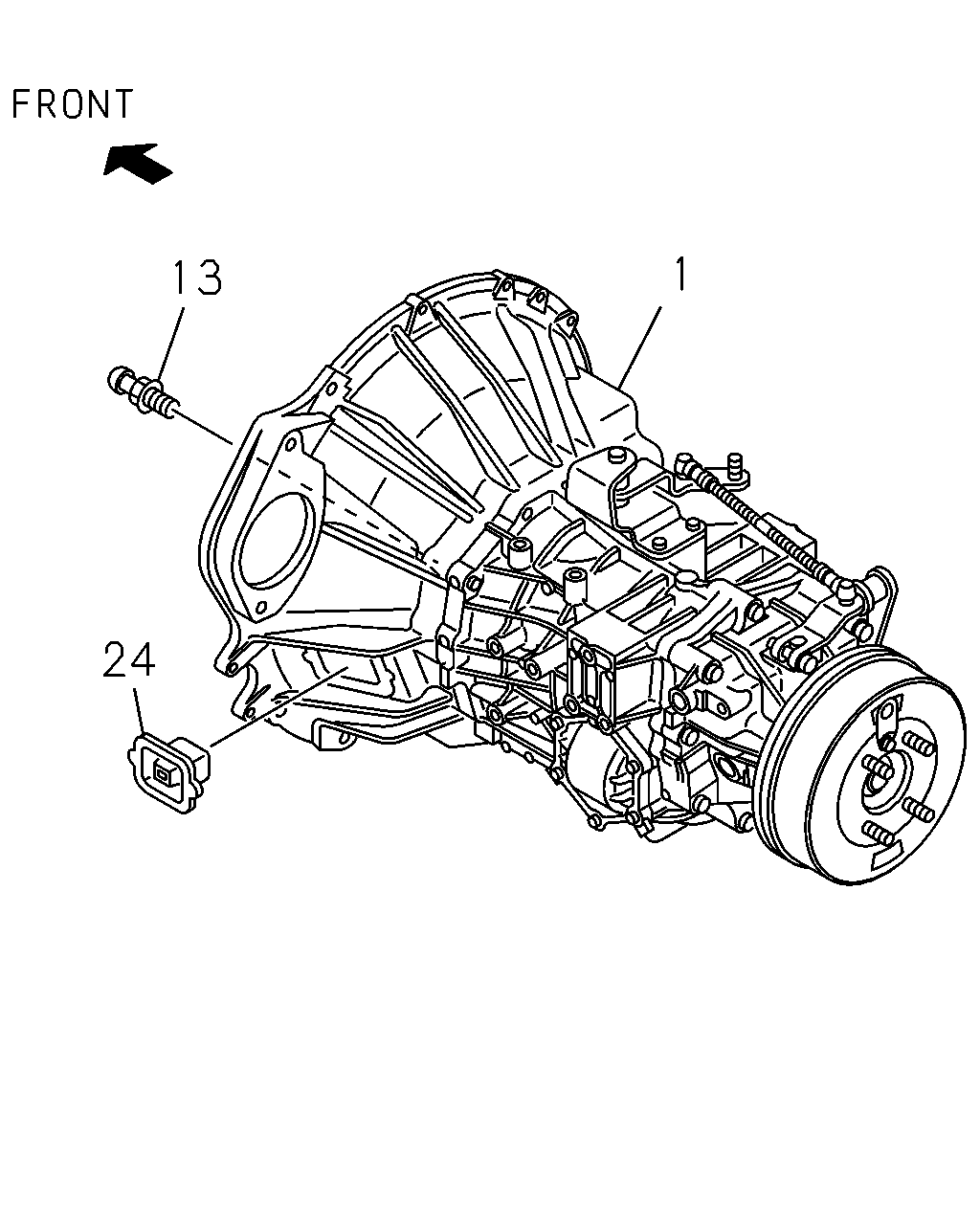

çizim 114931
1 13 24
BalonParca AdiParca NoAdetTipApplied Date
1 04.003 TRANSMISSION ASM; MANUAL 8-98179-757-0 01 1 1202-1505
1 04.003 TRANSMISSION ASM; MANUAL 8-98311-973-0 01 1 1506-
13 04.302 SUPPORT; SHIFT FORK 8-97255-384-1 01 1 1202-
24 00.797 COVER; CHECK HOLE,DUST 8-97255-201-0 01 1 1202-

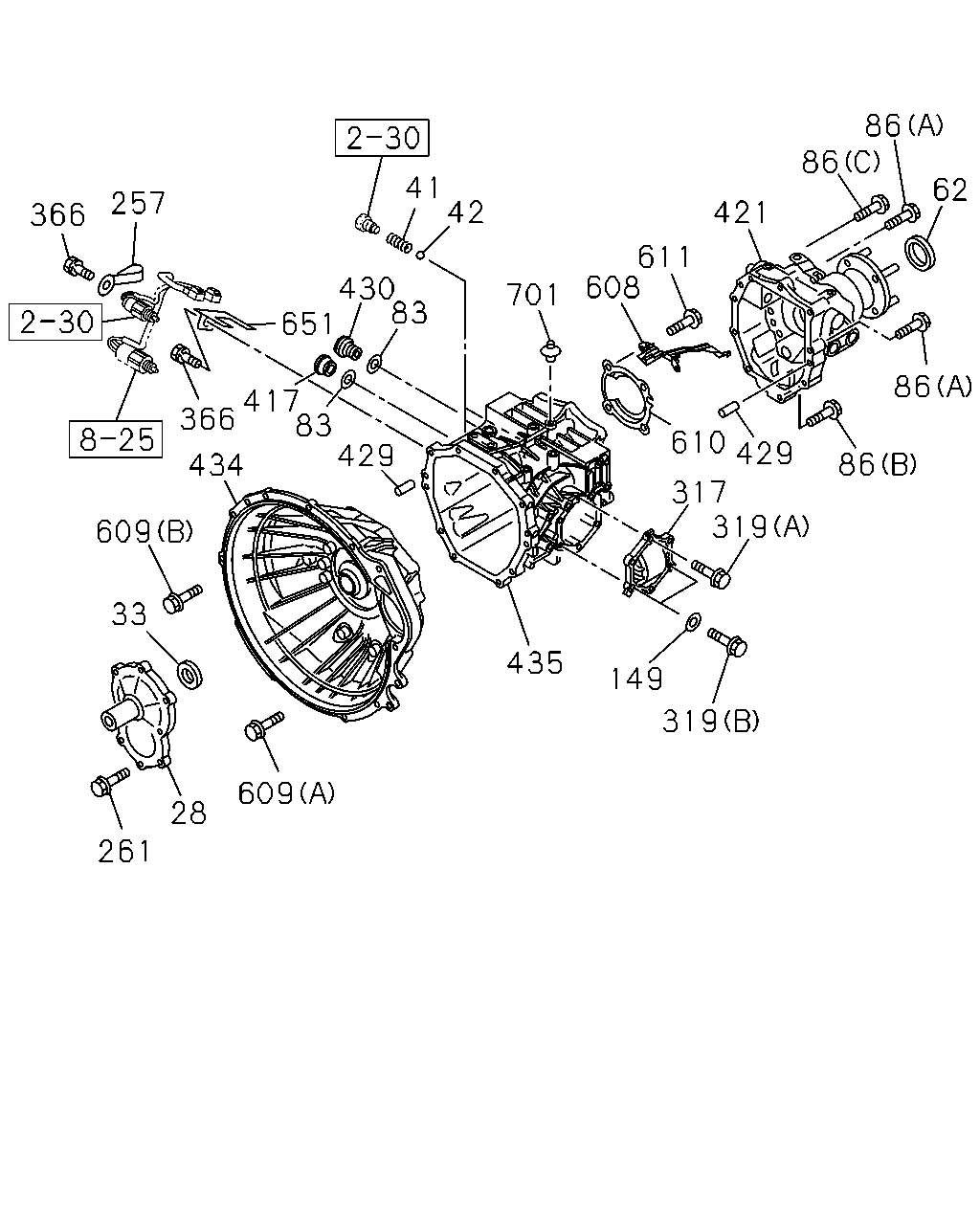

çizim 114938
86 86 41 42 62 257 421 366 611 608 430 83 651 701 86 417 366 83 429 610 429 86 434 317 319 609 33 435 149 319 609 28 261
BalonParca AdiParca NoAdetTipApplied Date
28 04.356 COVER; FRT,TRANS CASE 8-98183-362-0 01 1 1202-
33 04.318 SEAL; OIL,FRT COVER,T/M 8-98184-698-0 01 1 1202-
41 04.311 SPRING; DETENT BALL 8-98184-553-0 03 1 1202-
42 04.311 BALL; DETENT,GEAR SHIFT 8-98184-359-0 03 1 1202-
62 04.318 GASKET; RR COVER 8-98184-560-0 01 1 1202-
83 04.105 GASKET; PLUG 8-98184-544-0 02 1 1202-
86 04.317 BOLT; RR COVER
(A) 		8-98184-542-0 05 1 1202-
86 04.317 BOLT; RR COVER
(B) 		8-98184-570-0 01 1 1202-
86 04.317 BOLT; RR COVER
(C) 		8-98184-571-0 03 1 1202-
149 04.105 WASHER; LK 8-98184-697-0 02 1 1202-
257 02.559 CLIP; HARNESS 8-98184-539-0 01 1 1202-
261 04.109 BOLT; COVER 8-98184-695-0 08 1 1202-
317 04.109 COVER; CASE 8-98184-685-0 01 1 1202-
319 04.109 BOLT; COVER
(A) 		8-98184-695-0 04 1 1202-
319 04.109 BOLT; COVER
(B) 		8-98184-696-0 02 1 1202-
366 04.105 BOLT; BRKT,HARNESS 8-98184-541-0 02 1 1202-
417 04.105 PLUG; OIL FILLER,TRANS 8-98184-545-0 01 1 1202-
421 04.317 COVER; RR,TRANS 8-98183-364-0 01 1 1202-
429 04.105 PIN; STRAIGHT 8-98184-349-0 04 1 1202-
430 04.105 PLUG; OIL DRAIN 8-98184-543-0 01 1 1202-
434 00.683 HOUSING; CLU 8-98183-361-0 01 1 1202-
435 04.103 CASE; TRANS 8-98183-363-0 01 1 1202-
608 04.317 GUTTER; OIL 8-98184-548-0 01 1 1202-
609 04.104 BOLT; HSG TO CASE
04.317 (A) 		8-98184-542-0 02 1 1202-
609 04.104 BOLT; HSG TO CASE
(B) 		8-98184-699-0 08 1 1202-
610 04.412 RETAINER; BRG 8-98184-546-0 01 1 1202-
611 04.104 SCREW 8-98184-533-0 04 1 1202-
651 04.105 BRACKET; T/M HARNESS 8-98184-538-0 01 1 1202-
701 04.105 BREATHER 8-98184-701-0 01 1 1202-
