◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#3806) — 2140 parça

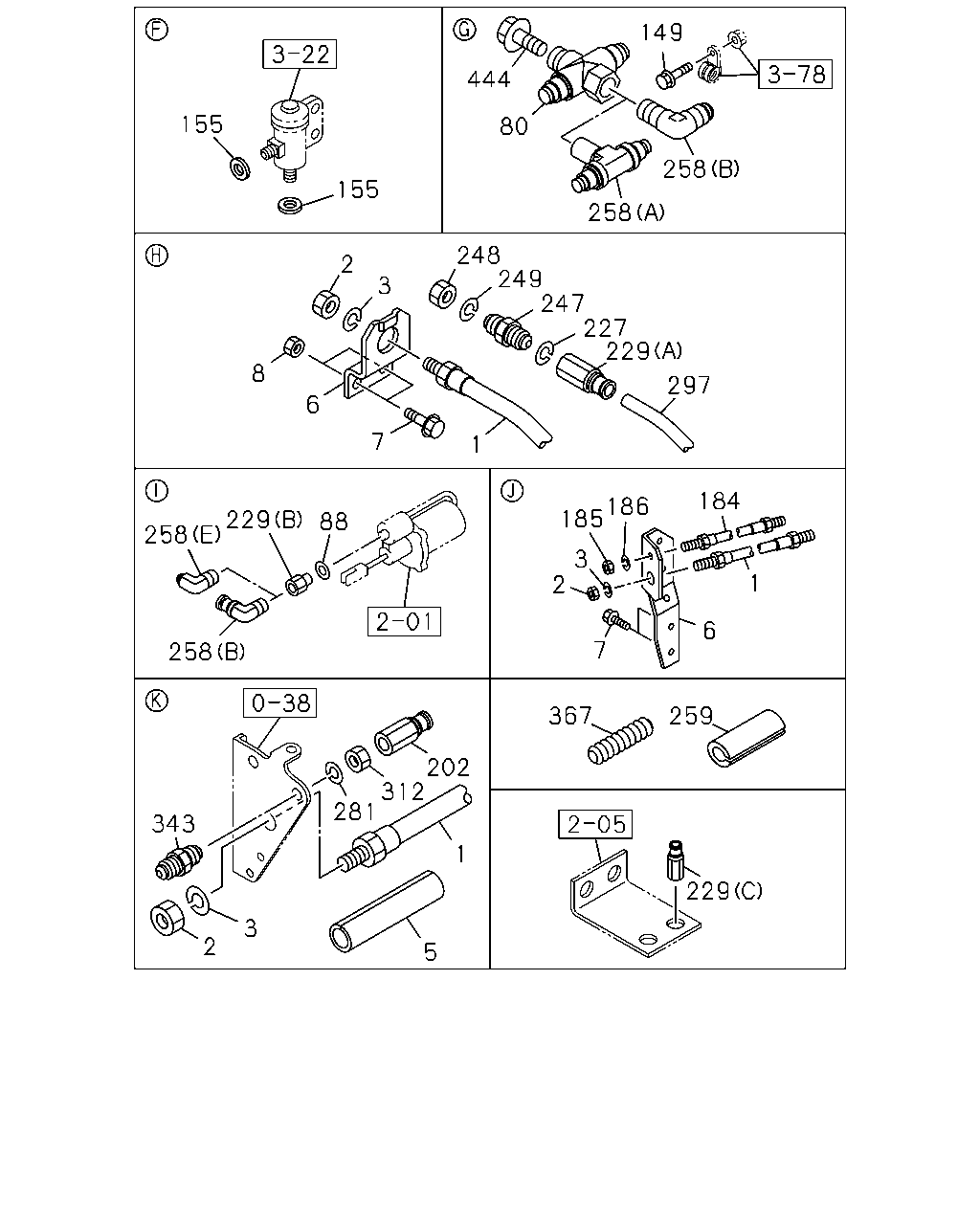

çizim 6874
149 444 155 80 258 155 258 248 249 247 227 229 2 3 8 297 6 7 1 184 186 185 229 258 88 3 2 1 6 7 258 367 259 202 312 281 343 1 229 3 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9601-9705 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9601-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
2 NUT; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M22 		9-09111-422-0 01 1 9609-9701 ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M22 		9-09111-422-0 01 1 9609-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9608 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		9-99111-420-0 01 1 9601-0004 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) ID=22.5 		9-09150-522-0 01 1 9609-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=22.5 		9-09150-522-0 01 1 9609-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9608 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2 		9-09150-520-0 01 1 9601-0004 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 9604-1102 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1103- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9601-9609 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0305-0607 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0608- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) 		1-47478-864-0 01 1 0608- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-693-1 01 1 9601-0004 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-47476-693-2 01 1 0005- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0607 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28650-830-0 02 1 0608- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X30 FLANGE 		0-28650-830-0 02 1 0608- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 9607-0004 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9601-9606 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-0004 ●
80 UNION; 3 WAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-0004 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005- ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-0004 ● ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
88 GASKET; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005- ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512 ● ●
149 BOLT; TUBE CLIP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9804-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=330 		1-09363-584-0 01 1 9601-9606 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-9806 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9807-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0607 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9601-9609 ● ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9601-9609 ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 0005-0607 ● ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 0608- ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12 		9-09840-280-0 01 1 0608- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9601-9609 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●

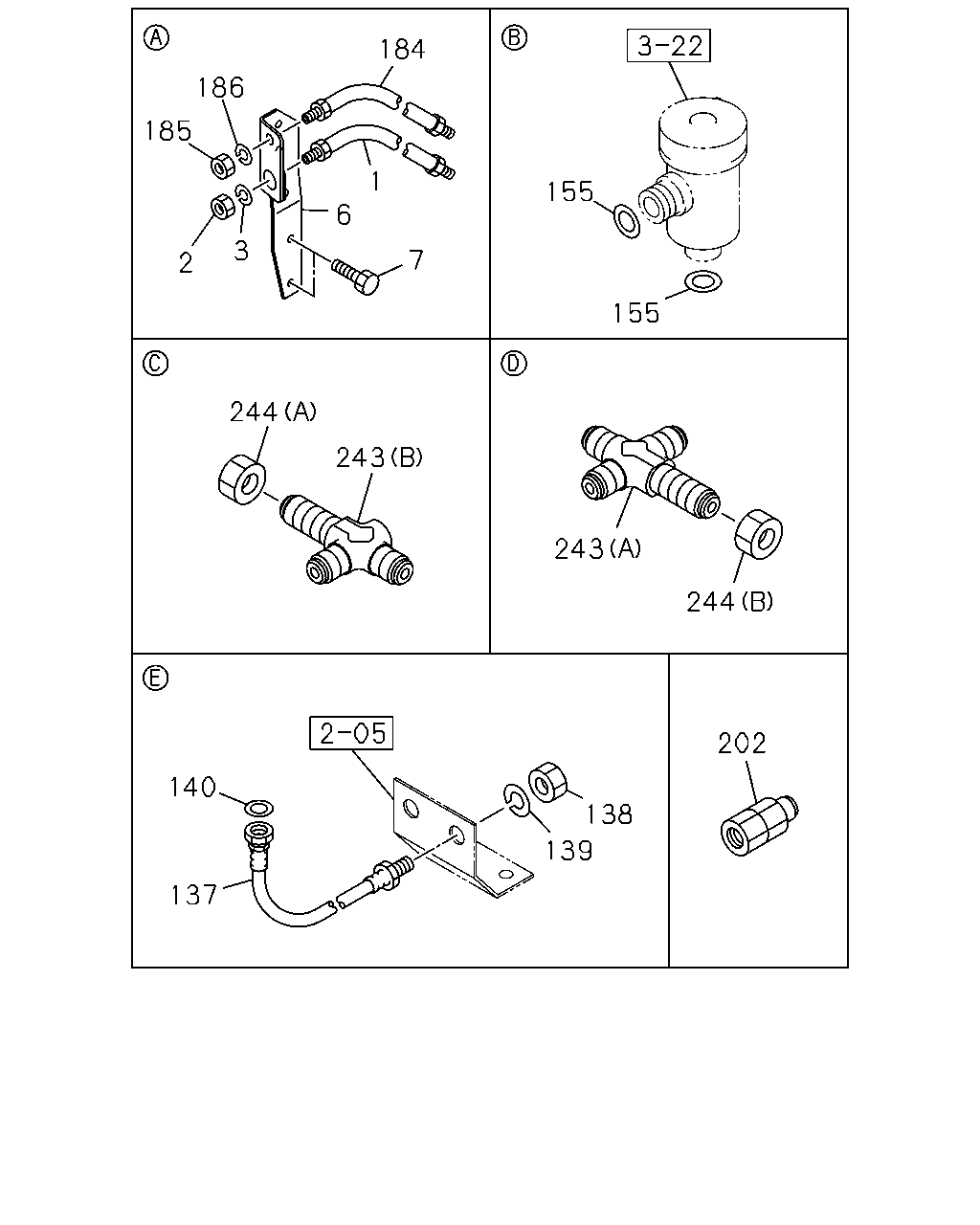

186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		0-91510-512-0 01 1 0604-0607 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		0-91510-512-0 01 1 0608- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=12.2 		0-91510-512-0 01 1 0608- ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9803 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 9804-9804 ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9804-0004 ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9601-0004 ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
227 WASHER; LK,UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		0-91510-512-0 01 1 0604- ● ●

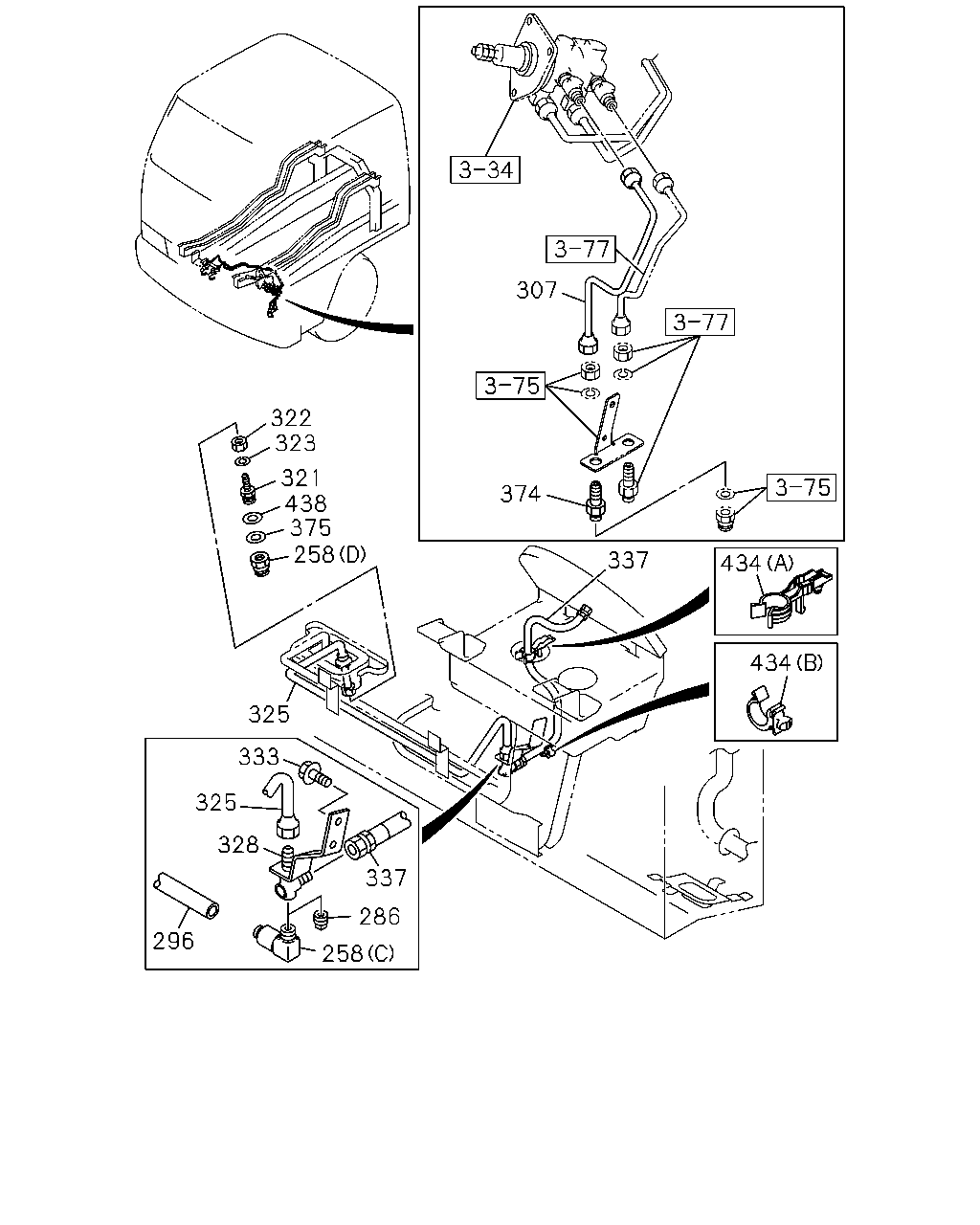

229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-0004 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0005-0005 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 		9-48319-149-0 01 1 9601-0004 ● ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404- ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9610-9705 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9806 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9706-9806 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9807-0004 ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9807-0004 ●
229 ADAPTER; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0607 ● ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0608- ●
229 ADAPTER; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0608- ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 02 1 9601-9803 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		9-09223-306-1 02 1 0005-0607 ● ●
247 UNION; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 L=66.5 		0-92113-306-0 02 1 0608- ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 02 1 9601-9803 ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9804-0004 ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 02 1 0005-0604 ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 01 1 0605- ● ●
248 NUT; PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12 		9-09840-280-0 01 1 0605- ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9601-0004 ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
249 WASHER; LK,PIPE UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.2 		0-91510-512-0 01 1 0604- ● ●

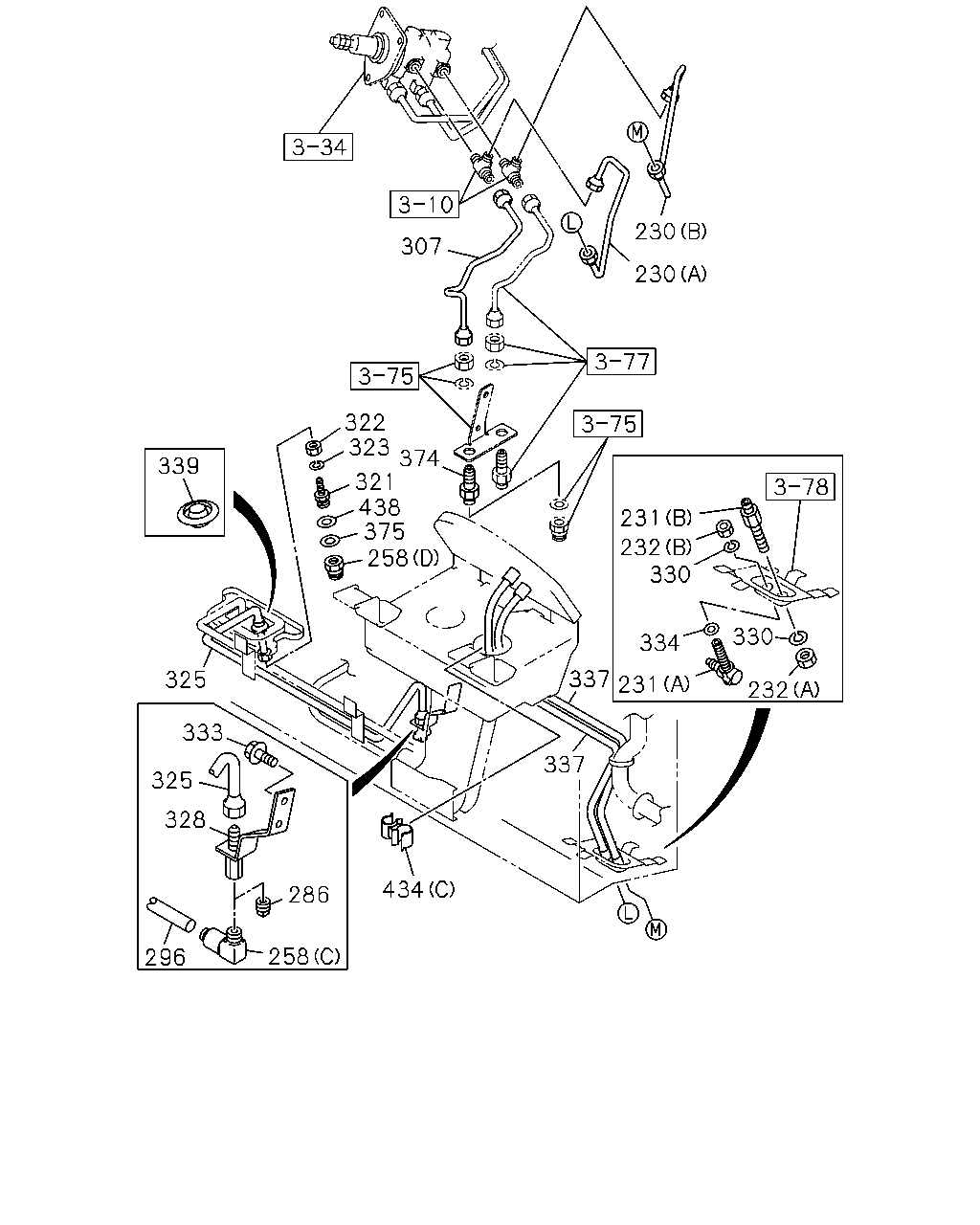

258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0607 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9601-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-0607 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9611-9804 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9611-9804 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9805-9806 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9805-9806 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9807-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 02 1 9807-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005-0104 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0007-0607 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0608- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0608- ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0009-1102 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1103- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9602 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 01 1 9603-9610 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9803 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9803 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 03 1 9804-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0104 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0607 ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0607 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0105-0607 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0608- ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0608- ●
259 SLEEVE; RUBBER,NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0608- ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 04 1 9611-0004 ●
259 SLEEVE; RUBBER,NYLON TUBE
6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=29 OD=39 L=40 		1-09337-013-0 04 1 0005-0607 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 04 1 0608- ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9601-9803 ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) EXHAUST BRAKE<NF8> ID=12.2 		9-09150-512-0 01 1 9804-0004 ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		0-91510-512-0 01 1 0604- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0701-1102 ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> A/T<X9D> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ALLISON MD3060P A/T(Y4G) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) PTO CONTROL<SV6> EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-0403 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0608-0612 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005- ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9601-9803 ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) EXHAUST BRAKE<NF8> M12 		9-09840-280-0 01 1 9804-0004 ● ●
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 0005- ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9601-9803 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) EXHAUST BRAKE<NF8> M12 L=66.5 		9-09223-306-1 01 1 9804-0004 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 0005-0607 ● ●
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		0-92113-306-0 01 1 0608- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0701- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0701- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9601-0607 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0701- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0404- ● ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9601-9709 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●

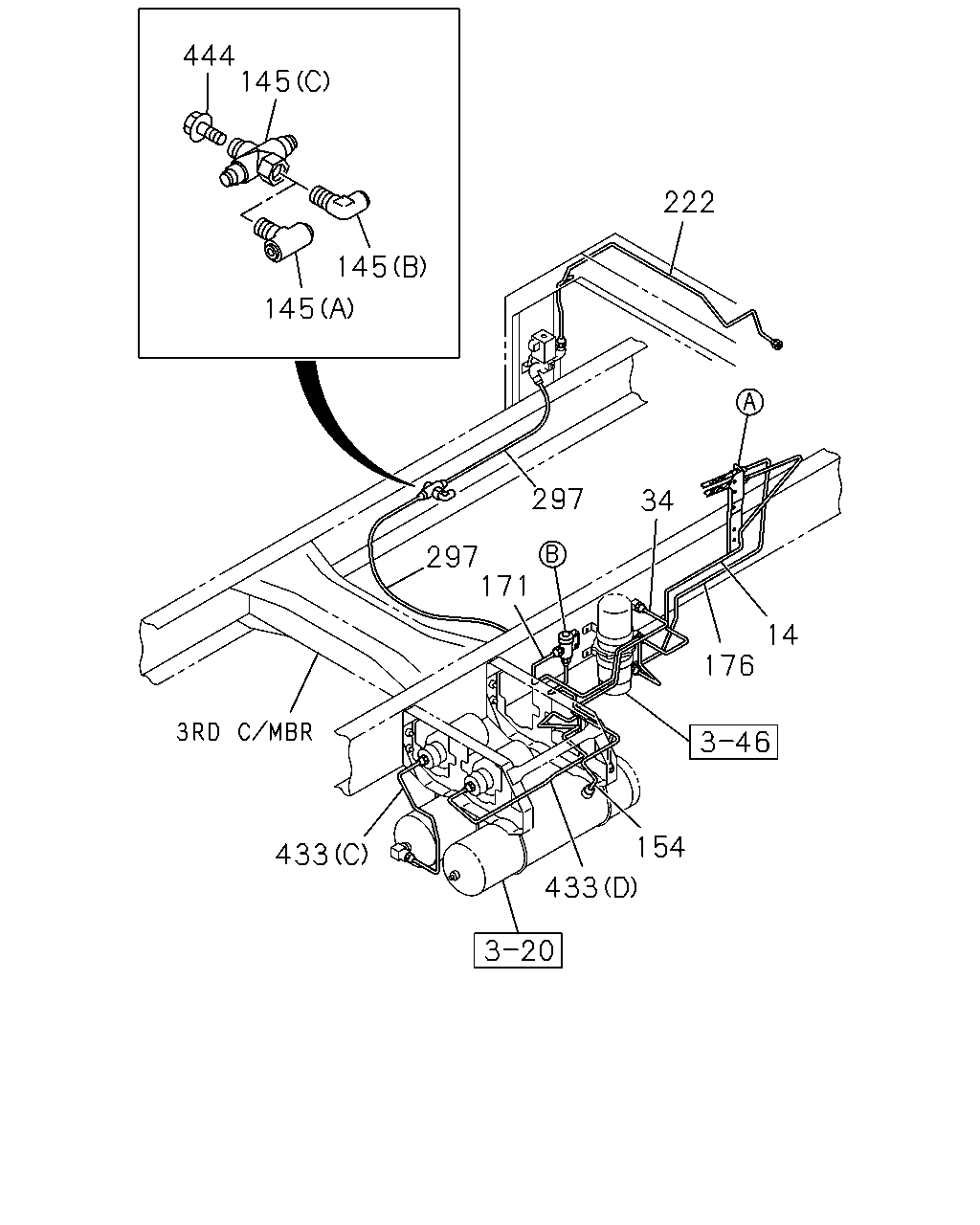

444 BOLT; UNION
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCC ENG(81L) M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCC ENG(81L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 02 1 9710-9803 ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 01 1 9804-0004 ●

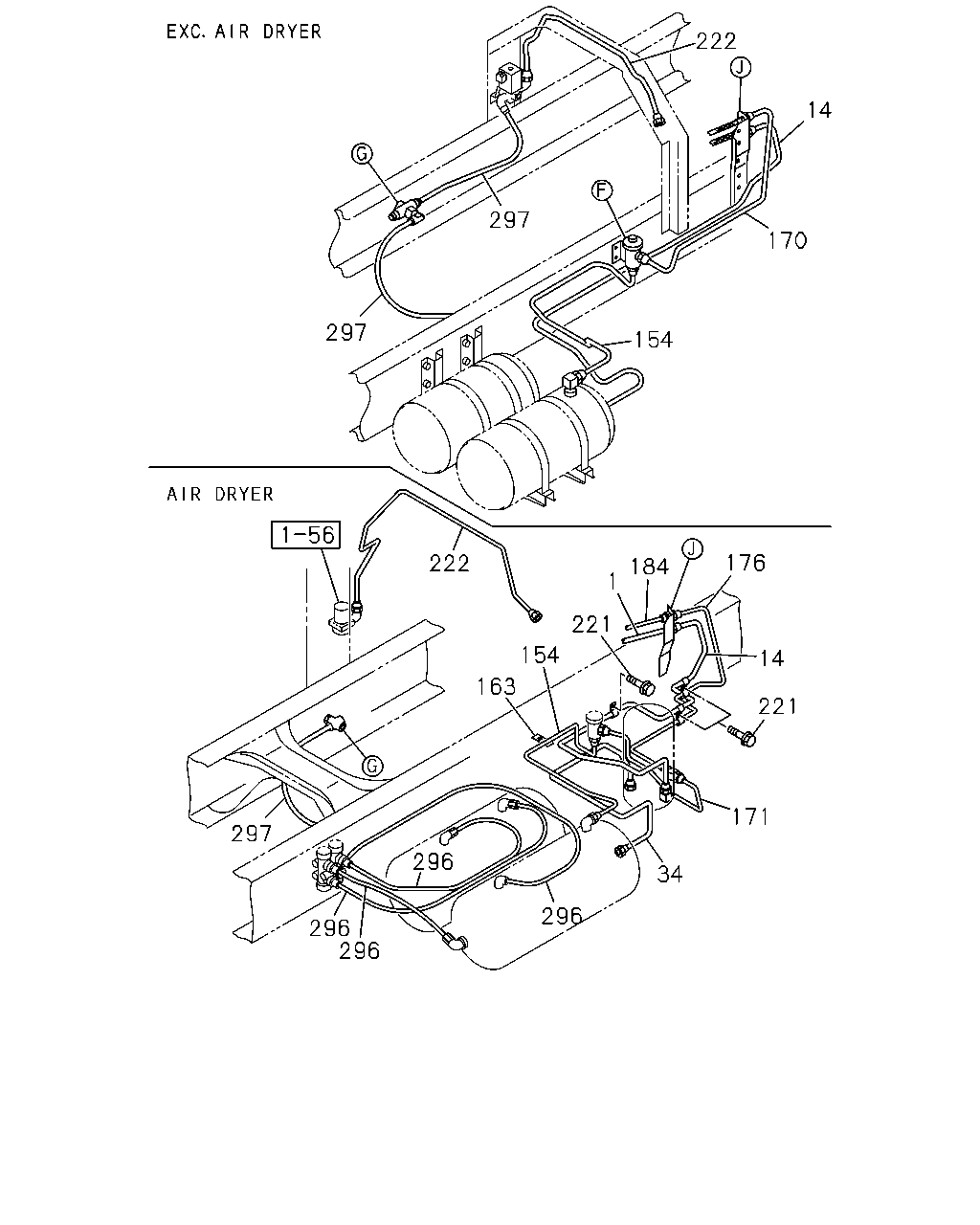

çizim 37377
222 14 297 170 297 154 176 222 184 1 221 154 14 163 221 171 297 296 34 296 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9601-9705 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9601-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49119-220-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-078-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-372-0 01 1 9804-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9804-9804 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-574-0 01 1 9805-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-542-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-174-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49118-407-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49119-130-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-0607 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49118-408-0 01 1 0608- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0701- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-520-0 01 1 9601-9803 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 9804-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49119-129-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-182-1 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0110-0607 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-061-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-528-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-296-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-554-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-153-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49123-062-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-550-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-151-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49123-063-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8 W/NUT 		1-47475-729-0 02 1 9809-0004 ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-47475-427-1 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-189-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0110-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0110-0612 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0701- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-060-0 01 1 0105-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0701- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-529-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-297-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0701- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-885-0 01 1 9601-9804 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-575-0 01 1 9805-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=330 		1-09363-584-0 01 1 9601-9606 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-9806 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9807-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0607 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
221 BOLT; BRKT
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X16 FLANGE 		0-28080-816-0 01 1 9809-0004 ●
221 BOLT; BRKT
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X50 FLANGE 		0-28080-850-0 01 1 9809-0004 ●
221 BOLT; BRKT
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X40 FLANGE 		0-28680-840-0 01 1 9809-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9804-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9601-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9804-9806 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9807-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 0005- ● ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9601-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0004 ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9804-9804 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0701-1102 ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> A/T<X9D> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ALLISON MD3060P A/T(Y4G) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) PTO CONTROL<SV6> EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-0403 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0608-0612 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005- ● ●
çizim 37525
14 154 170 34 154 176 14 171 1 184 297 222 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9601-9705 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9601-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49119-220-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-078-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-372-0 01 1 9804-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9804-9804 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-574-0 01 1 9805-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-542-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-174-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49118-407-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49119-130-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-0607 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49118-408-0 01 1 0608- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0701- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-520-0 01 1 9601-9803 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 9804-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49119-129-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-182-1 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0110-0607 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-061-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-528-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-296-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-554-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-153-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49123-062-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-550-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-151-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49123-063-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-189-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0110-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0110-0612 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0701- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-060-0 01 1 0105-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0701- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-529-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-297-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0701- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-885-0 01 1 9601-9804 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-575-0 01 1 9805-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=330 		1-09363-584-0 01 1 9601-9606 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-9806 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9807-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0607 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9804-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9601-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9804-9806 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9807-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0701-1102 ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> A/T<X9D> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ALLISON MD3060P A/T(Y4G) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) PTO CONTROL<SV6> EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-0403 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0608-0612 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005- ● ●
çizim 37556
34 171 176 14 154 297 154 170 14 297 297 5 297 1 297 297 163
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9601-9705 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9601-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L) L=150 		1-09360-677-1 01 1 9604-1102 ● ●
5 SLEEVE; FLEX HOSE
ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1103- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49119-220-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-078-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-372-0 01 1 9804-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9804-9804 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-574-0 01 1 9805-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-542-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-174-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49118-407-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49119-130-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-0607 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49118-408-0 01 1 0608- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0701- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-520-0 01 1 9601-9803 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 9804-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49119-129-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-182-1 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0110-0607 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-061-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-528-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-296-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-554-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-153-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49123-062-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-550-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-151-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49123-063-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
163 BRACKET; AIR PIPE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8 W/NUT 		1-47475-729-0 02 1 9809-0004 ●
163 BRACKET; AIR PIPE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-47475-427-1 01 1 0005- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-222-0 01 1 9804-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-189-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0110-0607 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0608-0612 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-189-0 01 1 0701- ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9601-9609 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9610-9705 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-566-0 01 1 9706-9803 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9804-9806 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-852-0 01 1 9807-0004 ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0005-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0110-0612 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-188-0 01 1 0701- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-0004 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=401 		1-49122-185-0 01 1 0005-0104 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-060-0 01 1 0105-0109 ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0701- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-529-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-297-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0701- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-885-0 01 1 9601-9804 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-575-0 01 1 9805-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0701-1102 ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> A/T<X9D> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ALLISON MD3060P A/T(Y4G) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) PTO CONTROL<SV6> EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-0403 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0608-0612 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005- ● ●
çizim 37568
171 433 34 433 14 176 154 242 222 251 217 272 250 238
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49119-220-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-078-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-372-0 01 1 9804-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9804-9804 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-574-0 01 1 9805-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-542-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-174-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49118-407-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49119-130-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-0607 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49118-408-0 01 1 0608- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0701- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-520-0 01 1 9601-9803 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 9804-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49119-129-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-182-1 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0110-0607 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-061-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-528-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-296-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-554-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-153-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49123-062-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-550-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-151-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49123-063-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0701- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-529-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-297-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0701- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-885-0 01 1 9601-9804 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-575-0 01 1 9805-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ●
217 PIPE; VAC,UNION TO MAG VLV
6HE1 TC ENG(57L) 		1-49115-587-0 01 1 9601-9705 ●
217 PIPE; VAC,UNION TO MAG VLV
6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-587-0 01 1 9706-9803 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9804-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9601-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9804-9806 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9807-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 0005- ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> L=1449 SERVICED BY L=1500 		1-47426-355-0 01 1 9601-9803 ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-527-0 01 1 9601-9803 ●
250 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2754 SERVICED BY L=2900 		1-47426-364-0 01 1 9601-9803 ●
251 PIPE; AIR,UNION TO MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> 		1-49114-905-0 01 1 9601-9803 ●
272 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> 		1-49114-906-0 01 1 9601-9803 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-49115-521-0 01 1 9601-9803 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-49118-422-0 01 1 9804-0004 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-49115-522-0 01 1 9601-9803 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		1-49118-423-0 01 1 9804-0004 ●
çizim 37614
230 307 230 322 323 374 321 438 375 258 339 231 232 330 330 334 337 231 325 232 333 337 325 328 434 286 258 296
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
(A) L=426 		1-49116-433-0 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=426 		1-49116-433-0 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
(A) L=426 		1-49116-433-0 01 1 0005- ● ●
230 PIPE; AIR,UNION TO UNION
(B) L=483 		1-49116-434-0 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=483 		1-49116-434-0 01 1 9601-0004 ●
230 PIPE; AIR,UNION TO UNION
(B) L=483 		1-49116-434-0 01 1 0005- ● ●
231 UNION; AIR PIPE
(A) M10 ELBOW 		1-09654-186-2 01 1 9601-0004 ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 ELBOW 		1-09654-186-2 01 1 9601-0004 ●
231 UNION; AIR PIPE
(A) M10 ELBOW 		1-09654-186-2 01 1 0005- ● ●
231 UNION; AIR PIPE
(B) M10 STRAIGHT 		1-09654-361-0 01 1 9601-0004 ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 STRAIGHT 		1-09654-361-0 01 1 9601-0004 ●
231 UNION; AIR PIPE
(B) M10 STRAIGHT 		1-09654-361-0 01 1 0005- ● ●
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 9601-0004 ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (A) M10 H=8 		1-09400-029-0 01 1 9601-0004 ●
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0005- ● ●
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 9601-0004 ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> (B) M10 		9-09110-410-0 01 1 9601-0004 ●
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0005-0512 ● ●
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-0607 ● ●
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0607 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9601-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-0607 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9601-0004 ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9601-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0004 ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9804-9804 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 9601-0004 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9601-0004 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 0005- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9601-0004 ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-1 01 1 9804-0004 ●
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-1 01 1 9804-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-738-0 01 1 0005-0607 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0608- ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> 		1-09656-663-0 01 1 9804-9911 ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9804-9911 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> 		1-09656-712-0 01 1 9912-0004 ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		1-09656-712-0 01 1 9912-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9804-0004 ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0005-0607 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0608- ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9804-0004 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0005-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> L=791 		1-49116-077-0 01 1 0005- ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-415-1 01 1 9601-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9601-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-415-1 01 1 0005-0607 ● ●
328 UNION; AIR PIPE 1-47470-415-1 01 1 0608- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9601-0004 ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9601-0004 ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9601-0004 ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0603 ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ●
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9601-0004 ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9601-0004 ●
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0005- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9601-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0607 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0608-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9601-0004 ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9601-0004 ●
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9601-0004 ●
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005- ● ●
374 CONNECTOR 1-09654-324-0 01 1 9601-9803 ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9804- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 9812-0004 ●
434 CLIP
DUAL AIR GAUGE<UG2> (C) ID=10 & 10 		1-09709-221-0 01 1 9812-0004 ●
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 0005- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9601-0004 ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9601-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0607 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0608- ● ●
çizim 38499
184 186 185 1 155 6 3 7 2 155 244 243 243 244 202 140 138 139 137
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 9710-0607 ● ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320 		1-09363-560-1 01 1 0608- ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0608- ●
1 HOSE; FLEX,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9601-9705 ● ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9601-9705 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9706-9709 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9710-9806 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9807-0004 ●
1 HOSE; FLEX,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> L=360 		1-09363-530-0 01 1 0005- ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9601-0004 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-17716-150-0 01 1 0005-0605 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1500 		0-77716-150-0 01 1 0606- ● ●
2 NUT; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M22 		9-09111-422-0 01 1 9609-9701 ●
2 NUT; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M22 		9-09111-422-0 01 1 9609-9701 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9702-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9601-9608 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		9-99111-420-0 01 1 9601-0004 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) ID=22.5 		9-09150-522-0 01 1 9609-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=22.5 		9-09150-522-0 01 1 9609-9701 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9702-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9601-9608 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2 		9-09150-520-0 01 1 9601-0004 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9601-9609 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9601-9609 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9610-9705 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9706-9806 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9807-0004 ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47477-264-2 01 1 0005-0304 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0305-0607 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47478-864-0 01 1 0608- ●
6 BRACKET; FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) 		1-47478-864-0 01 1 0608- ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-693-1 01 1 9601-0004 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-47476-693-2 01 1 0005- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9609 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9610-9705 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9706-9806 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9807-0004 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0607 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE 		0-28650-830-0 02 1 0608- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X30 FLANGE 		0-28650-830-0 02 1 0608- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 9607-0004 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450 		0-07120-450-0 01 1 9601-9803 ●
138 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9601-9803 ●
139 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9601-9803 ●
140 GASKET; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18 		9-09572-510-0 01 1 9601-9803 ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9803 ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9804-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) L=350 		1-09363-651-0 01 1 9607- ● ●
184 HOSE; FLEX,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=330 		1-09363-584-0 01 1 9601-9606 ● ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=330 		1-09363-584-0 01 1 9601-9606 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9607-9705 ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 9706-9806 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) L=330 		1-09363-584-0 01 1 9807-0004 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0005-0607 ● ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L) L=330 		1-09363-584-0 01 1 0608- ●
184 HOSE; FLEX,AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) L=330 		1-09363-584-0 01 1 0608- ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9601-9609 ● ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9601-9609 ●
185 NUT; FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9610-9705 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9706-9806 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9807-0004 ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 0005-0607 ● ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12 		9-09840-280-0 01 1 0608- ●
185 NUT; FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M12 		9-09840-280-0 01 1 0608- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9601-9609 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9601-9609 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9610-9705 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9706-9806 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9807-0004 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		0-91510-512-0 01 1 0604-0607 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2 		0-91510-512-0 01 1 0608- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=12.2 		0-91510-512-0 01 1 0608- ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9803 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) EXHAUST BRAKE<NF8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9804-0004 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005 ● ●
202 ADAPTER
6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006- ● ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 03 1 9804-9804 ●
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9804-0004 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09228-306-1 01 1 9601-9803 ●
243 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 9601-0004 ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 01 1 9601-0004 ●
244 NUT; UNION,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 		9-99111-412-0 01 1 9601-9803 ●
çizim 39412
307 322 323 321 438 375 258 374 337 434 434 325 333 325 328 337 286 296 258
BalonParca AdiParca NoAdetTipApplied Date A B
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9707-9708 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9709-9803 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9804-9811 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911 ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0607 ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 9601-0302 ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-0607 ● ●
258 CONNECTOR; NYLON TUBE
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0608- ● ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> (D) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0607 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0608-1102 ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1103- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
MLD7R M/T(X5L),MLD6A M/T(X5N) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9608 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9609-9705 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9706-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0609 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0610-1102 ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) AIR SUSP DRIVER SEAT<A56> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1103- ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. A/T<X9D> (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005- ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9601-9705 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9706-9709 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9710-9803 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. EURO2 SPECIFICATION<THN> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9804-9805 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-9806 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> ASSISTOR SHIFT CONTROL<WX8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
258 CONNECTOR; NYLON TUBE
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9807-0004 ● ●
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9601-0004 ●
296 TUBE; NYLON
SERVICED BY L=30000 OD=6 		1-09366-235-0 AR 1 9601-0001 ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0002- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0212 ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0004 ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9804-9804 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 9601-0004 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
DUAL AIR GAUGE<UG2> L=540 		1-49113-427-2 01 1 9601-0004 ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 0005- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. DUAL AIR GAUGE<UG2> L=434 		1-49116-435-1 01 1 9601-0004 ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-1 01 1 9804-0004 ●
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56> 		1-09656-728-1 01 1 9804-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09654-362-1 01 1 9601-9803 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9804-9811 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09656-738-0 01 1 0005-0607 ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0608- ● ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> 		1-09656-663-0 01 1 9804-9911 ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9804-9911 ●
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> AIR HORN<WB8> 		1-09656-712-0 01 1 9912-0004 ● ●
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		1-09656-712-0 01 1 9912-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9601-9803 ●
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9804-0004 ● ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9804-0004 ●
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 0005-0607 ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0608- ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9601-9803 ●
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9804-0004 ● ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9804-0004 ●
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 0005-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=791 		1-49116-077-0 01 1 9601-0004 ●
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> L=791 		1-49116-077-0 01 1 0005- ● ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-415-1 01 1 9601-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-415-1 01 1 9601-0004 ●
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-415-1 01 1 0005-0607 ● ●
328 UNION; AIR PIPE 1-47470-415-1 01 1 0608- ● ●
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-473-0 01 1 9601-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0004 ●
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0607 ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0608- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9601-0004 ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0607 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0608-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9601-0004 ●
374 CONNECTOR 1-09654-324-0 01 1 9601-9803 ● ●
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 9804- ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9707-9708 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9709-9803 ●
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ● ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
375 GASKET
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9804-9811 ●
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 9812-0004 ●
434 CLIP
DUAL AIR GAUGE<UG2> (C) ID=10 & 10 		1-09709-221-0 01 1 9812-0004 ●
434 CLIP
(C) ID=10 & 10 		1-09709-221-0 01 1 0005- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9601-0004 ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9601-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9803 ●
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ● ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9804-0004 ●
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0607 ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0608- ● ●
çizim 40501
444 145 222 145 145 297 34 297 171 14 176 154 433 433
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-220-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49119-220-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-078-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49123-078-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-005-0 01 1 0301-0302 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0303-0607 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0608-0612 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49124-039-0 01 1 0701- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9610-9705 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-561-0 01 1 9706-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 9807-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-850-0 01 1 0005-0103 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0104-0109 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49123-077-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49124-004-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-541-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-173-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-372-0 01 1 9804-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-0607 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0608- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49123-059-0 01 1 0110-0212 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49124-003-0 01 1 0301-0612 ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49124-003-0 01 1 0701- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9601-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-876-0 01 1 9804-9804 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-574-0 01 1 9805-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-674-0 01 1 9807-9808 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-075-0 01 1 9809-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9601-9609 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-560-0 01 1 9610-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-849-0 01 1 9804-9806 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-542-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-174-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49118-407-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49118-407-0 01 1 0110- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-545-0 01 1 9601-9601 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-175-0 01 1 9602-9803 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9804-0004 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49119-130-0 01 1 0005-0109 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-0607 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49118-408-0 01 1 0608- ●
34 PIPE; AIR
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-521-0 01 1 0110-0612 ● ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49118-521-0 01 1 0701- ● ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-520-0 01 1 9601-9803 ●
34 PIPE; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-294-0 01 1 9804-0004 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-675-0 01 1 9807-9808 ●
34 PIPE; AIR
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-076-0 01 1 9809-0004 ●
34 PIPE; AIR
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9601-9609 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-562-0 01 1 9610-9803 ●
34 PIPE; AIR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-521-0 01 1 9804-9806 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49118-409-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49119-129-0 01 1 0110- ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-540-0 01 1 9601-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-409-0 01 1 9804-0004 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-543-0 01 1 9601-9601 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-177-0 01 1 9602-9803 ●
34 PIPE; AIR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9804-0004 ●
145 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9804-0004 ●
145 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9804-0004 ●
145 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49119-221-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-182-1 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0110-0607 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0608-0612 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. AIR DRYER<PS7> 		1-49122-182-1 01 1 0701- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9610-9705 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49113-599-0 01 1 9706-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49118-524-0 01 1 9807-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0005-0109 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. VERTICAL TAIL PIPE<NC4>,AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> 		1-49122-177-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-552-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-152-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49118-375-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=1096 		1-49122-170-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-49123-061-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-0607 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> 		1-49122-172-0 01 1 0608- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-178-0 01 1 0110-0612 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-178-0 01 1 0701- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-528-0 01 1 9601-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-296-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-676-0 01 1 9807-9808 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-077-0 01 1 9809-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9601-9609 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-563-0 01 1 9610-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-526-0 01 1 9804-9806 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-554-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-153-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-411-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49122-174-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) 		1-49123-062-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. AIR DRYER<PS7> 		1-49123-062-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> 		1-49122-173-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49115-555-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49117-154-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-412-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> 		1-49123-106-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-550-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-151-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9804-0004 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49122-181-0 01 1 0005-0104 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) 		1-49123-063-0 01 1 0105-0109 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) EXC. AIR DRYER<PS7> 		1-49123-063-0 01 1 0110- ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-544-0 01 1 9601-9601 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49117-155-0 01 1 9602-9803 ●
154 PIPE; AIR,AIR TANK TO AIR GOV
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> 		1-49122-167-0 01 1 0110-0612 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> 		1-49122-167-0 01 1 0701- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49115-529-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-297-0 01 1 9804-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49119-677-0 01 1 9807-9808 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> 		1-49121-078-0 01 1 9809-0004 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9601-9609 ●
171 PIPE; AIR,GOV TO AIR DRYER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-564-0 01 1 9610-9806 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9803 ●
171 PIPE; AIR,GOV TO AIR DRYER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9804-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0110-0612 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 0701- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49114-885-0 01 1 9601-9804 ●
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49119-575-0 01 1 9805-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1018 SERVICED BY L=1100 		1-47426-351-0 01 1 9807-9808 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> L=1062 SERVICED BY L=1100 		1-47426-351-0 01 1 9809-0004 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9601-9609 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-565-0 01 1 9610-9803 ●
176 PIPE; AIR,AIR DRYER TO UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1174 SERVICED BY L=1200 		1-47426-352-0 01 1 9804-9806 ●
176 PIPE; AIR,AIR DRYER TO UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-0004 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HK1 TCC ENG(81L) L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0608- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9601-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9804-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 0005- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9601-9705 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) 		1-49113-680-0 01 1 9706-9709 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9710-9803 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9804-9806 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 9807-0004 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-49113-680-0 01 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0701-1102 ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) AIR ASSIST CLUTCH<PK1> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ● ●
297 TUBE; NYLON
6HE1 TC ENG(57L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L),6HK1 TCC ENG(81L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) AIR SUSP DRIVER SEAT<A56> A/T<X9D> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L),ALLISON MD3060P A/T(Y4G) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6SD1 TCN ENG(31L) ZF 9S109 OD M/T(Y2L) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) PTO CONTROL<SV6> EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> EXC. PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6200MM(62W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1103- ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0301-0403 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0608-0612 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9601-0004 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9601-0212 ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0701- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0005- ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-49115-521-0 01 1 9601-9803 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-49118-422-0 01 1 9804-0004 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-49115-522-0 01 1 9601-9803 ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		1-49118-423-0 01 1 9804-0004 ●
444 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9601-9709 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9710-9806 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR HORN<WB8> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ZF M/T<X9E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28080-825-0 01 1 9807-0004 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28080-825-0 01 1 0005-0512 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0607 ● ●
444 BOLT; UNION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCC ENG(81L) M8X25 FLANGE 		0-28050-825-0 01 1 0608-0612 ●
444 BOLT; UNION
6HH1 STD ENG(65L) AIR SUSP DRIVER SEAT<A56> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6HH1 STD ENG(65L) ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28050-825-0 01 1 0701- ● ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCC ENG(81L) M8X25 FLANGE 		0-28050-825-0 01 1 0701- ●
444 BOLT; UNION
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28080-825-0 02 1 9710-9803 ● ●
444 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 01 1 9804-0004 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
