2-05 — CLUTCH PIPING (#38058) — 14 parça

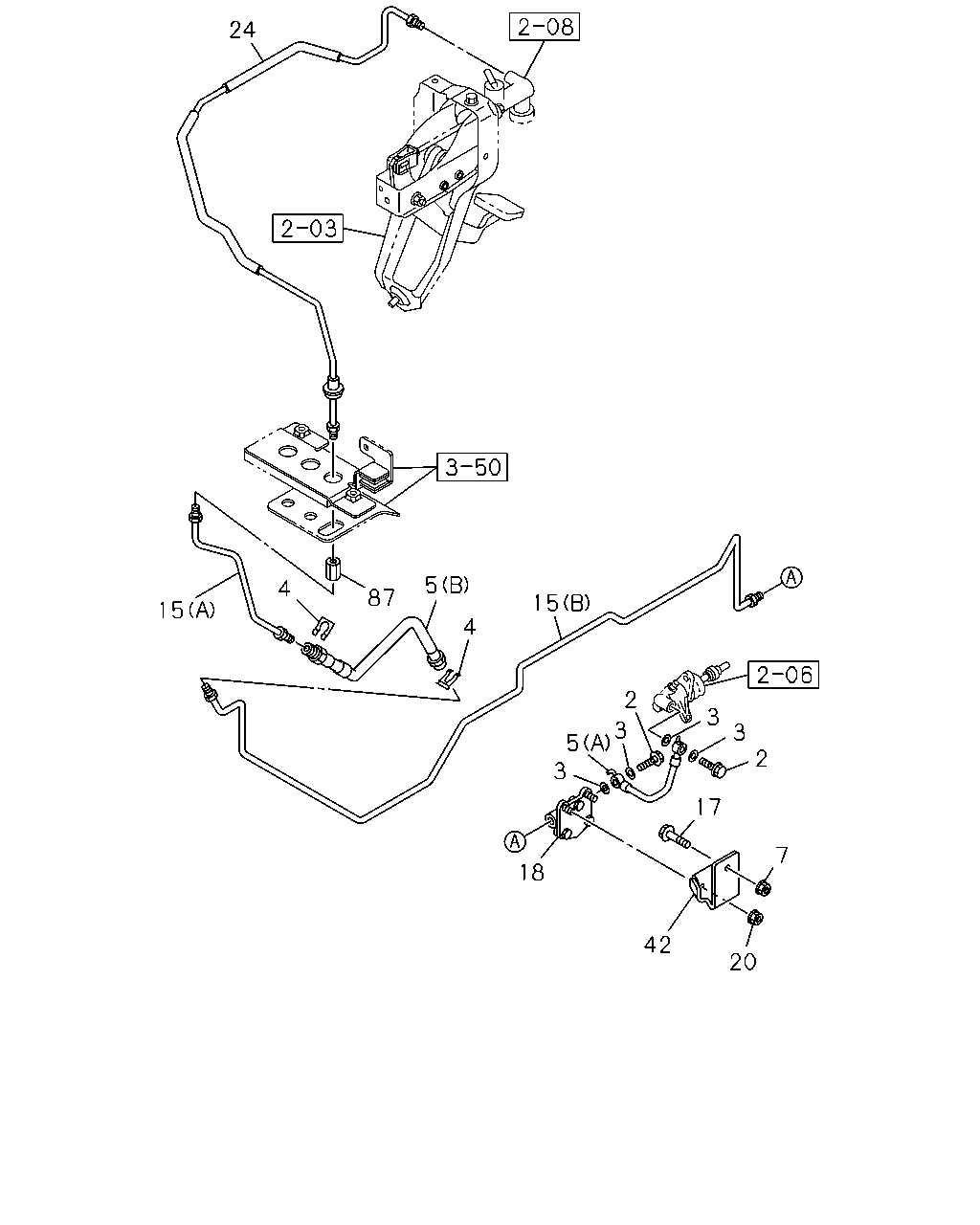

çizim 114923
24 5 4 87 15 15 4 2 3 3 3 2 5 3 17 7 18 42 20
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1202-
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1202-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1202-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-98077-611-2 01 1 1202-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-908-0 01 1 1202-
7 00.785 NUT; FLEX HOSE,CLU CONT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1202-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97389-641-0 01 1 1202-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98110-845-0 01 1 1202-
17 00.785 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1202-
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1202-
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1202-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-98074-578-1 01 1 1202-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98041-335-1 01 1 1202-
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 1202-
