Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

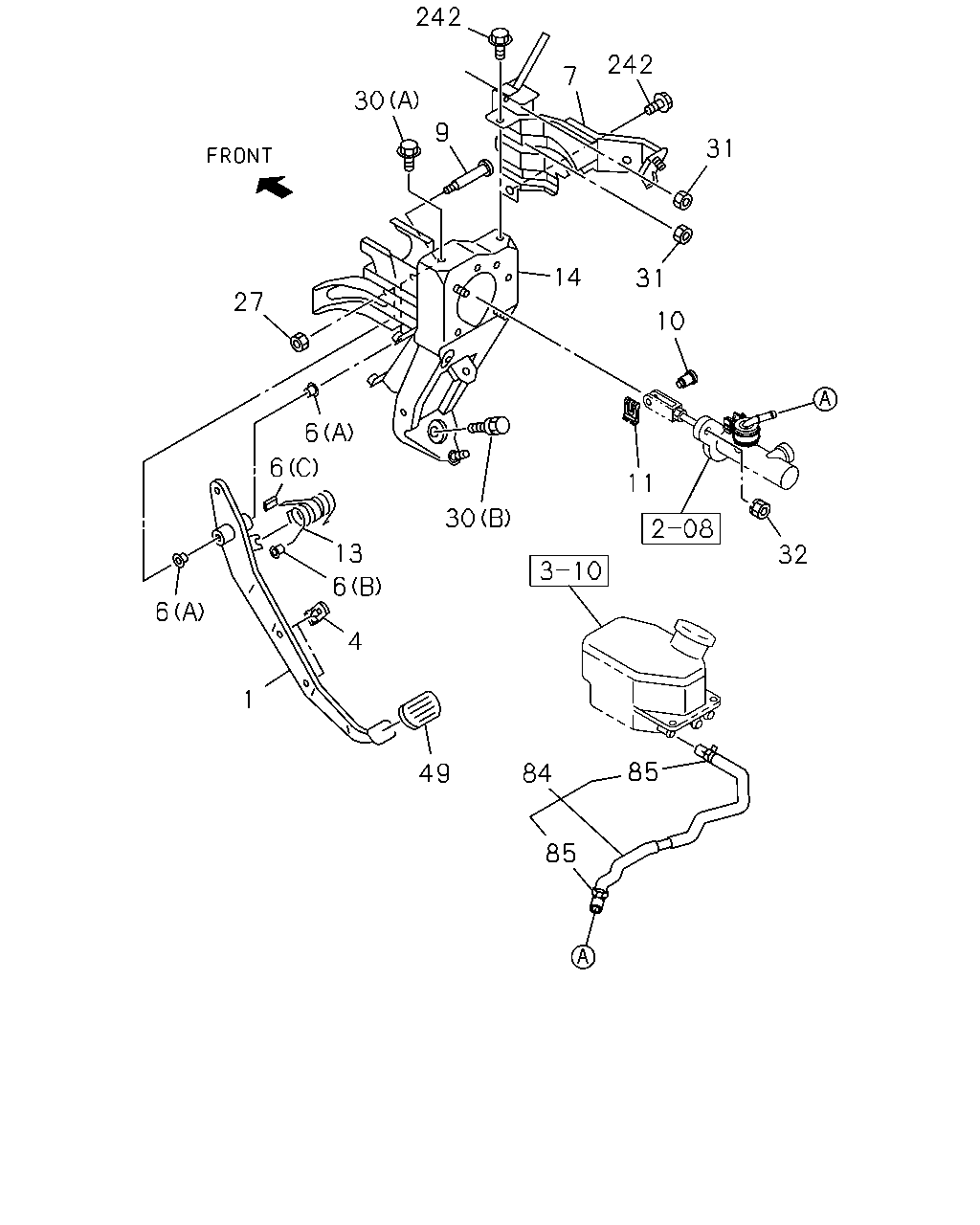

2-03 — CLUTCH PEDAL AND CONTROL
(#38057) — 22 parça
242
242
7
30
9
31
14
31
27
10
6
6
11
13
32
6
6
4
1
85
84
49
85
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.830 PEDAL; CLU
8-97853-219-2
01
1
1202-
4
00.829 STOPPER; CLU PEDAL
8-97853-534-1
02
1
1202-
6
00.831 BUSHING; CLU PEDAL
04.792 (A)
8-94238-596-0
02
1
1202-
6
00.831 BUSHING; CLU PEDAL
(B)
8-97853-619-0
02
1
1202-
6
00.831 BUSHING; CLU PEDAL
(C)
8-97853-620-0
01
1
1202-
7
00.829 BRACKET; CLU PEDAL
8-98008-273-3
01
1
1202-
9
00.833 PIN; CLU PEDAL
04.634
8-97866-667-0
01
1
1202-
10
00.833 PIN; CLU PEDAL
04.634
8-98147-657-0
01
1
1202-
11
00.833 PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1202-
13
00.844 SPRING; ASSIST,CLU PEDAL
8-98034-014-0
01
1
1202-
14
00.829 BRACKET ASM; CLU PEDAL MTG
8-98034-749-0
01
1
1202-
27
00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1202-
30
00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE
0-28661-025-0
01
1
1202-
30
00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER
8-97313-188-0
01
1
1202-
31
01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER
8-94279-050-0
02
1
1202-
32
00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1202-
49
00.829 RUBBER; PAD,CLU PEDAL
8-97853-413-2
01
1
1202-
84
00.785 HOSE; RUBBER,CLU LINE
8-98025-424-1
01
1
1202-1208
84
00.785 HOSE; RUBBER,CLU LINE
8-98218-204-1
01
1
1209-
85
00.785 CLIP; HOSE TO M/CYL
04.681
8-98031-178-0
02
1
1202-1208
85
00.785 CLIP; HOSE TO M/CYL
8-98168-080-0
02
1
1209-
242
00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE
0-28450-816-0
02
1
1202-
