Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#38055) — 51 parça
◀
[150A] FRONT PIPE (12 parça)

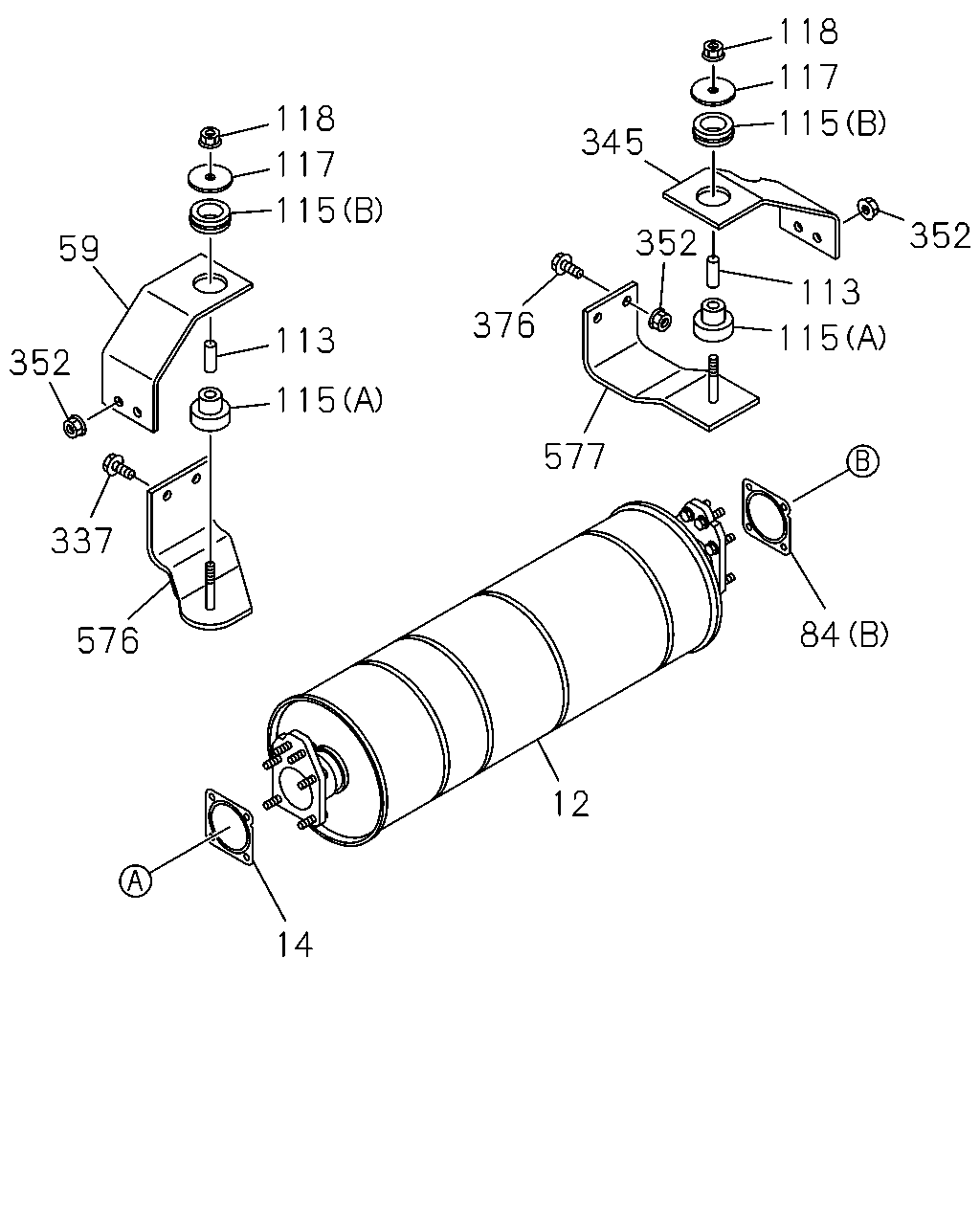

[150A] SILENCER (17 parça)

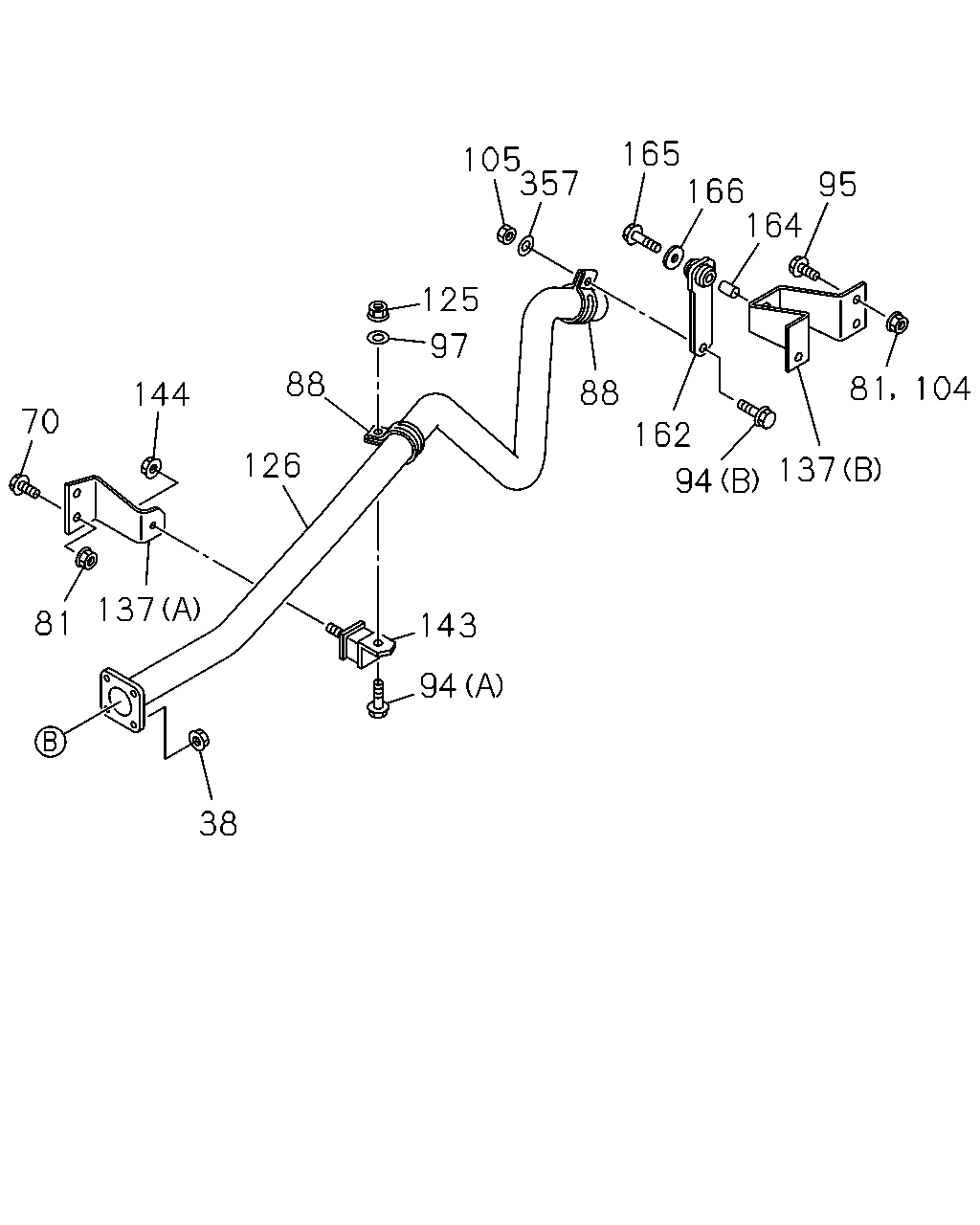

[150A] REAR PIPE (22 parça)
▶
319
2
25
329
36
84
1
44
8
44
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.609 PIPE; EXH
8-98075-966-0
01
1
1202-
2
03.611 GASKET; PIPE TO MANIF
8-97384-590-0
01
1
1202-
8
03.704 BRACKET; EXH PIPE
03.613
8-98026-063-0
01
1
1202-
25
03.609 PIPE; EXH,BRK VLV TO SILENCER
8-98189-904-0
01
1
1202-
36
03.613 NUT; EXH PIPE
M10 FLANGE
8-97096-192-1
03
1
1202-
43
03.611 CLAMP; EXH PIPE
8-97351-200-1
01
1
1202-
44
03.613 BOLT; BRKT
02.042 (A) M10X25 FLANGE
0-28151-025-0
02
1
1202-
44
03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
02
1
1202-
84
03.611 GASKET; EXH PIPE
03.634 (A) ID=54 ID=54
8-94328-354-0
01
1
1202-
84
03.611 GASKET; EXH PIPE
(B) ID=64
8-97373-108-0
01
1
1202-
319
03.602 NUT; PROTECTOR
01.062 M8 FLANGE
0-91180-108-0
04
1
1202-
329
03.613 NUT; EXH PIPE TO PIPE
01.062 M8 FLANGE
0-91180-108-0
04
1
1202-
118
117
118
115
345
117
115
352
352
59
113
376
115
113
352
115
577
337
84
576
12
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
03.701 SILENCER ASM; EXH
8-98119-994-1
01
1
1202-
14
03.704 GASKET; SILENCER TO EXH PIPE
03.611 ID=64
8-97373-108-0
01
1
1202-
59
03.704 BRACKET; EXH SILENCER,FRT
8-98072-144-0
01
1
1202-
84
03.611 GASKET; EXH PIPE
03.634 (A) ID=54 ID=54
8-94328-354-0
01
1
1202-
84
03.611 GASKET; EXH PIPE
(B) ID=64
8-97373-108-0
01
1
1202-
113
03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5
9-22151-217-0
02
1
1202-
115
03.704 RUBBER; MTG,SILENCER
(A)
8-94457-277-1
02
1
1202-
115
03.704 RUBBER; MTG,SILENCER
(B)
8-94457-278-1
02
1
1202-
117
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
9-09852-169-0
02
1
1202-
118
03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE
5-09440-006-0
02
1
1202-
337
03.706 BOLT; RUBBER,SUPPORT
00.029 M10X30 FLANGE
0-28651-030-0
01
1
1202-
345
03.704 BRACKET; EXH SILENCER,RR
8-98072-146-0
01
1
1202-
352
03.613 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
02
1
1202-
352
03.613 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
1202-
376
03.708 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1202-
576
03.706 BRACKET; DPD FRT TO FRAME
8-98205-838-0
01
1
1202-
577
03.706 BRACKET; DPD RR TO FRAME
8-98072-142-0
01
1
1202-
165
166
164
105
357
95
125
97
88
81
104
88
144
70
162
126
137
94
137
81
143
94
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
00.002 NUT; SILENCER
01.062 M8 FLANGE
0-91180-108-0
04
1
1202-
70
03.706 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1202-
81
03.704 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
03
1
1202-
88
03.708 CLAMP; EXH PIPE
8-97373-158-0
01
1
1202-
88
03.708 CLAMP; EXH PIPE
8-97373-158-0
01
1
1202-
94
03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE
0-28051-045-0
01
1
1202-
94
03.704 BOLT; CLAMP
03.023 (A) M10X50 FLANGE
8-97301-165-0
01
1
1202-
95
03.708 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1202-
97
03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22
0-91614-610-0
01
1
1202-
104
03.704 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
01
1
1202-
105
03.704 NUT; CLAMP
00.833 M10
0-91110-510-0
01
1
1202-
125
03.708 NUT; CLAMP
00.833 M10
0-91110-510-0
01
1
1202-
126
03.705 PIPE; EXH,RR
8-98189-905-0
01
1
1202-
137
03.706 BRACKET; TAIL PIPE
(A)
8-98001-893-1
01
1
1202-
137
03.706 BRACKET; TAIL PIPE
(B)
8-98001-903-0
01
1
1202-
143
03.704 RUBBER; SUPPORT
8-98034-767-0
01
1
1202-
144
03.613 NUT; MTG RUBBER
01.062 M8 FLANGE
0-91180-108-0
01
1
1202-
162
03.706 RUBBER; SUPPORT,TAIL PIPE
8-98032-149-0
01
1
1202-
164
03.706 COLLAR; DIST,TAIL PIPE
L=23
8-98006-011-0
01
1
1202-
165
03.706 BOLT; SUPPORT RUBBER
00.685 M10X45 FLANGE
0-28051-045-0
01
1
1202-
166
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32
0-91614-810-0
01
1
1202-
357
03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22
0-91614-610-0
01
1
1202-
