Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#38048) — 21 parça
◀

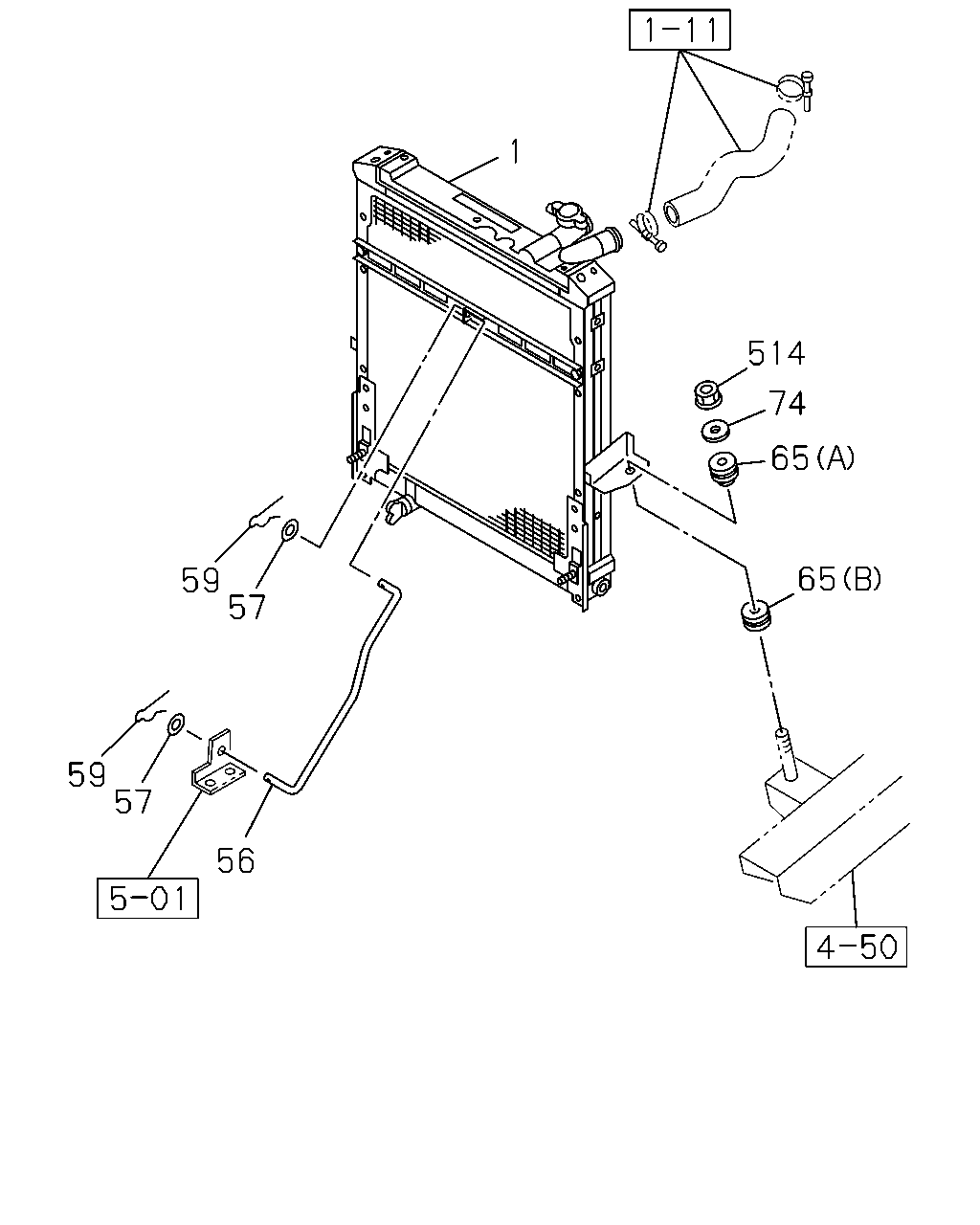

[110A] NO.1 (9 parça)
[110A] NO.2 (12 parça)
▶
1
59
57
59
57
56
514
74
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98094-463-0
01
1
1202-1205
1
01.219 RADIATOR ASM
8-98094-463-0
02
1
1206-
56
01.270 STAY; RAD
8-97383-947-1
01
1
1202-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
1202-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1202-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
1202-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
1202-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1202-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
1202-
1
80
79
89
16
70
62
51
25
516
508
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98094-463-0
01
1
1202-1205
1
01.219 RADIATOR ASM
8-98094-463-0
02
1
1206-
16
01.203 CAP; RAD
8-97239-187-0
01
1
1202-
25
01.271 BOLT; BRKT
03.162 M6X12 FLANGE
0-28050-612-0
04
1
1202-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1202-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1202-
70
01.271 STAY; RAD
8-98114-297-0
01
1
1202-
79
01.277 GUIDE; FAN,RAD
8-98172-923-0
01
1
1202-
80
01.277 BOLT; FAN GUIDE
M6X12
8-98039-672-0
02
1
1202-
89
01.277 BOLT
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1202-
508
01.271 PLUG
01.519 M10X10
1-09604-074-0
01
1
1202-
516
08.951 GASKET; PLUG
08.955 ID=10.2 OD=16.0
9-09571-410-0
01
1
1202-
