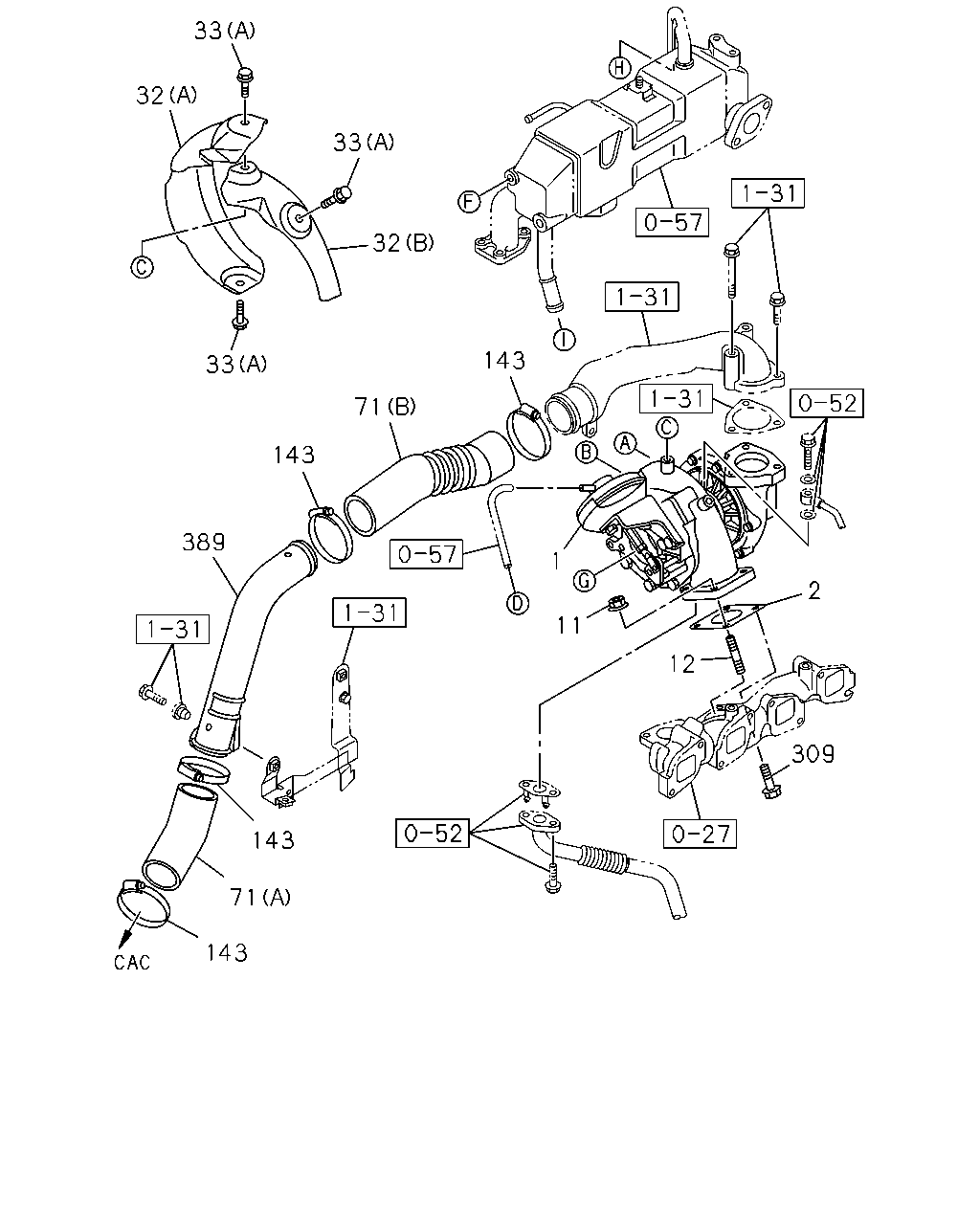

0-36 — TURBOCHARGER SYSTEM (#38036) — 55 parça

33 32 33 32 143 33 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM	8-98083-041-2	01	1	1202-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1202-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1202-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1202-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1202-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1202-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1202-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1202-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1202-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-918-1	01	1	1202-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1202-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1202-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1202-

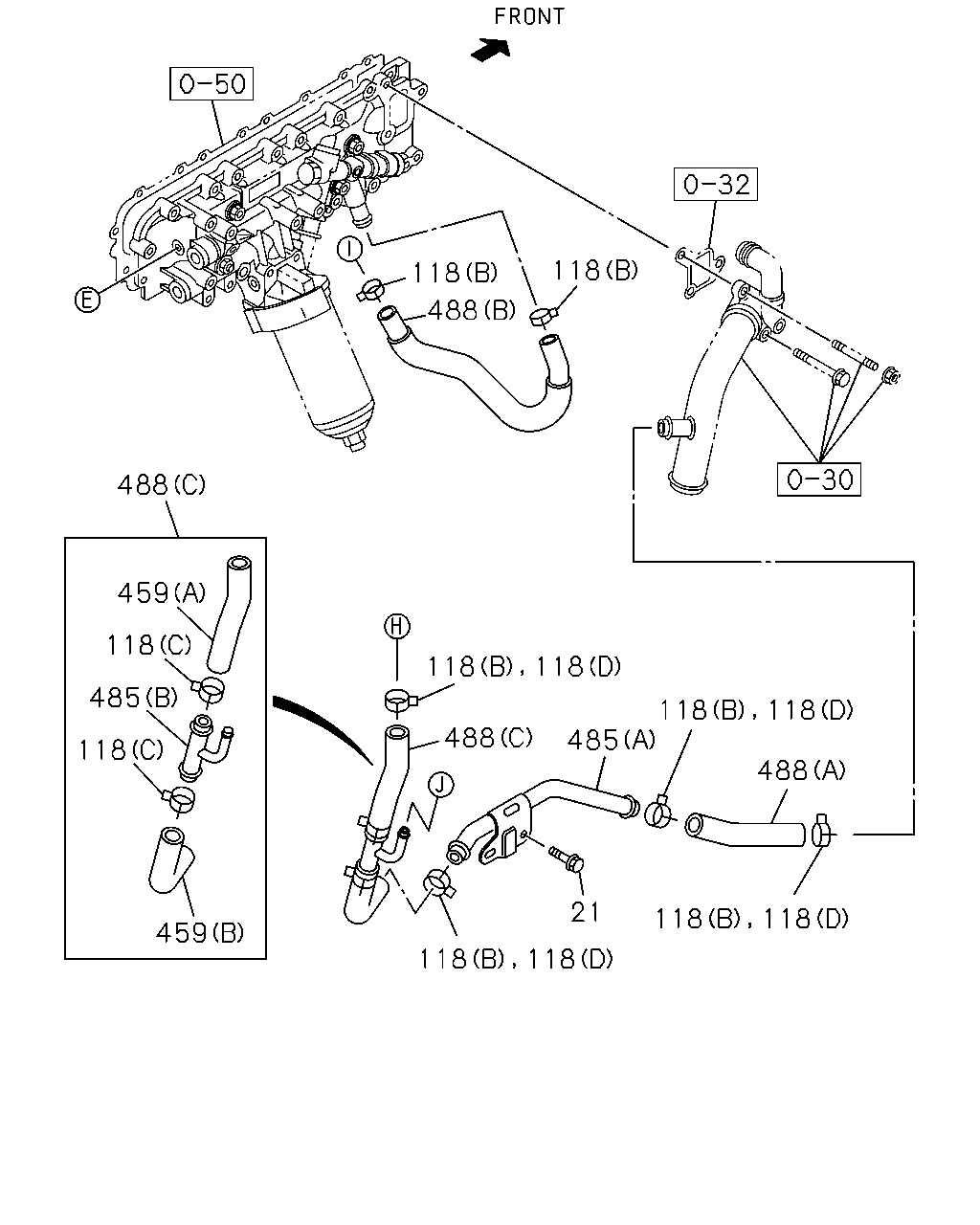

488 459 118 485 118 459 118 488 118 485 118 118 488 118 118 21 118 118 118 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	03.358 BOLT; PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1202-
118	03.342 CLIP; WATER HOSE (D) ID=22	8-98192-446-0	04	1	1503-
118	03.342 CLIP; WATER HOSE 01.166 (C) ID=20.8	8-94125-862-1	02	1	1202-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1202-
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1202-1502
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	02	1	1503-
459	03.341 HOSE; WATER (A)	8-98107-347-0	01	1	1202-
459	03.341 HOSE; WATER (B)	8-98108-321-0	01	1	1202-
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1202-
485	01.097 PIPE; WATER EGR (B)	8-98107-346-0	01	1	1202-
488	03.163 HOSE; RUBBER (A) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1202-1502
488	03.163 HOSE; RUBBER (B)	8-98188-477-0	01	1	1503-
488	03.163 HOSE; RUBBER (B)	8-98075-184-0	01	1	1202-1502
488	03.163 HOSE; RUBBER (A)	8-98192-304-0	01	1	1503-
488	03.163 HOSE; RUBBER (C)	8-98082-221-0	01	1	1202-

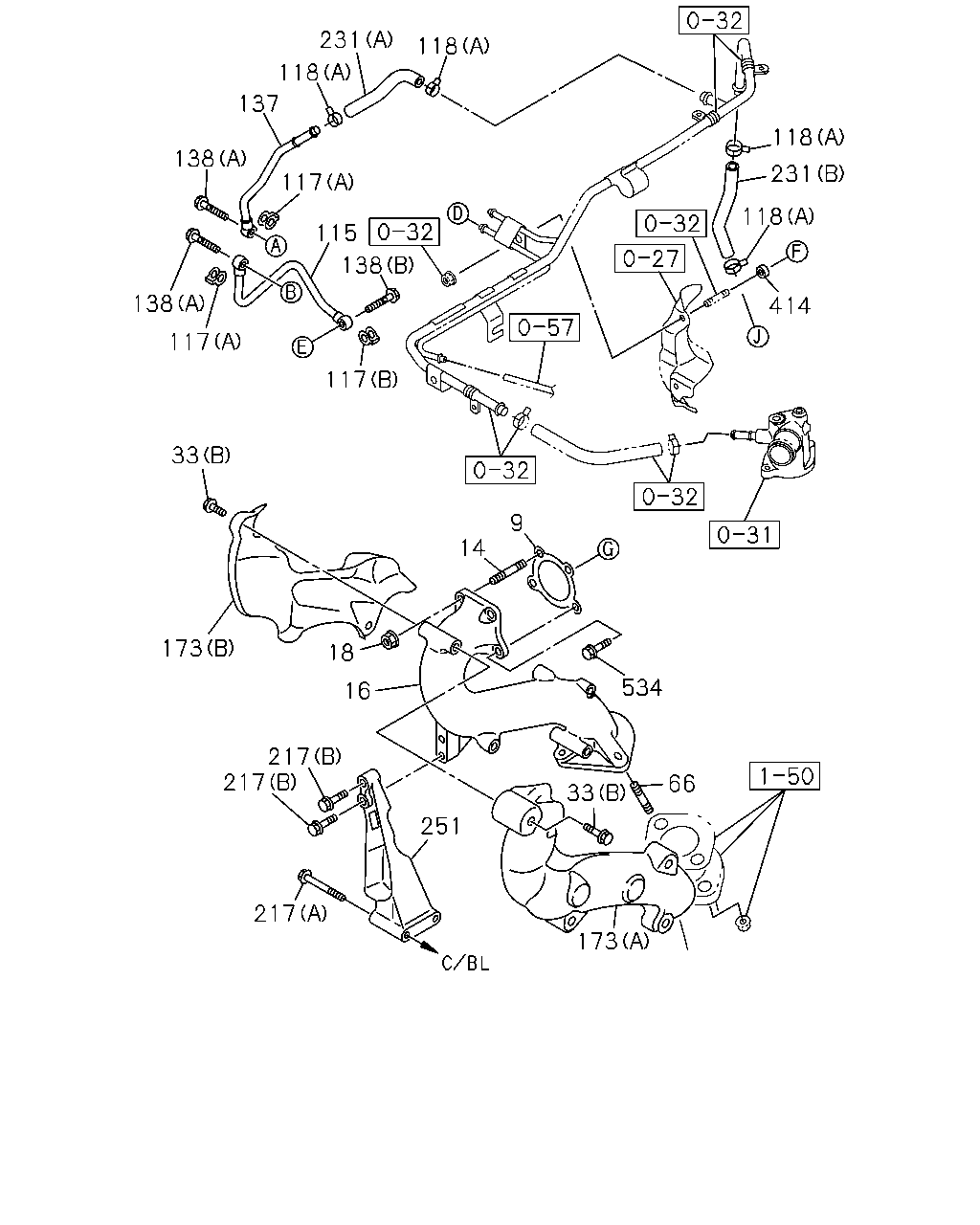

231 118 118 137 118 138 231 117 118 115 138 138 414 117 117 33 9 14 173 18 534 16 217 217 66 33 251 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1202-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1202-
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1202-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1202-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1202-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1202-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1202-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1202-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=12.6	8-97331-137-1	02	1	1202-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1202-
118	03.342 CLIP; WATER HOSE (D) ID=22	8-98192-446-0	04	1	1503-
118	03.342 CLIP; WATER HOSE 01.166 (C) ID=20.8	8-94125-862-1	02	1	1202-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1202-
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1202-1502
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	02	1	1503-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	1202-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1202-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1202-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1202-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1202-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1202-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1202-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98075-182-1	01	1	1202-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98120-394-1	01	1	1202-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1202-
414	03.602 SPACER	8-98143-884-0	01	1	1202-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1202-
