◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#38029) — 26 parça

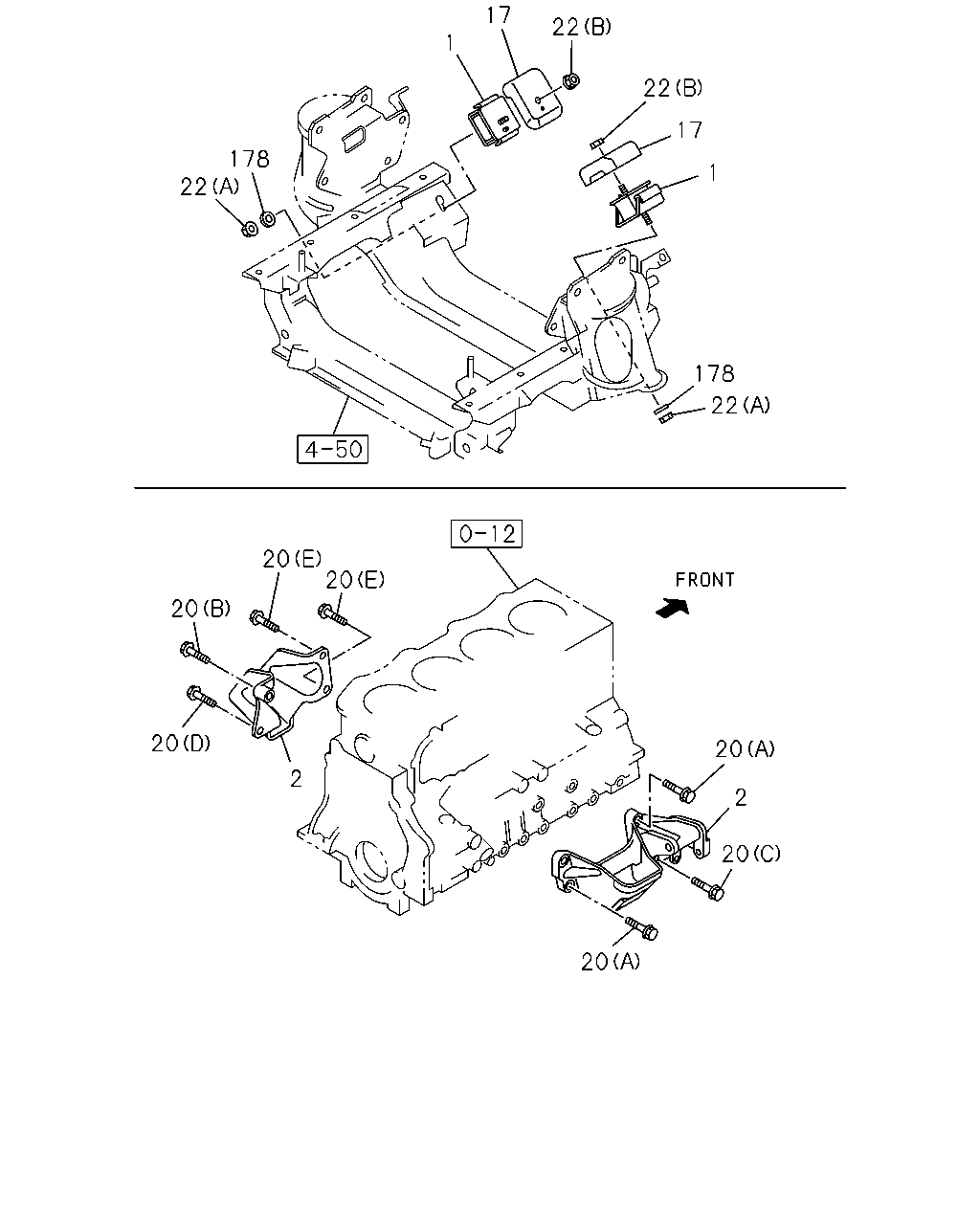

çizim 114874
17 22 1 22 17 178 1 22 178 22 20 20 20 20 20 2 2 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 00.027 RUBBER; ENG FOOT,FRT 8-98053-831-0 01 1 1202-1601
1 00.027 RUBBER; ENG FOOT,FRT 8-98303-822-0 01 1 1602-
1 00.027 RUBBER; ENG FOOT,FRT 8-98053-832-0 01 1 1202-1601
1 00.027 RUBBER; ENG FOOT,FRT 8-98303-823-0 01 1 1602-
2 00.029 FOOT; ENG 8-97381-513-1 01 1 1202-
2 00.029 FOOT; ENG 8-97381-514-2 01 1 1202-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 1202-
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 1202-
20 00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE 		0-28651-020-0 01 1 1202-
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 1202-
20 00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1202-
20 00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE 		0-28051-070-0 01 1 1202-
20 00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1202-
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (A) M12 		0-91110-512-0 02 1 1202-
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (B) M12 FLANGE 		0-91180-112-0 02 1 1202-
178 00.002 WASHER; PL,CUSHION RUBBER TO BRK
07.529 ID=12.5 OD=32 		0-91614-712-0 02 1 1202-

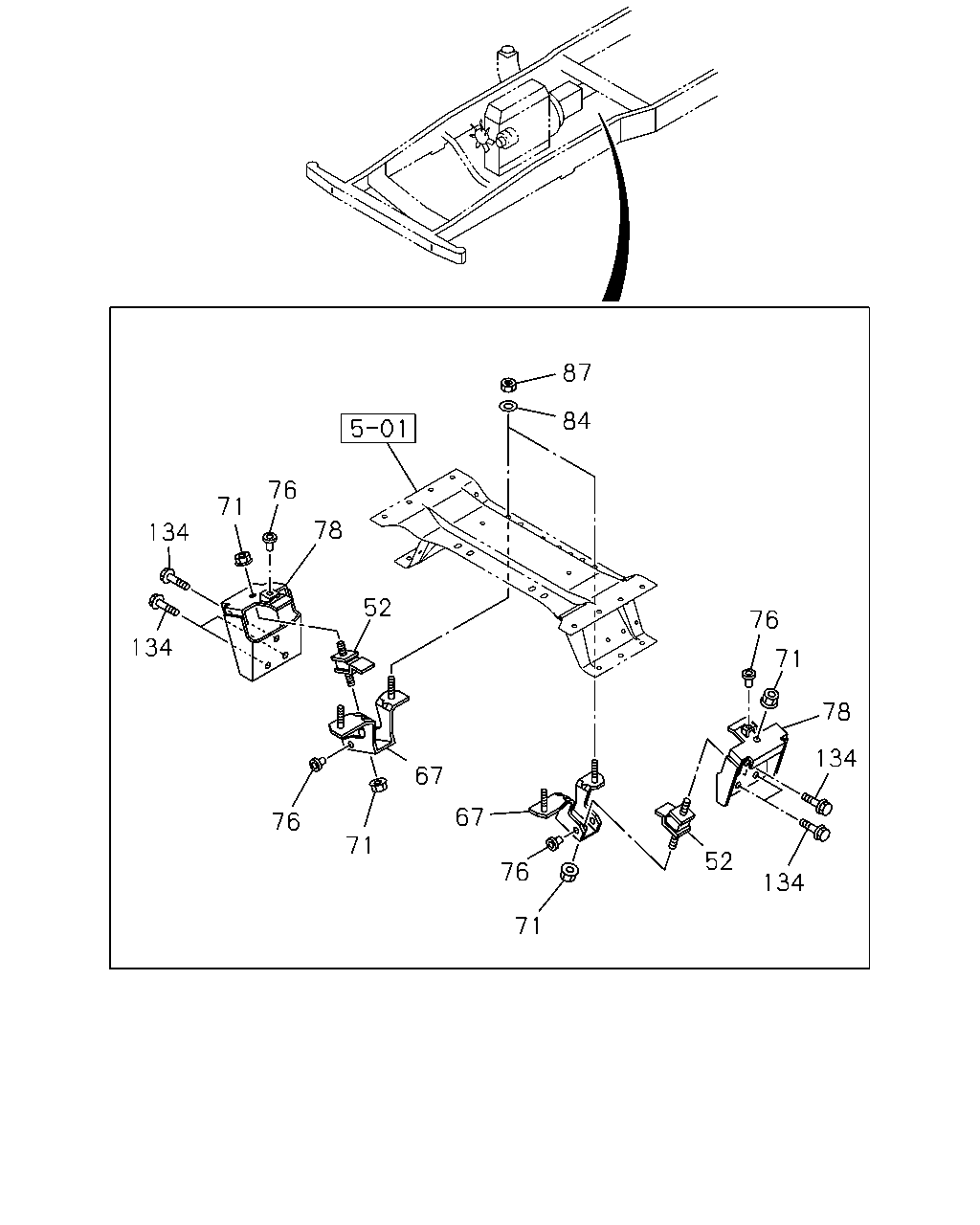

çizim 114878
87 84 76 71 78 134 52 76 134 71 78 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 1202-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98178-168-0 01 1 1202-
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98178-169-0 01 1 1202-
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1202-
76 00.002 STOPPER; ENG MTG RUBBER 8-97039-947-1 04 1 1202-
78 00.029 BRACKET; ENG MTG,RR 8-98178-165-0 01 1 1202-
78 00.029 BRACKET; ENG MTG,RR 8-98178-166-0 01 1 1202-
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 1202-
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 1202-
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 1202-
