Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#38025) — 356 parça

1 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97307-391-3	01	1	0211-0501	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-0	01	1	0211-0302		●
1	02.480 HARNESS; CAB EXC. ENGINE POWER N-SPEC(7QV)	8-97350-708-0	01	1	0211-0302	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-0	01	1	0211-0302			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-2	01	1	0303-0501		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC (7QV)	8-97350-708-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-2	01	1	0303-0501			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97377-084-4	01	1	0502-		●		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97377-084-4	01	1	0502-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-084-4	01	1	0502-			●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV)	8-97365-182-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97377-085-6	01	1	0502-	●
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13>	8-98036-238-0	01	1	0607-	●	●	●	●

347 9 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	02.480 HARNESS; FRAME,RR	8-97377-060-1	01	1	0502-				●
9	02.480 HARNESS; FRAME,RR	8-97377-061-1	01	1	0502-		●
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98000-797-1	01	1	0502-	●
9	02.480 HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97377-067-1	01	1	0502-	●
9	02.480 HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97377-062-1	01	1	0502-	●
9	02.480 HARNESS; FRAME,RR FRAME STRAIGHT TYPE<7KJ>	8-97377-068-1	01	1	0502-			●
340	02.525 HARNESS; CABLE,SEDIMENTER MINI BUS CHASSIS(V4B)	8-94463-144-0	01	1	0502-			●
347	02.480 HARNESS; CABLE,RR BODY RR BODY FLAT BED<RS6>	8-97213-566-0	01	1	0211-0302	●	●
347	02.480 HARNESS; CABLE,RR BODY RR BODY FLAT BED<RS6>	8-97364-151-0	01	1	0303-	●	●
347	02.480 HARNESS; CABLE,RR BODY EXC. RR BODY FLAT BED<RS6>	8-97213-568-0	01	1	0211-0302	●	●
347	02.480 HARNESS; CABLE,RR BODY	8-97213-568-0	01	1	0211-0302			●
347	02.480 HARNESS; CABLE,RR BODY EXC. RR BODY FLAT BED<RS6>	8-97364-152-0	01	1	0303-0501	●	●
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0303-0501			●
347	02.480 HARNESS; CABLE,RR BODY EXC. RR BODY FLAT BED<RS6>	8-97364-152-0	01	1	0502-0503	●	●
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0502-0503			●
347	02.480 HARNESS; CABLE,RR BODY EXC. DUMP CHASSIS(V4D)	8-97364-152-0	01	1	0502-0503				●
347	02.480 HARNESS; CABLE,RR BODY EXC. RR BODY FLAT BED<RS6>	8-97364-152-0	01	1	0504-	●	●
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0504-			●	●

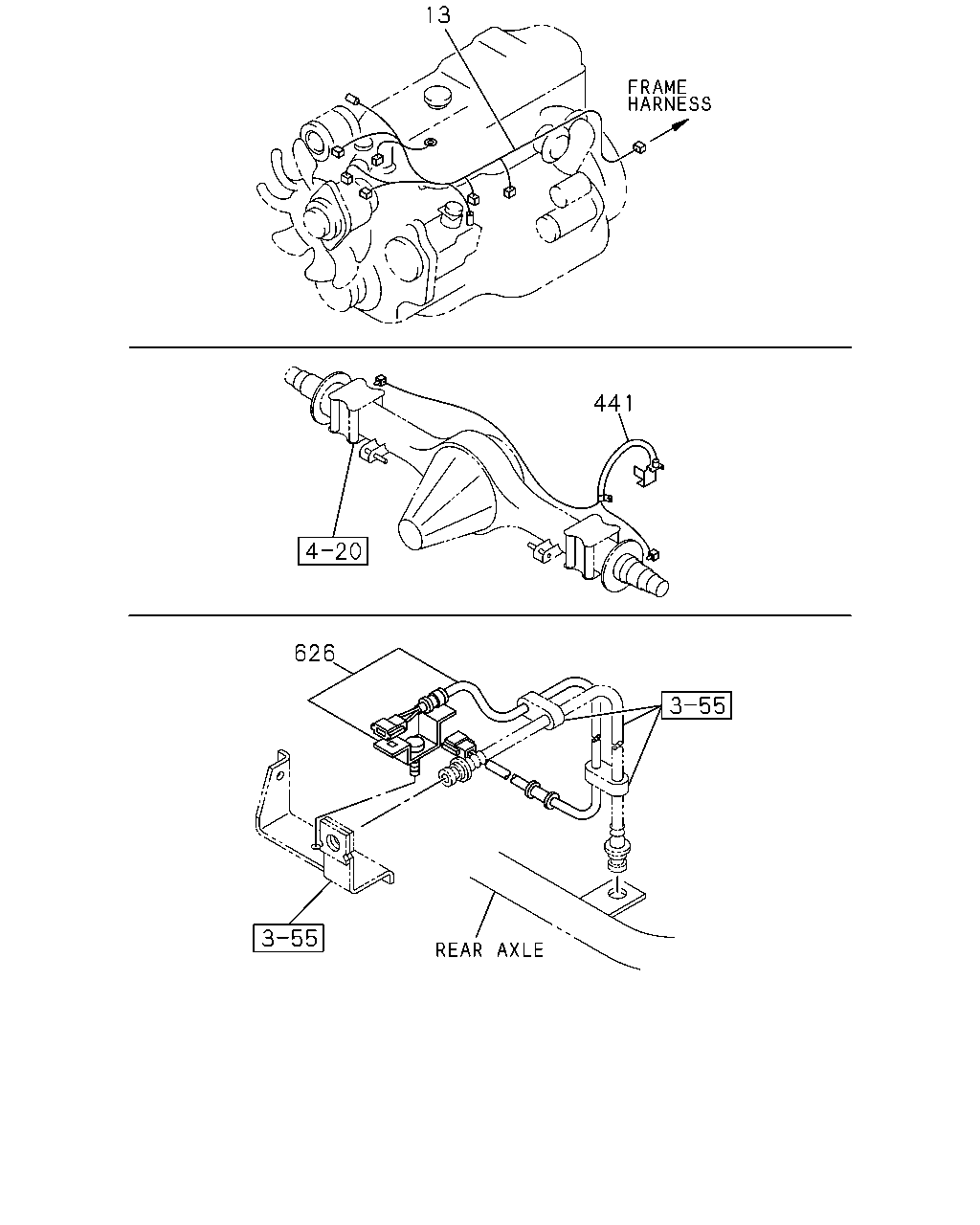

13 441 626

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS)	8-97356-988-0	01	1	0211-0302	●	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH)	8-97356-988-0	01	1	0211-0302			●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0303-0501	●	●	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ>	8-97356-988-0	01	1	0303-0501	●		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS)	8-97356-988-0	01	1	0502-0505	●	●		●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97356-988-0	01	1	0502-0505	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH)	8-97356-988-0	01	1	0502-0505			●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS)	8-97356-988-1	01	1	0506-		●		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97356-988-1	01	1	0506-	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ> EXHAUST BRAKE<NF8>	8-97356-988-1	01	1	0506-	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) VEHICLE CATEGORY NQR<7NQ>	8-97356-988-1	01	1	0506-			●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. VEHICLE CATEGORY NQR<7NQ>	8-97356-991-0	01	1	0303-0501	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97308-225-4	01	1	0303-	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	0303-	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	0303-	●

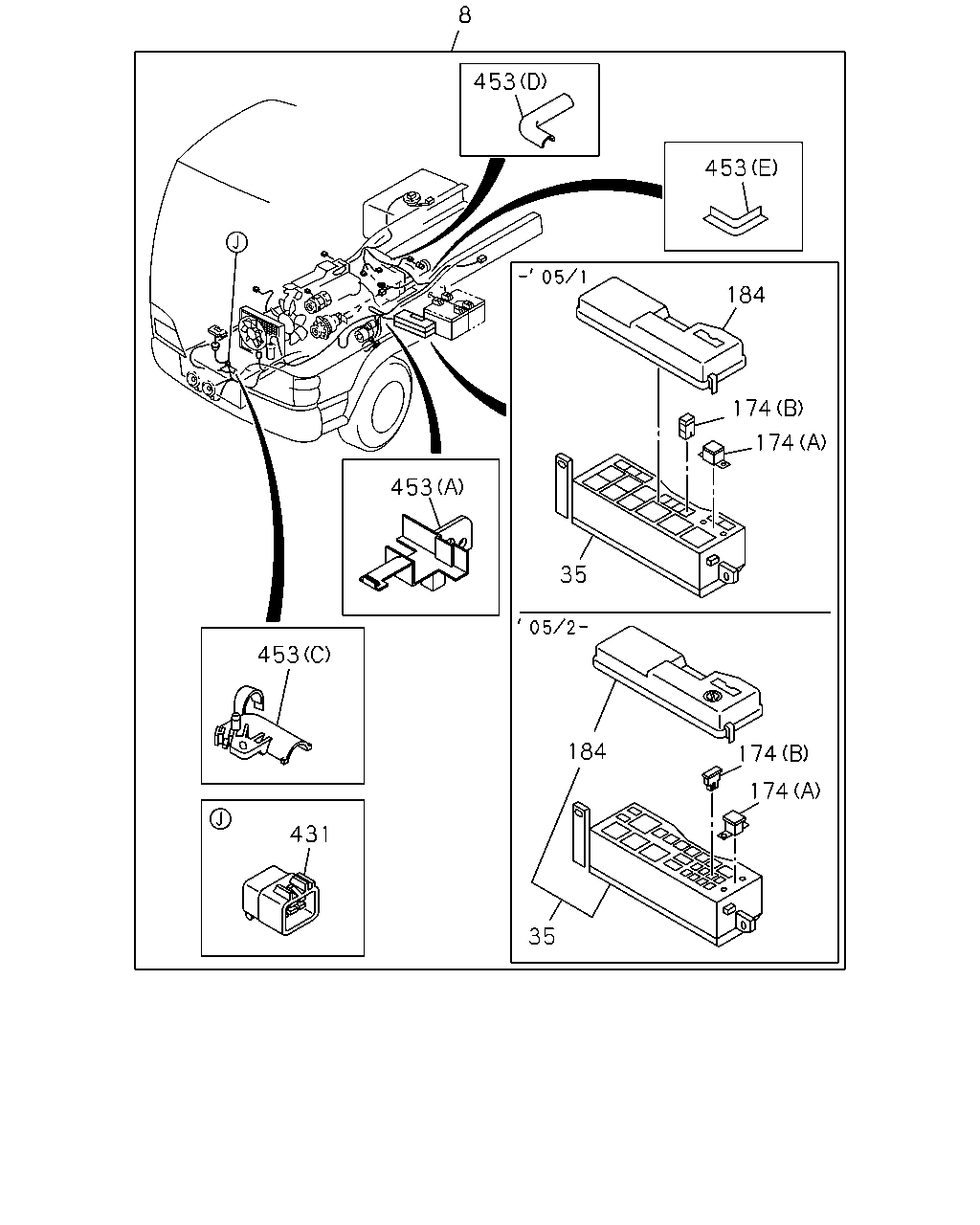

8 453 453 184 174 174 453 35 453 184 174 174 431 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH)	8-97350-645-2	01	1	0211-0501			●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97362-183-0	01	1	0211-0211		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97362-183-0	01	1	0211-0211	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97363-069-0	01	1	0212-0302		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97363-069-0	01	1	0212-0302	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97363-069-0	01	1	0303-0303		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)	8-97363-069-0	01	1	0303-0303	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97357-077-0	01	1	0211-0302	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97357-077-2	01	1	0303-0501	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97377-017-2	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97377-017-2	01	1	0502-			●
8	02.480 HARNESS; FRAME,FRT ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97367-395-0	01	1	0303-0303	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97367-395-0	01	1	0304-0311		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97367-395-0	01	1	0304-0311	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97374-881-2	01	1	0312-0501		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97374-881-2	01	1	0312-0501	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97377-018-3	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97365-183-3	01	1	0303-0501	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97377-014-1	01	1	0502-		●		●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97377-014-1	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-014-1	01	1	0502-			●
35	02.530 BOX; RELAY & FUSE	8-97063-150-1	01	1	0211-0501	●	●	●
35	02.530 BOX; RELAY & FUSE 4HF1-S ENG(RLS)	8-97377-739-0	01	1	0502-		●		●
35	02.530 BOX; RELAY & FUSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97377-739-0	01	1	0502-	●
35	02.530 BOX; RELAY & FUSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97377-739-0	01	1	0502-	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-739-0	01	1	0502-			●
35	02.530 BOX; RELAY & FUSE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97381-429-0	01	1	0502-	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97381-429-0	01	1	0502-			●
174	08.965 FUSE; SLOW BLOW (A) 60A YELLOW	8-94388-303-1	01	1	0211-0501	●	●	●
174	08.965 FUSE; SLOW BLOW 4HF1-S ENG(RLS) (A) 60A YELLOW	8-97219-407-0	02	1	0502-		●		●
174	08.965 FUSE; SLOW BLOW 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 60A YELLOW	8-97219-407-0	02	1	0502-	●
174	08.965 FUSE; SLOW BLOW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 60A YELLOW	8-97219-407-0	02	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) (A) 60A YELLOW	8-97219-407-0	02	1	0502-			●
174	08.965 FUSE; SLOW BLOW 02.483 (B) 60A YELLOW	8-94468-664-0	02	1	0211-0501	●	●	●
174	08.965 FUSE; SLOW BLOW 4HF1-S ENG(RLS) (B) 30A PINK	8-97183-643-0	01	1	0502-		●		●
174	08.965 FUSE; SLOW BLOW 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) 30A PINK	8-97183-643-0	01	1	0502-	●
174	08.965 FUSE; SLOW BLOW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 30A PINK	8-97183-643-0	01	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) (B) 30A PINK	8-97183-643-0	01	1	0502-			●
174	08.965 FUSE; SLOW BLOW 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) 40A GREEN	8-94468-662-0	01	1	0303-0501	●
174	08.965 FUSE; SLOW BLOW 4HF1-S ENG(RLS) (A) 100A BLUE	8-94388-306-1	01	1	0502-		●		●
174	08.965 FUSE; SLOW BLOW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (A) 100A BLUE	8-94388-306-1	01	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 100A BLUE	8-94388-306-1	01	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 100A BLUE	8-94388-306-1	01	1	0502-			●
174	08.965 FUSE; SLOW BLOW FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 120A WHITE	1-82516-028-1	01	1	0502-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A) 120A WHITE	1-82516-028-1	01	1	0502-			●
174	08.965 FUSE; SLOW BLOW 4HF1-S ENG(RLS) (B) 40A GREEN	8-97183-644-0	01	1	0502-0508		●		●
174	08.965 FUSE; SLOW BLOW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 40A GREEN	8-97183-644-0	01	1	0502-0508	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) (B) 40A GREEN	8-97183-644-0	01	1	0502-0508			●
174	08.965 FUSE; SLOW BLOW 4HF1-S ENG(RLS) (B) 40A GREEN	8-97183-644-0	01	1	0509-		●		●
174	08.965 FUSE; SLOW BLOW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	01	1	0509-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	01	1	0509-			●
174	08.965 FUSE; SLOW BLOW 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	02	1	0502-0508	●
174	08.965 FUSE; SLOW BLOW FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	02	1	0509-	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B) 40A GREEN	8-97183-644-0	02	1	0509-			●
184	02.559 COVER; RELAY & FUSE BOX	8-97063-152-1	01	1	0211-0501	●	●	●
184	02.559 COVER; RELAY & FUSE BOX 4HF1-S ENG(RLS)	8-97377-741-0	01	1	0502-		●		●
184	02.559 COVER; RELAY & FUSE BOX 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97377-741-0	01	1	0502-	●
184	02.559 COVER; RELAY & FUSE BOX EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97377-741-0	01	1	0502-	●
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH)	8-97377-741-0	01	1	0502-			●
431	02.530 CONNECTOR; JOINT FRAME STRAIGHT TYPE<7KJ> 6P	8-97381-428-0	02	1	0509-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 6P	8-97381-428-0	02	1	0509-			●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0502-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-97093-668-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (C)	8-97093-668-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97093-668-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS (A)	8-97120-591-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (A)	8-97120-591-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (A)	8-97120-591-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0211-0302		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0211-0302	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0303-0305		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0306-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0306-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0212-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0212-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-			●

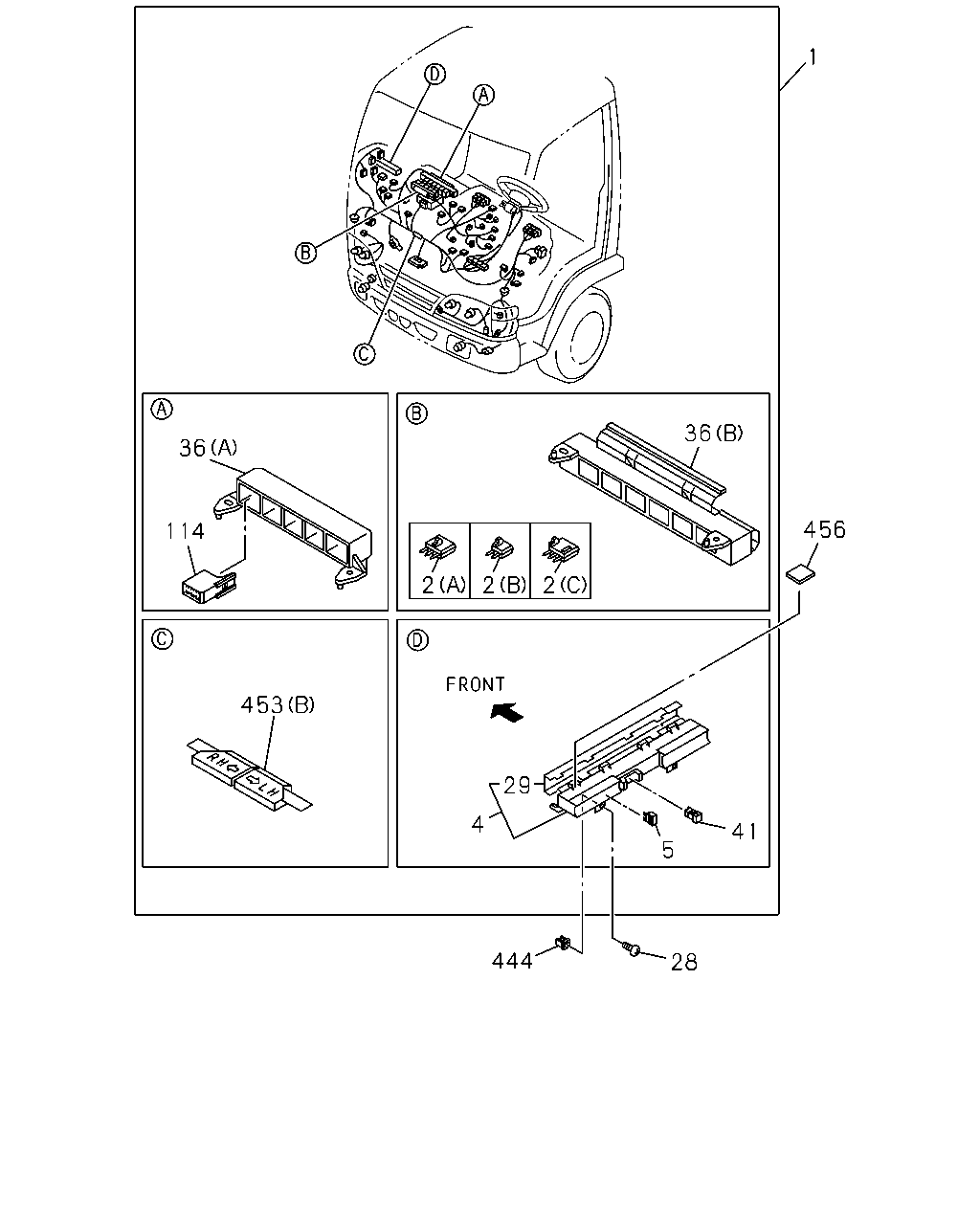

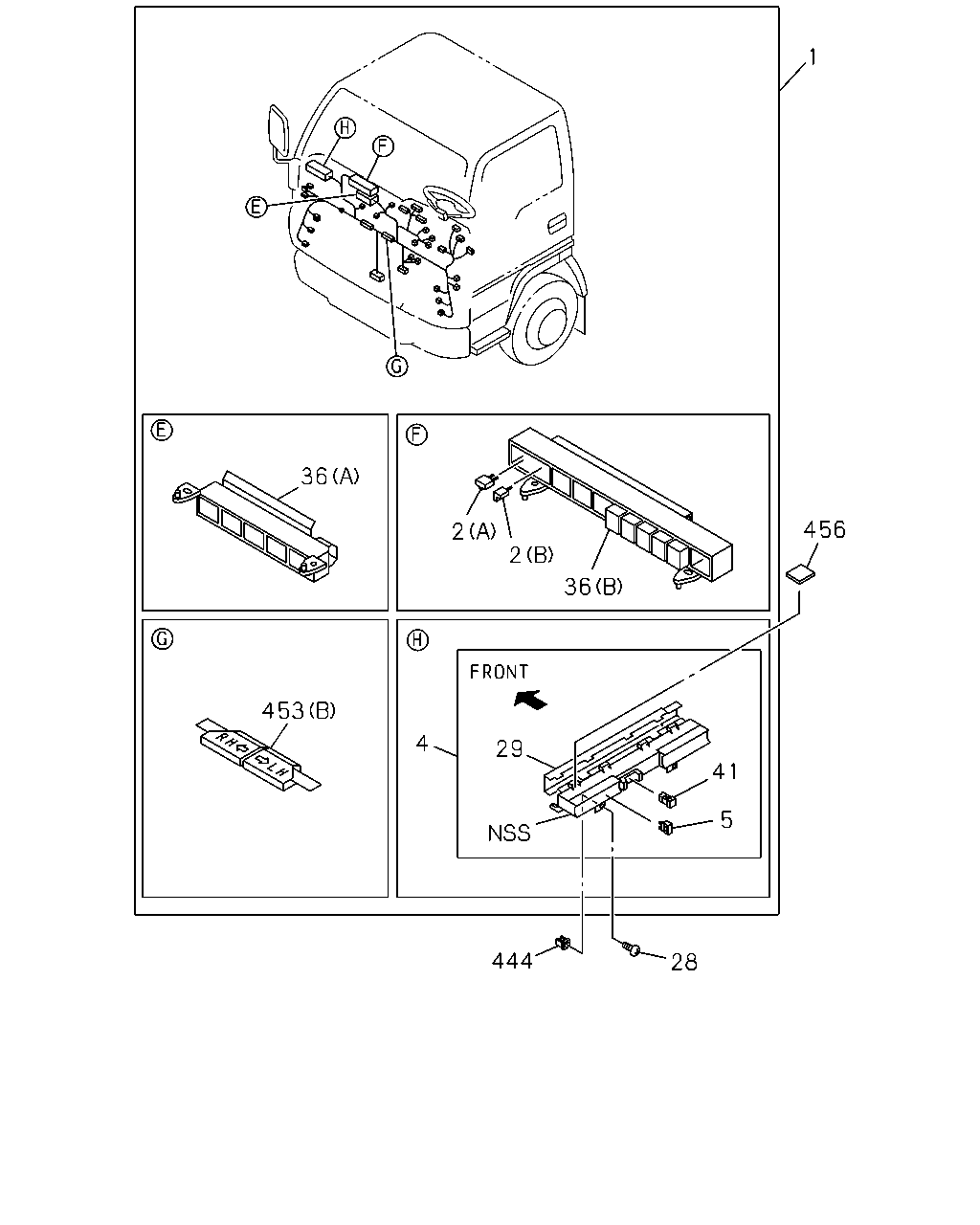

1 36 36 456 114 2 2 2 453 29 4 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97307-391-3	01	1	0211-0501	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-0	01	1	0211-0302		●
1	02.480 HARNESS; CAB EXC. ENGINE POWER N-SPEC(7QV)	8-97350-708-0	01	1	0211-0302	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-0	01	1	0211-0302			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-2	01	1	0303-0501		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC (7QV)	8-97350-708-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-2	01	1	0303-0501			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97377-084-4	01	1	0502-		●		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97377-084-4	01	1	0502-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-084-4	01	1	0502-			●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV)	8-97365-182-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97377-085-6	01	1	0502-	●
2	02.483 DIODE; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0303-0501	●
2	02.483 DIODE; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0502-0606	●
2	02.483 DIODE; CABLE HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0607-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0211-0501	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0502-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0211-0501	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0502-	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	0211-0501	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	AR	1	0211-0501	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A MINI RED	8-97062-022-0	AR	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	AR	1	0211-0501	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	AR	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	0502-	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0211-0501	●	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0502-0604	●	●	●	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●	●	●
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	0502-	●	●	●	●
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	0211-0501	●	●	●
36	02.530 BOX; RELAY (B)	8-97187-918-1	01	1	0502-	●	●	●	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0211-0501	●	●	●
36	02.530 BOX; RELAY 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	0502-0606	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0607-	●	●	●	●
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0211-0501	●	●	●
41	08.821 PULLER; FUSE	8-97103-388-0	01	1	0502-	●	●	●	●
114	02.483 BOX ASM; FUSE	8-97189-222-0	01	1	0607-	●	●	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0211-0501	●	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0502-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0502-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-97093-668-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (C)	8-97093-668-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97093-668-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS (A)	8-97120-591-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (A)	8-97120-591-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (A)	8-97120-591-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0211-0302		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0211-0302	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0303-0305		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0306-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0306-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0212-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0212-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-			●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0211-0501	●	●	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0502-	●	●	●	●

204 18 18 204 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0502-	●	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0502-	●	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0502-	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0502-1009	●	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0502-1009	●	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0502-1009	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-98166-819-0	01	1	1010-1010	●	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-	●	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0502-	●	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0211-0501	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0502-1009	●	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010	●	●	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-	●	●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-	●	●	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAK ERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	1011-	●	●	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1011-	●	●	●	●
85	06.495 HARNESS; ROOM LAMP	8-97164-611-2	01	1	0211-0302	●	●	●
85	06.495 HARNESS; ROOM LAMP	8-97364-159-0	01	1	0303-0501	●	●	●
85	06.495 HARNESS; ROOM LAMP	8-97364-159-0	01	1	0502-	●	●	●	●
204	02.559 HARNESS; CABLE,FLOOR	8-97162-629-2	01	1	0211-0302	●	●	●
204	02.559 HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0303-0501	●	●	●
204	02.559 HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0502-	●	●	●	●

1 36 456 2 2 36 453 4 29 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97307-391-3	01	1	0211-0501	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-0	01	1	0211-0302		●
1	02.480 HARNESS; CAB EXC. ENGINE POWER N-SPEC(7QV)	8-97350-708-0	01	1	0211-0302	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-0	01	1	0211-0302			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-2	01	1	0303-0501		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC (7QV)	8-97350-708-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-2	01	1	0303-0501			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97377-084-4	01	1	0502-		●		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97377-084-4	01	1	0502-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-084-4	01	1	0502-			●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV)	8-97365-182-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97377-085-6	01	1	0502-	●
2	02.483 DIODE; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV) (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0303-0501	●
2	02.483 DIODE; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0502-0606	●
2	02.483 DIODE; CABLE HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0607-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0211-0501	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0502-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0211-0501	●	●	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0502-	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	0211-0501	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-97187-921-1	01	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	AR	1	0211-0501	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A MINI RED	8-97062-022-0	AR	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	AR	1	0211-0501	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	AR	1	0502-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	0502-	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0211-0501	●	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0502-0604	●	●	●	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●	●	●
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	0502-	●	●	●	●
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	0211-0501	●	●	●
36	02.530 BOX; RELAY (B)	8-97187-918-1	01	1	0502-	●	●	●	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0211-0501	●	●	●
36	02.530 BOX; RELAY 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97087-640-1	01	1	0502-0606	●
36	02.530 BOX; RELAY (A)	8-97087-640-1	01	1	0607-	●	●	●	●
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0211-0501	●	●	●
41	08.821 PULLER; FUSE	8-97103-388-0	01	1	0502-	●	●	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0211-0501	●	●	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0502-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-97074-957-0	01	1	0502-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-97093-668-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (C)	8-97093-668-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97093-668-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97093-668-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS (A)	8-97120-591-1	01	1	0211-0501	●	●	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (A)	8-97120-591-1	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97120-591-1	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (A)	8-97120-591-1	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0211-0302		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0211-0302	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0303-0305		●
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0303-0305	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0306-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0306-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (E)	8-94417-716-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-94417-716-0	01	1	0502-			●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0212-0501		●
453	02.483 PROTECTOR; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0212-0501	●
453	02.483 PROTECTOR; HARNESS 4HF1-S ENG(RLS) (D)	8-94482-169-0	01	1	0502-		●		●
453	02.483 PROTECTOR; HARNESS EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-94482-169-0	01	1	0502-			●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0211-0501	●	●	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	0502-	●	●	●	●

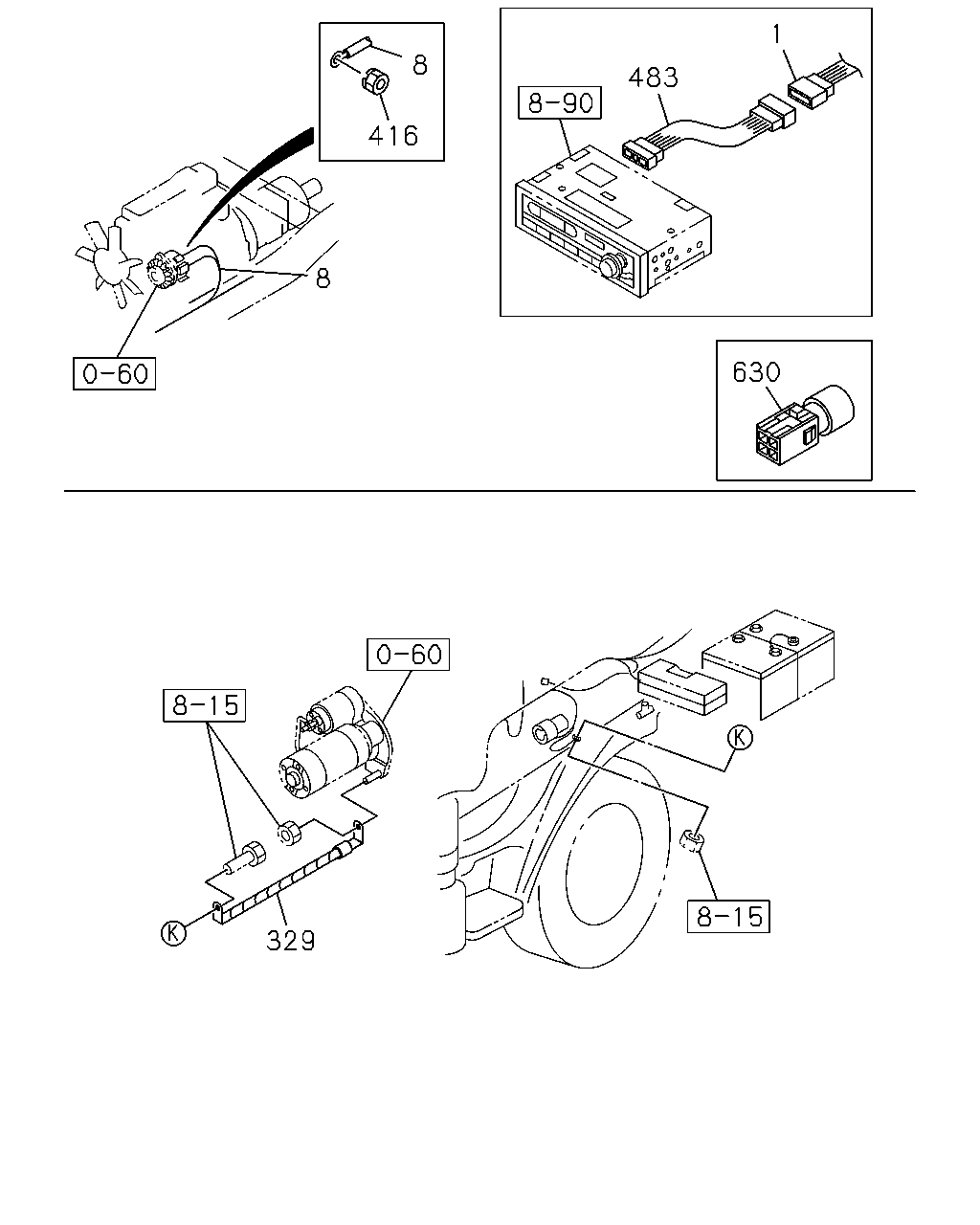

1 8 483 416 8 630 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV)	8-97307-391-3	01	1	0211-0501	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-0	01	1	0211-0302		●
1	02.480 HARNESS; CAB EXC. ENGINE POWER N-SPEC(7QV)	8-97350-708-0	01	1	0211-0302	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-0	01	1	0211-0302			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97350-708-2	01	1	0303-0501		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC (7QV)	8-97350-708-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97350-708-2	01	1	0303-0501			●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS)	8-97377-084-4	01	1	0502-		●		●
1	02.480 HARNESS; CAB EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97377-084-4	01	1	0502-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-084-4	01	1	0502-			●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. ENGINE POWER N-SPEC(7QV)	8-97365-182-2	01	1	0303-0501	●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97377-085-6	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH)	8-97350-645-2	01	1	0211-0501			●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97362-183-0	01	1	0211-0211		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97362-183-0	01	1	0211-0211	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97363-069-0	01	1	0212-0302		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97363-069-0	01	1	0212-0302	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97363-069-0	01	1	0303-0303		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV)	8-97363-069-0	01	1	0303-0303	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ>	8-97357-077-0	01	1	0211-0302	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDROBRAKE BOOSTER<7QQ>	8-97357-077-2	01	1	0303-0501	●
8	02.480 HARNESS; FRAME,FRT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97377-017-2	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97377-017-2	01	1	0502-			●
8	02.480 HARNESS; FRAME,FRT ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97367-395-0	01	1	0303-0303	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97367-395-0	01	1	0304-0311		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97367-395-0	01	1	0304-0311	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97374-881-2	01	1	0312-0501		●
8	02.480 HARNESS; FRAME,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97374-881-2	01	1	0312-0501	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97377-018-3	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97365-183-3	01	1	0303-0501	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS)	8-97377-014-1	01	1	0502-		●		●
8	02.480 HARNESS; FRAME,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAMESTRAIGHT TYPE<7KJ>	8-97377-014-1	01	1	0502-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97377-014-1	01	1	0502-			●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS)	8-97065-249-1	01	1	0211-0501		●
329	02.480 CABLE; ENG TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-249-1	01	1	0211-0501	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS)	8-97065-249-1	01	1	0502-		●		●
329	02.480 CABLE; ENG TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-249-1	01	1	0502-	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97065-249-1	01	1	0502-			●
329	02.480 CABLE; ENG TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97113-787-0	01	1	0211-0501	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH)	8-97113-787-0	01	1	0211-0501			●
329	02.480 CABLE; ENG TO FRAME FRAME STRAIGHT TYPE<7KJ>	8-97113-787-0	01	1	0502-	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-97113-787-0	01	1	0502-			●
416	02.559 NUT; TERMINAL 4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0211-0501		●
416	02.559 NUT; TERMINAL 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0211-0501	●
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0211-0501			●
416	02.559 NUT; TERMINAL 4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0502-		●		●
416	02.559 NUT; TERMINAL 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0502-	●
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0502-			●
483	02.480 HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0502-	●	●	●	●
630	02.559 CONNECTOR; SHORT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97308-277-0	01	1	0502-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
