◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#38023) — 200 parça

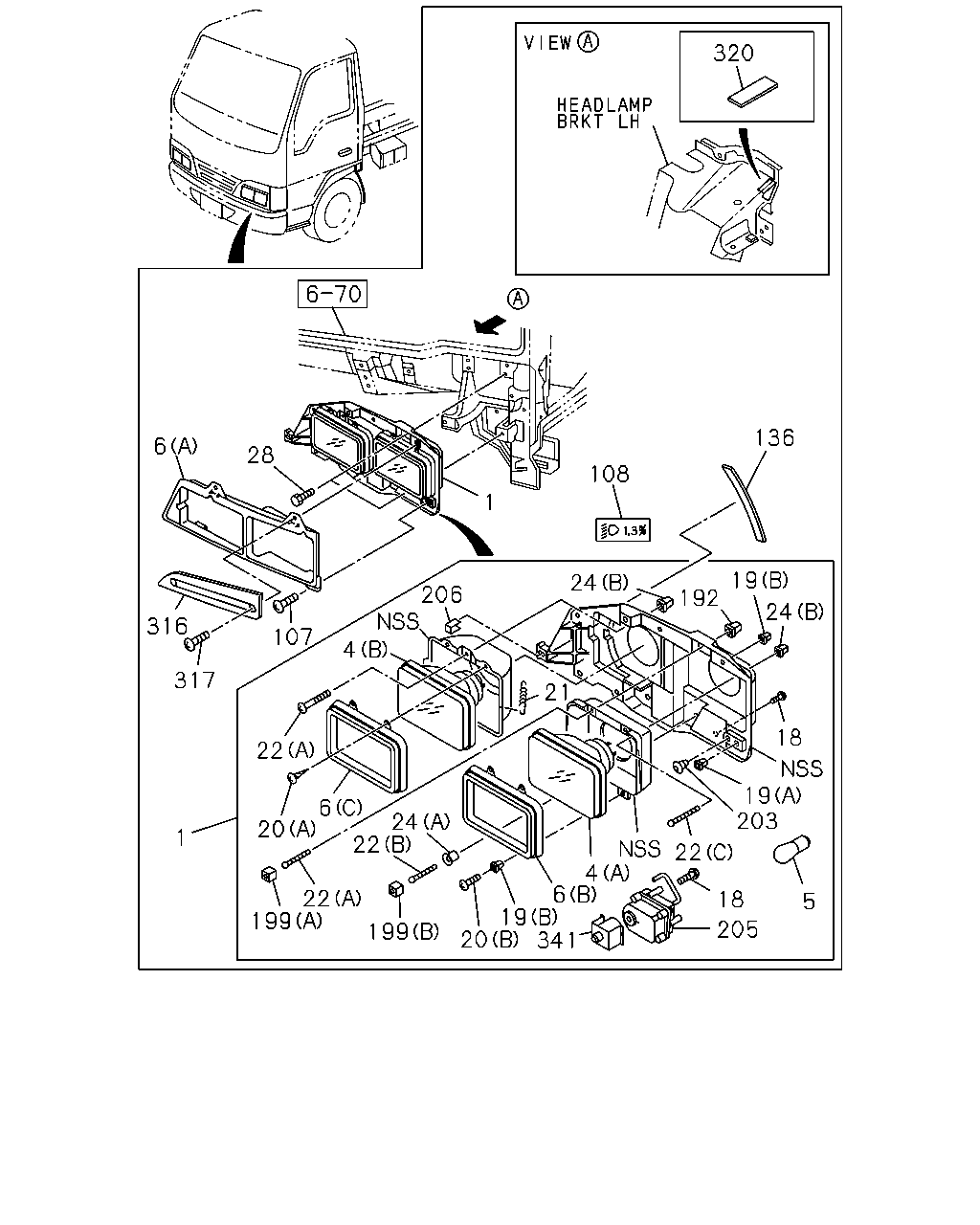

çizim 22023
320 136 6 28 108 1 19 24 206 4 192 24 316 107 21 317 18 22 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 205 199 20 341
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-569-0 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-901-3 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-917-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-570-0 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-902-3 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-918-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97855-088-4 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-913-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97855-089-4 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-914-0 01 1 0702- ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-826-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-827-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (A) 24V 55/50W 		8-94101-734-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (B) 24V 55W 		8-94101-740-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0502- ● ● ● ●
5 02.727 BULB; HEADLAMP
ADJUST HEADLAMP<6RC> 24V 70W 		8-94405-658-0 02 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
EXC. ADJUST HEADLAMP<6RC> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-94405-657-0 02 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0502- ● ● ● ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 0211-0501 ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0211-0501 ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0211-0501 ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 0211-0501 ● ● ●
18 02.726 SCREW; GEAR CASE
ADJUST HEADLAMP<6RC> 		1-82119-086-0 06 1 0211-0501 ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 0211-0501 ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 0211-0501 ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0211-0501 ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0211-0501 ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502- ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 0211-0501 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 0211-0501 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 0211-0501 ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97855-206-0 02 1 0211-0501 ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 0211-0501 ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. ADJUST HEADLAMP<6RC> (A) 		8-97855-208-0 02 1 0211-0501 ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0501 ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0502-0607 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0211-0501 ● ● ●
108 02.729 SEAL; HEADLAMP RIM
ADJUST HEADLAMP<6RC> 		8-97049-114-0 01 1 0211-0501 ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502- ● ● ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 0211-0501 ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 0211-0501 ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 0211-0501 ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0211-0501 ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97309-103-0 02 1 0211-0501 ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0211-0501 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-774-0 01 1 0211-0501 ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-775-0 01 1 0211-0501 ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0211-0501 ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211-0501 ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0502- ● ● ● ●
341 02.726 BRACKET; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97855-210-0 02 1 0211-0501 ● ● ●

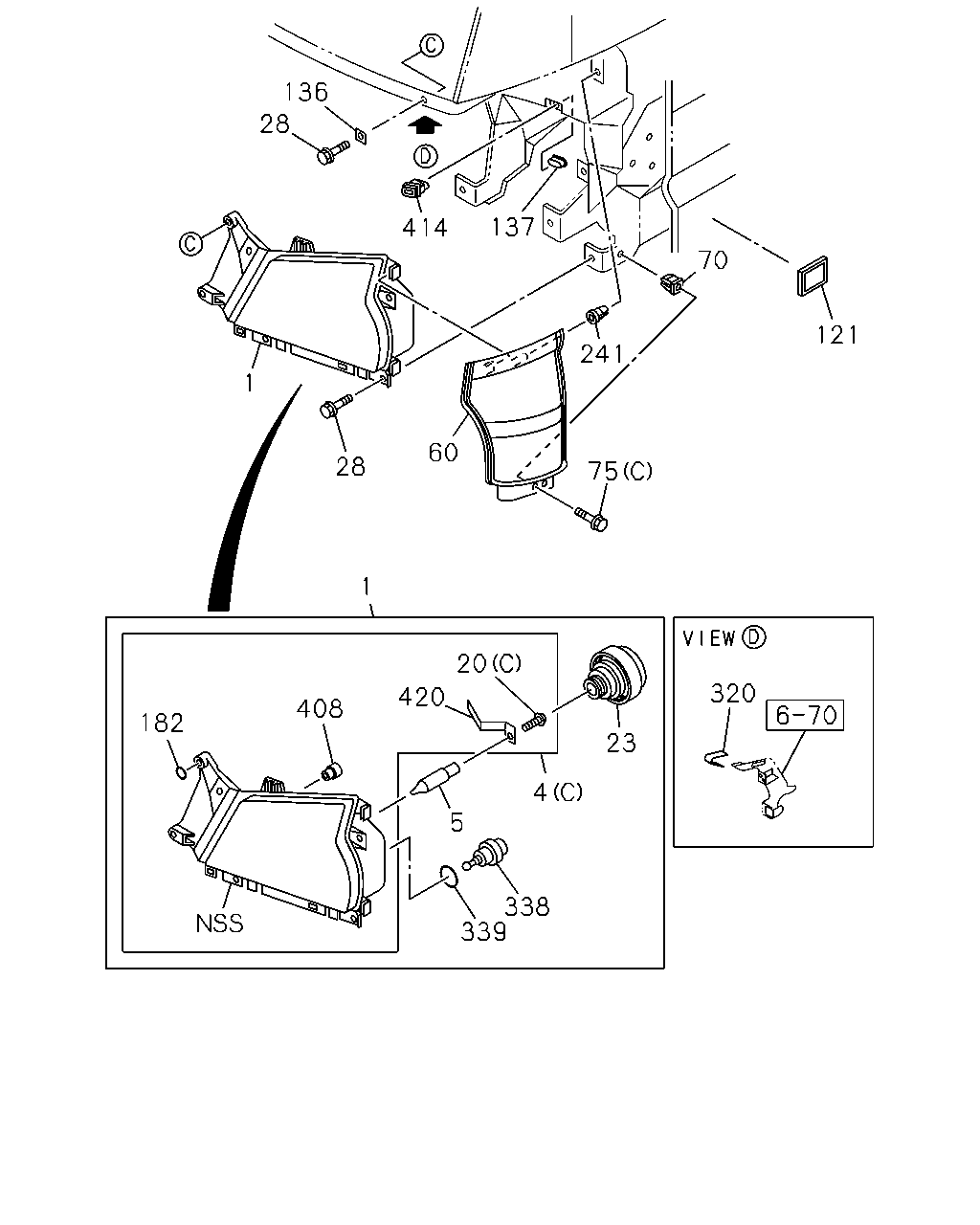

çizim 75580
136 28 137 414 70 121 241 1 60 28 75 1 20 320 420 408 182 23 4 5 338 339
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-569-0 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-901-3 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-917-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-570-0 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97376-902-3 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-98053-918-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97855-088-4 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-897-2 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-913-0 01 1 0702- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97855-089-4 01 1 0211-0501 ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97376-898-2 01 1 0502-0701 ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-98053-914-0 01 1 0702- ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-826-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> (C) 		8-98009-827-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (A) 24V 55/50W 		8-94101-734-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-822-0 01 1 0502- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (B) 24V 55W 		8-94101-740-0 02 1 0211-0501 ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC> (C) 		8-98009-823-0 01 1 0502- ● ● ● ●
5 02.727 BULB; HEADLAMP
ADJUST HEADLAMP<6RC> 24V 70W 		8-94405-658-0 02 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
EXC. ADJUST HEADLAMP<6RC> 24V 55/50W CLEAR 		5-82193-003-0 04 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
ADJUST HEADLAMP<6RC> 24V 75/70W 		8-94405-657-0 02 1 0211-0501 ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0502- ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 0211-0501 ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 0211-0501 ● ● ●
20 02.736 SCREW; HEADLAMP
(C) 		8-97378-871-0 02 1 0502- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0502- ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0501 ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0502-0607 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503- ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ●
121 02.575 REFLECTOR; REFLEX 8-97367-133-0 02 1 0502-0503 ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-0 02 1 0504-0504 ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 0505- ● ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502- ● ● ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0502- ● ● ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0502- ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211-0501 ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0502- ● ● ● ●
338 02.727 LEVELING; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97378-866-0 02 1 0502-0502 ● ● ● ●
338 02.727 LEVELING; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-98010-256-0 02 1 0502- ● ● ● ●
339 02.587 GASKET; LEVELING
ADJUST HEADLAMP<6RC> 		8-97378-870-0 02 1 0502- ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0502- ● ● ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0502- ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0502- ● ● ● ●

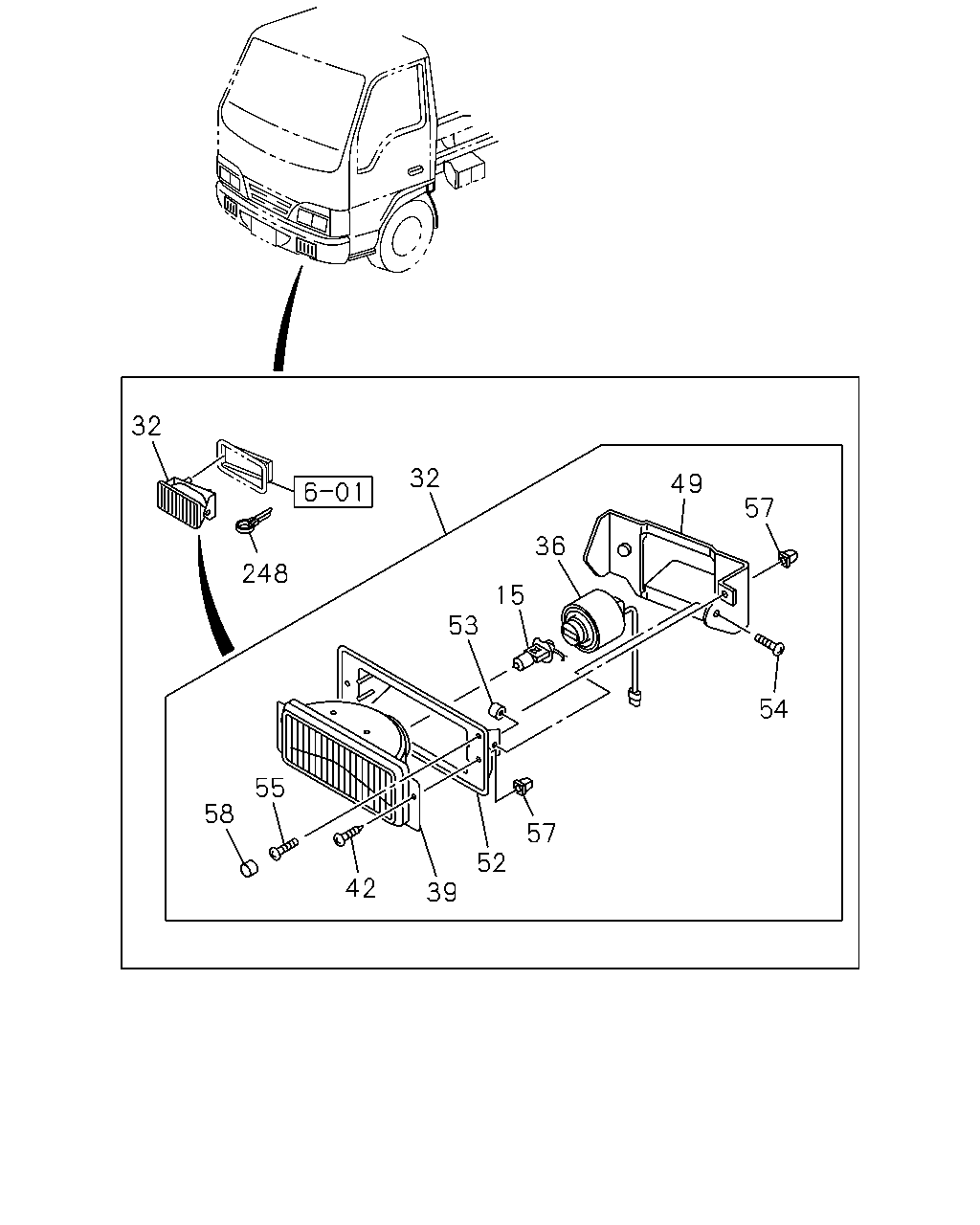

çizim 75603
32 32 49 57 36 248 15 53 54 55 58 57 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0211-0501 ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 55W 		1-82194-095-0 02 1 0502- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0211-0501 ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-545-0 01 1 0502-0612 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-004-0 01 1 0701- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0211-0501 ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97248-546-0 01 1 0502-0612 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98054-005-0 01 1 0701- ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0211-0501 ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		8-97095-518-0 02 1 0502- ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0211-0501 ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97104-061-0 01 1 0502-0612 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-416-0 01 1 0701- ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0211-0501 ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97119-301-0 01 1 0502-0612 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98063-417-0 01 1 0701- ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0211-0501 ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97104-089-0 04 1 0502- ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0211-0501 ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-094-0 01 1 0502- ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0211-0501 ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97104-095-0 01 1 0502- ● ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0211-0501 ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> 		8-97104-062-0 02 1 0502- ● ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0211-0501 ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> 		8-94379-802-0 04 1 0502- ● ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0211-0501 ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> M5X12 		8-94379-803-0 04 1 0502- ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0211-0501 ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97104-087-0 02 1 0502- ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0211-0501 ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-94379-806-0 06 1 0502- ● ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0211-0501 ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> 		8-97104-088-0 02 1 0502- ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0211-0501 ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0502- ● ● ● ●
çizim 75702
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503- ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0211-0501 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0211-0501 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-965-0 01 1 0502- ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-966-0 01 1 0502- ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0502- ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0502- ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-97378-969-0 02 1 0502-0502 ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-916-0 02 1 0503- ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0502- ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0502- ● ● ● ●

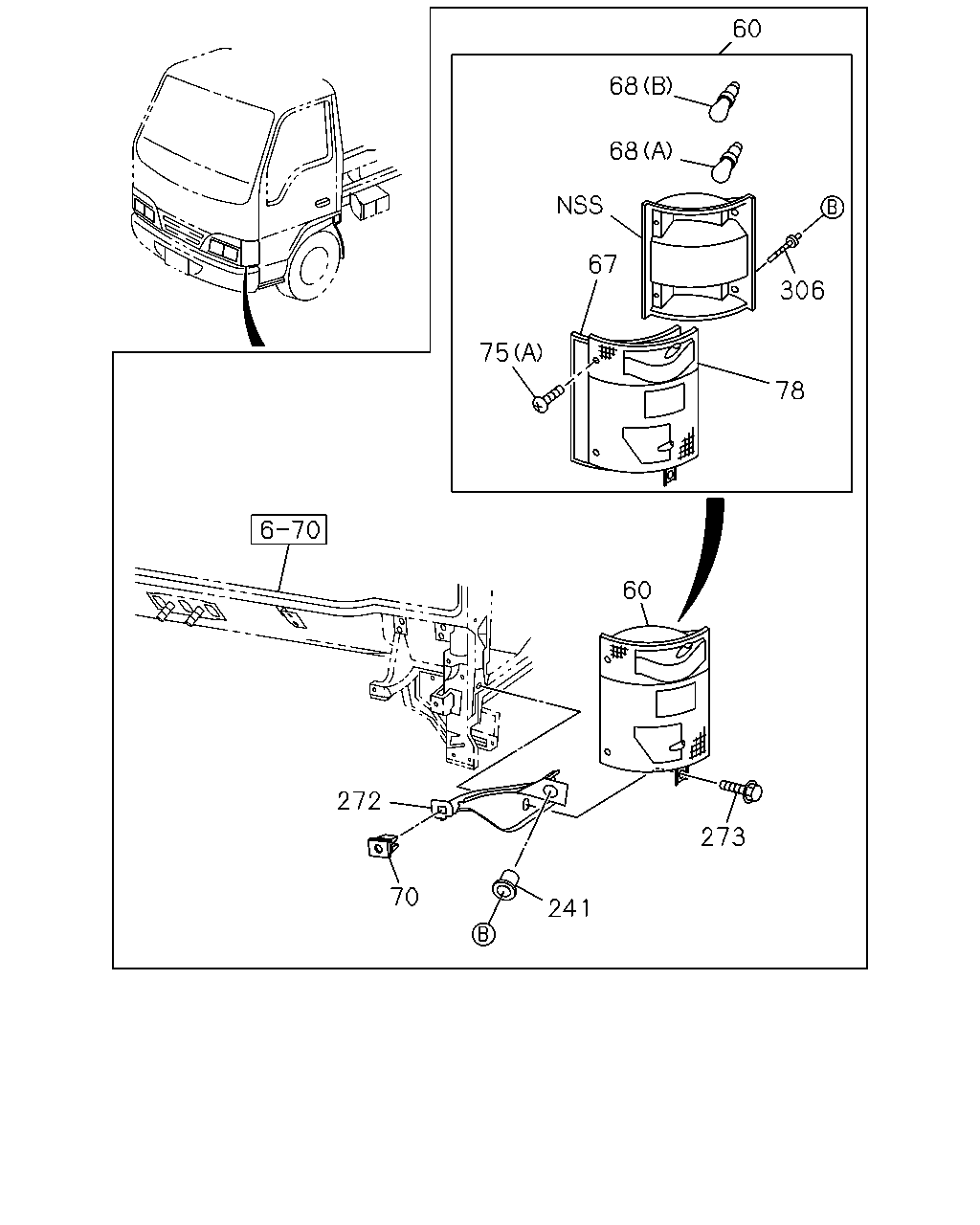

çizim 76309
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 02.585 LAMP ASM; FRT COMB 8-97855-007-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-909-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-891-0 01 1 0503- ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-008-2 01 1 0211-0501 ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97376-910-0 01 1 0502-0502 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-892-0 01 1 0503- ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 30/10W 		1-82194-065-0 02 1 0211-0501 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 25W 		9-82691-347-0 02 1 0211-0501 ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502- ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-128-0 01 1 0211-0501 ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-131-0 01 1 0211-0501 ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0211-0501 ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0211-0501 ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0211-0501 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
