Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#3802) — 197 parça

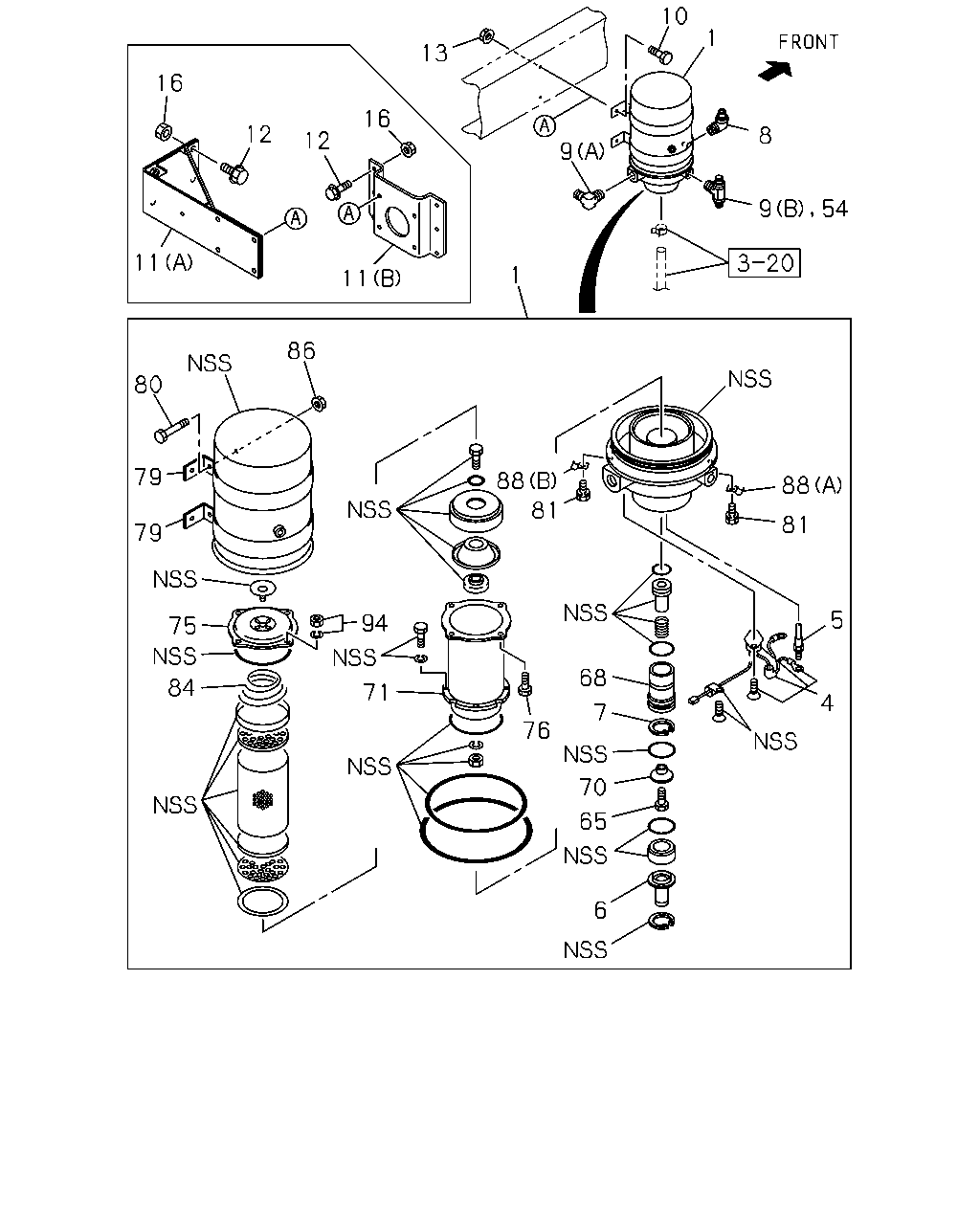

10 1 13 16 9 16 12 8 12 11 1 11 86 80 79 88 88 81 81 79 5 94 75 68 84 71 4 7 76 70 65 6 9 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	0110-1001	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-114-1	01	1	9601-0004		●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9805-0004		●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	0110-	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9601-0004		●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9805-0004		●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	0110-	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9601-0004		●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9805-0004		●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	0110-	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-101-0	01	1	9601-9804		●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9805-0004		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	0110-	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9601-0004		●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9805-0004		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0607	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9601-9803		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9805-0004		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9601-9804		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9805-0004		●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9601-9804		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9805-9806		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	0110-0512	●	●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE	0-28651-040-0	04	1	0601-	●	●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	0110-0512	●	●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9607-9806		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9807-0004		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9805-9806		●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9805-9806		●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9807-0004		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9807-0004		●
11	BRACKET; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> (B)	1-48195-055-0	01	1	0211-	●	●
11	BRACKET; AIR DRYER 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (A)	1-48195-095-1	01	1	9807-0004		●
12	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●	●
12	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●	●
12	BOLT; BRKT 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M14X45 FLANGE	0-28881-445-0	04	1	9807-0004		●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0110-0602	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9601-9606		●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9601-9606		●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9804		●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9804		●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9805-0004		●
16	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●	●
16	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
16	NUT; BRKT 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M14 FLANGE	0-91160-114-0	02	1	9807-0004		●
54	CONNECTOR 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9807-9907		●
54	CONNECTOR 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9908-0004		●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	0110-1001	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9601-0004		●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9805-0004		●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	0110-	●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9601-9804		●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9805-0004		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9601-9804		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9805-0004		●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	0110-	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-099-0	01	1	9601-0004		●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9805-0004		●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	0110-	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-201-0	01	1	9601-0004		●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9805-0004		●
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-478-0	06	1	0110-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-189-0	02	1	0110-	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-209-0	02	1	9601-0004		●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	9805-0004		●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	0110-	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9601-0004		●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9805-0004		●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	0110-	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9601-0004		●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9805-0004		●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	0110-	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9601-0004		●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9805-0004		●
86	NUT; BRKT AIR DRYER<PS7>	1-48199-320-0	02	1	0110-	●	●
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9805-0004		●
88	PLATE; STOPPER AIR DRYER<PS7> (A)	1-48199-178-0	01	1	0110-	●	●
88	PLATE; STOPPER AIR DRYER<PS7> (B)	1-48199-179-0	01	1	0110-	●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9805-0004		●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9805-0004		●
94	NUT; COVER,AIR DRYER AIR DRYER<PS7>	1-48199-479-0	07	1	0110-	●	●

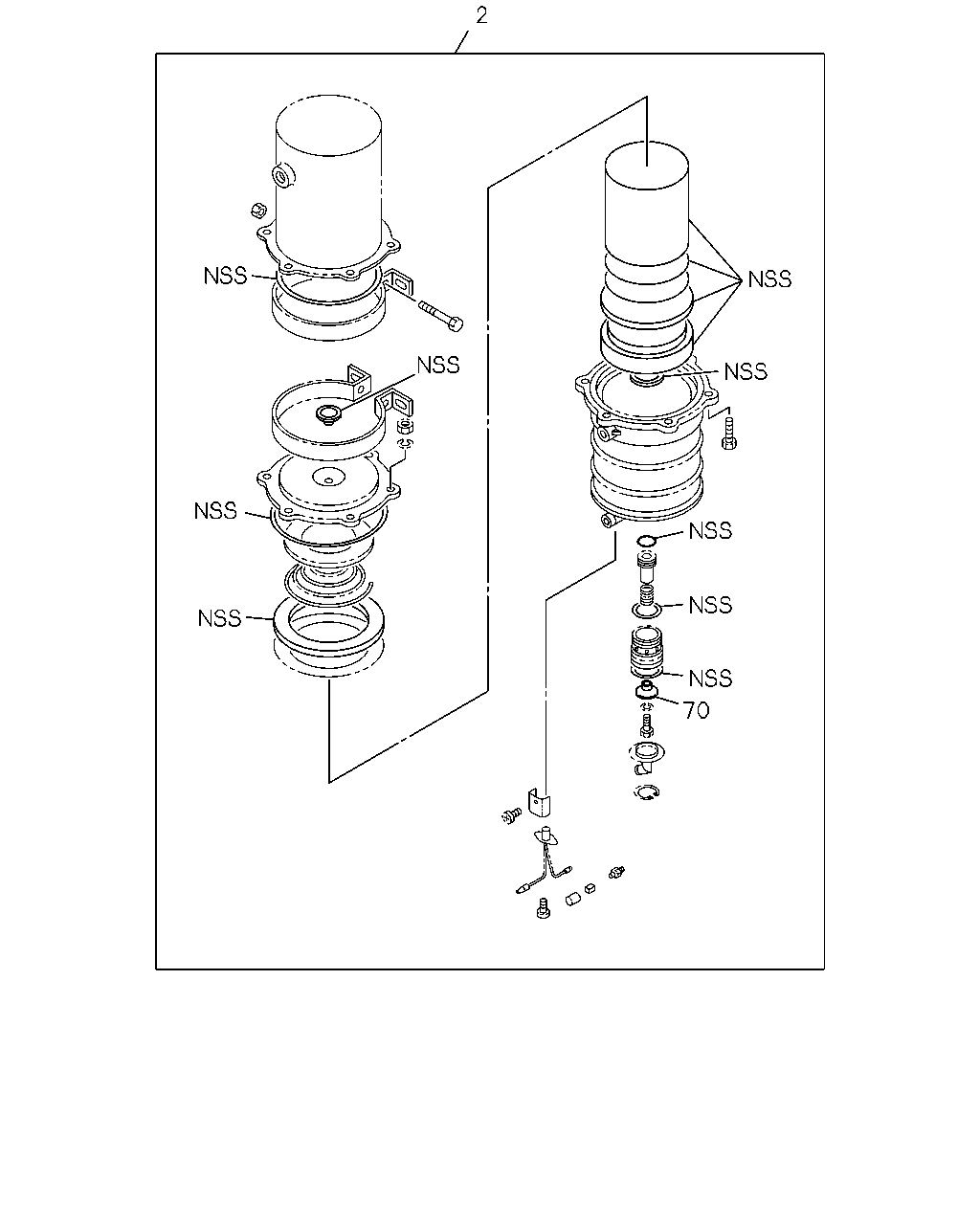

2 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	0110-1001	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-226-0	01	1	1002-	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-083-0	01	1	9601-0004		●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9805-0004		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9601-9804		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9805-0004		●

13 1 8 9 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	0110-1001	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-114-1	01	1	9601-0004		●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9805-0004		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0607	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9601-9803		●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9805-0004		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9601-9804		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9805-0004		●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9601-9804		●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9805-9806		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	0110-0512	●	●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> M10X40 FLANGE	0-28651-040-0	04	1	0601-	●	●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	0110-0512	●	●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	04	1	9607-9806		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	04	1	9807-0004		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	04	1	9805-9806		●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9805-9806		●
10	BOLT; AIR DRYER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9807-0004		●
10	BOLT; AIR DRYER 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	04	1	9807-0004		●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0110-0602	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9601-9606		●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10	9-09110-510-0	04	1	9601-9606		●
13	NUT; AIR DRYER 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9804		●
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9607-9804		●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	9805-0004		●

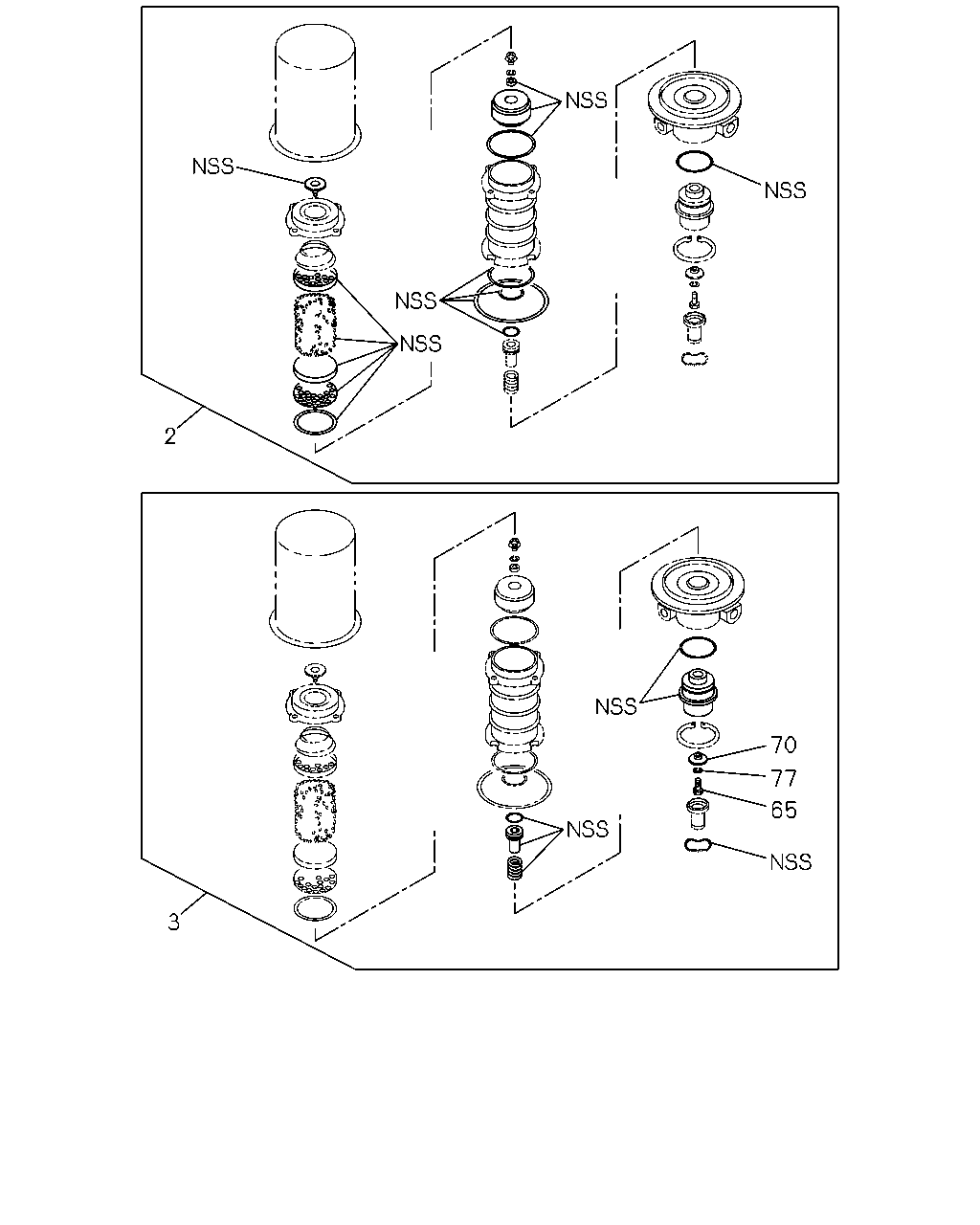

2 70 77 65 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-055-1	01	1	0110-1001	●	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-226-0	01	1	1002-	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-083-0	01	1	9601-0004		●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9805-0004		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	0110-	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9601-0004		●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9805-0004		●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	0110-1001	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9601-0004		●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9805-0004		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9601-9804		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9805-0004		●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9601-0004		●

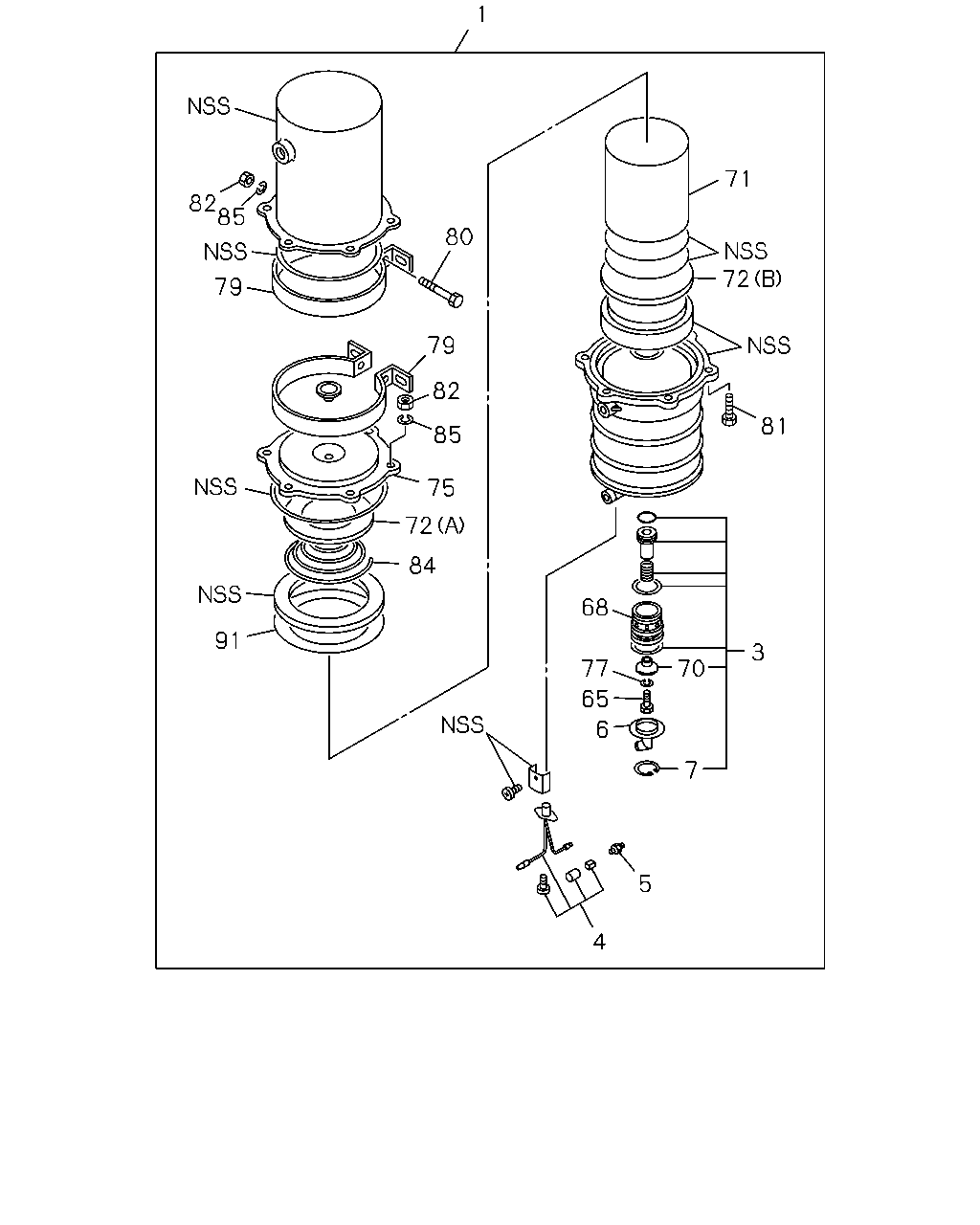

1 71 82 85 80 72 79 79 82 81 85 75 72 84 68 91 3 77 70 65 6 7 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-105-3	01	1	0110-1001	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48190-114-1	01	1	9601-0004		●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	9805-0004		●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-057-1	01	1	0110-	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-084-0	01	1	9601-0004		●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9805-0004		●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-129-0	01	1	0110-	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-121-0	01	1	9601-0004		●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9805-0004		●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-085-0	02	1	0110-	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-200-0	01	1	9601-0004		●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9805-0004		●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	0110-	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-101-0	01	1	9601-9804		●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	9805-0004		●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-154-0	01	1	0110-	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-100-0	01	1	9601-0004		●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9805-0004		●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-413-0	01	1	0110-1001	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-102-0	01	1	9601-0004		●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	9805-0004		●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	0110-	●	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-216-0	01	1	9601-9804		●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9805-0004		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-105-0	01	1	9601-9804		●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9805-0004		●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-156-1	01	1	0110-	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-099-0	01	1	9601-0004		●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9805-0004		●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-097-0	01	1	9601-0004		●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-098-0	01	1	9601-0004		●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-167-0	01	1	0110-	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-201-0	01	1	9601-0004		●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9805-0004		●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-103-0	01	1	9601-0004		●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-189-0	02	1	0110-	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-209-0	02	1	9601-0004		●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	9805-0004		●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-190-0	02	1	0110-	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-212-0	02	1	9601-0004		●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9805-0004		●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-177-0	02	1	0110-	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-208-0	06	1	9601-0004		●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9805-0004		●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-211-0	08	1	9601-0004		●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-166-0	01	1	0110-	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-092-0	01	1	9601-0004		●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9805-0004		●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-024-0	08	1	9601-0004		●
91	GUIDE; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-091-0	01	1	9601-0004		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
