7-42 — ASH TRAY (#38018) — 12 parça

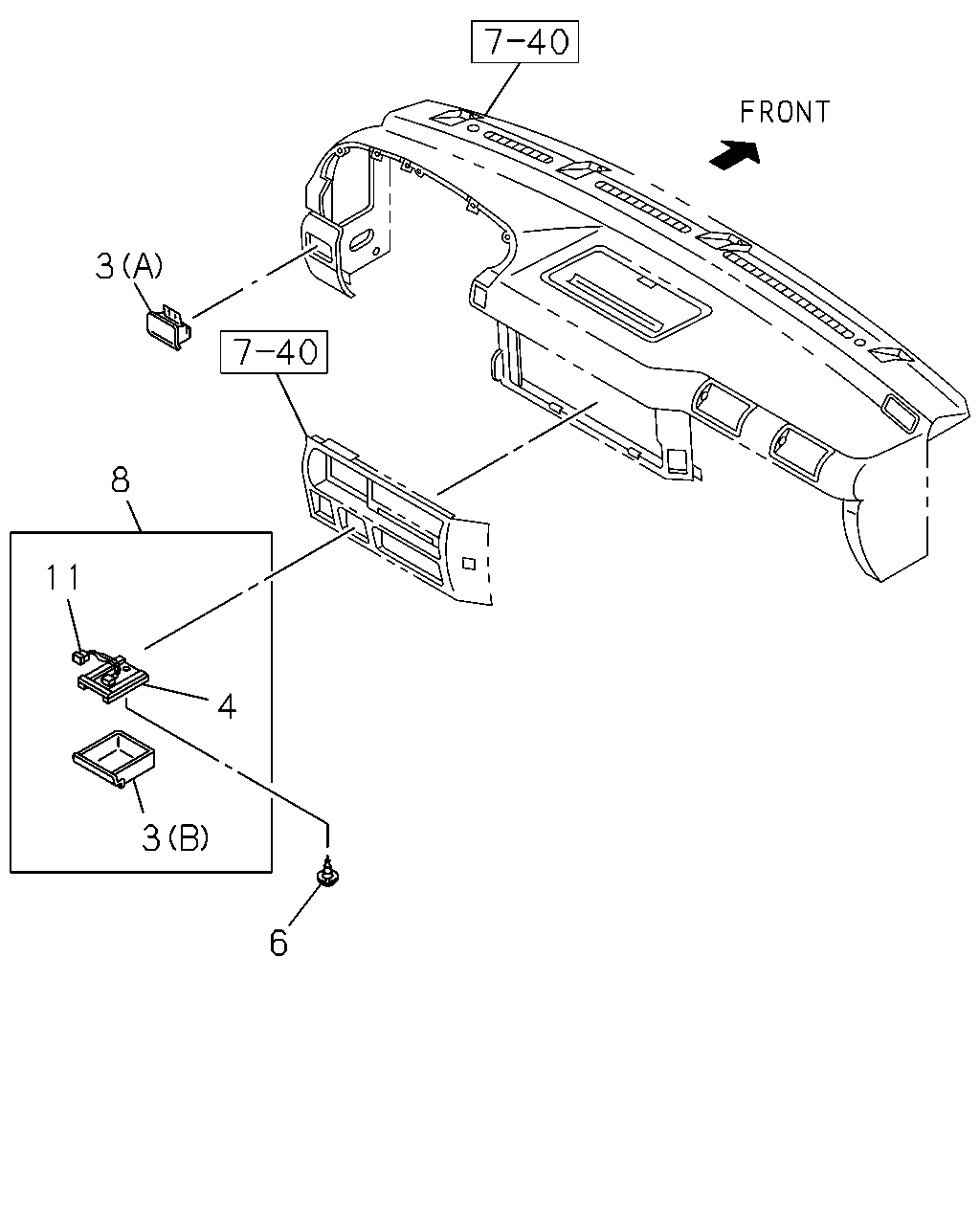

çizim 75638
3 8 11 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97198-913-0 01 1 0211-0501 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY 		8-97582-213-0 01 1 0502- ● ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97898-280-0 01 1 0211-0501 ● ● ●
3 16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY 		8-97898-280-0 01 1 0502- ● ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0211-0501 ● ● ●
4 16.120 CASE ASM; ASH TRAY OUTER 8-97898-279-0 01 1 0502- ● ● ● ●
6 16.120 SCREW; ASH TRAY
07.874 M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 0211-0501 ● ● ●
6 16.120 SCREW; ASH TRAY
07.874 M6X16 TRUSS-HEAD 		8-94318-980-0 01 1 0502- ● ● ● ●
8 16.120 TRAY ASM; ASH 8-97898-278-0 01 1 0211-0501 ● ● ●
8 16.120 TRAY ASM; ASH 8-97898-278-0 01 1 0502- ● ● ● ●
11 08.991 BULB; ASH TRAY
16.120 		8-97898-281-0 01 1 0211-0501 ● ● ●
11 08.991 BULB; ASH TRAY
16.120 		8-97898-281-0 01 1 0502- ● ● ● ●
