Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#38016) — 170 parça

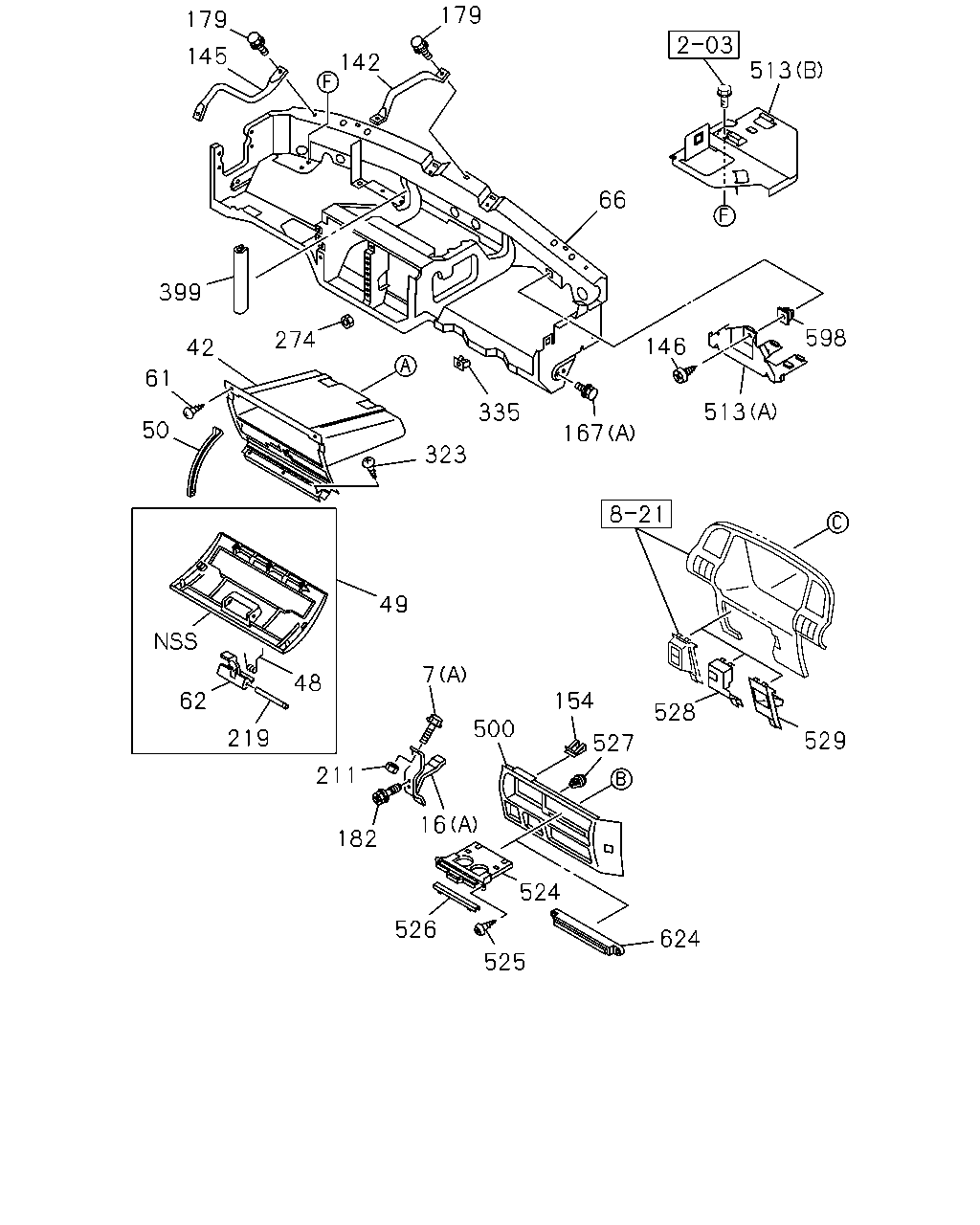

179 179 145 142 513 66 399 598 274 146 42 61 513 335 50 167 323 49 7 48 62 154 528 500 219 529 527 211 16 182 524 526 624 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	16.085 BOLT; SUPPORT,INST PNL 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 16.090 (B) M8X23 FLANGE	8-97264-766-0	04	1	0211-0501	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 16.090 (B) M8X23 FLANGE	8-97264-766-0	04	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	0502-	●	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-281-6	01	1	0211-0501	●	●	●
42	16.100 BOX; GLOVE,INST PNL	8-97853-281-6	01	1	0502-	●	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	0211-0501	●	●	●
48	16.110 SPRING; GLOVE BOX LID	8-97853-750-1	01	1	0502-	●	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97857-496-4	01	1	0211-0501	●	●	●
49	16.110 LID; GLOVE BOX DARK GRAY	8-97582-808-4	01	1	0502-	●	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	0211-0501	●	●	●
50	16.110 STOPPER; LID,GLOVE BOX,INST CLUS	8-97853-152-0	02	1	0502-	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0211-0501	●	●	●
61	16.100 SCREW; GLOVE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0502-0604	●	●	●	●
61	16.100 SCREW; GLOVE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-0612	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101	●	●	●	●
61	16.100 SCREW; GLOVE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-	●	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97857-498-1	01	1	0211-0501	●	●	●
62	16.110 KNOB; GLOVE BOX LID DARK GRAY	8-97582-487-1	01	1	0502-	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97898-465-5	01	1	0211-0501	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-97583-893-3	01	1	0502-0506	●	●	●	●
66	16.085 REINFORCEMENT; INST PANEL	8-98021-526-1	01	1	0507-	●	●	●	●
142	16.085 STAY; INST PANEL	8-97856-460-2	01	1	0211-0501	●	●	●
142	16.085 STAY; INST PANEL	8-97856-460-2	01	1	0502-	●	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-461-3	01	1	0211-0501	●	●	●
145	16.085 STAY; INST PANEL SIDE	8-97856-461-3	01	1	0502-	●	●	●	●
146	16.100 SCREW; TAP HYDRO BRAKE BOOSTER<7QQ> 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0303-0501		●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-0512	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0601-	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0601-	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	0211-0501	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	0502-	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	0211-0501	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	0502-	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL 16.350 M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0211-0307	●	●	●
179	16.085 BOLT; STAY,INST PANEL 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0308-0501	●	●	●
179	16.085 BOLT; STAY,INST PANEL 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	0502-0512	●	●	●	●
179	16.085 BOLT; STAY,INST PANEL M6X12 W/LK&PL WASHER	0-50640-612-0	02	1	0601-	●	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0211-0501	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0502-	●	●	●	●
211	16.120 NUT; BRKT TO INST 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●
211	16.120 NUT; BRKT TO INST 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●	●
211	16.120 NUT; BRKT TO INST 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	0211-0501	●	●	●
219	09.744 SHAFT; GLOVE BOX LID	5-72547-059-1	01	1	0502-	●	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	0211-0501	●	●	●
274	16.100 NUT; GLOVE BOX 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	0502-	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	0211-0501	●	●	●
323	16.110 SCREW; GLOVE BOX LK 16.067 M5X14	8-94279-325-0	03	1	0502-0612	●	●	●	●
323	16.110 SCREW; GLOVE BOX LK 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	03	1	0701-	●	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0211-0501	●	●	●
335	16.115 GROMMET; GLOVE BOX LK 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0502-	●	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	0211-0501	●	●	●
399	16.085 FINISHER; HARNESS 03.885 L=50	8-94270-377-1	01	1	0502-	●	●	●	●
500	16.081 CLUSTER; INST CENTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97857-501-8	01	1	0211-0501	●	●	●
500	16.081 CLUSTER; INST CENTER RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97857-902-6	01	1	0211-0501	●	●	●
500	16.081 CLUSTER; INST CENTER DARK GRAY	8-97585-434-8	01	1	0502-	●	●	●	●
513	16.120 BRACKET; RELAY HYDRO BRAKE BOOSTER<7QQ> (A)	8-97859-391-2	01	1	0303-0501		●
513	16.120 BRACKET; RELAY ADJUST HEADLAMP<6RC> (B)	8-97410-713-2	01	1	0502-0507	●	●	●	●
513	16.120 BRACKET; RELAY ADJUST HEADLAMP<6RC> (B)	8-97410-713-2	01	1	0508-	●	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-8	01	1	0211-0501	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-97853-172-8	01	1	0502-	●	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●
525	16.100 SCREW; CUP STAND 16.067 M5X14	8-94279-325-0	02	1	0502-0612	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●	●	●
525	16.100 SCREW; CUP STAND 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY	8-97857-503-1	01	1	0211-0501	●	●	●
526	16.100 GUIDE; POCKET,INST CLUSTER DARK GRAY	8-97582-490-1	01	1	0502-	●	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	0211-0501	●	●	●
527	16.100 CLIP; INST CLUSTER	8-97853-169-0	04	1	0502-	●	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) BLACK	8-97868-448-0	01	1	0211-0501	●	●	●
528	16.081 COVER; PTO LEVER PTO TRANSMISSION SIDE(V66) BLACK	8-97868-448-0	01	1	0502-	●	●	●	●
529	16.100 POCKET; COIN EXC. PTO TRANSMISSION SIDE(V66),ADJUST HEADLAMP<6RC> BLACK	8-97867-543-5	01	1	0211-0501	●	●	●
529	16.100 POCKET; COIN EXC. PTO TRANSMISSION SIDE(V66),ADJUST HEADLAMP<6RC> BLACK	8-97867-543-5	01	1	0502-	●	●	●	●
598	09.262 GROMMET; SCREW HYDRO BRAKE BOOSTER<7QQ> 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0303-0501		●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-1	01	1	0211-0501	●	●	●
624	16.085 COVER; CUP STAND EXC. CUP HOLDER<7KZ>	1-72438-139-1	01	1	0502-	●	●	●	●

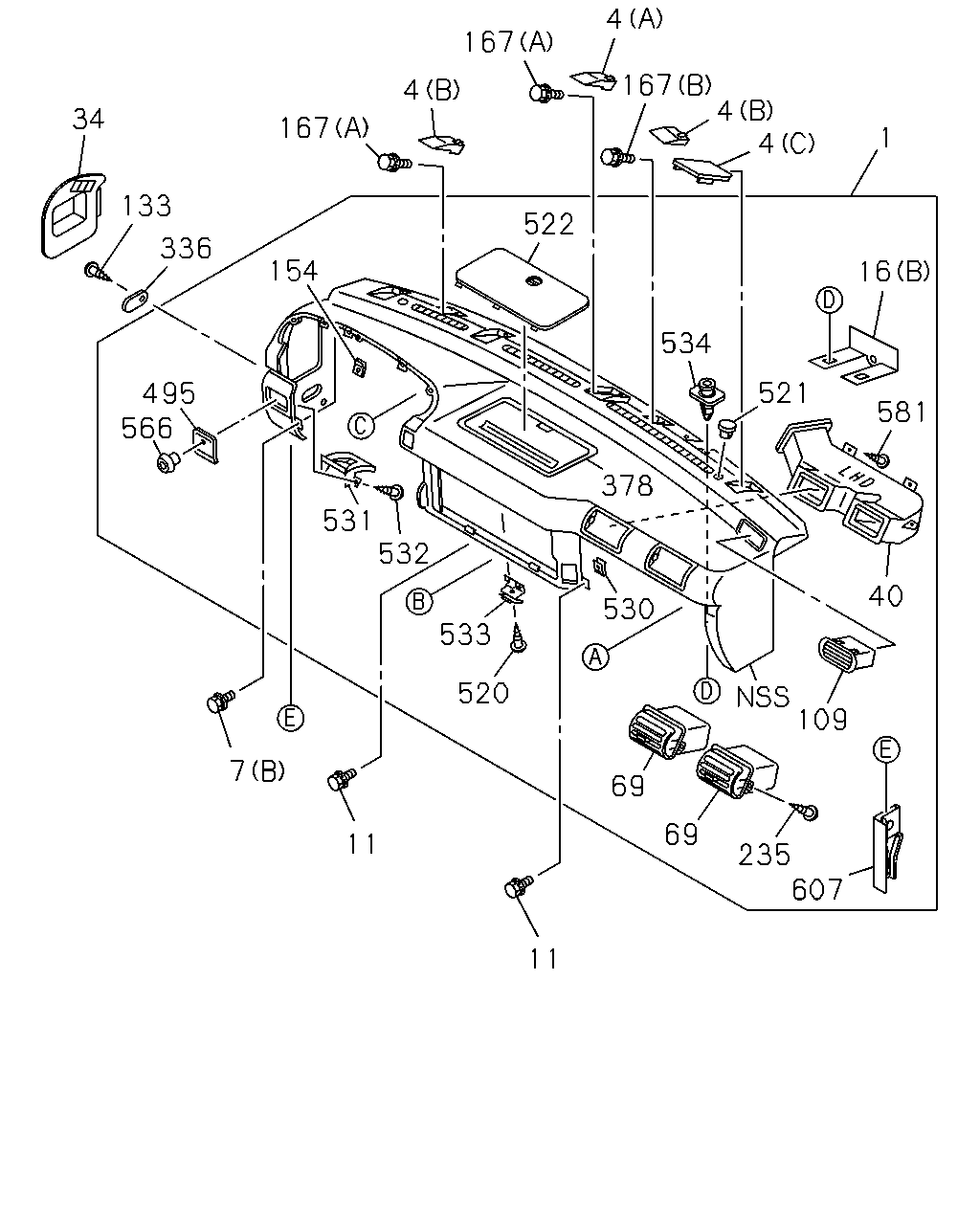

4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 521 495 566 581 378 531 532 40 530 533 520 109 7 69 69 11 235 607 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.080 PANEL; INST DARK GRAY	8-97195-962-1	01	1	0211-0501	●	●	●
1	16.080 PANEL; INST DARK GRAY	8-97585-435-1	01	1	0502-	●	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97857-523-3	02	1	0211-0501	●	●	●
4	16.080 COVER; INST PNL (A) DARK GRAY	8-97582-215-3	02	1	0502-	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-524-3	01	1	0211-0501	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-216-3	01	1	0502-	●	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97857-525-3	01	1	0211-0501	●	●	●
4	16.080 COVER; INST PNL (B) DARK GRAY	8-97582-217-3	01	1	0502-	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97857-526-1	01	1	0211-0501	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97582-812-1	01	1	0502-	●	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97857-527-1	01	1	0211-0501	●	●	●
4	16.080 COVER; INST PNL (C) DARK GRAY	8-97582-813-1	01	1	0502-	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 16.090 (B) M8X23 FLANGE	8-97264-766-0	04	1	0211-0501	●	●	●
7	16.085 BOLT; SUPPORT,INST PNL 16.090 (B) M8X23 FLANGE	8-97264-766-0	04	1	0502-	●	●	●	●
11	16.090 BOLT; INST PNL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0211-0501	●	●	●
11	16.090 BOLT; INST PNL 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (A)	8-97853-306-7	01	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-131-0	01	1	0502-	●	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	0211-0501	●	●	●
16	16.085 BRACKET; INST PNL (B)	8-97856-132-0	01	1	0502-	●	●	●	●
34	16.085 LID; OIL TANK DARK GRAY	8-97857-499-5	01	1	0211-0501	●	●	●
34	16.085 LID; OIL TANK FORGED AIR VENTILATION(C39) 16.081 DARK GRAY	8-97585-448-4	01	1	0502-	●	●	●	●
34	16.085 LID; OIL TANK EXC. FORGED AIR VENTILATION(C39) DARK GRAY	8-97585-433-5	01	1	0502-	●	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-699-0	01	1	0211-0501	●	●	●
40	09.264 DUCT; VENT,SIDE CLUSTER BEZEL	8-97262-699-0	01	1	0502-	●	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97890-631-0	02	1	0211-0501	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET DARK GRAY	8-97582-612-0	02	1	0502-	●	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97857-530-0	01	1	0211-0501	●	●	●
109	16.081 GRILLE; INST PNL SIDE,UPR DARK GRAY	8-97585-436-0	01	1	0502-	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	0211-0501	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.744 M5X20 TAPPING W/PL WASHER	0-74110-520-0	02	1	0502-0604	●	●	●	●
133	16.081 SCREW; COVER,INST PNL M5X20 TAPPING W/PL WASHER	0-74160-520-0	02	1	0605-0612	●	●	●	●
133	16.081 SCREW; COVER,INST PNL 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0211-0501	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	04	1	0502-0512	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	01	1	0601-	●	●	●	●
154	16.085 NUT M6 SPIRE NUT	8-97210-973-1	03	1	0601-	●	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	0211-0501	●	●	●
167	16.085 BOLT; REINF TO INST 06.500 (A) M6X25	8-94279-204-0	04	1	0502-	●	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	0211-0501	●	●	●
167	16.085 BOLT; REINF TO INST (B) M6X24 FLANGE	8-94279-231-1	02	1	0502-	●	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	0211-0501	●	●	●
235	16.081 SCREW; GRILLE 16.067 M5X14	8-94279-325-0	04	1	0502-	●	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97857-528-4	02	1	0211-0501	●	●	●
336	16.081 COVER; INST PANEL SIDE DARK GRAY	8-97582-218-4	02	1	0502-	●	●	●	●
378	09.743 SEAL; INST PANEL	8-97209-399-0	01	1	0211-0501	●	●	●
378	09.743 SEAL; INST PANEL	8-97209-399-0	01	1	0502-	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-411-1	01	1	0211-0501	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) ADJUST HEADLAMP<6RC> EXC. ASH TRAY DRIVER SIDE<7KU>	8-97589-121-1	01	1	0502-	●	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0211-0501	●	●	●
495	09.743 BEZEL; SW EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97857-548-4	01	1	0211-0501	●	●	●
495	09.743 BEZEL; SW PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-	●	●	●	●
495	09.743 BEZEL; SW EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-214-4	01	1	0502-	●	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	0211-0501	●	●	●
520	16.085 SCREW; CLIP,SPRING 16.067 M5X14	8-94279-325-0	03	1	0502-	●	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97857-529-2	01	1	0211-0501	●	●	●
521	16.081 COVER; SUN SENSOR DARK GRAY	8-97582-334-2	01	1	0502-	●	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97857-520-6	01	1	0211-0501	●	●	●
522	16.085 LID; RELAY BOX DARK GRAY	8-97582-494-6	01	1	0502-	●	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	0211-0501	●	●	●
530	16.100 CLIP; GLOVE BOX	8-97856-135-0	01	1	0502-	●	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU>	8-97853-130-0	01	1	0211-0501	●	●	●
531	16.100 CASE; ASH TRAY ASH TRAY DRIVER SIDE<7KU>	8-97853-130-0	01	1	0502-	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14	8-94279-325-0	02	1	0502-0612	●	●	●	●
532	16.100 SCREW; ASH TRAY ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	0211-0501	●	●	●
533	16.100 CLIP; SPRING,CTR CLUSTER	8-97853-170-5	02	1	0502-	●	●	●	●
534	16.100 CLIP; BRKT	8-97856-276-0	04	1	0211-0501	●	●	●
534	16.100 CLIP; BRKT	8-97856-276-0	04	1	0502-	●	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0211-0501	●	●	●
566	16.085 PLUG; HOLE EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97868-413-0	01	1	0211-0501	●	●	●
566	16.085 PLUG; HOLE PTO TRANSMISSION SIDE(V66) EXC. ADJUST HEADLAMP<6RC>,ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-	●	●	●	●
566	16.085 PLUG; HOLE EXC. PTO TRANSMISSION SIDE(V66),ASH TRAY DRIVER SIDE<7KU> DARK GRAY	8-97582-247-0	01	1	0502-	●	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	03	1	0211-0501	●	●	●
581	09.744 SCREW 16.067 M5X14	8-94279-325-0	03	1	0502-	●	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	0211-0501	●	●	●
607	16.085 FIXING ASM; CLIP INST TO M/CSTR	8-97857-893-2	01	1	0502-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
