◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#38013) — 58 parça
çizim 19933
48 130 190
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0502-0708 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502- ● ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> 		8-94192-480-0 02 1 0211-0501 ●
130 08.808 PLATE; CAUTION,GUARD FRAME
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94192-480-0 02 1 0211-0501 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0211-0501 ●
çizim 74584
35 35 5 5 9 273
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0211-0505 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0506-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0605- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0211-0505 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0506-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0605- ● ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 0211-0305 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. TACHOMETER<U16>,VIN MODEL YEAR 2004(8JA) 		8-94158-942-0 01 1 0306-0501 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0211-0305 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) 		8-94158-940-0 01 1 0306-0501 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 0505- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0505- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0211-0305 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) (B) 		5-85881-328-1 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0211-0305 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) (A) 		8-97856-228-0 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0211-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0502-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2004(8JA) (B) 		8-97371-054-0 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (B) 		8-97371-054-0 01 1 0502- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2004(8JA) (A) 		8-97583-038-0 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-97583-038-0 01 1 0502-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-98105-131-0 01 1 1006- ● ● ● ●
273 08.808 LABEL; CAUTION,OIL
HYDRO BRAKE BOOSTER<7QQ> 		8-97371-006-0 01 1 0306- ●

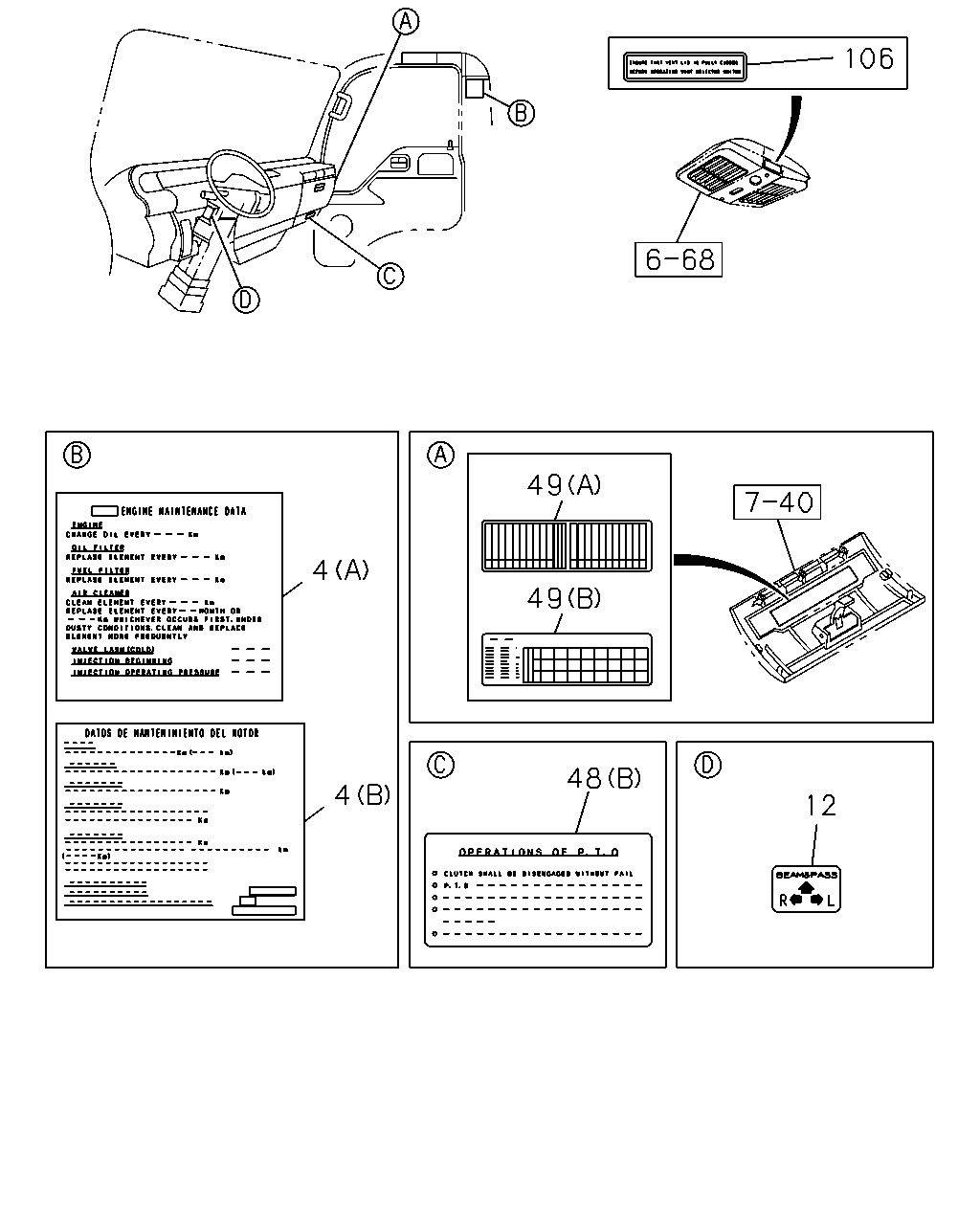

çizim 74586
106 49 4 49 48 4 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) (B) 		8-97215-749-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> (A) 		8-97215-748-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> (B) 		8-97189-399-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97189-399-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> (B) 		8-97189-399-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-398-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) (A) 		8-97189-398-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-398-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 0211- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 0211- ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0211-0501 ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0502- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0502-0708 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502- ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0211-0501 ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502- ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
(A) 		8-97358-021-0 01 1 0211-0501 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
(B) 		8-97377-715-0 01 1 0502- ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0211-0501 ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0502- ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0211-0501 ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0502- ● ● ● ●
