Sayfa 6-90 - Isuzu EPC

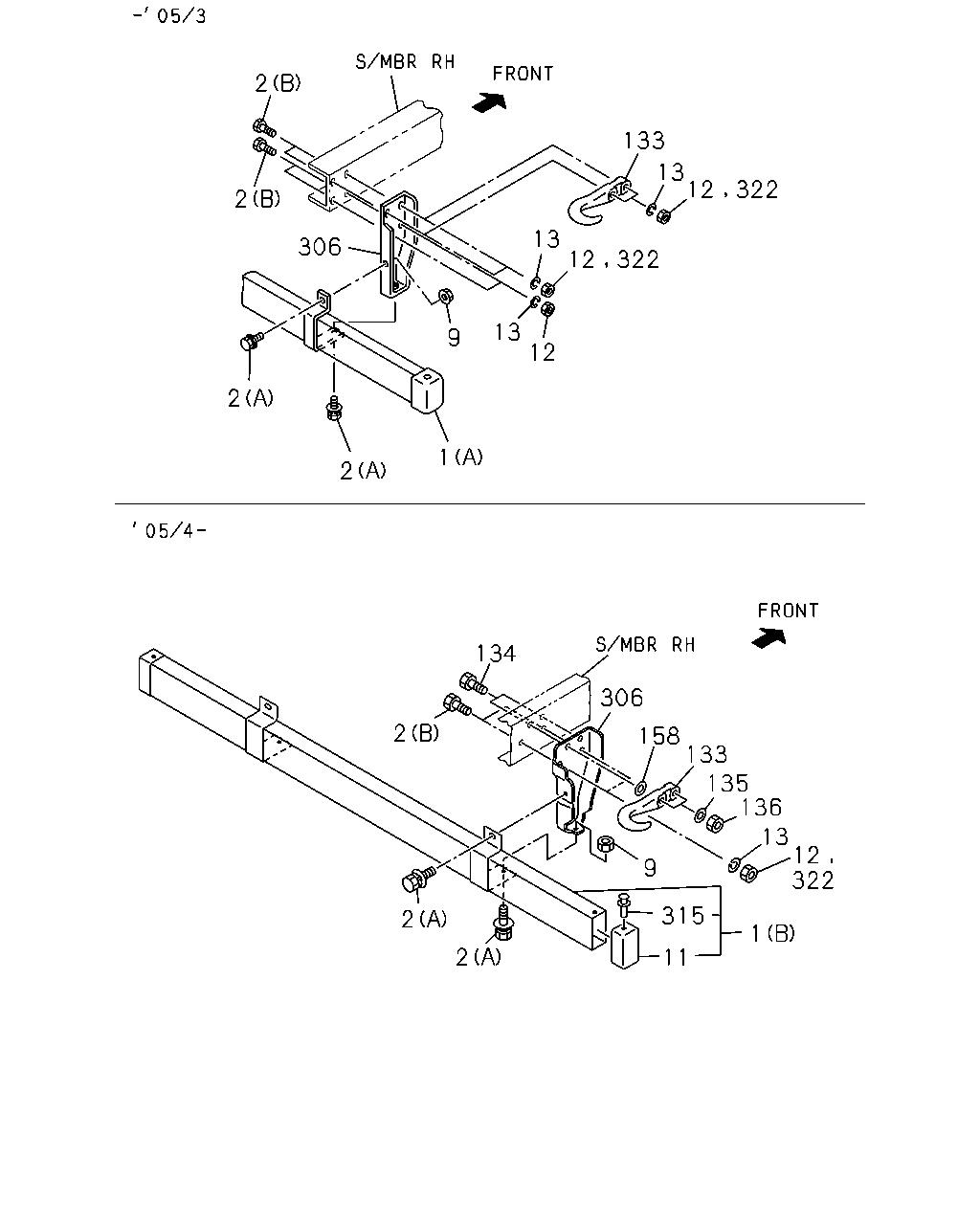

6-90 — REAR BUMPER (#38011) — 176 parça

113 127 127 129 129 128 128 114 113 133 134 135 136 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0211-	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-2	01	1	0211-0501	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,FRAME STRAIGHT TYPE<7KJ> 02.662 (A)	8-97096-644-2	01	1	0211-0501		●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-3	01	1	0502-0806	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,FRAME STRAIGHT TYPE<7KJ> 02.662 (A)	8-97096-644-3	01	1	0502-0806		●
113	07.800 BRACKET; LICENSE PLATE EXC. FRAME STRAIGHT TYPE<7KJ> 02.662 (A)	8-97096-644-3	01	1	0502-0806			●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97096-644-3	01	1	0502-0806				●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> (A)	8-98029-390-3	01	1	0807-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98029-390-3	01	1	0807-		●
113	07.800 BRACKET; LICENSE PLATE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98029-390-3	01	1	0807-			●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	0807-				●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97122-800-0	01	1	0211-0501		●
113	07.800 BRACKET; LICENSE PLATE 02.662 (A)	8-97122-800-0	01	1	0211-0501			●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97122-800-2	01	1	0502-		●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> 02.662 (A)	8-97122-800-2	01	1	0502-			●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0211-0512	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-	●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0211-0403	●	●
127	02.662 BOLT; CROSS PLATE 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0211-0403			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0404-0408	●	●
127	02.662 BOLT; CROSS PLATE 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0404-0408			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>, IDENTIFICATION LABEL FOR KD<6UT> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0409-0409	●	●
127	02.662 BOLT; CROSS PLATE EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0409-0409			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0409-0501	●	●
127	02.662 BOLT; CROSS PLATE 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0409-0501			●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0502-0512	●	●
127	02.662 BOLT; CROSS PLATE 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0502-0512			●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 00.685 M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●
127	02.662 BOLT; CROSS PLATE 00.685 M8X40 FLANGE	0-28650-840-0	02	1	0601-			●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	0211-0408	●	●
128	02.662 NUT; CROSS PLATE 02.559 M8	9-09110-408-0	02	1	0211-0408			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>, IDENTIFICATION LABEL FOR KD<6UT> 02.559 M8	9-09110-408-0	02	1	0409-0409	●	●
128	02.662 NUT; CROSS PLATE EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.559 M8	9-09110-408-0	02	1	0409-0409			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	0409-0501	●	●
128	02.662 NUT; CROSS PLATE 02.559 M8	9-09110-408-0	02	1	0409-0501			●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	0502-0512	●	●
128	02.662 NUT; CROSS PLATE 02.559 M8	9-09110-408-0	02	1	0502-0512			●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 M8	0-91110-508-0	02	1	0601-0709	●	●
128	02.662 NUT; CROSS PLATE 02.334 M8	0-91110-508-0	02	1	0601-0709			●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
128	02.662 NUT; CROSS PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●	●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0408	●	●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0408			●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6>, IDENTIFICATION LABEL FOR KD<6UT> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0409-0409	●	●
129	03.162 WASHER; PL,CROSS PLATE EXC. IDENTIFICATION LABEL FOR KD<6UT> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0409-0409			●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0409-0501	●	●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0409-0501			●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0502-0605	●	●
129	03.162 WASHER; PL,CROSS PLATE 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0502-0605			●	●
129	03.162 WASHER; PL,CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-0709	●	●
129	03.162 WASHER; PL,CROSS PLATE 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-0709			●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0211-0501	●	●
133	07.112 HOOK BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0211-0501	●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0211-0501	●
133	07.112 HOOK BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0211-0501		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ>,FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0211-0501		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0502-	●			●
133	07.112 HOOK EXC. FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0502-		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK	8-97122-535-0	01	1	0211-0501			●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0502-		●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0211-0501	●	●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●	●	●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0601-	●	●	●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0211-0501	●	●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0502-0603	●	●	●	●
135	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	0604-0610	●	●	●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0211-0501	●	●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0502-0512	●	●	●	●
136	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	02	1	0601-0610	●	●	●	●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	0611-	●	●	●	●
158	07.629 WASHER; PL,HOOK SPACER DUMP CHASSIS(V4D) 06.164 ID=15 OD=30	9-09164-614-0	02	1	0502-				●

2 133 13 2 13 306 13 9 12 2 1 2 134 306 2 158 133 135 136 13 12 322 9 315 2 1 2 11 12 322 12 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (A)	8-97174-006-1	01	1	0211-0501	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-1	01	1	0211-0501		●
1	07.070 BUMPER; RR (A)	8-97174-006-2	01	1	0502-0503	●			●
1	07.070 BUMPER; RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97174-006-2	01	1	0502-0503		●	●
1	07.070 BUMPER; RR (B) STAMP IJ2K	8-98000-147-1	01	1	0504-	●			●
1	07.070 BUMPER; RR EXC. FRAME STRAIGHT TYPE<7KJ> (B) STAMP IJ2K	8-98000-147-1	01	1	0504-		●	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-0	01	1	0211-0501		●
1	07.070 BUMPER; RR BUMPER REAR<7HZ> (A)	8-97205-670-0	01	1	0211-0501			●
1	07.070 BUMPER; RR FRAME STRAIGHT TYPE<7KJ> (A)	8-97205-670-1	01	1	0502-0503		●	●
1	07.070 BUMPER; RR FRAME STRAIGHT TYPE<7KJ> (B) STAMP IJ2Q	8-98000-148-1	01	1	0504-		●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0211-0501	●	●	●
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	0502-	●	●	●	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	06	1	0211-0501	●		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	06	1	0211-0501		●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	06	1	0502-0512	●		●	●
2	07.874 BOLT; BACK BAR EXC. FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	06	1	0502-0512		●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	06	1	0601-	●		●	●
2	07.874 BOLT; BACK BAR EXC. FRAME STRAIGHT TYPE<7KJ> (B) M14X30	0-20851-430-0	06	1	0601-		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	08	1	0211-0501		●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	0211-0501			●
2	07.874 BOLT; BACK BAR FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30	0-20801-430-0	08	1	0502-0512		●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	08	1	0502-0512			●
2	07.874 BOLT; BACK BAR FRAME STRAIGHT TYPE<7KJ> (B) M14X30	0-20851-430-0	08	1	0601-		●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	08	1	0601-			●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●	●
9	07.070 NUT; BUMPER 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●	●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
11	07.829 CAP; RR BUMPER	8-97174-008-0	02	1	0504-	●	●	●	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	08	1	0211-0308		●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0211-0308			●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	08	1	0309-0501		●
12	07.833 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	08	1	0502-0512		●
12	07.833 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M14	0-91110-514-0	08	1	0601-0610		●
12	07.833 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	08	1	0611-		●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	06	1	0211-0501	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	06	1	0211-0501		●
12	07.833 NUT; BRKT 07.529 M14	9-99110-514-0	06	1	0502-0512	●			●
12	07.833 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 07.529 M14	9-99110-514-0	06	1	0502-0512		●
12	07.833 NUT; BRKT M14	0-91110-514-0	06	1	0601-0610	●			●
12	07.833 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M14	0-91110-514-0	06	1	0601-0610		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	06	1	0611-	●			●
12	07.833 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	06	1	0611-		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	06	1	0211-0501	●		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	06	1	0211-0501		●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	06	1	0502-0603	●		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	06	1	0502-0603		●
13	07.833 WASHER; LK,BACK BAR TO FRAME 06.174 ID=14.2	0-91510-814-0	06	1	0604-0610	●		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> 06.174 ID=14.2	0-91510-814-0	06	1	0604-0610		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	08	1	0211-0501		●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	0211-0501			●
13	07.833 WASHER; LK,BACK BAR TO FRAME FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2	9-09150-814-0	08	1	0502-0603		●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	08	1	0502-0603			●
13	07.833 WASHER; LK,BACK BAR TO FRAME FRAME STRAIGHT TYPE<7KJ> 06.174 ID=14.2	0-91510-814-0	08	1	0604-0610		●
13	07.833 WASHER; LK,BACK BAR TO FRAME 06.174 ID=14.2	0-91510-814-0	08	1	0604-0610			●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0211-0501	●	●
133	07.112 HOOK BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0211-0501	●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0211-0501	●
133	07.112 HOOK BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0211-0501		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ>,FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0211-0501		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0502-	●			●
133	07.112 HOOK EXC. FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	0502-		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ>	8-97122-535-0	01	1	0211-0501		●
133	07.112 HOOK	8-97122-535-0	01	1	0211-0501			●
133	07.112 HOOK FRAME STRAIGHT TYPE<7KJ>	8-97122-535-0	01	1	0502-		●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0211-0501	●	●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●	●	●	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0601-	●	●	●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0211-0501	●	●	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0502-0603	●	●	●	●
135	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	0604-0610	●	●	●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0211-0501	●	●	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0502-0512	●	●	●	●
136	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	02	1	0601-0610	●	●	●	●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	0611-	●	●	●	●
158	07.629 WASHER; PL,HOOK SPACER DUMP CHASSIS(V4D) 06.164 ID=15 OD=30	9-09164-614-0	02	1	0502-				●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	0211-0501	●	●	●
306	07.836 BAR; BACK,RR STAMP BL	8-97128-333-0	01	1	0502-0503	●	●	●
306	07.836 BAR; BACK,RR EXC. DUMP CHASSIS(V4D) STAMP BL	8-97128-333-0	01	1	0502-0503				●
306	07.836 BAR; BACK,RR STAMP IA2	8-98000-171-0	01	1	0504-	●	●	●
306	07.836 BAR; BACK,RR EXC. DUMP CHASSIS(V4D) STAMP IA2	8-98000-171-0	01	1	0504-				●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	0211-0501	●	●	●
306	07.836 BAR; BACK,RR STAMP BR	8-97128-334-0	01	1	0502-0503	●	●	●
306	07.836 BAR; BACK,RR EXC. DUMP CHASSIS(V4D) STAMP BR	8-97128-334-0	01	1	0502-0503				●
306	07.836 BAR; BACK,RR STAMP IA2	8-98000-172-0	01	1	0504-	●	●	●
306	07.836 BAR; BACK,RR EXC. DUMP CHASSIS(V4D) STAMP IA2	8-98000-172-0	01	1	0504-				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP AL	8-97128-331-0	01	1	0502-0503				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP IA1	8-98000-169-0	01	1	0504-0603				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP IA1	8-98039-406-0	01	1	0604-				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP AR	8-97128-332-0	01	1	0502-0503				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP IA1	8-98000-170-0	01	1	0504-0603				●
306	07.836 BAR; BACK,RR DUMP CHASSIS(V4D) STAMP IA1	8-98039-407-0	01	1	0604-				●
315	07.829 RIVET; CAP 08.155 D8X13.5	1-09987-248-1	04	1	0504-	●	●	●	●
322	07.833 NUT; BACK BAR TO FRAME BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	06	1	0211-0501			●
322	07.833 NUT; BACK BAR TO FRAME 07.529 M14	9-99110-514-0	06	1	0502-0512			●
322	07.833 NUT; BACK BAR TO FRAME M14	0-91110-514-0	06	1	0601-0610			●
322	07.833 NUT; BACK BAR TO FRAME 00.429 M14 FLANGE	0-91180-214-0	06	1	0611-			●
322	07.833 NUT; BACK BAR TO FRAME BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0309-0501			●
322	07.833 NUT; BACK BAR TO FRAME 07.529 M14	9-99110-514-0	08	1	0502-0512			●
322	07.833 NUT; BACK BAR TO FRAME M14	0-91110-514-0	08	1	0601-0610			●
322	07.833 NUT; BACK BAR TO FRAME 00.429 M14 FLANGE	0-91180-214-0	08	1	0611-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
