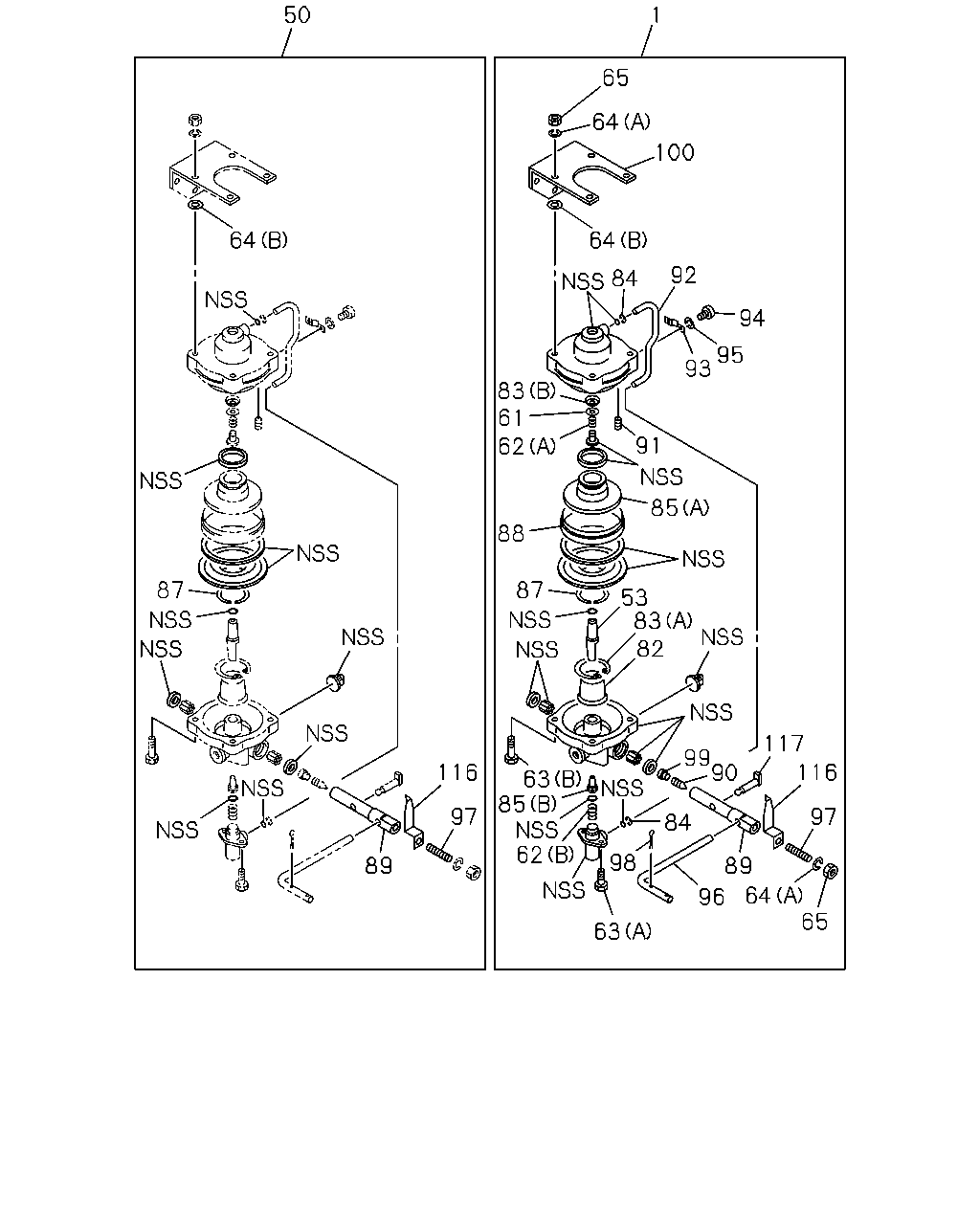

3-45 — LOAD SENSING PROPORTIONING VALVE (#3801) — 50 parça

50 1 65 64 100 64 64 92 84 94 95 93 83 61 91 62 85 88 87 87 53 83 82 117 63 85 62 99 90 116 98 116 97 97 84 89 89 64 65 96 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47720-062-0	01	1	9611-0105
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-088-0	01	1	9611-0105
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-033-0	01	1	9611-0105
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-026-0	01	1	9611-0105
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-025-0	01	1	9611-0105
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-042-0	01	1	9611-0105
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-045-0	02	1	9611-0105
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-094-0	04	1	9611-0105
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-036-0	05	1	9611-0105
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-079-0	04	1	9611-0105
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-095-0	05	1	9611-0105
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-016-0	01	1	9611-0105
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-017-0	01	1	9611-0105
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-027-0	01	1	9611-0105
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-021-0	02	1	9611-0105
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A)	1-47769-023-0	01	1	9611-0105
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B)	1-47769-043-0	01	1	9611-0105
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-086-0	01	1	9611-0105
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-032-0	01	1	9611-0105
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-083-0	01	1	9611-0105
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-039-0	01	1	9611-0105
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-047-0	01	1	9611-0105
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-048-0	01	1	9611-0105
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-050-0	01	1	9611-0105
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-051-0	02	1	9611-0105
95	WASHER; CLIP LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-052-0	02	1	9611-0105
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-110-0	01	1	9611-0105
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-081-0	01	1	9611-0105
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=15	9-08112-015-0	01	1	9611-0105
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-055-0	01	1	9611-0105
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-111-0	01	1	9611-0105
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-078-0	01	1	9611-0105
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE(JR7)	1-47769-038-0	01	1	9611-0105

101 1 13 30 30 33 8 3 21 6 101 5 2 7 8 101 4 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE(JR7)	1-47720-062-0	01	1	9611-0105
2	DAMPER LOAD SENSING PROPORTIONING VALVE(JR7)	1-47725-012-0	01	1	9611-0105
3	ROD; UPR LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-071-0	01	1	9611-0105
4	ROD; LWR LOAD SENSING PROPORTIONING VALVE(JR7)	1-09765-212-0	01	1	9611-0105
5	JOINT LOAD SENSING PROPORTIONING VALVE(JR7)	1-09768-004-0	01	1	9611-0105
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE(JR7) M8	9-09111-408-0	01	1	9611-0105
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE(JR7) LH THREAD	1-09409-002-0	01	1	9611-0105
8	ROD END LOAD SENSING PROPORTIONING VALVE(JR7)	1-47723-001-0	02	1	9611-0105
13	NUT; LSPV TO BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8	9-09110-408-0	03	1	9611-9705
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE(JR7) M8X30 FLANGE	0-28080-830-0	03	1	9611-9705
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE(JR7) M8X18 W/LK WASHER	0-50040-818-0	02	1	9611-9611
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE(JR7) M8X12 FLANGE	0-28080-812-0	02	1	9612-0105
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE(JR7) ID=8.4	9-09160-508-0	02	1	9611-9611
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE(JR7) OD=1.8 L=25	9-08112-025-0	01	1	9611-0105
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9611-0105
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (B) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-0	01	1	9611-0105
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE(JR7) (C) PT1/4	9-99204-513-0	01	1	9611-0105
