6-80 — BACK PANEL (#38009) — 24 parça

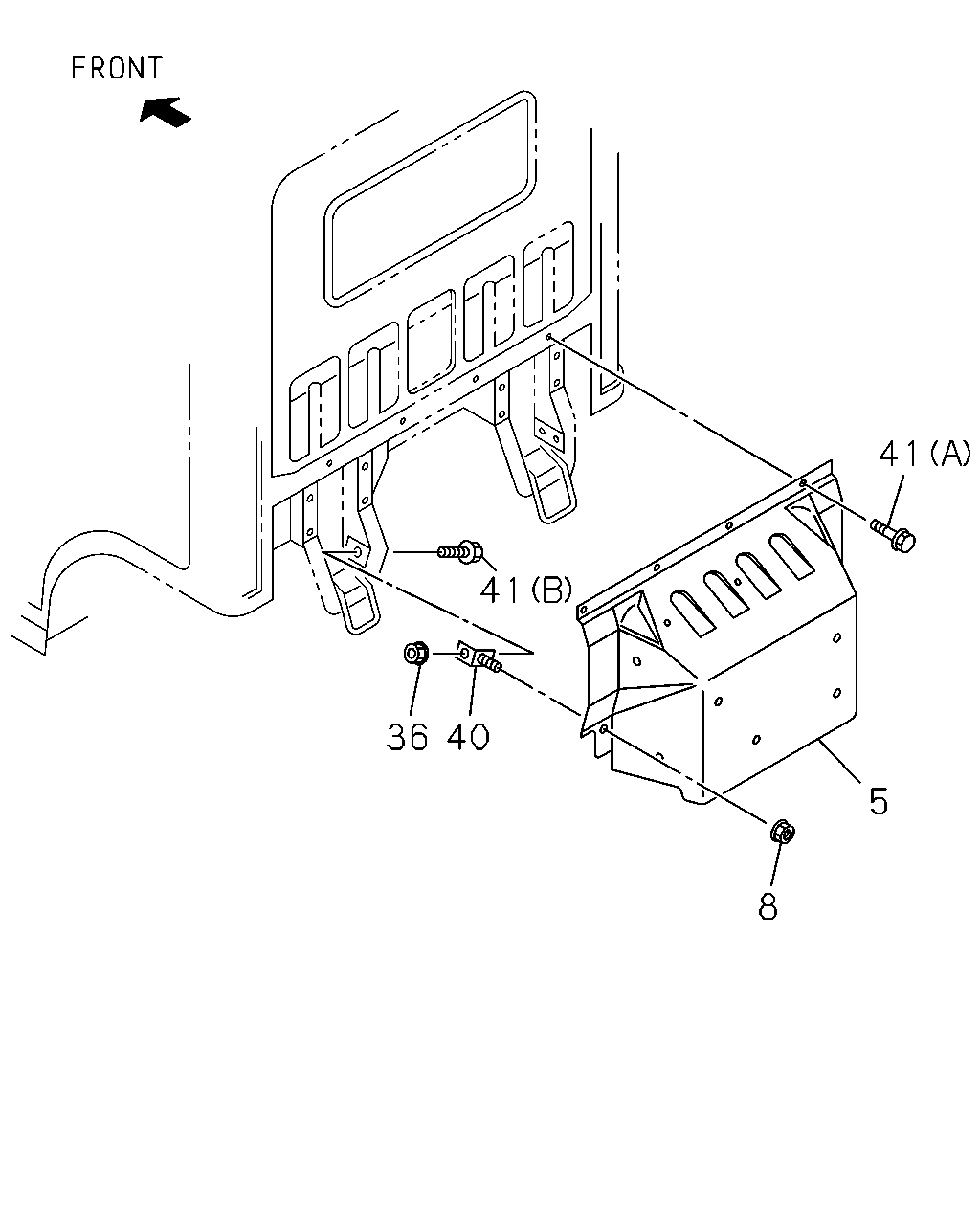

çizim 74748
41 41 36 40 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 16.587 PANEL; CAB BACK
4HG1 ENG(RJH) 		8-97351-227-0 01 1 0211- ● ●
8 16.587 NUT; BACK PANEL
4HG1 ENG(RJH) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
8 16.587 NUT; BACK PANEL
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
36 16.587 NUT; BRKT
4HG1 ENG(RJH) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
36 16.587 NUT; BRKT
4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
40 16.587 BRACKET; BACK PANEL
4HG1 ENG(RJH) 		8-97322-264-0 02 1 0211- ● ●
41 16.587 BOLT
4HG1 ENG(RJH) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
41 16.587 BOLT
4HG1 ENG(RJH) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
41 16.587 BOLT
4HG1 ENG(RJH) 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0211- ● ●

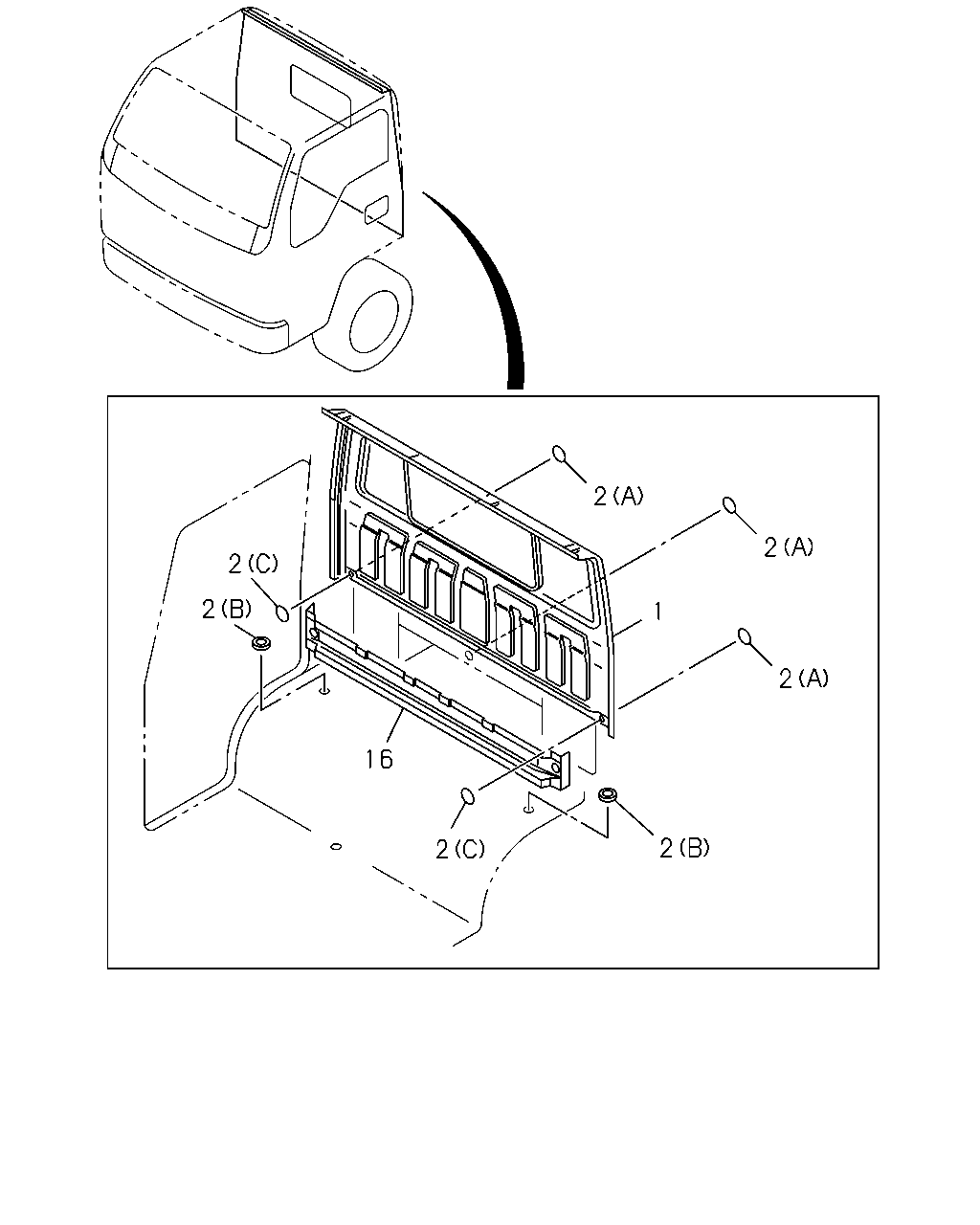

çizim 79332
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0211-0501 ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0502- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0211-0211 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0212-0501 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 05 1 0502- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0501 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0502-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0211-0501 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0502-0512 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0212-0501 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0502- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97851-106-9 01 1 0211-0501 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97851-106-9 01 1 0502- ● ● ● ●
