Isuzu WW
▶
TRUCKS
▶
NPR
▶
51356 - NPR/NQR(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

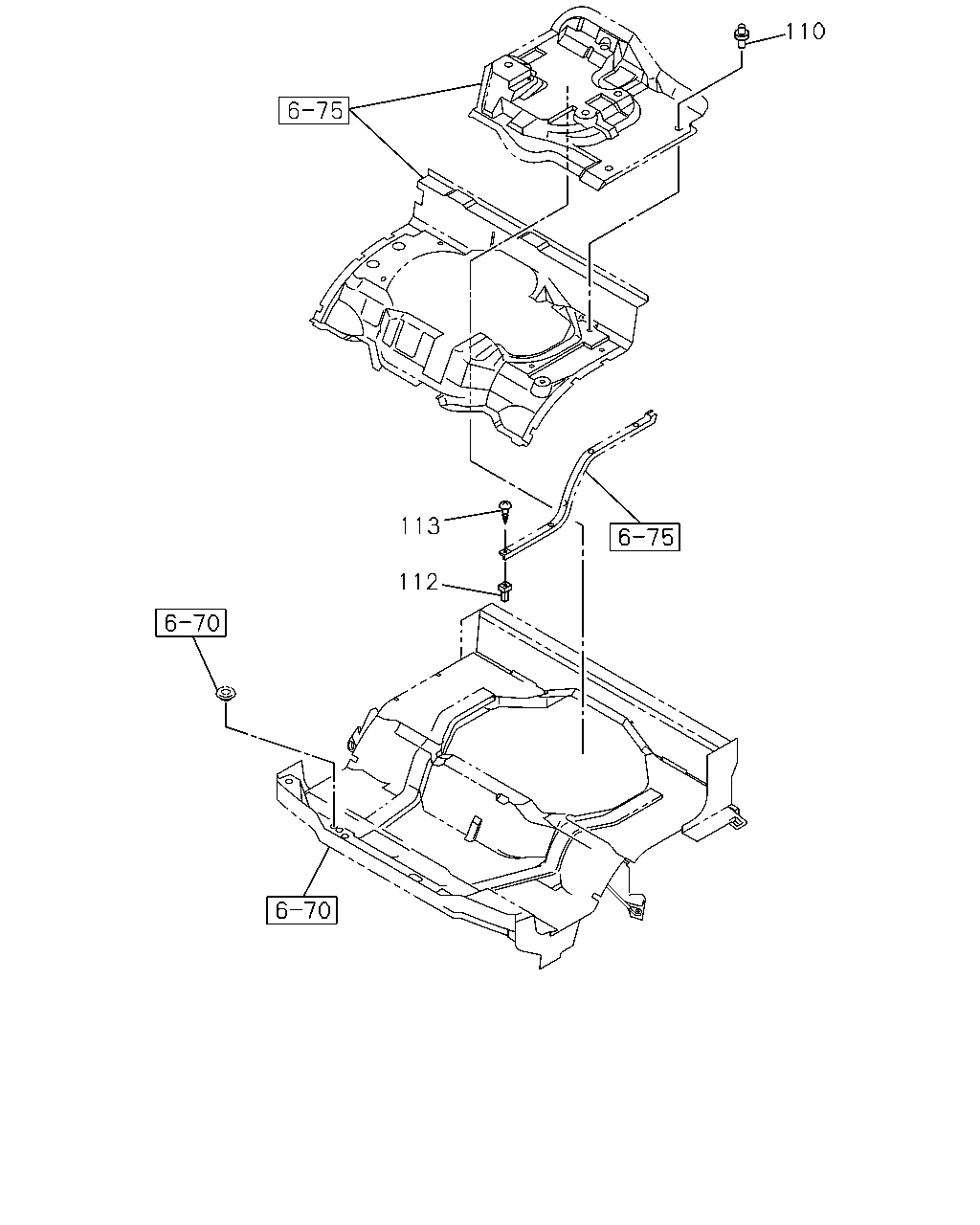

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#38008) — 13 parça
Tümü
A - NPC6SF
B - NPC6SK
C - NPC6SN
D - NPC6SC
110
113
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
110
16.802 FASTENER; FLOOR MAT
BLACK
8-94279-089-0
12
1
0211-0211
●
●
●
110
16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
11
1
0212-0212
●
●
●
110
16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
10
1
0212-0501
●
●
●
110
16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
10
1
0502-
●
●
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
12
1
0212-0212
●
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
11
1
0212-0501
●
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK
8-94279-089-0
11
1
0502-
●
●
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
0211-0501
●
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
10
1
0502-
●
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
0211-0501
●
●
●
113
16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER
0-74110-514-0
10
1
0502-0604
●
●
●
●
113
16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER
0-74160-514-0
10
1
0605-0612
●
●
●
●
113
16.800 SCREW; TRIM COVER
04.681 M5X12 TAPPING
0-72180-512-0
10
1
0701-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
