6-76 — FLOOR EQUIPMENT AND SEALING (#38007) — 124 parça
çizim 20762
248
BalonParca AdiParca NoAdetTipApplied Date A B C D
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0501 ● ● ●

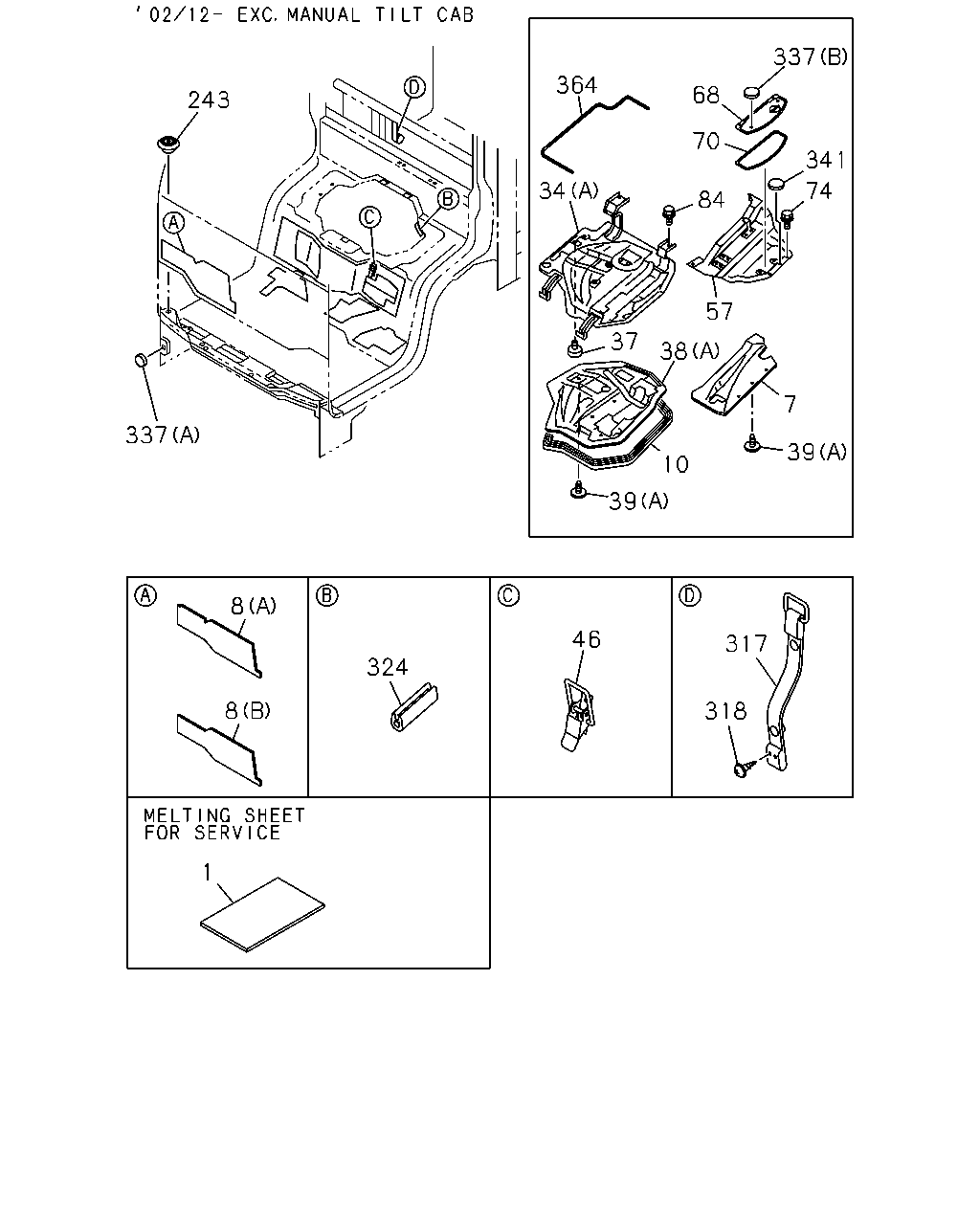

çizim 74596
337 364 68 243 70 341 34 74 84 57 37 38 7 337 39 10 39 8 46 317 324 8 318 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0211-0501 ● ● ●
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0502- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0211-0501 ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0502- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0211-0501 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0502- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502- ● ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-267-5 01 1 0212-0305 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97581-109-0 01 1 0306-0501 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97581-109-1 01 1 0502- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(B) 		8-97850-893-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-1 01 1 0212-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0502- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0502- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		1-65380-234-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (B) 		1-65380-234-3 01 1 0212-0501 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (B) 		1-65380-234-3 01 1 0502- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(B) 		8-94279-996-0 11 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0211-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0301-0501 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0502- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0211-0501 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0502- ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0211-0312 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0501 ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0608 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0211-0501 ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0512 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0211-0211 ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502- ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0211 ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0212-0501 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0502- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0211-0501 ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0502-0610 ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0212-0501 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0502- ● ● ● ●

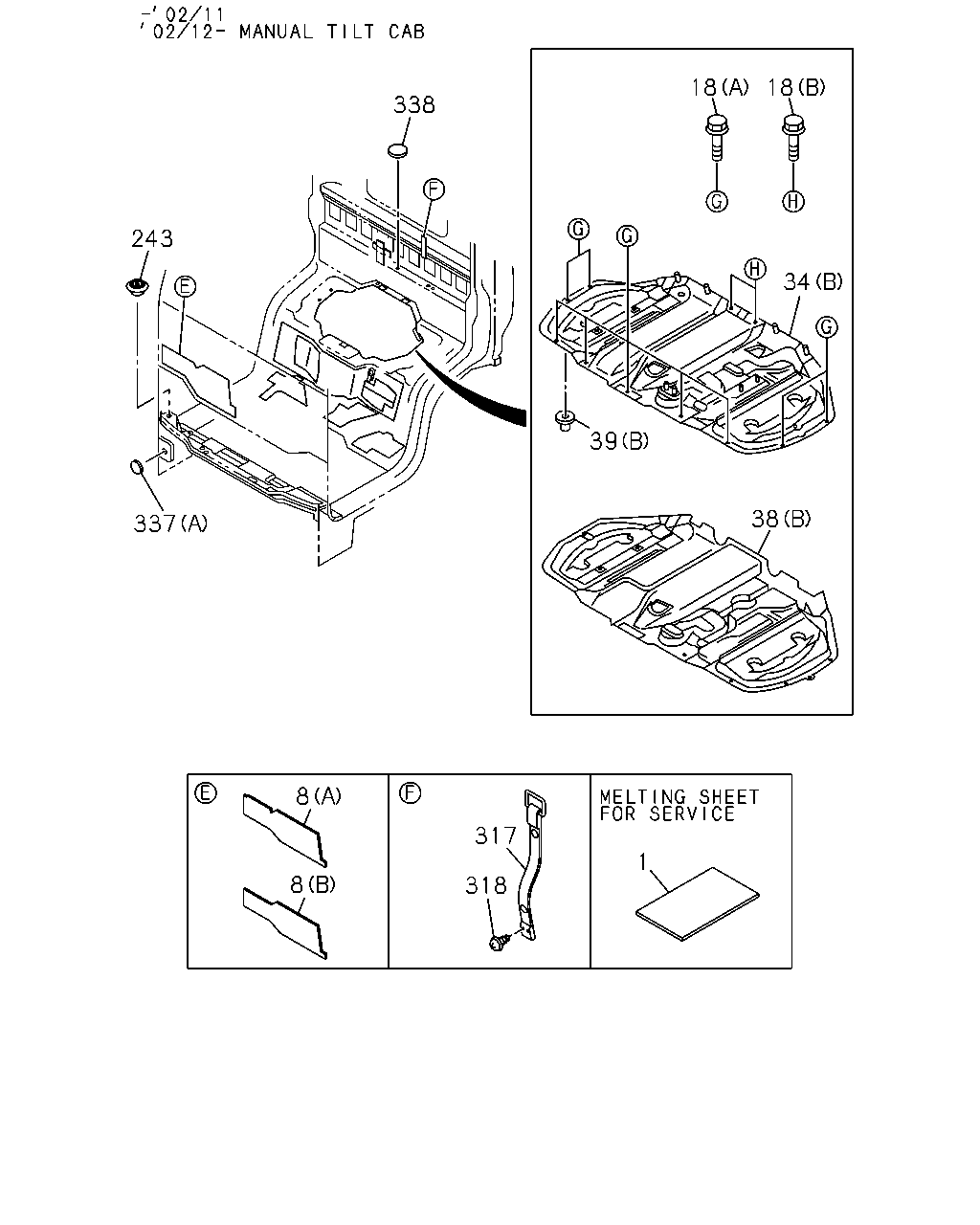

çizim 74940
18 18 338 243 34 39 38 337 8 317 1 8 318
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0211-0501 ● ● ●
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0502- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0211-0501 ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0502- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502- ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502- ● ● ● ●
18 16.549 BOLT; ENG COVER
02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0211-0211 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0212-0501 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0502-0512 ● ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 09 1 0601- ● ● ● ●
18 16.549 BOLT; ENG COVER
02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0211 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0212-0501 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(B) 		8-97850-893-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-1 01 1 0212-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0502- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		1-65380-234-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (B) 		1-65380-234-3 01 1 0212-0501 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (B) 		1-65380-234-3 01 1 0502- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(B) 		8-94279-996-0 11 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0211-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502- ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0211-0211 ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502- ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0211 ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0604 ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
