Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

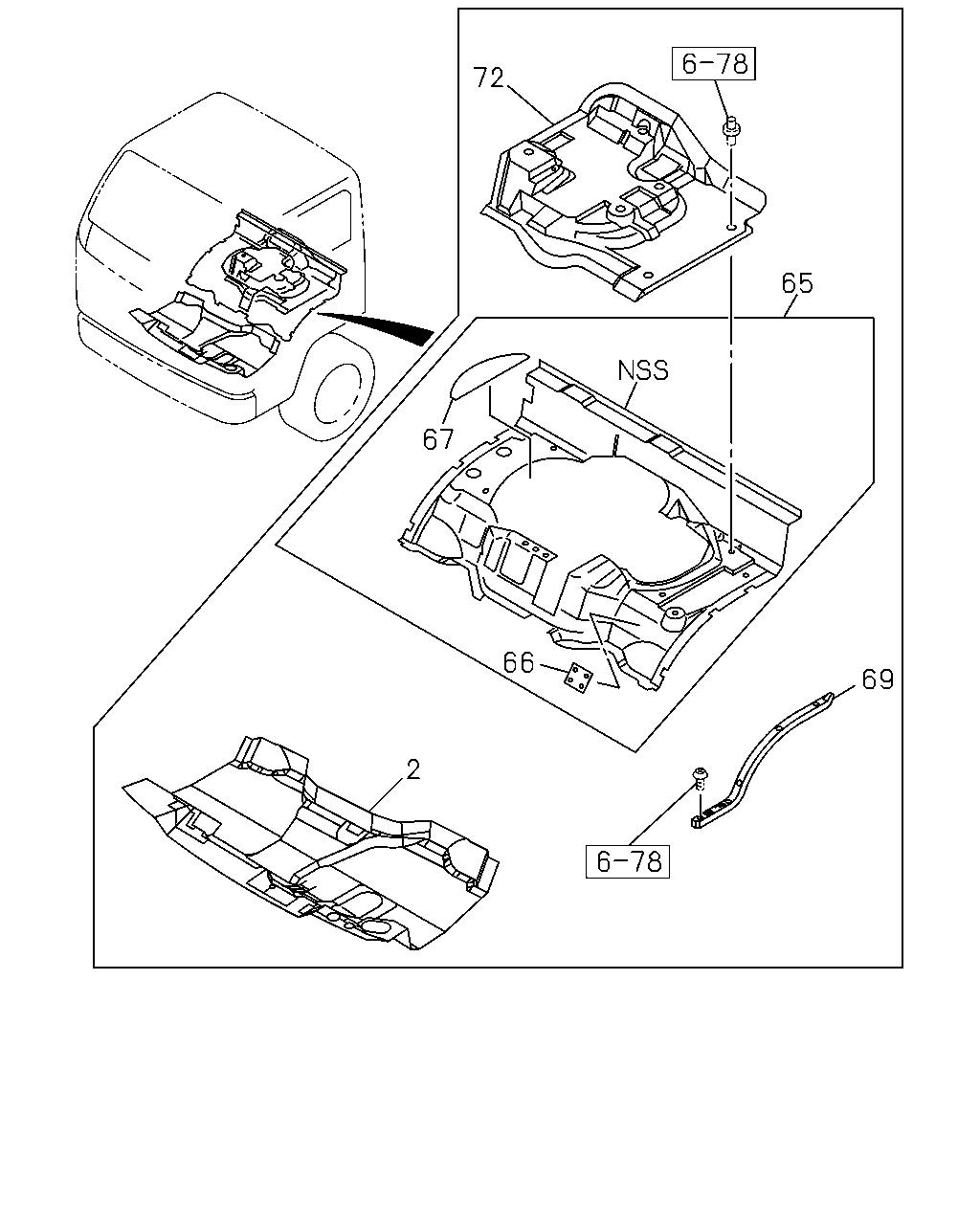

6-75 — MAT AND CARPET (#38006) — 22 parça

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97581-122-1	01	1	0211-0501	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97588-993-3	01	1	0502-	●	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97581-123-1	01	1	0211-0501	●	●
2	16.800 MAT; FLOOR DARK GRAY	8-97581-123-1	01	1	0211-0501				●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97588-994-3	01	1	0502-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97997-864-0	01	1	0211-0211	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-864-0	01	1	0212-0501	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> GRAY	8-97589-113-1	01	1	0502-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-702-0	01	1	0212-0501	●	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> GRAY	8-97589-102-1	01	1	0502-	●	●	●	●
66	16.549 HOOK; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-582-0	02	1	0212-0501	●	●		●
66	16.549 HOOK; COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97583-948-0	02	1	0502-	●	●	●	●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-588-0	01	1	0212-0501	●	●		●
67	16.549 LID; COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97587-505-0	01	1	0502-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	0211-0501	●	●		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0502-0702	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	0211-0501	●	●		●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0502-0702	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-766-0	01	1	0212-0501	●	●		●
72	16.800 MAT; SILENCER,ENG COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97589-119-1	01	1	0502-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
