◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#38005) — 75 parça

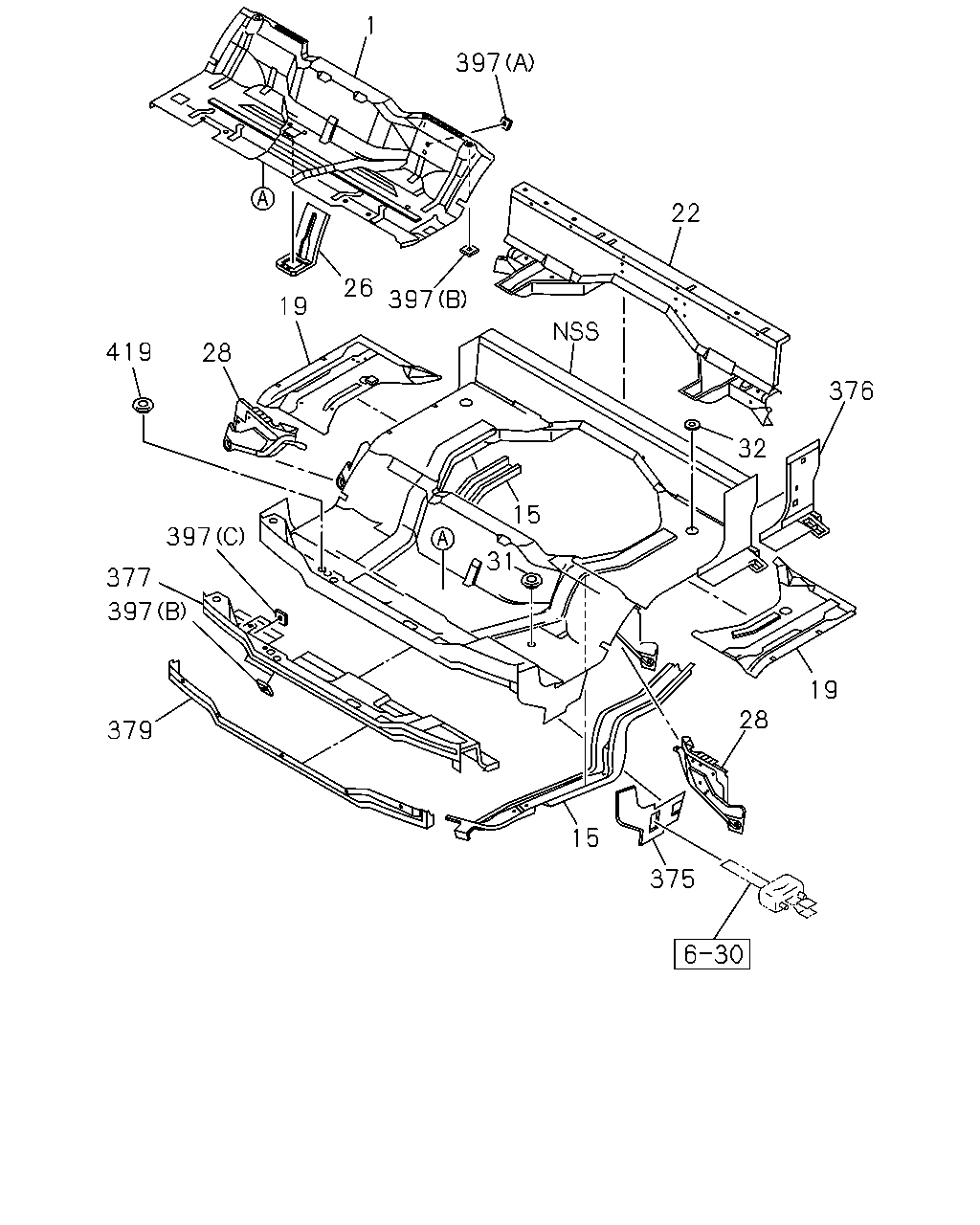

çizim 74335
1 397 22 26 397 19 419 28 376 32 15 397 31 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0211-0501 ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0502- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0211-0501 ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0502-0505 ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0211-0501 ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0502- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0211-0501 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0502- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0211-0501 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0502- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0211-0501 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0502- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-2 01 1 0211-0501 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-4 01 1 0502- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-8 01 1 0211-0501 ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-9 01 1 0502-0712 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-98110-616-0 01 1 0801- ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0211-0501 ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0502- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0211-0501 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0502- ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0211-0501 ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0502- ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 OD=53.5 		8-94356-253-0 02 1 0211-0501 ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 OD=53.5 		8-94356-253-0 02 1 0502- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0211-0501 ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0502- ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0211-0501 ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0211-0501 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0211-0501 ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0502- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0211-0501 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0502- ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0211-0307 ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0501 ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0502- ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0211-0501 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0502- ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0502- ● ● ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0211-0501 ● ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0502- ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0211-0501 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0502- ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0211-0501 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0502- ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0211-0501 ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0502- ● ● ● ●

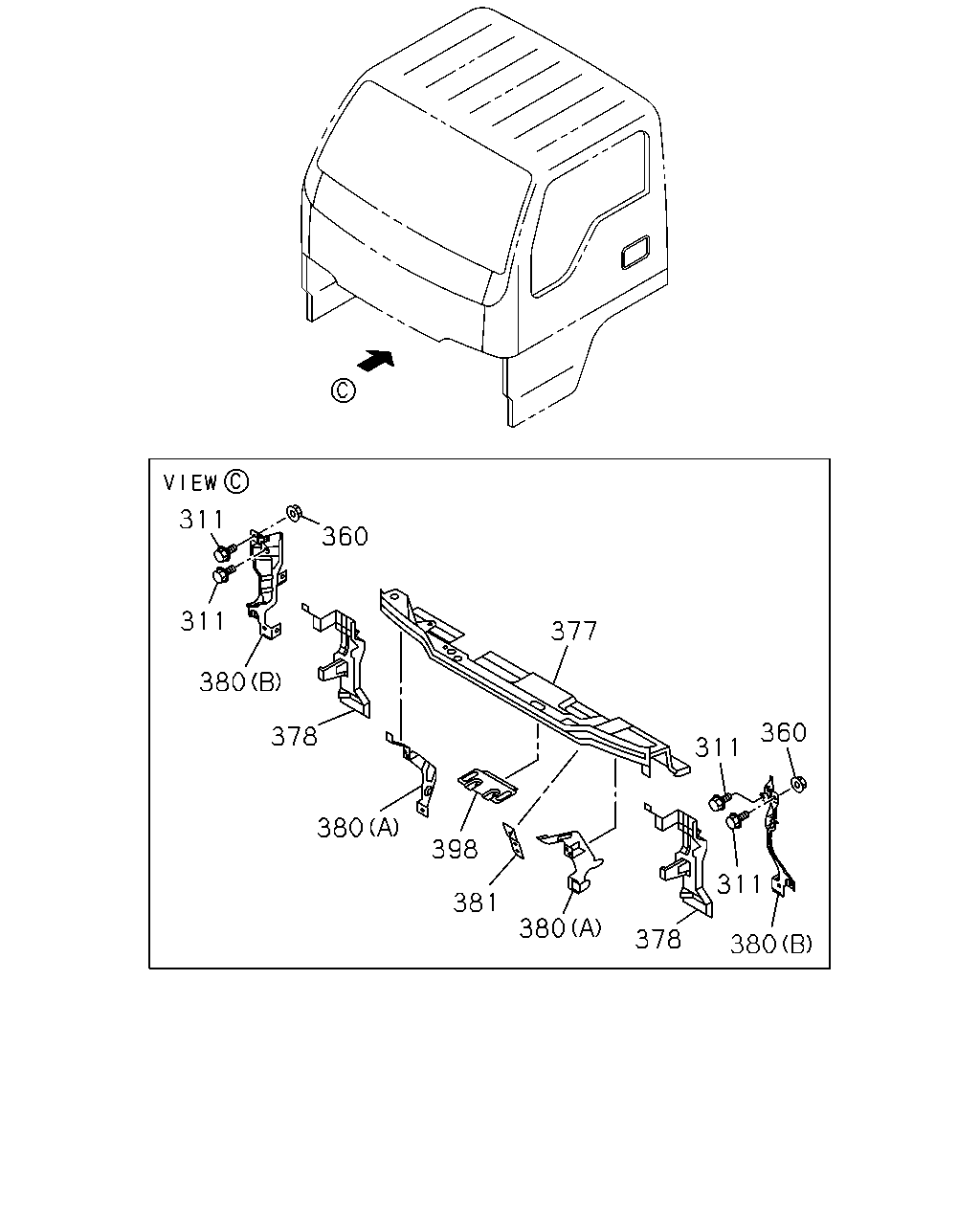

çizim 76544
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0502-0804 ● ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ● ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0502-0805 ● ● ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0211-0501 ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0502- ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0211-0305 ● ● ●
378 16.545 GASSET; LWR 8-97581-827-1 01 1 0306-0501 ● ● ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 0502- ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0211-0305 ● ● ●
378 16.545 GASSET; LWR 8-97581-828-1 01 1 0306-0501 ● ● ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0502- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0211-0501 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0502- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0211-0501 ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0502- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0502- ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0502- ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0211-0501 ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0502- ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0211-0501 ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0502- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
