Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#38001) — 225 parça

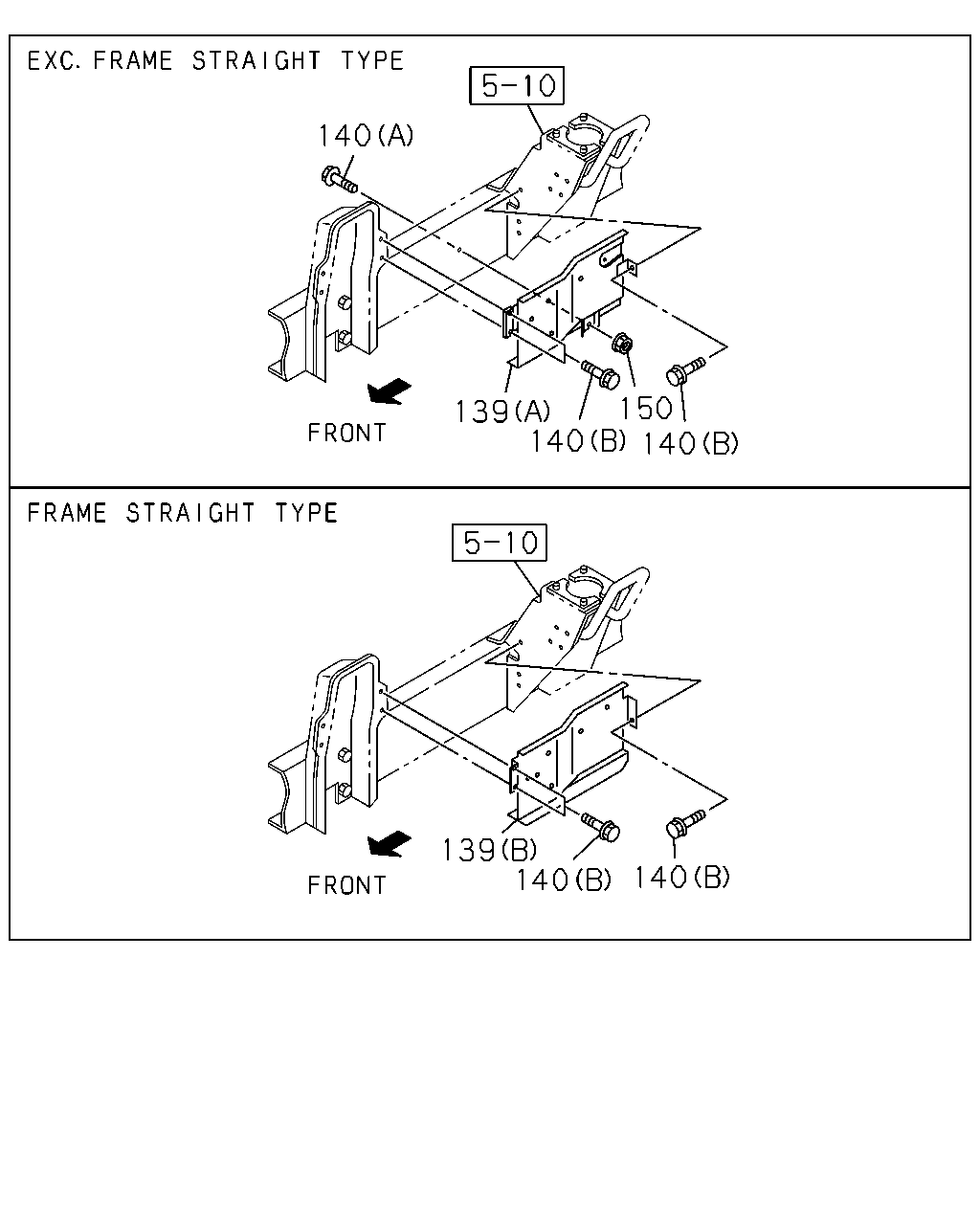

140 139 150 140 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
139	08.153 PANEL; SIDE (A)	8-97021-164-0	01	1	0211-0501	●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97021-164-0	01	1	0211-0501		●
139	08.153 PANEL; SIDE (A)	8-97021-164-0	01	1	0502-	●		●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97021-164-0	01	1	0502-		●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0211-0501	●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0211-0501		●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0502-	●		●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0502-		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0211-0501		●
139	08.153 PANEL; SIDE (B)	8-97171-996-0	01	1	0211-0501				●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0502-		●		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0211-0501		●
139	08.153 PANEL; SIDE (B)	8-97188-736-0	01	1	0211-0501				●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0502-		●		●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	0211-0501	●	●		●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	0502-0512	●	●	●	●
140	08.155 BOLT; SIDE PANEL 07.242 (B) M8X20 FLANGE	0-28450-820-0	06	1	0601-	●	●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●		●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
140	08.155 BOLT; SIDE PANEL 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●		●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●		●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●		●

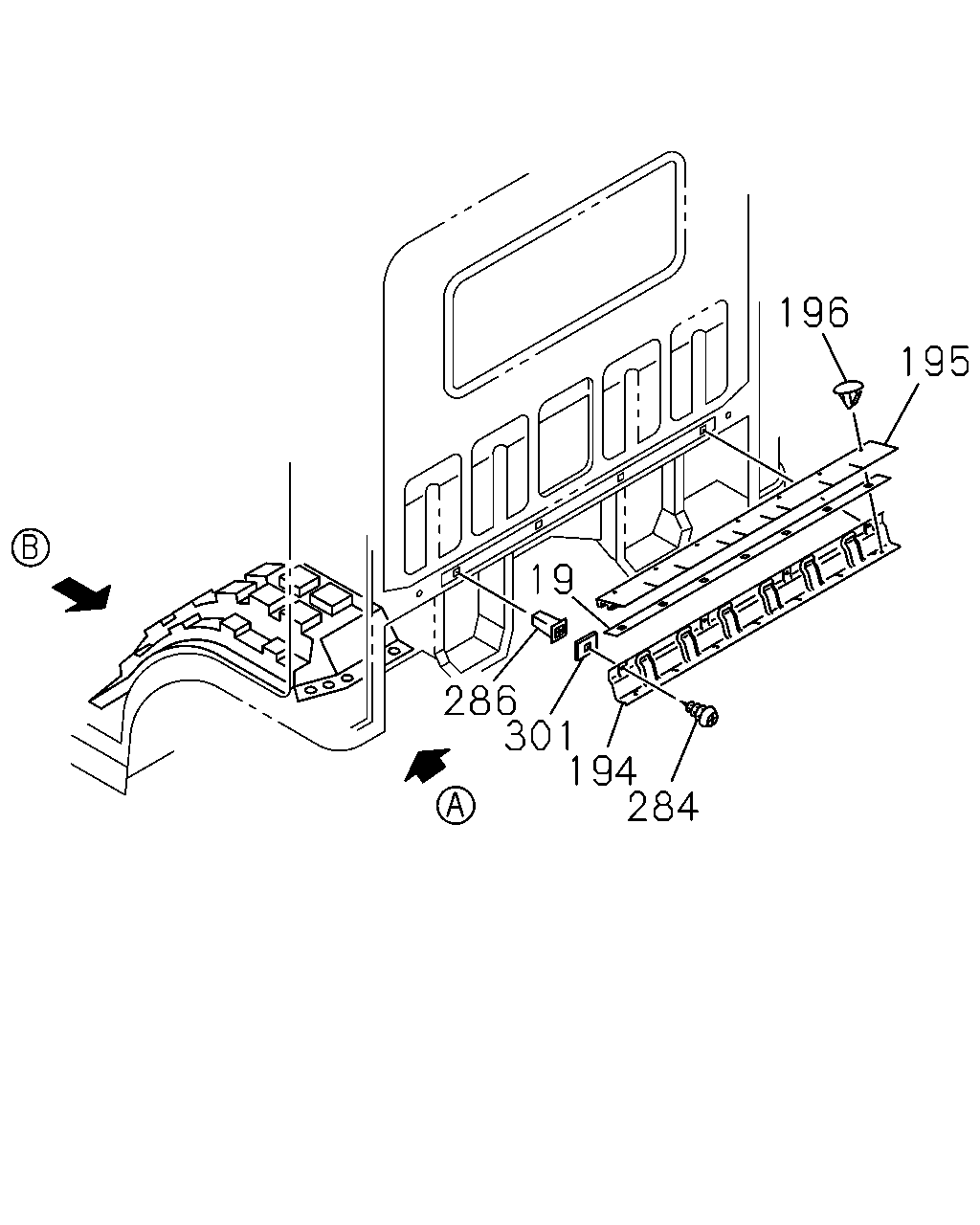

196 195 19 286 301 194 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK 4HF1-S ENG(RLS)	8-97856-016-0	01	1	0211-0211	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6>	8-97856-016-0	01	1	0212-0501	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED<RS6>	8-97856-016-0	01	1	0502-	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK DUMP BODY LONG SHINMEIWA(RS9)	8-97856-016-0	01	1	0502-			●
194	03.602 BRACKET; HEAT PROTECTOR 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6>	8-97853-797-1	01	1	0211-0501	●	●
194	03.602 BRACKET; HEAT PROTECTOR RR BODY FLAT BED<RS6>	8-97853-797-1	01	1	0502-	●	●
194	03.602 BRACKET; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9)	8-97853-797-1	01	1	0502-			●
195	03.602 PROTECTOR; HEAT 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6>	8-97856-386-1	01	1	0211-0501	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED<RS6>	8-97856-386-2	01	1	0502-	●	●
195	03.602 PROTECTOR; HEAT DUMP BODY LONG SHINMEIWA(RS9)	8-97856-386-2	01	1	0502-			●
196	03.602 CLIP; HEAT PROTECTOR 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6>	8-94244-922-0	07	1	0211-0501	●	●
196	03.602 CLIP; HEAT PROTECTOR RR BODY FLAT BED<RS6>	8-94244-922-0	07	1	0502-	●	●
196	03.602 CLIP; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9)	8-94244-922-0	07	1	0502-			●
284	08.155 SCREW; HEAT PROTECTOR 4HF1-S ENG(RLS) RR BODY FLAT BED<RS6> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0211-0501	●	●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED<RS6> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0502-0612	●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0502-0612			●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED<RS6> 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101	●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-1101			●
284	08.155 SCREW; HEAT PROTECTOR RR BODY FLAT BED<RS6> 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-	●	●
284	08.155 SCREW; HEAT PROTECTOR DUMP BODY LONG SHINMEIWA(RS9) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-			●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-0501	●	●		●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0502-	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-0501	●	●		●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0502-	●	●	●	●

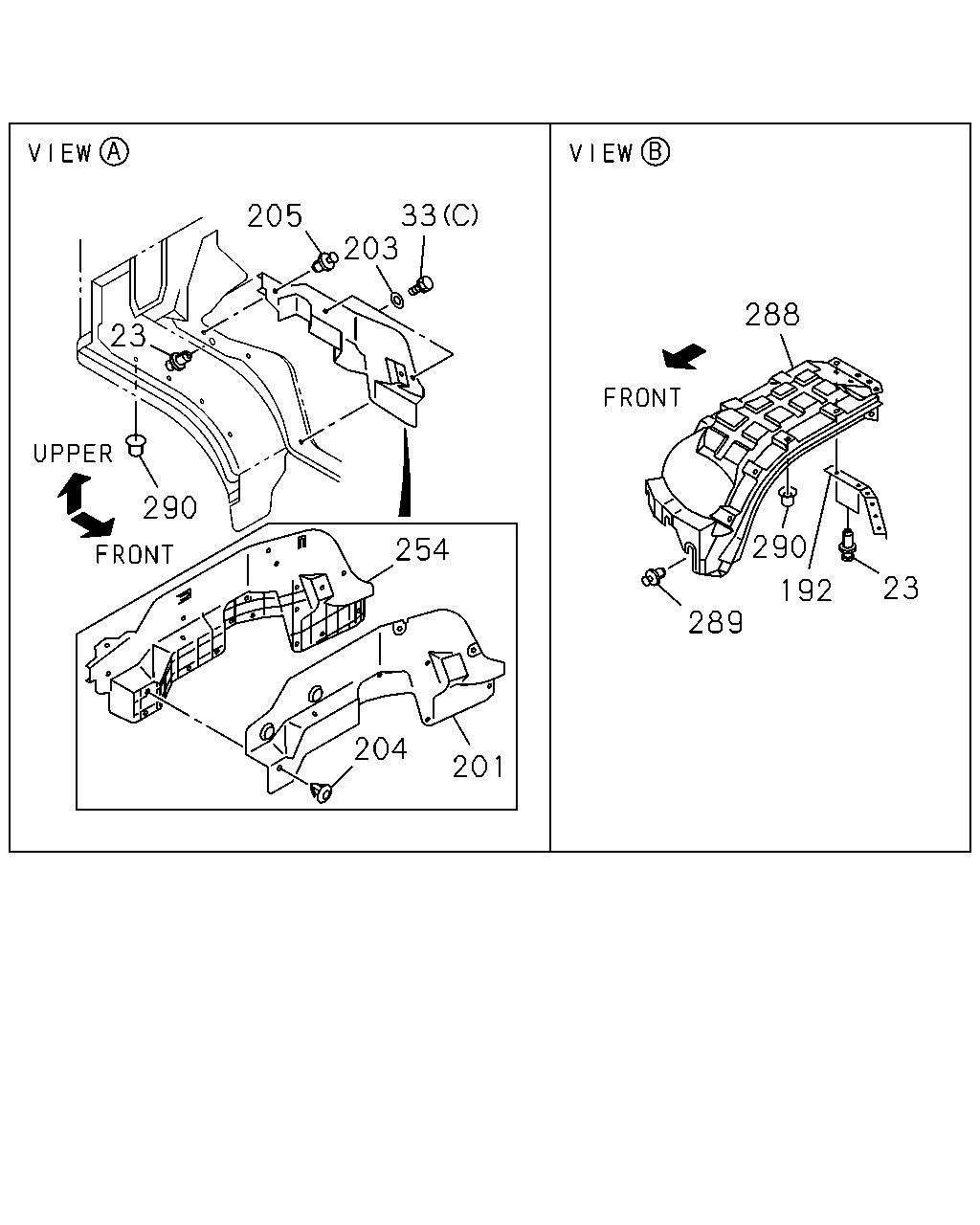

33 203 205 288 23 290 290 254 23 192 289 204 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-0501	●	●		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0502-	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0512	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0512	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0805	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501		●		●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512		●		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501		●
33	08.155 BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501				●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-		●		●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	0211-0501	●	●		●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	0502-	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-630-3	01	1	0211-0501	●	●		●
201	08.155 INSULATOR; VALANCE	8-97853-630-3	01	1	0502-	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-631-3	01	1	0211-0501	●	●		●
201	08.155 INSULATOR; VALANCE	8-97853-631-3	01	1	0502-	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0501	●	●		●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0502-0604	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	0211-0308	●	●		●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-0501	●	●		●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0502-	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-0501	●	●		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0502-	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-358-3	01	1	0211-0501	●	●		●
254	08.153 COVER; MUD,VALANCE	8-97853-358-3	01	1	0502-	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-359-3	01	1	0211-0501	●	●		●
254	08.153 COVER; MUD,VALANCE	8-97853-359-3	01	1	0502-	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●		●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-0501	●	●		●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0502-	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●		●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-0501	●	●		●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0502-	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●		●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-0501	●	●		●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0502-	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-0501	●	●		●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0502-	●	●	●	●

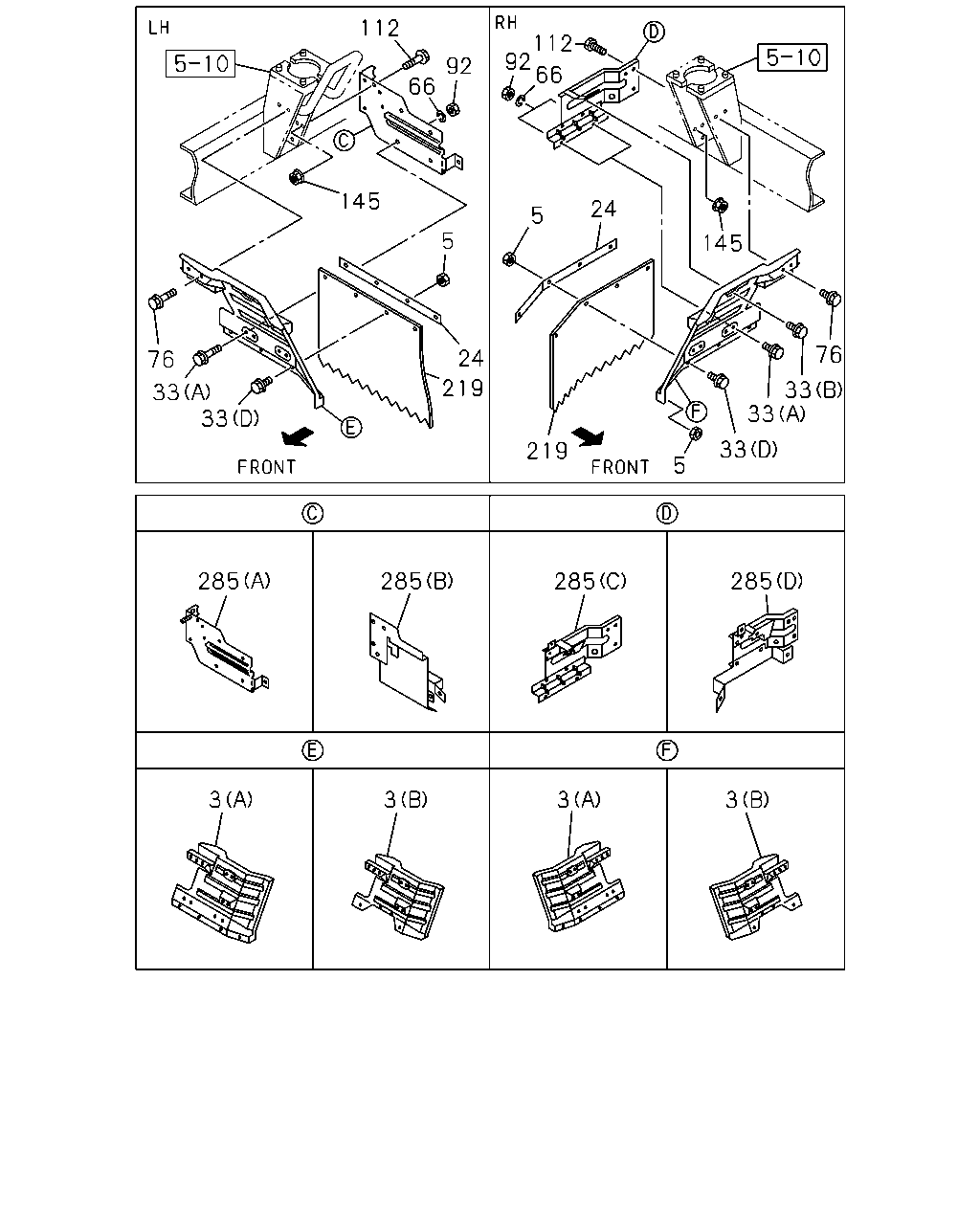

112 112 92 66 92 66 145 24 5 5 145 76 24 76 219 33 33 33 33 33 219 5 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0211-0312	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	0211-0312		●		●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0401-0501	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0401-0501		●		●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	0502-	●		●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97366-988-1	01	1	0502-		●		●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0211-0501	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0211-0501		●		●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0502-	●		●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0502-		●		●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97147-221-1	01	1	0211-0501		●
3	08.153 GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B)	8-97147-221-1	01	1	0211-0501				●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97147-221-1	01	1	0502-		●		●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97147-222-2	01	1	0211-0501		●
3	08.153 GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> (B)	8-97147-222-2	01	1	0211-0501				●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97147-222-2	01	1	0502-		●		●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0501	●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0211-0501		●		●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0502-0512	●		●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0502-0512		●		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●		●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	08	1	0601-		●		●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0211-0501		●
5	08.155 NUT; FLAP RUBBER TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0211-0501				●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	03	1	0502-0507		●		●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	03	1	0502-0507		●		●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0508-0512		●		●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	0-91111-506-0	06	1	0601-		●		●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0211-0501	●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	0211-0501		●		●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0502-	●		●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	0502-		●		●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	0211-0501		●
24	08.155 PLATE; MUD COVER TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	0211-0501				●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	01	1	0502-0507		●		●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	01	1	0502-0507		●		●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	0508-		●		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0502-0512	●	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0502-0512	●	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0501	●	●		●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0502-0805	●	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0501		●		●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0502-0512		●		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501		●
33	08.155 BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0211-0501				●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	03	1	0502-0507		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0508-0512		●		●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 09.242 (D) M6X16 FLANGE	0-28050-616-0	06	1	0601-		●		●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501	●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0211-0501		●		●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0502-0603	●		●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0502-0603		●		●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●		●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	08	1	0604-		●		●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0211-0501		●
66	08.155 WASHER; LK TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0211-0501				●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	03	1	0502-0507		●		●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	03	1	0502-0507		●		●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0508-0603		●		●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	0-91510-506-0	06	1	0604-		●		●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0211-0501	●	●		●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0502-0512	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●		●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●		●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●		●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	0211-0501		●
92	08.155 NUT; MUD COVER TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	0211-0501				●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	0502-0602		●		●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 01.062 M8 FLANGE	0-91180-108-0	05	1	0603-		●		●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0501	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0501		●		●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0512	●		●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0502-0512		●		●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●		●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-		●		●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0211-0501		●
112	08.155 BOLT; BRKT TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0211-0501				●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0502-0512		●		●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-		●		●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0501	●	●		●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0502-0602	●	●	●	●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0211-0501	●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0211-0501		●		●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0502-	●		●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0502-		●		●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0211-0501		●
219	08.155 FLAP; MUD GUARD TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0211-0501				●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	01	1	0502-0507		●		●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	01	1	0502-0507		●		●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0508-		●		●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97035-778-4	01	1	0211-0501		●		●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0502-	●		●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97035-778-4	01	1	0502-		●		●
285	08.155 BRACKET; MUD COVER (A)	8-97092-037-2	01	1	0211-0501	●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97092-037-2	01	1	0211-0501		●		●
285	08.155 BRACKET; MUD COVER (A)	8-97092-037-2	01	1	0502-	●		●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97092-037-2	01	1	0502-		●		●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0211-0501				●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0502-		●		●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0211-0501		●
285	08.155 BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0211-0501				●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0502-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
