3-41 — REAR BRAKE POWER CHAMBER (#3800) — 141 parça

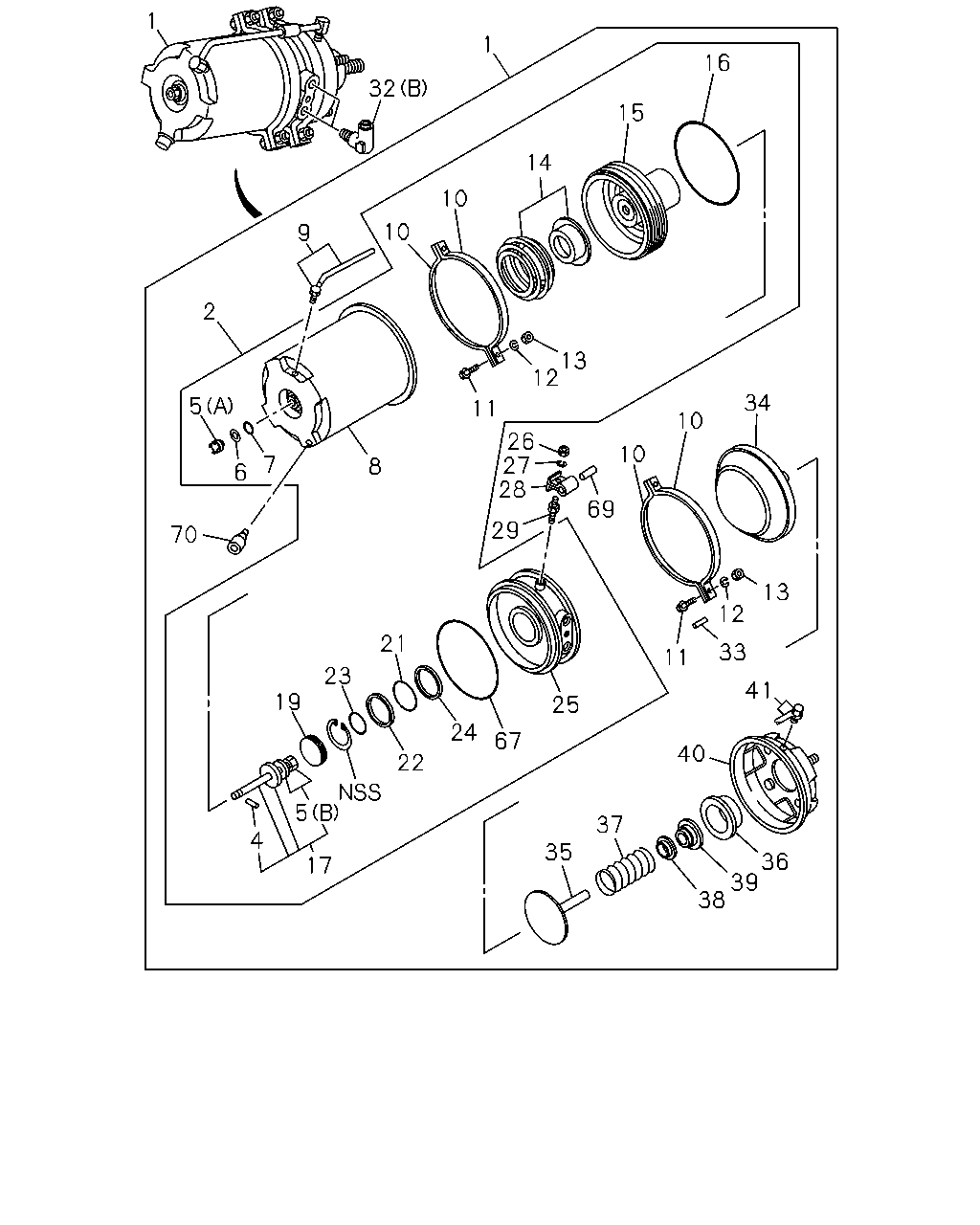

1 1 16 32 15 14 10 10 9 2 13 12 34 5 11 10 26 27 28 10 7 8 6 69 29 70 13 12 21 33 11 23 41 19 25 24 67 40 22 5 37 4 35 36 39 38 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9601-9705	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48250-558-0	02	1	9601-9705		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9706-9803	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	9706-9803		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9804-0004	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	9804-0004		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	0005-0105	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	0106-1006	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-955-0	02	1	1007-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48250-640-1	01	1	0212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48250-641-1	01	1	0212-	●	●
2	CHAMBER; EMERGENCY FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48252-014-0	01	1	0212-	●	●
2	CHAMBER; EMERGENCY FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48252-015-0	01	1	0212-	●	●
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-056-0	04	1	0212-	●	●
5	NUT; SHELL FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W) (A)	1-48259-054-0	02	1	0212-	●	●
5	NUT; SHELL FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W) (B)	1-48259-074-0	02	1	0212-	●	●
6	GASKET; SHELL FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	9-09920-268-0	02	1	0212-	●	●
7	GASKET FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-055-0	02	1	0212-	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-069-0	01	1	0212-	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-070-0	01	1	0212-	●	●
9	PIPE ASM; SHELL FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-076-0	02	1	0212-	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-016-0	08	1	0212-	●	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-092-0	08	1	0212-	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W) ID=10.2	9-09150-510-0	08	1	0212-	●	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	9-83315-080-0	08	1	0212-	●	●
14	SPRING & SEAT SET FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-037-1	02	1	0212-	●	●
15	PISTON FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48262-005-0	02	1	0212-	●	●
16	GASKET FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-048-0	02	1	0212-	●	●
17	BOLT ASM; EMERGENCY FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-073-0	02	1	0212-	●	●
19	COVER; PISTON FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48269-011-0	02	1	0212-	●	●
21	GASKET; SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-049-0	02	1	0212-	●	●
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-019-0	02	1	0212-	●	●
23	GASKET; SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-047-0	02	1	0212-	●	●
24	BEARING; SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-020-0	02	1	0212-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-077-0	01	1	0212-	●	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-078-0	01	1	0212-	●	●
26	NUT; PRESSURE PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-058-0	04	1	0212-	●	●
27	WASHER; PRESSURE PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W) ID=8.2	9-09150-508-0	02	1	0212-	●	●
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-059-0	02	1	0212-	●	●
29	STUD; PRESSURE PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-050-0	02	1	0212-	●	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-741-0	04	1	9601-9803	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-741-0	04	1	9601-9803		●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9804-0004	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9804-0004	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-0302	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-0302	●	●
32	CONNECTOR; SPR CHAMBER EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0303-	●	●
33	RETAINER; DIAPH FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-044-0	04	1	0212-	●	●
34	DIAPHRAGM FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48252-056-0	02	1	0212-	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48253-010-0	02	1	0212-	●	●
36	RETAINER; SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-043-0	02	1	0212-	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48255-016-0	02	1	0212-	●	●
38	COVER; ROD & PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-066-0	02	1	0212-	●	●
39	COVER; ROD & PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-065-0	02	1	0212-	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-067-1	01	1	0212-	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-068-1	01	1	0212-	●	●
41	PIPE ASM; LWR COVER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-075-0	02	1	0212-	●	●
67	GASKET; SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-053-0	02	1	0212-	●	●
69	HOSE; PRESSURE PLATE FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-051-0	02	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48259-052-0	02	1	0212-	●	●

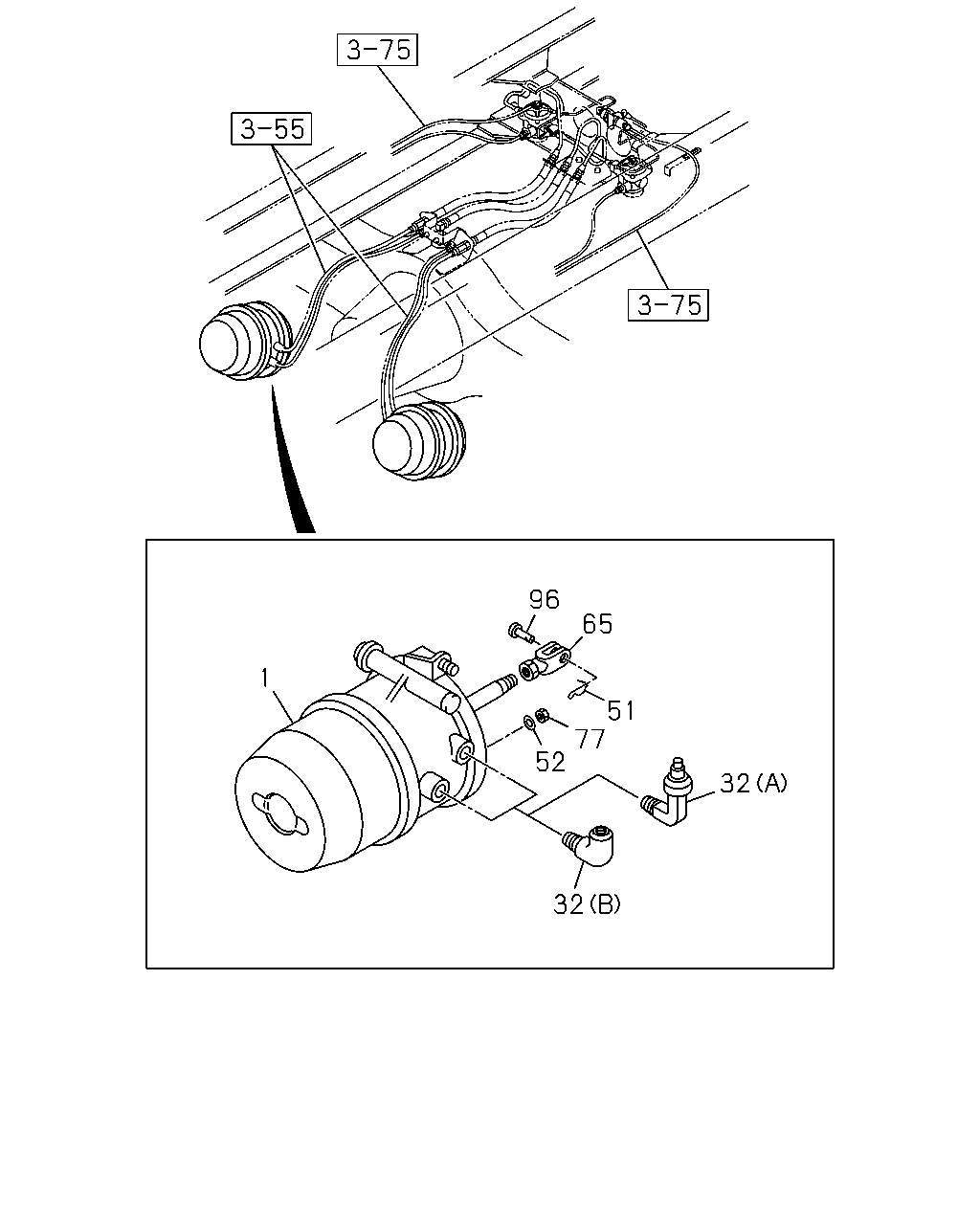

96 65 1 51 77 52 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9601-9705	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48250-558-0	02	1	9601-9705		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9706-9803	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	9706-9803		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	9804-0004	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	9804-0004		●
1	CHAMBER ASM; SPRING	1-48250-558-0	02	1	0005-0105	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-558-0	02	1	0106-1006	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48250-955-0	02	1	1007-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48250-640-1	01	1	0212-	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5" HYPOID(W3X),FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z),FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 41/6 17.5" HYPOID(W4W)	1-48250-641-1	01	1	0212-	●	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 17.5"<B5D> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-741-0	04	1	9601-9803	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-741-0	04	1	9601-9803		●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9804-0004	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9804-0004	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-0302	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-0302	●	●
32	CONNECTOR; SPR CHAMBER EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0303-	●	●
32	CONNECTOR; SPR CHAMBER EXC. FINAL GEAR 17.5"<B5D> (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0303-	●	●
51	PIN; SPLIT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-275-0	02	1	0209-	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	9601-9705	●
51	PIN; SPLIT FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-275-0	02	1	9601-9705		●
51	PIN; SPLIT	1-48259-275-0	02	1	9706-9803	●
51	PIN; SPLIT FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-275-0	02	1	9706-9803		●
51	PIN; SPLIT	1-48259-275-0	02	1	9804-0208	●
51	PIN; SPLIT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-275-0	02	1	9804-0208		●
52	WASHER; PL	1-48259-291-0	04	1	9601-9705	●
52	WASHER; PL FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-291-0	04	1	9601-9705		●
52	WASHER; PL	1-48259-291-0	04	1	9706-9803	●
52	WASHER; PL FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-291-0	04	1	9706-9803		●
52	WASHER; PL	1-48259-291-0	04	1	9804-0004	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-291-0	04	1	9804-0004		●
52	WASHER; PL	1-48259-291-0	04	1	0005-0110	●	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-291-0	04	1	0111-0112	●	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-291-0	04	1	0201-0206	●	●
52	WASHER; PL FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-291-0	04	1	0201-0206	●	●
52	WASHER; PL FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-291-0	04	1	0207-0208	●	●
52	WASHER; PL FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41519-038-0	04	1	0111-0112	●	●
52	WASHER; PL FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41519-038-0	04	1	0201-0206	●	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-41519-038-0	04	1	0201-0206	●	●
52	WASHER; PL FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2>	1-41519-038-0	04	1	0201-0206	●	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41519-038-0	04	1	0207-0208	●	●
52	WASHER; PL FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2>	1-41519-038-0	04	1	0207-0208	●	●
52	WASHER; PL FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41519-038-0	04	1	0209-	●	●
65	JOINT; JAW FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-274-0	02	1	0209-	●	●
65	JOINT; JAW	1-48259-274-0	02	1	9601-9705	●
65	JOINT; JAW FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-274-0	02	1	9601-9705		●
65	JOINT; JAW	1-48259-274-0	02	1	9706-9803	●
65	JOINT; JAW FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-274-0	02	1	9706-9803		●
65	JOINT; JAW	1-48259-274-0	02	1	9804-0208	●
65	JOINT; JAW FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-274-0	02	1	9804-0208		●
77	NUT; SPR CHAMBER BRK	1-48259-290-0	04	1	9601-9705	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-290-0	04	1	9601-9705		●
77	NUT; SPR CHAMBER BRK	1-48259-290-0	04	1	9706-9803	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-290-0	04	1	9706-9803		●
77	NUT; SPR CHAMBER BRK	1-48259-290-0	04	1	9804-0004	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-290-0	04	1	9804-0004		●
77	NUT; SPR CHAMBER BRK	1-48259-290-0	04	1	0005-0110	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-290-0	04	1	0111-0112	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A) HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-290-0	04	1	0201-0206	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-290-0	04	1	0201-0206	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 18" ROCKWELL(W6C) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-48259-290-0	04	1	0207-0208	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-87050-052-0	04	1	0111-0112	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-87050-052-0	04	1	0201-0206	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-87050-052-0	04	1	0201-0206	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87050-052-0	04	1	0201-0206	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-87050-052-0	04	1	0207-0208	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 18" ROCKWELL(W6C) HEAVY DUTY PACKAGE TRUCK<RD2>	1-87050-052-0	04	1	0207-0208	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-87050-052-0	04	1	0209-	●	●
96	PIN; JAW JOINT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-273-0	02	1	0209-	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	9601-9705	●
96	PIN; JAW JOINT FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C)	1-48259-273-0	02	1	9601-9705		●
96	PIN; JAW JOINT	1-48259-273-0	02	1	9706-9803	●
96	PIN; JAW JOINT FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 44/918" ROCKWELL(W5Z),FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-273-0	02	1	9706-9803		●
96	PIN; JAW JOINT	1-48259-273-0	02	1	9804-0208	●
96	PIN; JAW JOINT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-48259-273-0	02	1	9804-0208		●
