3-70 — BRAKE PIPING; AIR,AIR MASTER (#38) — 678 parça

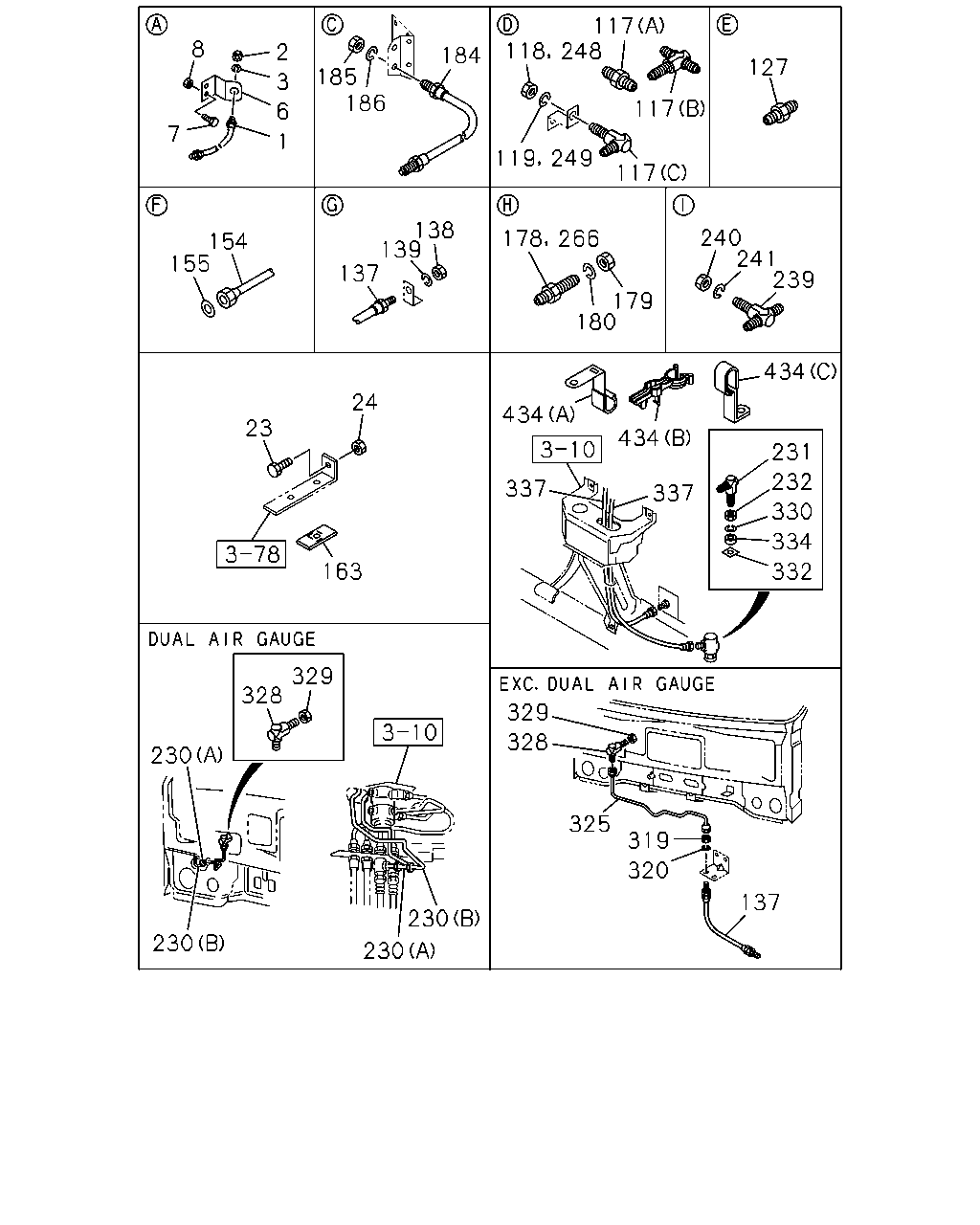

çizim 27094
117 8 2 184 127 185 186 3 117 6 7 1 117 138 139 137 240 241 239 154 155 179 180 434 24 434 23 434 231 232 337 337 330 334 163 332 329 328 329 328 230 325 319 320 137 230 230 230 118 248 119 249 178 266
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-507-0 01 1 9202- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9202- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9202-9312 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-53497-333-2 01 1 9202- ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47476-423-3 01 1 9202- ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47476-437-2 01 1 9202- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28080-825-0 02 1 9205-9211 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 02 1 9205-9211 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X20 FLANGE 		0-28080-820-0 02 1 9212- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE 		0-28080-820-0 02 1 9212- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9202-9302 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 02 1 9202-9302 ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 02 1 9303- ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 02 1 9303- ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 01 1 9202-9208 ●
23 BOLT; BRKT,AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28080-825-0 01 1 9202-9208 ●
23 BOLT; BRKT,AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE 		0-28080-825-0 01 1 9209- ●
24 NUT; BRKT,AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 01 1 9202-9208 ●
24 NUT; BRKT,AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M8 		9-09110-408-0 01 1 9202-9208 ●
24 NUT; BRKT,AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 		9-09110-408-0 01 1 9209- ●
117 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-317-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-317-1 01 1 9209- ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C) 		1-09654-229-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C) 		1-09654-229-1 01 1 9209- ●
117 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ● ●
117 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ● ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9208-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8> (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9208-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9211- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8> (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9211- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09654-086-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> (B) M12 & M16X2 3WAY 		1-09654-086-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09654-086-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M16 ELBOW 		9-09235-210-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M16 L=74 		9-09233-310-1 01 1 9209-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M16 L=74 		9-09233-310-1 01 1 9211- ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09654-293-1 01 1 9202- ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-315-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-315-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		1-09654-315-1 01 1 9209- ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9209- ● ●
118 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
119 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9202- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9202- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450 		1-47486-409-0 01 1 9202- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364 		1-47484-734-0 01 1 9202- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ●
163 BRACKET; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50 		1-47475-299-2 01 1 9202- ● ●
163 BRACKET; AIR PIPE
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50 		1-47475-299-2 01 1 9202- ● ●
178 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 L=66.5 		9-09223-306-0 02 1 9202-9208 ● ●
178 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 L=66.5 		9-09223-306-1 02 1 9209- ● ●
179 NUT; UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-09840-280-0 02 1 9202-9207 ● ●
179 NUT; UNION
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-09840-280-0 02 1 9208- ● ●
180 WASHER; LK,UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2 		9-09150-512-0 01 1 9202-9207 ● ●
180 WASHER; LK,UNION
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2 		9-09150-512-0 02 1 9208-9312 ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-519-0 01 1 9202- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9202- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (A) L=1031 		1-49112-326-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (B) L=753 		1-49112-327-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9202-9307 ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9202-9307 ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9308- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09654-180-3 01 1 9202- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-0 01 1 9202-9207 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ● ●
239 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> M12 		9-09228-306-1 01 1 9202- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-0 01 1 9202-9207 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-2 01 1 9211- ●
240 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
248 NUT; PIPE UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 		9-99111-412-0 01 1 9202-9207 ● ●
249 WASHER; LK,PIPE UNION
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2 		9-09150-512-0 01 1 9202-9207 ● ●
266 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M12 L=40 		9-09223-006-1 01 1 9208- ● ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=958 		1-47447-893-1 01 1 9202- ● ●
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9202- ● ●
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9202- ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
332 SEAL; PIPE UNION
DUAL AIR GAUGE<UG2> 25X25 		8-94272-533-0 01 1 9202- ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9202- ● ●
434 CLIP
(B) ID=17 		1-09987-105-1 01 1 9202- ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9202- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=14 		8-94157-443-0 01 1 9202- ● ●
çizim 92457
138 139 239 241 240 127 118 119 117 137 117 154 72 72 155 117 185 186 184 6 434 434 434 1 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-507-0 01 1 9202- ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 9202- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 9202-9312 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-53497-333-2 01 1 9202- ●
6 BRACKET; FLEX HOSE,AIR TANK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47476-423-3 01 1 9202- ●
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47476-437-2 01 1 9202- ●
72 UNION; AIR PIPE
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16X2 3WAY 		1-09656-352-0 01 1 9202-9208 ● ●
72 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 L=42 		9-09233-010-1 01 1 9202- ● ●
117 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-317-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-317-1 01 1 9209- ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C) 		1-09654-229-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C) 		1-09654-229-1 01 1 9209- ●
117 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M16 STRAIGHT 		1-09654-314-0 01 1 9202-9208 ●
117 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ● ●
117 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ● ●
117 UNION; AIR PIPE
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & M16 STRAIGHT 		1-09654-314-1 01 1 9209- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9208-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8> (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9208-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9211- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8> (B) M12 & M16X2 3WAY 		1-09656-411-1 01 1 9211- ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09654-086-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> (B) M12 & M16X2 3WAY 		1-09654-086-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY 		1-09654-086-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M16 ELBOW 		9-09235-210-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW 		9-09235-210-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M16 L=74 		9-09233-310-1 01 1 9209-9210 ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M16 L=74 		9-09233-310-1 01 1 9211- ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09654-293-1 01 1 9202- ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-315-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (B) 		1-09654-315-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) 		1-09654-315-1 01 1 9209- ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-0 01 1 9202-9208 ● ●
117 UNION; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9209- ● ●
117 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,NEW ZEALAND EQUIPMENT(PK5) ,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT 		1-09654-316-1 01 1 9209- ● ●
118 NUT; UNION
M16 		9-99111-416-0 01 1 9202- ● ●
119 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 01 1 9202-9312 ● ●
127 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 L=40 		9-09223-006-1 01 1 9202- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
138 NUT; FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> M12 		9-09840-280-0 01 1 9202- ● ●
139 WASHER; LK,FLEX HOSE,AIR GOV
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450 		1-47486-409-0 01 1 9202- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364 		1-47484-734-0 01 1 9202- ● ●
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9202- ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-519-0 01 1 9202- ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 9202- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-0 01 1 9202-9207 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 3WAY 		1-09654-137-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ● ●
239 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,AUSTRALIA EQUIPMENT(RR3), DUAL AIR GAUGE<UG2> 3WAY M12 3WAY 		1-09654-137-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> M12 		9-09228-306-1 01 1 9202- ● ●
239 UNION; AIR PIPE
EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-0 01 1 9202-9207 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-0 01 1 9208-9208 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-1 01 1 9209-9210 ● ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. AUSTRALIA EQUIPMENT(RR3) M12 2WAY 		1-09654-059-2 01 1 9211- ●
239 UNION; AIR PIPE
AUSTRALIA EQUIPMENT(RR3) EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 2WAY 		1-09654-059-2 01 1 9211- ●
240 NUT; UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
240 NUT; UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> M12 		9-99111-412-0 01 1 9202- ● ●
241 WASHER; LK,UNION,AIR PIPE
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
241 WASHER; LK,UNION,AIR PIPE
EXC. DUAL AIR GAUGE<UG2> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ●
434 CLIP
(B) ID=17 		1-09987-105-1 01 1 9202- ● ●
434 CLIP
DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50 		1-09700-777-0 01 1 9202- ● ●
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (C) ID=14 		8-94157-443-0 01 1 9202- ● ●
çizim 92596
171 176 34 14 170 154 359 242 358 14 222 64 250 238 75 126 217 358 359 251 222 272 75 217
BalonParca AdiParca NoAdetTipApplied Date A B
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-340-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-47494-393-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) 		1-47494-400-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47494-399-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47496-332-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=363 		1-47488-449-0 01 1 9202- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-47492-367-0 01 1 9202- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-367-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-367-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-47496-331-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) 		1-47494-398-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47494-397-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47496-333-0 01 1 9208- ●
34 PIPE; AIR
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=591 		1-47486-769-0 01 1 9202-9212 ● ●
34 PIPE; AIR
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=591 		1-47497-161-0 01 1 9301- ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9202-9207 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47437-971-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1113 SERVICED BY L=2700 		1-47434-415-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1782 SERVICED BY L=1900 		1-47437-971-0 01 1 9202-9207 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1782 SERVICED BY L=1900 		1-47437-971-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1815 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9207 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1815 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47437-972-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=412 		1-47492-295-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=1683 SERVICED BY L=1900 		1-47437-971-0 01 1 9208-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=1683 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=888 SERVICED BY L=900 		1-47426-413-0 01 1 9208- ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●

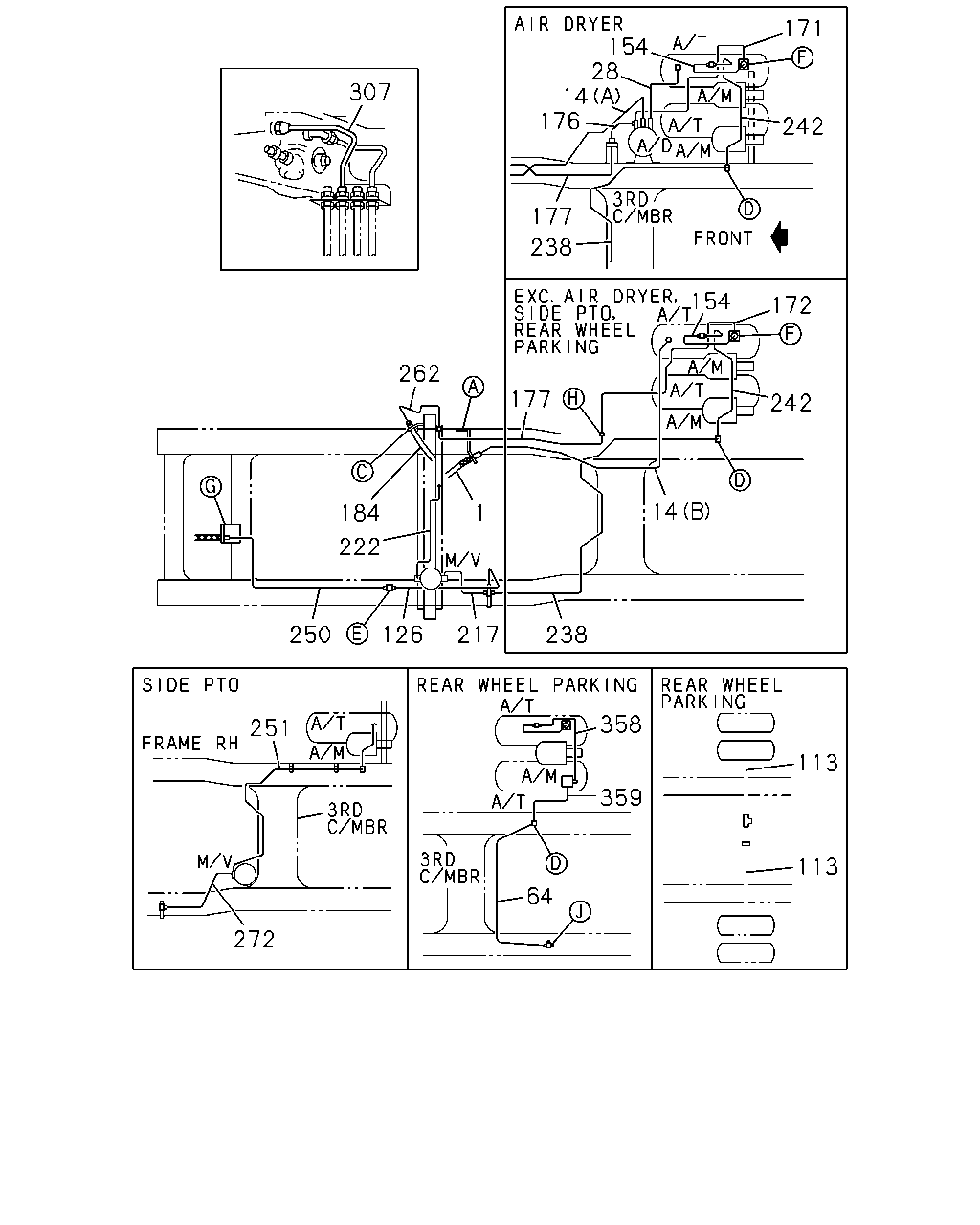

126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800 		1-47434-384-0 01 1 9208- ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=837 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. DUAL AIR GAUGE<UG2> L=917 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450 		1-47486-409-0 01 1 9202- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364 		1-47484-734-0 01 1 9202- ● ●
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47492-409-0 01 1 9202- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9202-9207 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1391 		1-47496-369-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1146 		1-47489-651-0 01 1 9202- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-370-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9202-9207 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=627 		1-47488-840-0 01 1 9202- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9202-9207 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9208- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-371-0 01 1 9208- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> L=577 		1-47492-411-0 01 1 9202-9207 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=577 		1-47492-411-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=577 		1-47492-411-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=582 		1-47499-814-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-776-0 01 1 9208-9208 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-776-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47495-776-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> L=496 		1-47488-811-0 01 1 9202-9207 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=496 		1-47488-811-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=496 		1-47488-811-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) L=496 		1-47488-811-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-778-0 01 1 9208-9208 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47495-778-0 01 1 9209- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1089 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> L=1061 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1477 SERVICED BY L=1620 		1-47434-392-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1477 SERVICED BY L=1620 		1-47434-392-0 01 1 9208-9210 ●
238 PIPE; AIR,UNION TO UNION
A/T<X9D> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1466 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) A/T<X9D> EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
FINAL GEAR 13.5"<B3Z> EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2449 SERVICED BY L=2650 		1-47434-399-0 01 1 9208-9211 ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9212- ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>, BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>, BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9211- ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9211- ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1368 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2353 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> L=2353 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9202 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9203-9207 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=854 SERVICED BY L=900 		1-47426-413-0 01 1 9202-9207 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47437-968-0 01 1 9208-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47426-416-0 01 1 9301-9305 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9306- ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=842 SERVICED BY L=1000 		1-47434-476-0 01 1 9202-9207 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=685 SERVICED BY L=700 		1-47426-410-0 01 1 9208- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9208-9210 ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1010 SERVICED BY L=1100 		1-47434-387-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9208-9210 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> L=1931 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> L=1931 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1935 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1935 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
ISUZU M/T<X9A> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1956 SERVICED BY L=2200 		1-47434-396-0 01 1 9208-9211 ● ●
251 PIPE; AIR,UNION TO MAG VLV
ISUZU M/T<X9A> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1913 SERVICED BY L=2200 		1-47434-396-0 01 1 9212- ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1933 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1933 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> L=389 		1-47491-385-1 01 1 9202- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. DUAL AIR GAUGE<UG2> L=389 		1-47491-385-1 01 1 9202- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47434-473-0 01 1 9202-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9202-9207 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9208-9210 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9211- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=729 SERVICED BY L=800 		1-47426-412-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=373 SERVICED BY L=400 		1-47426-404-0 01 1 9202- ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47492-400-0 01 1 9202-9202 ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9203-9207 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9208-9210 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9211- ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=267 SERVICED BY L=300 		1-47426-402-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 		1-47494-899-0 01 1 9208-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●

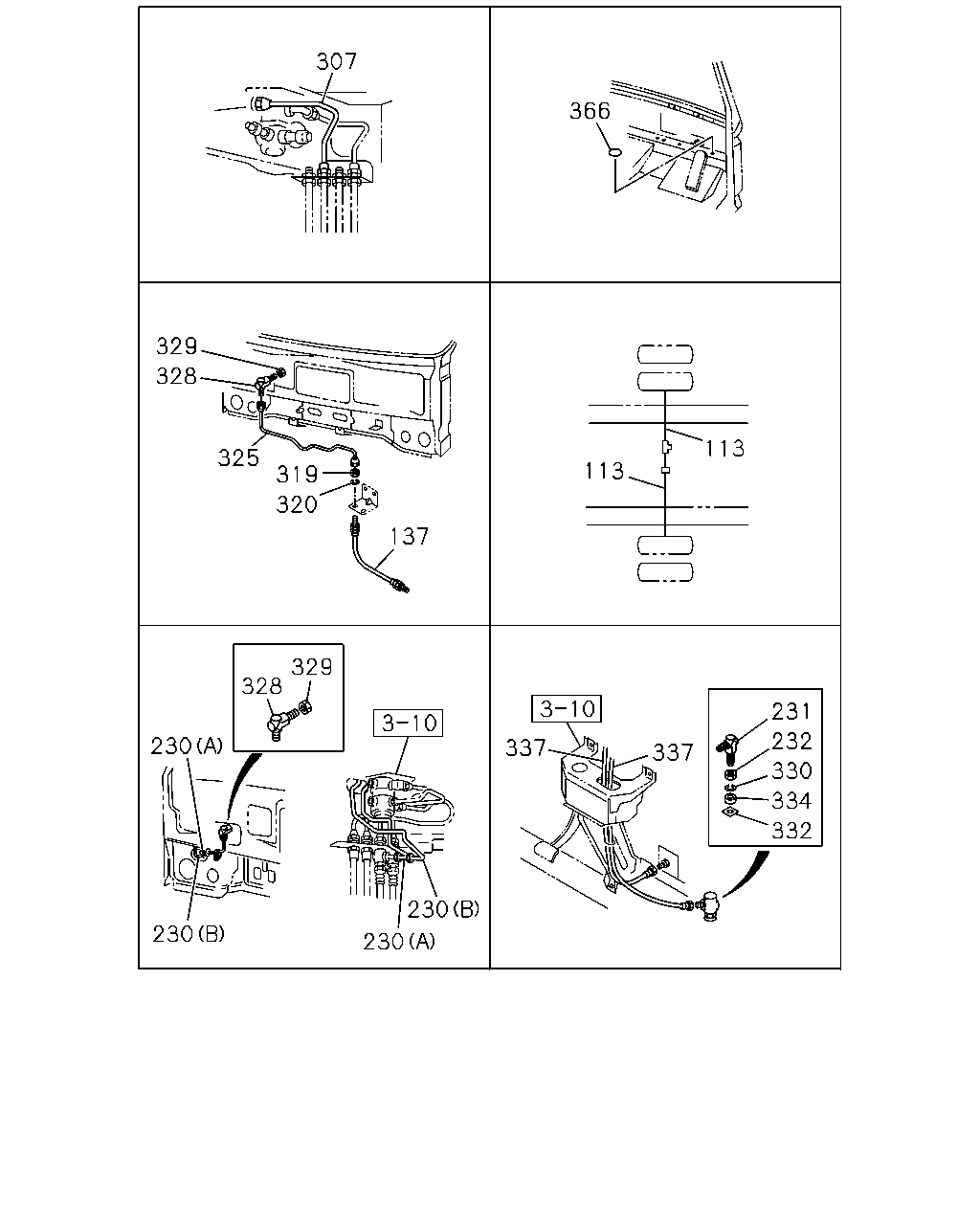

çizim 92624
307 366 329 328 113 325 113 319 320 137 329 328 231 232 230 337 337 330 334 332 230 230 230
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=341 		1-47492-423-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=341 		1-47498-513-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=616 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=616 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=450 		9-47415-379-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
ISUZU M/T<X9A> EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
137 HOSE; FLEX,AIR PRESSURE GAGE
EXC. DUAL AIR GAUGE<UG2> L=410 		0-07020-410-0 01 1 9202- ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (A) L=1031 		1-49112-326-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> DUAL AIR GAUGE<UG2> (B) L=753 		1-49112-327-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9202-9307 ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) L=669 SERVICED BY L=780 		9-47416-730-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9202-9307 ● ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9308- ●
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) L=938 SERVICED BY L=1055 		9-47416-731-0 01 1 9308- ●
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> 		1-09654-180-3 01 1 9202- ● ●
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374 		1-47497-149-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9202-9212 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301-9307 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320 		1-47497-108-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9308- ●
319 NUT; FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9202- ● ●
320 WASHER; LK,FLEX HOSE,CAB SIDE
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> L=958 		1-47447-893-1 01 1 9202- ● ●
328 UNION; AIR PIPE
M10 ELBOW 		1-09654-186-2 01 1 9202- ● ●
329 NUT; UNION,AIR PIPE
M10 		9-09110-410-0 01 1 9202- ● ●
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9202- ● ●
332 SEAL; PIPE UNION
DUAL AIR GAUGE<UG2> 25X25 		8-94272-533-0 01 1 9202- ● ●
334 SPACER; PIPE UNION
DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9202- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 01 1 9202- ● ●
366 SEAL; AIR GAUGE HOLE
EXC. DUAL AIR GAUGE<UG2> OD=36 WHITE 		1-76778-007-0 01 1 9202- ● ●
çizim 93214
358 359 75 64 75 307 171 176
BalonParca AdiParca NoAdetTipApplied Date A B
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9202-9207 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47437-971-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1113 SERVICED BY L=2700 		1-47434-415-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1782 SERVICED BY L=1900 		1-47437-971-0 01 1 9202-9207 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1782 SERVICED BY L=1900 		1-47437-971-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1815 SERVICED BY L=2100 		1-47437-972-0 01 1 9202-9207 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1815 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47437-972-0 01 1 9208-9210 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47437-972-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=1833 SERVICED BY L=2100 		1-47426-422-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=412 		1-47492-295-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=1683 SERVICED BY L=1900 		1-47437-971-0 01 1 9208-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=1683 SERVICED BY L=1700 		1-47426-420-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 		1-47492-375-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=874 SERVICED BY L=900 		1-47426-413-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=888 SERVICED BY L=900 		1-47426-413-0 01 1 9208- ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9202-9207 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1475 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
75 PIPE; AIR,JOINT TO SUB AIR TANK
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=1496 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9202-9207 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1391 		1-47496-369-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1146 		1-47489-651-0 01 1 9202- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-370-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9202-9207 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=627 		1-47488-840-0 01 1 9202- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9202-9207 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9208- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-371-0 01 1 9208- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374 		1-47497-149-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9202-9212 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301-9307 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320 		1-47497-108-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9308- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47434-473-0 01 1 9202-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9202-9207 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9208-9210 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9211- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=729 SERVICED BY L=800 		1-47426-412-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=373 SERVICED BY L=400 		1-47426-404-0 01 1 9202- ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47492-400-0 01 1 9202-9202 ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9203-9207 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9208-9210 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9211- ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=267 SERVICED BY L=300 		1-47426-402-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 		1-47494-899-0 01 1 9208-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●
çizim 94698
154 28 14 176 171 307 242 177 238 154 172 262 177 242 14 184 1 222 250 126 217 238 358 251 113 359 113 64 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-505-0 01 1 9202- ●
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-507-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-340-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-47494-393-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=1880 SERVICED BY L=2000 		1-49111-466-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) 		1-47494-400-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47494-399-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47496-332-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=363 		1-47488-449-0 01 1 9202- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-47492-367-0 01 1 9202- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-367-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-47494-367-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-47496-331-0 01 1 9208- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) 		1-47494-398-0 01 1 9202- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47494-397-0 01 1 9202-9207 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) 		1-47496-333-0 01 1 9208- ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=533 SERVICED BY L=550 		1-49111-436-0 01 1 9202-9207 ● ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=533 SERVICED BY L=550 		1-49111-436-0 01 1 9208- ● ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-368-0 01 1 9208-9212 ● ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47499-570-0 01 1 9301- ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9202-9207 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1376 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47437-971-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1654 SERVICED BY L=1900 		1-47426-421-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1113 SERVICED BY L=2700 		1-47434-415-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9202-9207 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47437-969-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1295 SERVICED BY L=1400 		1-47426-418-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9208-9210 ● ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47437-970-0 01 1 9211-9212 ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
64 PIPE; AIR
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550 		1-47426-419-0 01 1 9301- ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=341 		1-47492-423-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=341 		1-47498-513-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=616 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=616 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=450 		9-47415-379-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600 		9-47415-382-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47437-953-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550 		1-47426-377-0 01 1 9301- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=692 SERVICED BY L=730 		1-47437-955-0 01 1 9202-9212 ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730 		1-47426-382-0 01 1 9301- ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800 		1-47434-384-0 01 1 9208- ● ●
126 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=837 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
126 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. DUAL AIR GAUGE<UG2> L=917 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450 		1-47486-409-0 01 1 9202- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364 		1-47484-734-0 01 1 9202- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9202-9207 ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1322 		1-47492-357-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1391 		1-47496-369-0 01 1 9208- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1146 		1-47489-651-0 01 1 9202- ● ●
172 PIPE; AIR,GOV TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> 		1-47494-396-0 01 1 9202-9207 ●
172 PIPE; AIR,GOV TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> 		1-47494-396-0 01 1 9208- ●
172 PIPE; AIR,GOV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47495-514-0 01 1 9208-9208 ● ●
172 PIPE; AIR,GOV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47495-514-0 01 1 9209- ●
172 PIPE; AIR,GOV TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> 		1-47494-012-0 01 1 9202-9207 ● ●
172 PIPE; AIR,GOV TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> 		1-47494-012-0 01 1 9208- ● ●
172 PIPE; AIR,GOV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47497-498-0 01 1 9209- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-370-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9202-9207 ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 3700MM(37W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-394-0 01 1 9208- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=627 		1-47488-840-0 01 1 9202- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9202-9207 ● ●
176 PIPE; AIR,AIR DRYER TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AIR DRYER<PS7> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47494-013-0 01 1 9208- ● ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47496-371-0 01 1 9208- ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1217 SERVICED BY L=1370 		1-47434-390-0 01 1 9202-9207 ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1217 SERVICED BY L=1370 		1-47434-390-0 01 1 9208- ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1300 SERVICED BY L=1370 		1-47434-390-0 01 1 9202-9207 ● ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1300 SERVICED BY L=1370 		1-47434-390-0 01 1 9208- ● ●
184 HOSE; FLEX,AIR GOV 1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-518-0 01 1 9202- ●
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09363-519-0 01 1 9202- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> L=577 		1-47492-411-0 01 1 9202-9207 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=577 		1-47492-411-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=577 		1-47492-411-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=582 		1-47499-814-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-776-0 01 1 9208-9208 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-776-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47495-776-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> L=496 		1-47488-811-0 01 1 9202-9207 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=496 		1-47488-811-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=496 		1-47488-811-0 01 1 9208-9210 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) L=496 		1-47488-811-0 01 1 9211- ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47495-778-0 01 1 9208-9208 ●
217 PIPE; VAC,UNION TO MAG VLV
EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-47495-778-0 01 1 9209- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1089 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXHAUST BRAKE<NF8> L=1061 SERVICED BY L=1100 		1-47434-387-0 01 1 9202- ●
238 PIPE; AIR,UNION TO UNION
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1477 SERVICED BY L=1620 		1-47434-392-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
AUSTRALIA EQUIPMENT(RR3) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1477 SERVICED BY L=1620 		1-47434-392-0 01 1 9208-9210 ●
238 PIPE; AIR,UNION TO UNION
A/T<X9D> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1466 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6>,A/T<X9D> L=2478 SERVICED BY L=2650 		1-47434-399-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) A/T<X9D> EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2377 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PTOCONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
FINAL GEAR 13.5"<B3Z> EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) EXC. PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1367 SERVICED BY L=1500 		1-47434-391-0 01 1 9211- ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2449 SERVICED BY L=2650 		1-47434-399-0 01 1 9208-9211 ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2405 SERVICED BY L=2650 		1-47434-399-0 01 1 9212- ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>, BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9208-9210 ● ●
238 PIPE; AIR,UNION TO UNION
EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>, BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9211- ● ●
238 PIPE; AIR,UNION TO UNION
ISUZU M/T<X9A> EXC. PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370 		1-47434-390-0 01 1 9211- ● ●
238 PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1368 SERVICED BY L=1500 		1-47434-391-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6> L=2353 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3),PTO CONTROL<SV6>,DUAL AIR GAUGE<UG2> L=2353 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9202-9202 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9203-9207 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2481 SERVICED BY L=2650 		1-47434-399-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9202-9207 ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ● ●
238 PIPE; AIR,UNION TO UNION
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,PTO CONTROL<SV6> L=2367 SERVICED BY L=2500 		1-47434-398-0 01 1 9208- ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=854 SERVICED BY L=900 		1-47426-413-0 01 1 9202-9207 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47437-968-0 01 1 9208-9212 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1250 		1-47426-416-0 01 1 9301-9305 ● ●
242 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) L=1091 SERVICED BY L=1100 		1-47426-415-0 01 1 9306- ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=842 SERVICED BY L=1000 		1-47434-476-0 01 1 9202-9207 ● ●
242 PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=685 SERVICED BY L=700 		1-47426-410-0 01 1 9208- ● ●
250 PIPE; AIR,UNION TO FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> L=1488 SERVICED BY L=1500 		1-47434-391-0 01 1 9202- ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9208-9210 ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1010 SERVICED BY L=1100 		1-47434-387-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1027 SERVICED BY L=1200 		1-47434-388-0 01 1 9208-9210 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1954 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> L=1931 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,A/T<X9D> L=1931 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=1935 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1935 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
ISUZU M/T<X9A> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1956 SERVICED BY L=2200 		1-47434-396-0 01 1 9208-9211 ● ●
251 PIPE; AIR,UNION TO MAG VLV
ISUZU M/T<X9A> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,AUSTRALIA EQUIPMENT(RR3) L=1913 SERVICED BY L=2200 		1-47434-396-0 01 1 9212- ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900 		1-47434-385-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9208-9210 ● ●
251 PIPE; AIR,UNION TO MAG VLV
AUSTRALIA EQUIPMENT(RR3) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=881 SERVICED BY L=1000 		1-47434-386-0 01 1 9211- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK<RD2> AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) A/T<X9D> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1939 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1933 SERVICED BY L=2200 		1-47434-396-0 01 1 9202-9207 ● ●
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1933 SERVICED BY L=2200 		1-47434-396-0 01 1 9208- ● ●
262 PIPE; AIR,UNION TO FLEX
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=523 		1-47494-341-0 01 1 9202-9207 ●
262 PIPE; AIR,UNION TO FLEX
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=523 		1-47494-341-0 01 1 9208- ●
262 PIPE; AIR,UNION TO FLEX
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) 		1-47496-373-0 01 1 9208- ●
262 PIPE; AIR,UNION TO FLEX
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=813 SERVICED BY L=900 		1-47434-385-0 01 1 9202-9207 ●
262 PIPE; AIR,UNION TO FLEX
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=813 SERVICED BY L=900 		1-47434-385-0 01 1 9208- ●
262 PIPE; AIR,UNION TO FLEX
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) L=972 		1-47496-372-0 01 1 9208- ●
272 PIPE; AIR,MAG VLV TO UNION
EXHAUST BRAKE<NF8> PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> L=389 		1-47491-385-1 01 1 9202- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. DUAL AIR GAUGE<UG2> L=389 		1-47491-385-1 01 1 9202- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=374 		1-47497-149-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47446-700-0 01 1 9202-9212 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9301-9307 ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=320 		1-47497-108-0 01 1 9308- ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=320 		1-47497-108-0 01 1 9308- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47434-473-0 01 1 9202-9212 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600 		1-47426-408-0 01 1 9301- ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9202-9207 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9208-9210 ● ●
358 PIPE; AIR,AIR TANK TO AIR VLV
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=456 SERVICED BY L=500 		1-47426-406-0 01 1 9211- ●
358 PIPE; AIR,AIR TANK TO AIR VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=729 SERVICED BY L=800 		1-47426-412-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=373 SERVICED BY L=400 		1-47426-404-0 01 1 9202- ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-47492-400-0 01 1 9202-9202 ● ●
359 PIPE; AIR,AIR VLV TO UNION
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9203-9207 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9208-9210 ● ●
359 PIPE; AIR,AIR VLV TO UNION
AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=849 SERVICED BY L=900 		1-47426-413-0 01 1 9211- ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=267 SERVICED BY L=300 		1-47426-402-0 01 1 9208- ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 		1-47494-899-0 01 1 9208-9212 ● ●
359 PIPE; AIR,AIR VLV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=534 SERVICED BY L=550 		1-47426-407-0 01 1 9301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
