6-20 — SIDE PANEL AND STEP (#37995) — 143 parça

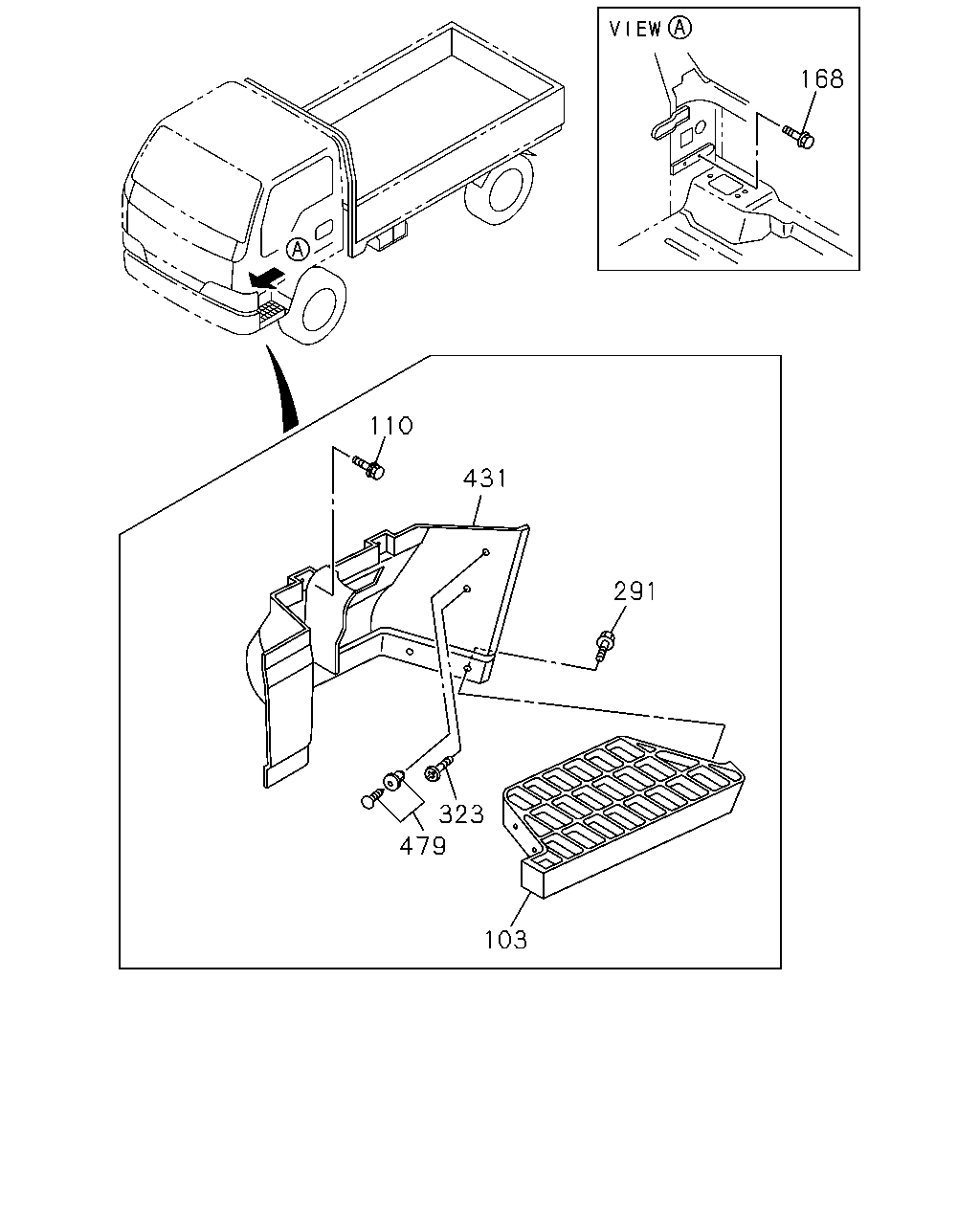

çizim 21130
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0302 ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0302 ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0303-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0303-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0211-0302 ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0303-0501 ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-0 01 1 0211-0302 ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-0 01 1 0211-0302 ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0303-0501 ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0303-0501 ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ●

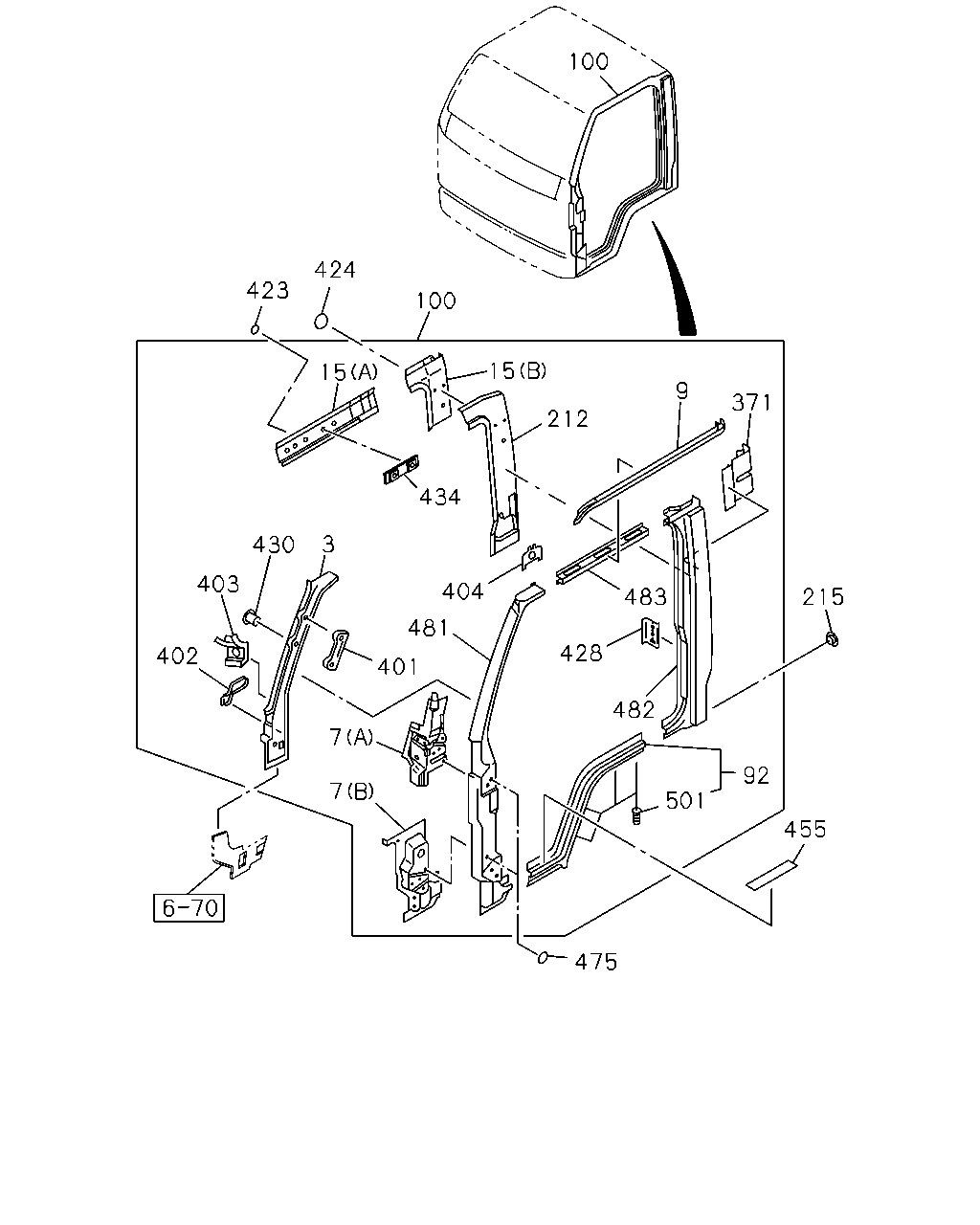

çizim 75209
100 424 423 100 15 15 9 371 212 434 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0211-0501 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0502- ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0211-0501 ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0502- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0211-0501 ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0502- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211-0501 ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0502- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-1 01 1 0211-0501 ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0502- ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-1 01 1 0211-0501 ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0502- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-0501 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0502- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-0501 ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0211-0501 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0211-0501 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0211-0501 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0211-0501 ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0502- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211-0501 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211-0501 ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0502- ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-407-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-407-1 01 1 0502- ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0211-0501 ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0502- ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 0211-0501 ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0502- ● ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0211-0501 ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0502- ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211-0501 ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0502- ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211-0501 ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0502- ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0501 ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0501 ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211-0501 ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0502- ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211-0501 ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0502- ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211-0501 ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0502- ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211-0501 ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0502- ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0211-0501 ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0502- ● ● ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0211-0501 ● ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0502- ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611- ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502- ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0211-0501 ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0502- ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0211-0501 ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0502- ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0501 ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0502-0805 ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0211-0501 ● ● ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0502-0805 ● ● ● ●
430 16.570 NUT; PANEL
16.549 M8 POP NUT 		8-98021-404-0 02 1 0806- ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211-0501 ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0502- ● ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 0211-0501 ● ● ●
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 0502-0511 ● ● ● ●
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0512- ● ● ● ●
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0211-0501 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0211-0501 ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0502- ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0502- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0211-0501 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0211-0501 ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0502- ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0502- ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211-0501 ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211-0501 ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0502- ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0502- ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0501 ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0501 ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ●

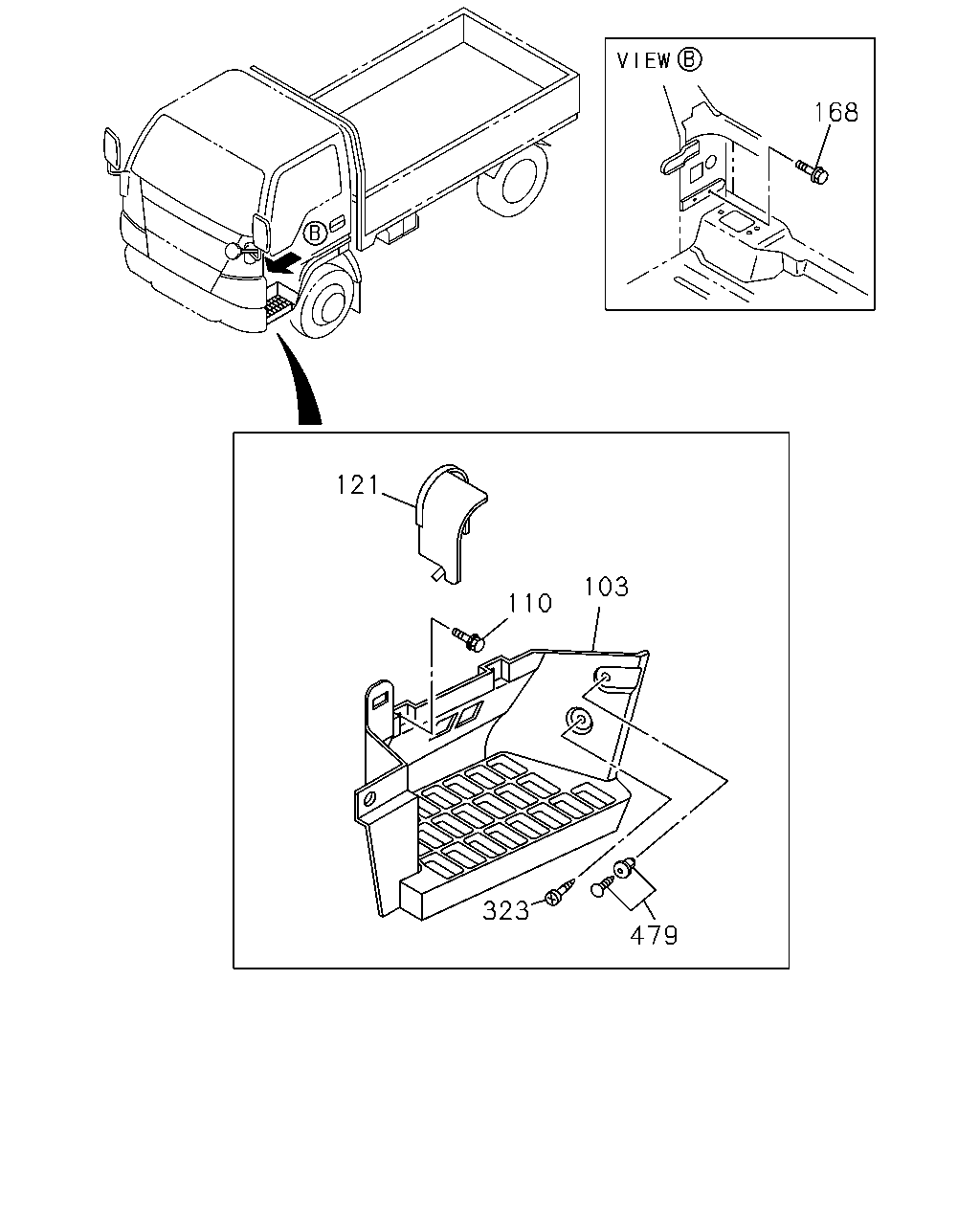

çizim 75605
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0302 ● ● ●
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0302 ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0303-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0303-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502- ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502- ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502- ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ●
