◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#37991) — 77 parça

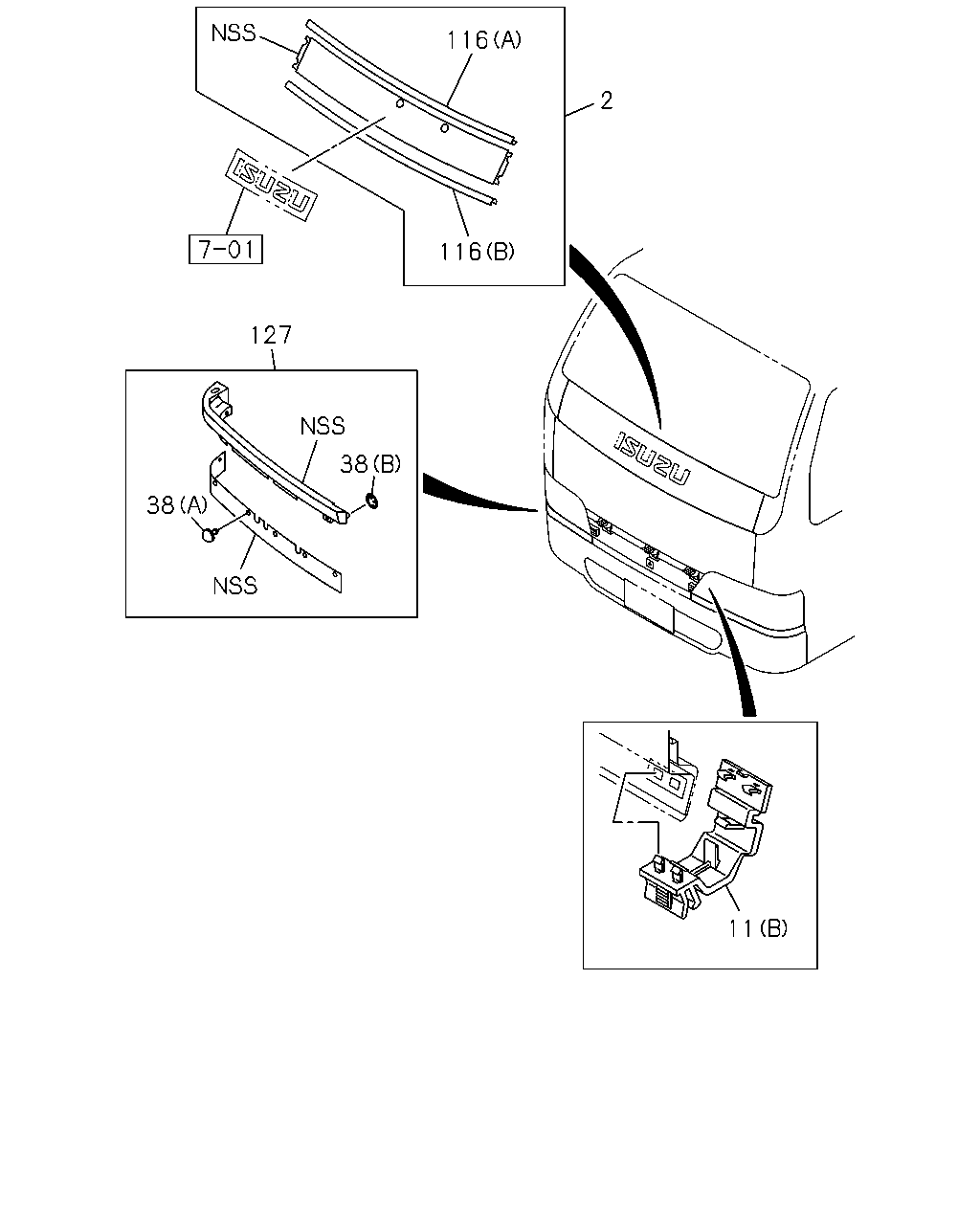

çizim 74583
116 2 116 127 38 38 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97868-326-3 01 1 0211-0501 ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-954-2 01 1 0502- ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-017-6 01 1 0211-0501 ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-953-3 01 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0211-0501 ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0211-0501 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0211-0307 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0211-0307 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0308-0501 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0308-0501 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0502- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0211-0501 ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0211-0501 ● ● ●

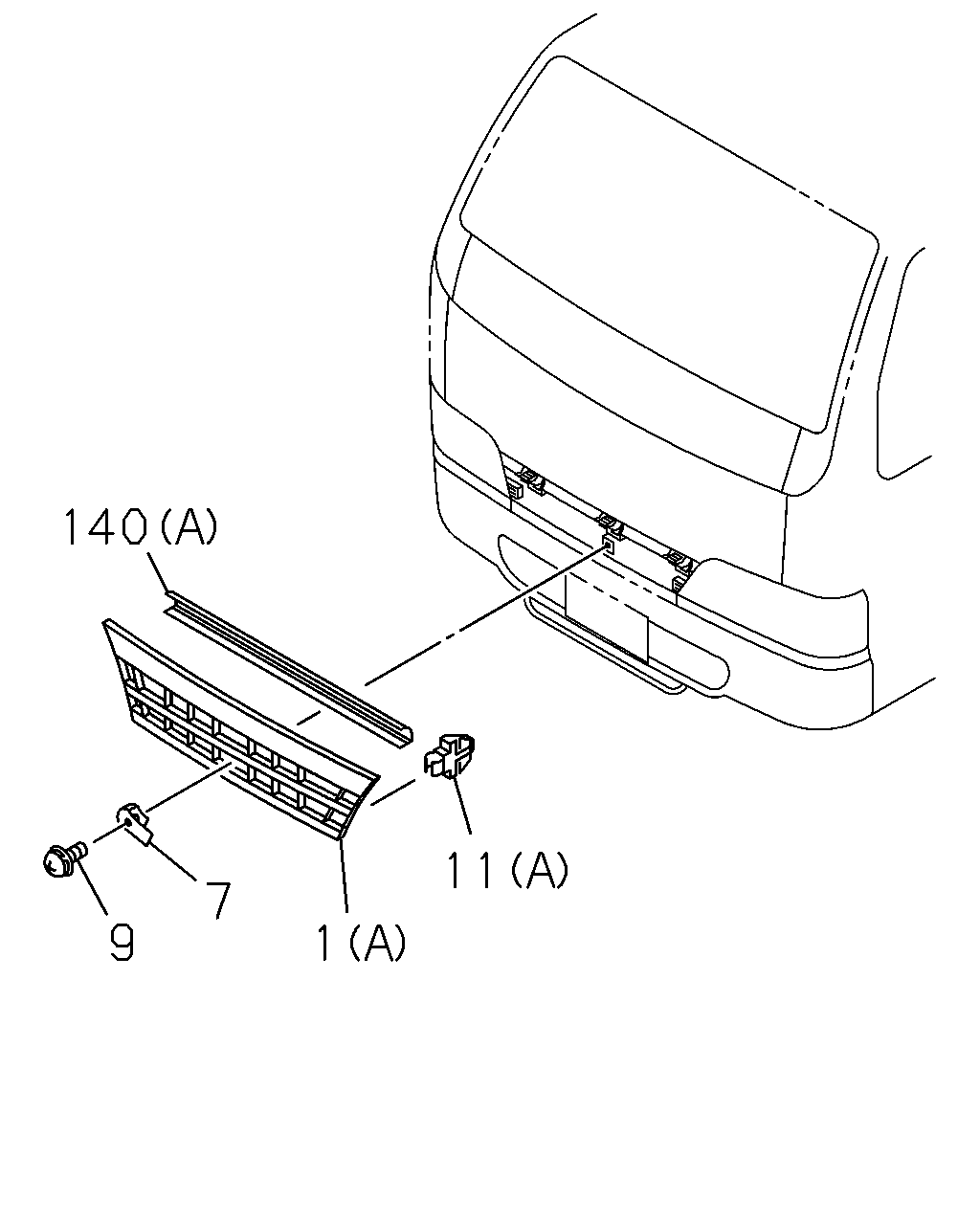

çizim 74938
140 11 7 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97583-050-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0211-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97583-047-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97583-048-4 01 1 0502- ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0211-0501 ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0502- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0502- ● ● ● ●
çizim 75290
2 188 116 188 184 129 128 128 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97868-326-3 01 1 0211-0501 ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-954-2 01 1 0502- ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-017-6 01 1 0211-0501 ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-953-3 01 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0211-0307 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0211-0307 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0308-0501 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0308-0501 ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C) 		8-97581-656-1 01 1 0502- ● ● ● ●
128 01.267 COVER; HEADLAMP GRILLE 8-97581-653-3 02 1 0502- ● ● ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 0502- ● ● ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 03 1 0502-0602 ● ● ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 0603- ● ● ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 0502- ● ● ● ●

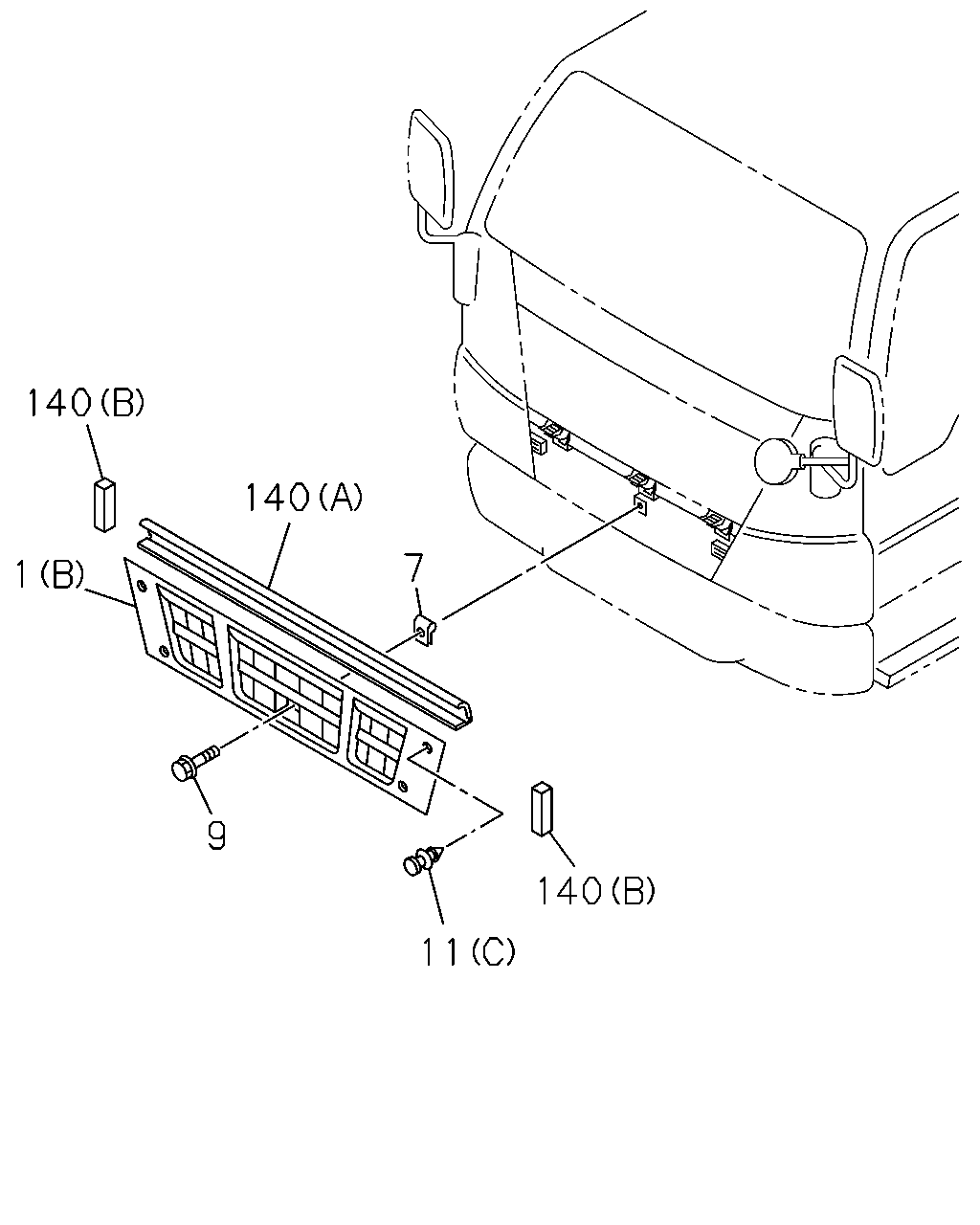

çizim 75298
140 140 7 1 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-97581-826-2 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) SILVER 		8-97583-050-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
(A) PLEASE PAINT TO MATCH BODY COLOR 		8-97891-681-1 01 1 0211-0501 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE 		8-97583-047-4 01 1 0502- ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BLUE 		8-97583-048-4 01 1 0502- ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0211-0501 ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 0502-0505 ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0506- ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0211-0501 ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0502-0805 ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0502- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) WHITE 		8-97892-730-0 02 1 0211-0501 ● ● ●
11 01.269 CLIP; RAD GRILLE
(C) 		8-97581-651-2 04 1 0502- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97088-561-3 01 1 0211-0501 ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0502- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0502- ● ● ● ●
