3-40 — FRONT BRAKE POWER CHAMBER (#3799) — 58 parça

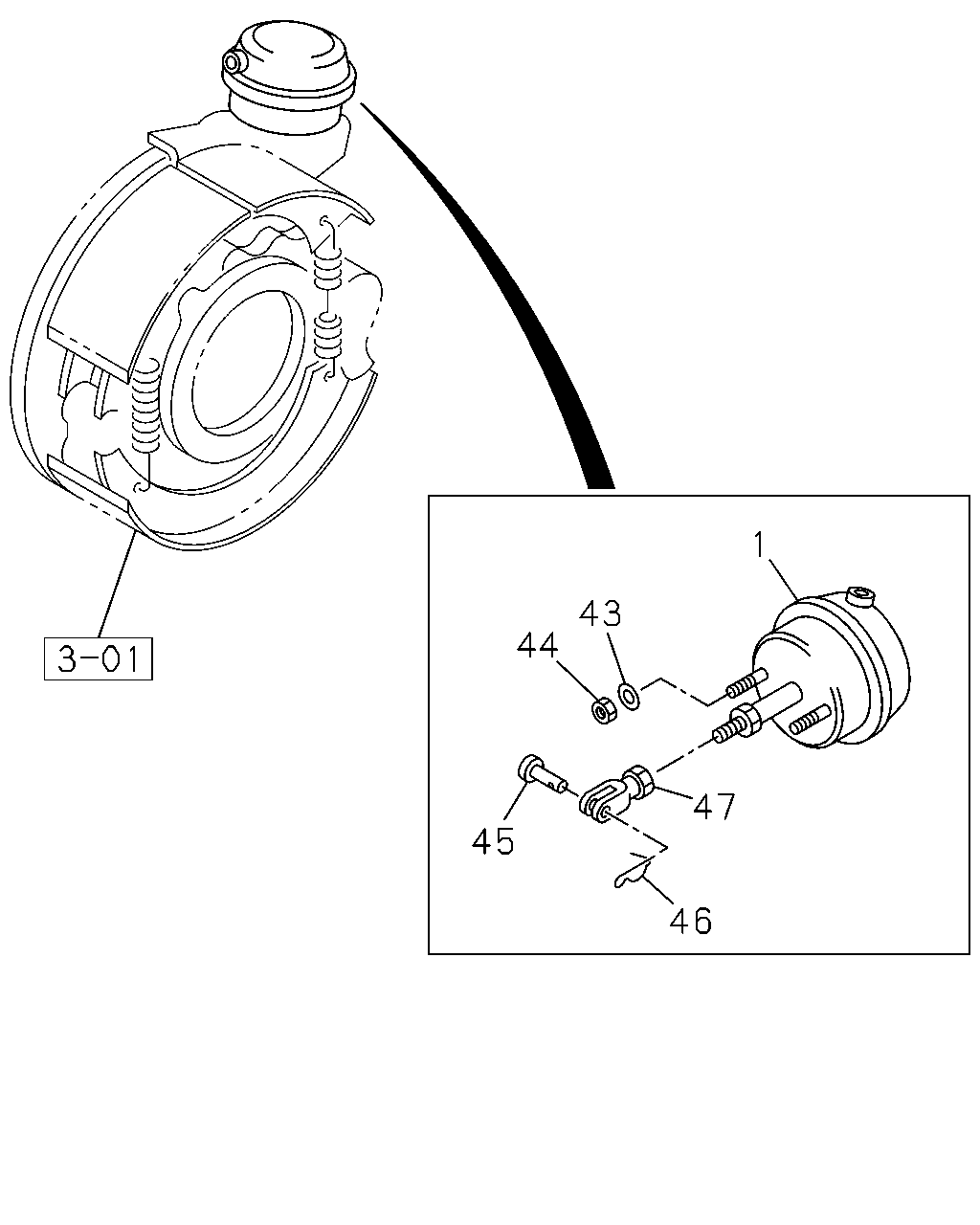

çizim 37860
1 43 44 47 45 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48250-062-2 02 1 0303- ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-560-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 0005-0211 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0212-0609 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0610- ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-561-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 0005-0211 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0212-0609 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0610- ● ●
43 WASHER; LK,POWER CHAMBER 1-48259-282-0 04 1 9601-0004 ●
43 WASHER; LK,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-282-0 04 1 9601-0004 ●
43 WASHER; LK,POWER CHAMBER 1-48259-282-0 04 1 0005-0211 ● ●
43 WASHER; LK,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-282-0 04 1 0212-0609 ● ●
43 WASHER; LK,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-282-0 04 1 0610- ● ●
44 NUT; POWER CHAMBER 1-48259-283-0 04 1 9601-0004 ●
44 NUT; POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-283-0 04 1 9601-0004 ●
44 NUT; POWER CHAMBER 1-48259-283-0 04 1 0005-0211 ● ●
44 NUT; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-283-0 04 1 0212-0609 ● ●
44 NUT; POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-283-0 04 1 0610- ● ●
45 PIN; JAW JOINT,POWER CHAMBER 1-48259-285-0 02 1 9601-0004 ●
45 PIN; JAW JOINT,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-285-0 02 1 9601-0004 ●
45 PIN; JAW JOINT,POWER CHAMBER 1-48259-285-0 02 1 0005-0211 ● ●
45 PIN; JAW JOINT,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-285-0 02 1 0212-0609 ● ●
45 PIN; JAW JOINT,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-285-0 02 1 0610- ● ●
46 PIN; SPLIT,JAW JOINT 1-48259-284-0 02 1 9601-0004 ●
46 PIN; SPLIT,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-284-0 02 1 9601-0004 ●
46 PIN; SPLIT,JAW JOINT 1-48259-284-0 02 1 0005-0211 ● ●
46 PIN; SPLIT,JAW JOINT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-284-0 02 1 0212-0609 ● ●
46 PIN; SPLIT,JAW JOINT
HUB LUBRICATION OIL BATH<C5K> 		1-48259-284-0 02 1 0610- ● ●
47 JOINT; JAW,POWER CHAMBER 1-48259-286-0 02 1 9601-0004 ●
47 JOINT; JAW,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-286-0 02 1 9601-0004 ●
47 JOINT; JAW,POWER CHAMBER 1-48259-286-0 02 1 0005-0211 ● ●
47 JOINT; JAW,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-286-0 02 1 0212-0609 ● ●
47 JOINT; JAW,POWER CHAMBER
HUB LUBRICATION OIL BATH<C5K> 		1-48259-286-0 02 1 0610- ● ●

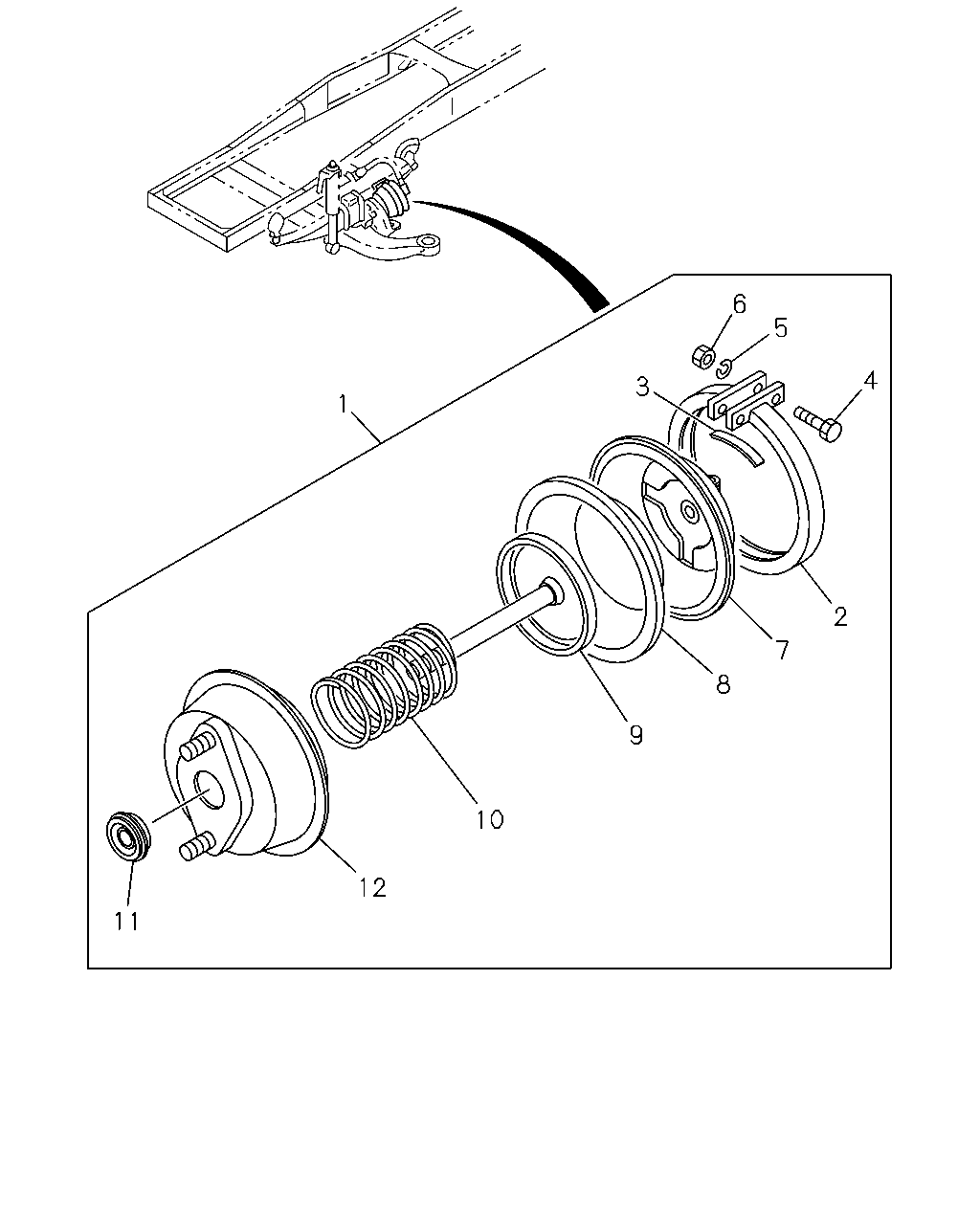

çizim 39640
6 5 4 3 1 2 7 8 9 10 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48250-062-2 02 1 0303- ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-560-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-560-0 01 1 0005-0211 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0212-0609 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-560-0 01 1 0610- ● ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-561-0 01 1 9601-0004 ●
1 CHAMBER ASM; POWER,FRT BRK 1-48250-561-0 01 1 0005-0211 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0212-0609 ● ●
1 CHAMBER ASM; POWER,FRT BRK
HUB LUBRICATION OIL BATH<C5K> 		1-48250-561-0 01 1 0610- ● ●
2 RING; CLAMP,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48259-001-0 02 1 0303- ● ●
3 RETAINER; DIAPH
EXC. HUB LUBRICATION OIL BATH<C5K> 		9-48259-016-0 02 1 0303- ● ●
4 BOLT; CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48259-002-0 04 1 0303- ● ●
5 WASHER; LK,CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2 		9-09150-510-0 04 1 0303- ● ●
6 NUT; CLAMP RING
EXC. HUB LUBRICATION OIL BATH<C5K> M10 		9-09110-010-0 04 1 0303- ● ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48251-039-0 02 1 0303- ● ●
8 DIAPHRAGM; SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48252-054-0 02 1 0303- ● ●
9 PISTON; SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48253-001-0 02 1 0303- ● ●
10 SPRING; PISTON,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48255-001-0 02 1 0303- ● ●
11 SEAL; PISTON,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48252-025-0 02 1 0303- ● ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. HUB LUBRICATION OIL BATH<C5K> 		1-48251-019-0 02 1 0303- ● ●
