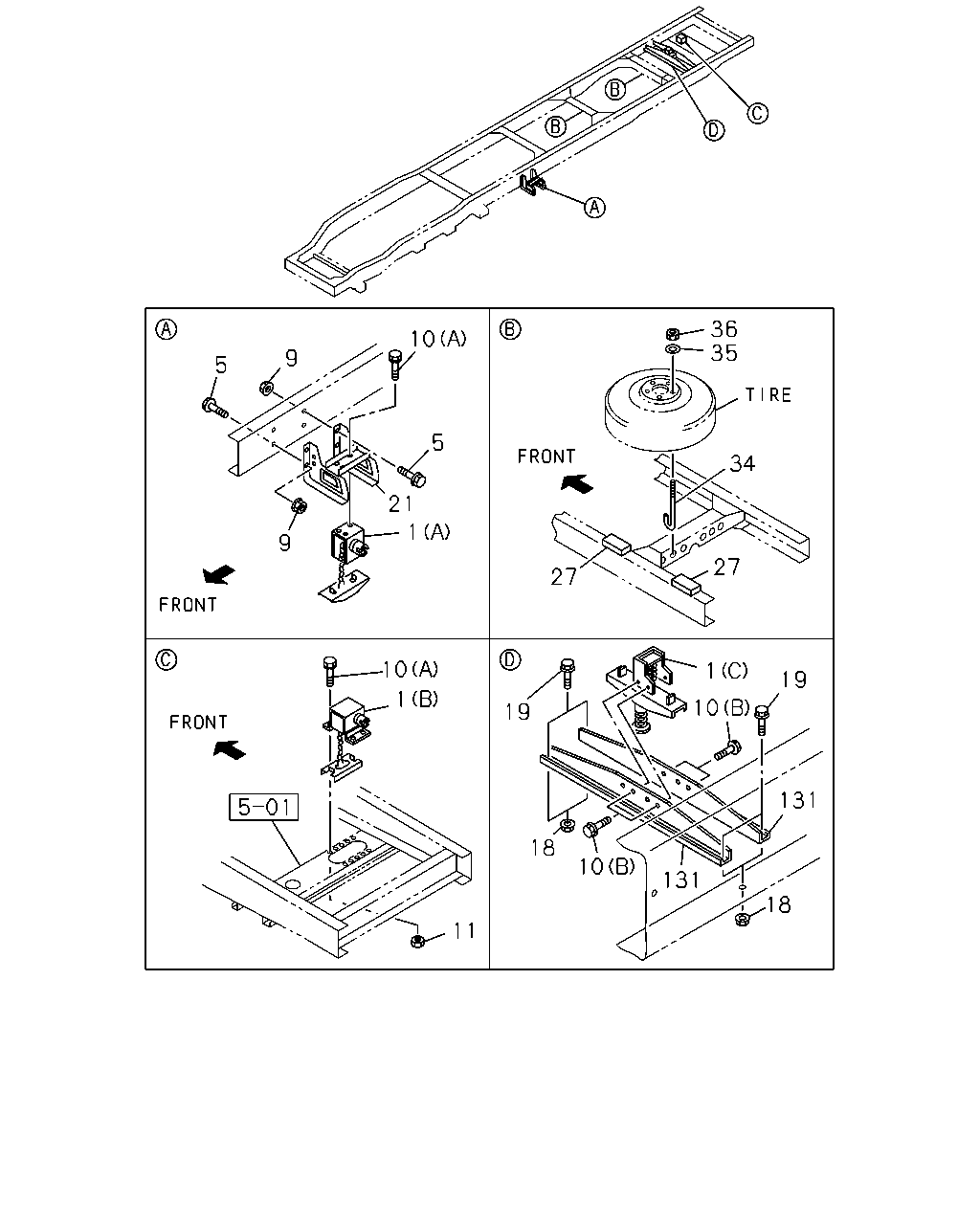

5-30 — SPARE TIRE CARRIER AND COVER (#37989) — 57 parça

36 35 10 9 5 5 34 21 1 9 27 27 10 1 19 1 10 19 131 18 10 131 18 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANGER ASM; TIRE FT (B) REAR	8-97182-113-1	01	1	0211-	●
1	07.629 HANGER ASM; TIRE FT G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97182-113-1	01	1	0211-		●
1	07.629 HANGER ASM; TIRE FT G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) REAR	8-97174-769-0	01	1	0211-		●
1	07.629 HANGER ASM; TIRE FT G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97182-115-1	01	1	0211-0501		●
1	07.629 HANGER ASM; TIRE FT G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97182-115-1	01	1	0502-		●
1	07.629 HANGER ASM; TIRE FT G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97182-115-1	01	1	0502-		●
1	07.629 HANGER ASM; TIRE FT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) REAR	1-53630-188-3	01	1	0211-		●
1	07.629 HANGER ASM; TIRE FT (A) FRONT	8-97010-955-1	01	1	0211-0501			●
1	07.629 HANGER ASM; TIRE FT FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (A) FRONT	8-97010-955-1	01	1	0502-			●
5	07.632 BOLT; BRKT TO FRAME 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0501			●
5	07.632 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0512			●
5	07.632 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-			●
9	07.633 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0501			●
9	07.633 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 04.785 M10 FLANGE	0-91150-110-0	04	1	0502-0602			●
9	07.633 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-			●
10	07.632 BOLT; TIRE HANGER 02.664 (A) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512	●
10	07.632 BOLT; TIRE HANGER EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●
10	07.632 BOLT; TIRE HANGER 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
10	07.632 BOLT; TIRE HANGER EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
10	07.632 BOLT; TIRE HANGER FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	04	1	0211-0512		●
10	07.632 BOLT; TIRE HANGER FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●
10	07.632 BOLT; TIRE HANGER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0211-0501			●
10	07.632 BOLT; TIRE HANGER FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	0502-0512			●
10	07.632 BOLT; TIRE HANGER FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-			●
10	07.632 BOLT; TIRE HANGER 4HF1-S ENG(RLS) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
10	07.632 BOLT; TIRE HANGER 4HF1-S ENG(RLS) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
11	07.629 NUT; TIRE HANGER 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0602	●
11	07.629 NUT; TIRE HANGER EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
11	07.629 NUT; TIRE HANGER 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●
11	07.629 NUT; TIRE HANGER EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-		●
18	07.633 NUT; MEMBER FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	04	1	0211-0602		●
18	07.633 NUT; MEMBER FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-		●
19	07.632 BOLT; C/MBR FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0211-0512		●
19	07.632 BOLT; C/MBR FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
21	07.629 BRACKET; SPARE TIRE HANGER	8-97188-263-1	01	1	0211-0501			●
21	07.629 BRACKET; SPARE TIRE HANGER FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B)	8-97188-263-1	01	1	0502-			●
27	07.629 CUSHION; FRAME TO SPARE TIRE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 125X50X10	8-94341-284-0	04	1	0502-			●
27	07.629 CUSHION; FRAME TO SPARE TIRE 125X50X10	8-94341-284-0	04	1	0502-				●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X305	8-94441-189-0	02	1	0211-0501		●
34	07.629 BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	0211-0501			●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X305	8-94441-189-0	02	1	0502-		●	●
34	07.629 BOLT; SPARE TIRE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> M12X305	8-94441-189-0	01	1	0502-			●
34	07.629 BOLT; SPARE TIRE M12X305	8-94441-189-0	01	1	0502-				●
35	07.629 WASHER; PL,SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0211-0501		●
35	07.629 WASHER; PL,SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0211-0501			●
35	07.629 WASHER; PL,SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0502-		●	●
35	07.629 WASHER; PL,SPARE TIRE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	0502-			●
35	07.629 WASHER; PL,SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	0502-				●
36	07.629 NUT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 05.816 M12	9-99110-412-0	02	1	0211-0501		●
36	07.629 NUT; SPARE TIRE 05.816 M12	9-99110-412-0	02	1	0211-0501			●
36	07.629 NUT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 05.816 M12	9-99110-412-0	02	1	0502-0512		●	●
36	07.629 NUT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	02	1	0601-		●	●
36	07.629 NUT; SPARE TIRE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 05.816 M12	9-99110-412-0	01	1	0502-0512			●
36	07.629 NUT; SPARE TIRE 05.816 M12	9-99110-412-0	01	1	0502-0512				●
36	07.629 NUT; SPARE TIRE MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	01	1	0601-			●
36	07.629 NUT; SPARE TIRE 05.002 M12	0-91110-512-0	01	1	0601-				●
131	07.629 CROSSMEMBER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ>	8-97167-802-0	02	1	0211-		●
