◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#37988) — 42 parça

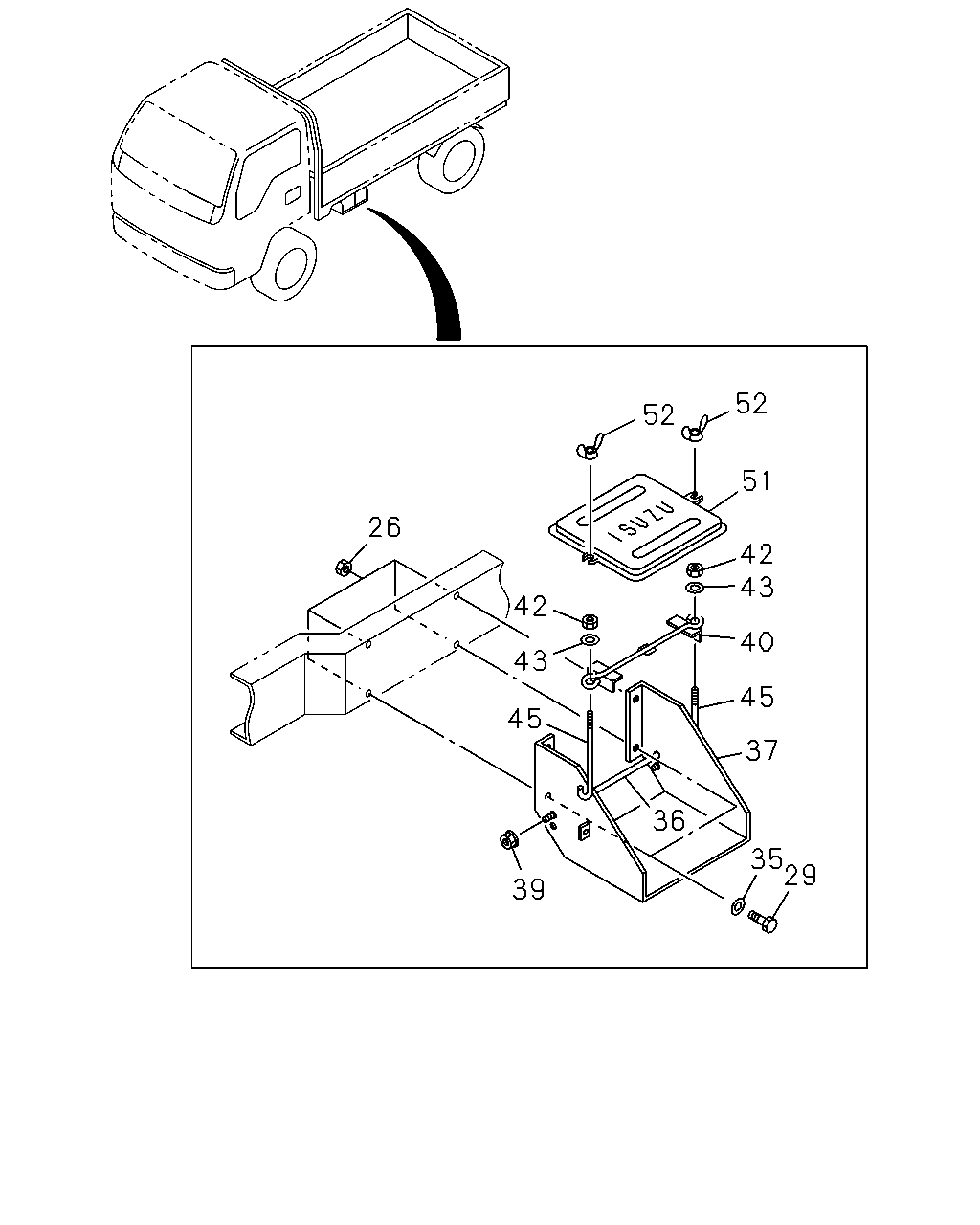

çizim 79095
52 52 51 26 42 43 42 40 43 45 45 37 36 35 29 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 02.334 NUT; BRKT
4HF1-S ENG(RLS) 08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
26 02.334 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ●
26 02.334 NUT; BRKT
4HF1-S ENG(RLS) 04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ●
26 02.334 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ●
26 02.334 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
26 02.334 NUT; BRKT
4HG1 ENG(RJH) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0501 ●
26 02.334 NUT; BRKT
4HF1-S ENG(RLS) 08.917 M10 FLANGE 		0-91150-210-0 03 1 0502-0602 ●
26 02.334 NUT; BRKT
4HF1-S ENG(RLS) 04.085 M10 FLANGE 		0-91180-210-0 03 1 0603- ●
26 02.334 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
26 02.334 NUT; BRKT
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0502-0602 ●
26 02.334 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ●
26 02.334 NUT; BRKT
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ●
29 02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 0211-0501 ● ● ●
29 02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER 		0-50041-030-0 04 1 0502-0512 ● ● ● ●
29 02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER 		0-50541-030-0 04 1 0601- ● ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22 		9-09160-610-0 04 1 0211-0501 ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22 		9-09160-610-0 04 1 0502-0605 ● ● ● ●
35 02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 04 1 0606- ● ● ● ●
36 02.334 STOPPER; BATTERY
BATTERY 75D23R<7PC> 		8-94145-894-0 01 1 0211-0501 ● ● ●
36 02.334 STOPPER; BATTERY
BATTERY 75D23R<7PC> 		8-94145-894-0 01 1 0502- ● ● ● ●
37 02.333 BRACKET; BATTERY 8-97356-174-0 01 1 0211-0501 ● ● ●
37 02.333 BRACKET; BATTERY 8-97356-174-0 01 1 0502-0610 ● ● ● ●
37 02.333 BRACKET; BATTERY 8-97384-068-2 01 1 0611-0612 ● ● ● ●
37 02.333 BRACKET; BATTERY 8-97384-067-2 01 1 0701- ● ● ● ●
39 02.334 NUT; STOPPER,BATTERY
BATTERY 75D23R<7PC> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
39 02.334 NUT; STOPPER,BATTERY
BATTERY 75D23R<7PC> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
39 02.334 NUT; STOPPER,BATTERY
BATTERY 75D23R<7PC> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 0211-0501 ● ● ●
40 02.335 CLAMP; BATTERY 5-53615-004-1 01 1 0502- ● ● ● ●
42 02.334 NUT; CLAMP
02.559 M8 		9-09110-408-0 02 1 0211-0501 ● ● ●
42 02.334 NUT; CLAMP
02.559 M8 		9-09110-408-0 02 1 0502-0512 ● ● ● ●
42 02.334 NUT; CLAMP
M8 		0-91110-508-0 02 1 0601- ● ● ● ●
43 02.334 WASHER; PL,CLAMP
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0211-0501 ● ● ●
43 02.334 WASHER; PL,CLAMP
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0502-0605 ● ● ● ●
43 02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22 		0-91614-708-0 02 1 0606- ● ● ● ●
45 02.334 ROD; TENSION,BATTERY 9-53616-615-0 02 1 0211-0501 ● ● ●
45 02.334 ROD; TENSION,BATTERY 9-53616-615-0 02 1 0502- ● ● ● ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 0211-0501 ● ● ●
51 02.335 COVER; BATTERY 8-97120-747-0 01 1 0502- ● ● ● ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		9-09118-408-0 02 1 0211-0501 ● ● ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		9-09118-408-0 02 1 0502-0512 ● ● ● ●
52 02.335 NUT; WING,COVER FIX
M8 WING NUT 		0-91118-408-0 02 1 0601- ● ● ● ●
