Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#37985) — 426 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

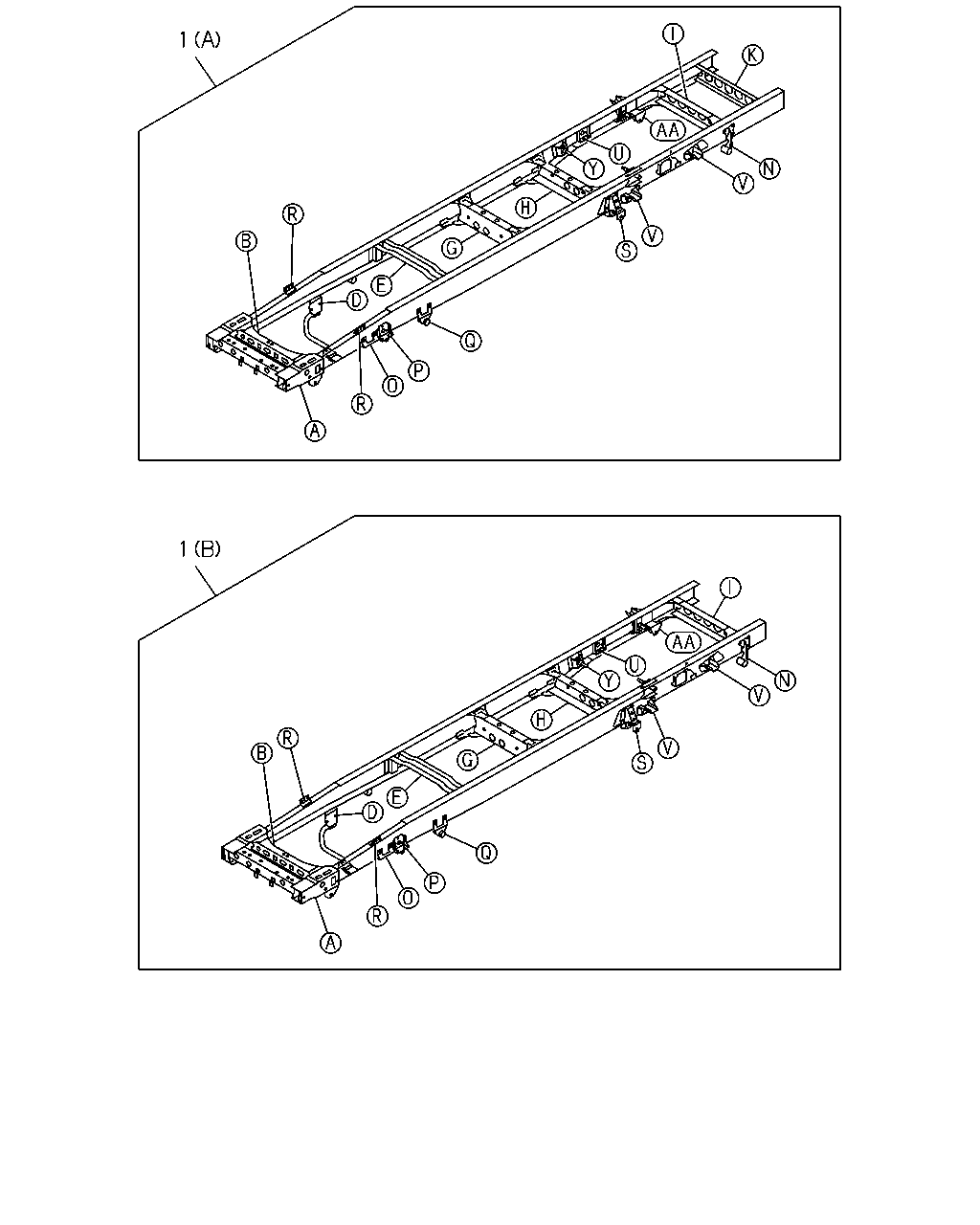

1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (E)	8-97360-900-0	01	1	0211-0302	●
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ> (E)	8-97360-900-1	01	1	0303-	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0211-0302	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0303-	●

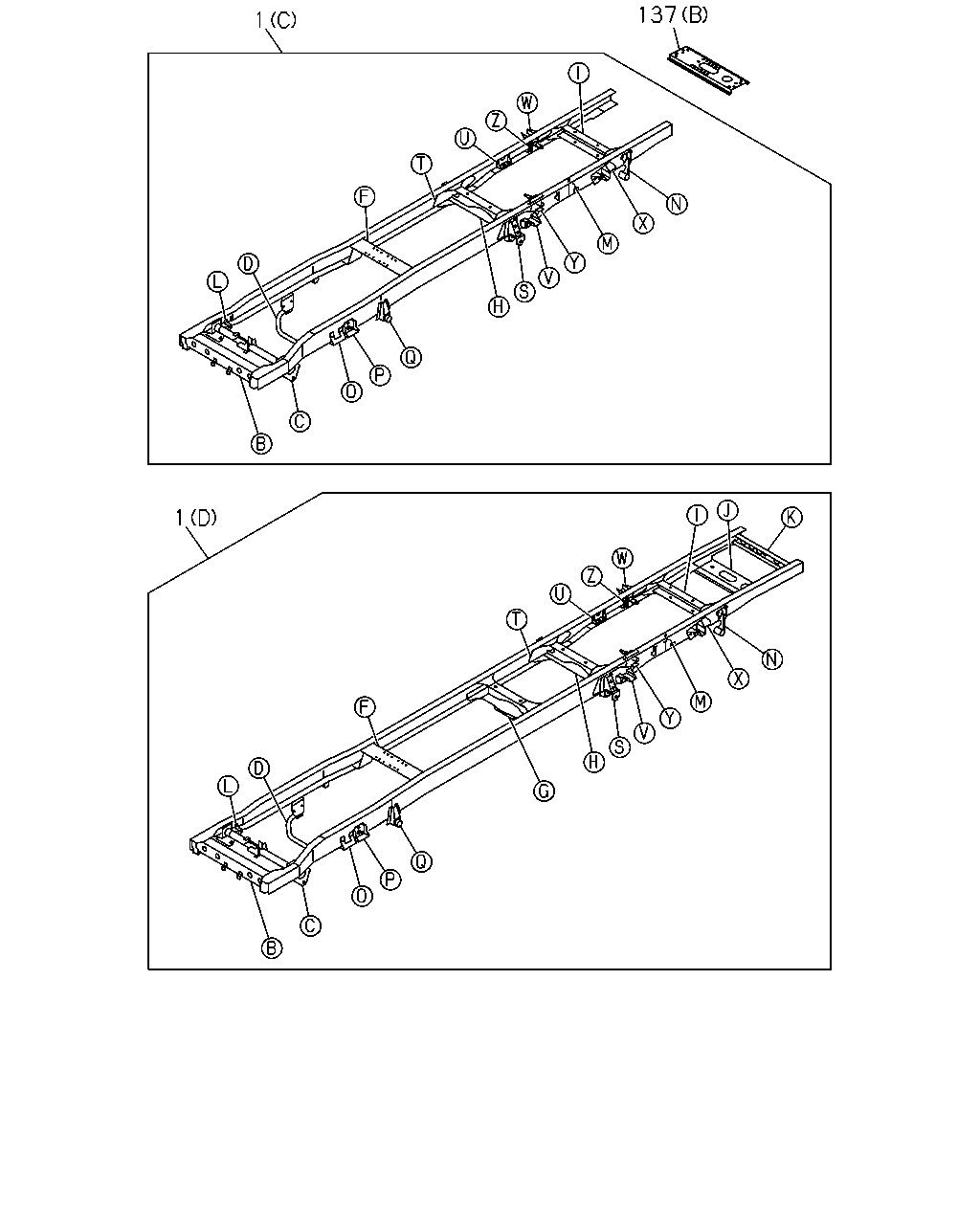

1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (D)	8-97360-895-1	01	1	0211-		●

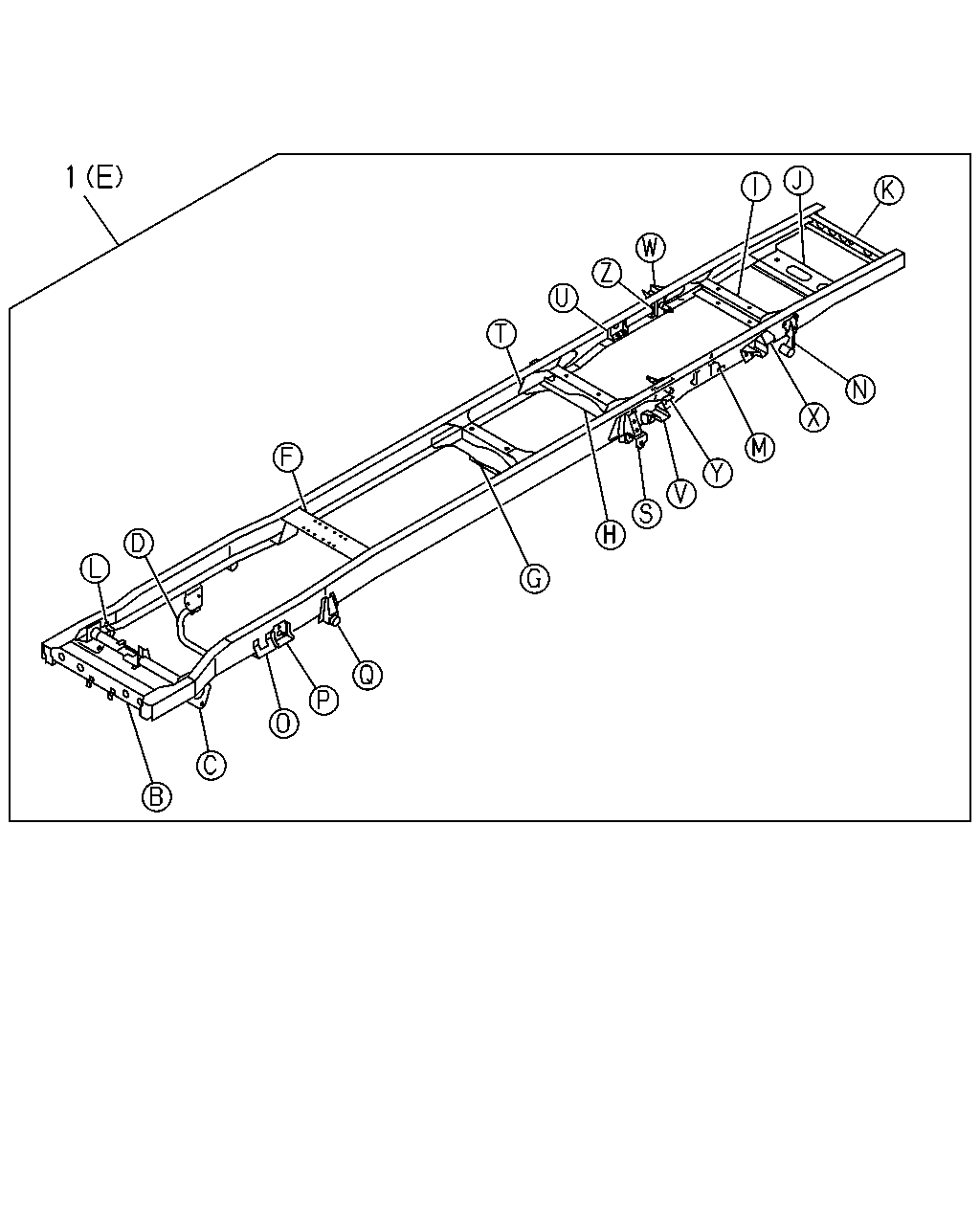

1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-005-0	01	1	0211-		●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97350-882-1	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0502-0502	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-504-0	01	1	0502-	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-459-0	01	1	0502-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-883-1	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-97350-883-1	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-98003-508-1	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-98003-475-0	01	1	0502-			●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (D)	8-97381-177-0	01	1	0405-0501	●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (C)	8-97351-002-0	01	1	0502-				●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) (B)	8-97350-766-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-478-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-97350-887-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-98003-510-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-765-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-477-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME PRESS KOUGYOU<7RZ> (B)	8-98000-981-0	01	1	0502-0703			●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (C)	8-98073-763-0	01	1	0704-				●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (B)	8-98073-759-0	01	1	0704-			●

137 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (E)	8-97360-900-0	01	1	0211-0302	●
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ> (E)	8-97360-900-1	01	1	0303-	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0211-0302	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0303-	●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (D)	8-97360-895-1	01	1	0211-		●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-005-0	01	1	0211-		●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97350-882-1	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0502-0502	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-504-0	01	1	0502-	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-459-0	01	1	0502-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-883-1	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-97350-883-1	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-98003-508-1	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-98003-475-0	01	1	0502-			●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (D)	8-97381-177-0	01	1	0405-0501	●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (C)	8-97351-002-0	01	1	0502-				●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) (B)	8-97350-766-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-478-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-97350-887-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-98003-510-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-765-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-477-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME PRESS KOUGYOU<7RZ> (B)	8-98000-981-0	01	1	0502-0703			●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (C)	8-98073-763-0	01	1	0704-				●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (B)	8-98073-759-0	01	1	0704-			●
137	07.629 BRACKET; SPARE TIRE (A)	8-97076-885-1	01	1	0211-		●
137	07.629 BRACKET; SPARE TIRE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97076-885-1	01	1	0211-	●
137	07.629 BRACKET; SPARE TIRE (B)	8-97205-235-1	01	1	0211-		●
137	07.629 BRACKET; SPARE TIRE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97205-235-1	01	1	0211-	●

101 217 173 217 101 173 446 446 103 103 103 446 446 147 147 103 147 147 140 173 140 140 173 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

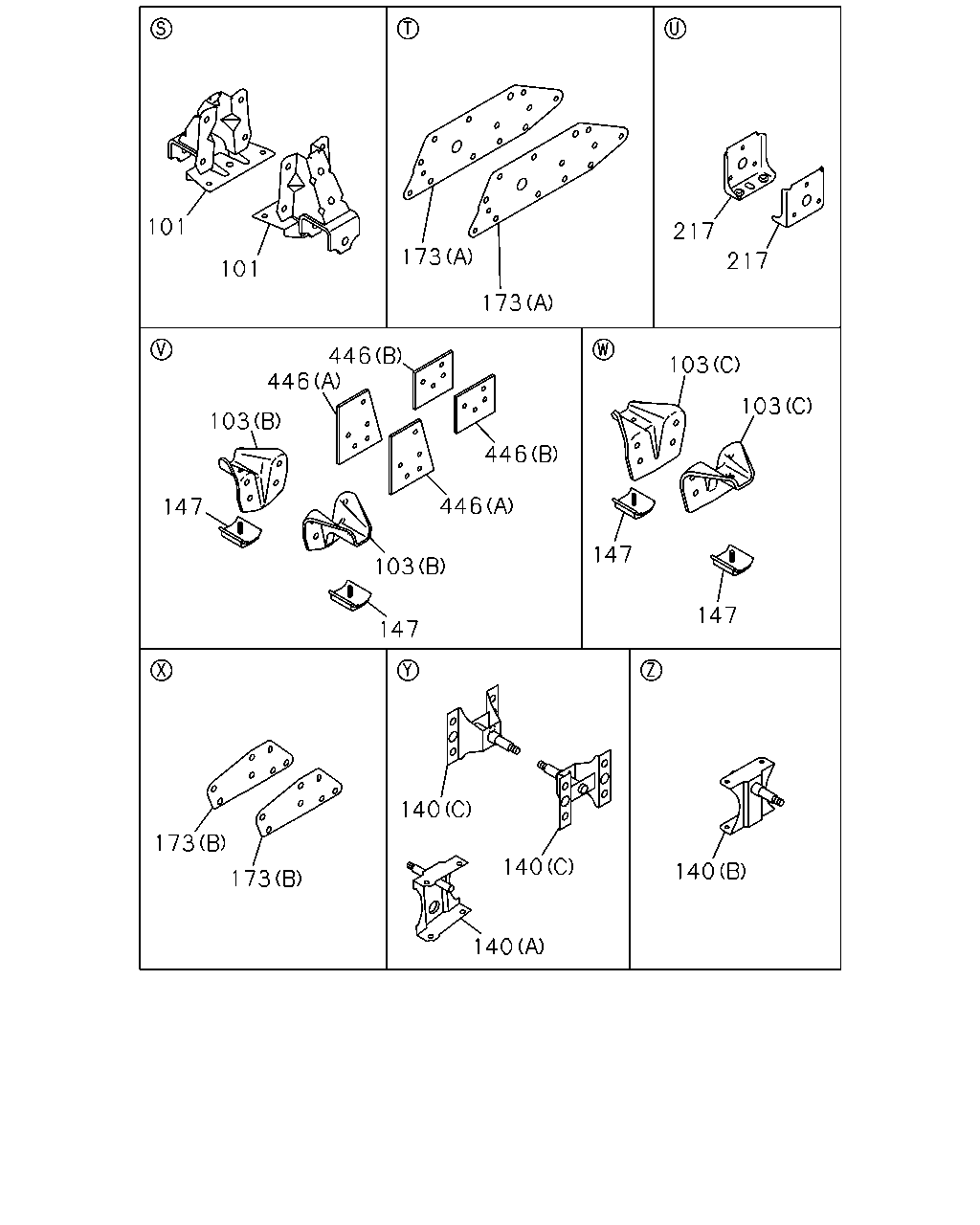

101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0211-0501	●	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0502-	●	●	●	●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97223-750-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97223-750-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> 07.524 (D)	8-97079-659-1	02	1	0211-	●
103	07.420 STOPPER; SUB SPR 07.524 (D)	8-97079-659-1	02	1	0211-			●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	0211-0501			●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0502-	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (B)	8-97223-748-0	04	1	0502-			●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0211-0501		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0211-0501	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0502-		●		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0502-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0211-0501		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0211-0501	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0502-		●		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0502-	●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 07.395 (D)	8-97302-511-0	02	1	0211-0402	●		●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0403-0501	●
140	07.112 BRACKET; S/ABS,RR 07.395 (D)	8-97302-511-0	02	1	0403-0501			●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0502-	●
140	07.112 BRACKET; S/ABS,RR EXC. MINI BUS CHASSIS(V4B) 07.395 (D)	8-97302-511-0	02	1	0502-			●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-884-0	02	1	0211-	●
140	07.112 BRACKET; S/ABS,RR (C)	8-97080-884-0	02	1	0211-			●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0211-0501	●	●	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0502-	●	●		●
147	07.535 RUBBER; SUB SPRING EXC. MINI BUS CHASSIS(V4B)	8-97254-387-0	04	1	0502-			●
173	07.112 STIFFENER; RR SPRING (B)	8-94372-324-1	02	1	0211-0501		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94372-324-1	02	1	0211-0501	●
173	07.112 STIFFENER; RR SPRING (B)	8-94372-324-1	02	1	0502-		●		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-94372-324-1	02	1	0502-	●
173	07.112 STIFFENER; RR SPRING (A)	8-94403-508-2	01	1	0211-0501		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94403-508-2	01	1	0211-0501	●
173	07.112 STIFFENER; RR SPRING (A)	8-94403-508-2	01	1	0502-		●		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94403-508-2	01	1	0502-	●
173	07.112 STIFFENER; RR SPRING (A)	8-94408-191-2	01	1	0211-0501		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94408-191-2	01	1	0211-0501	●
173	07.112 STIFFENER; RR SPRING (A)	8-94408-191-2	01	1	0502-		●		●
173	07.112 STIFFENER; RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94408-191-2	01	1	0502-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0211-0501		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0211-0501	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ>	8-97202-417-0	02	1	0211-0501	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0502-		●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0502-	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. FRAME STRAIGHT TYPE<7KJ>	8-97202-417-0	02	1	0502-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> FRONT STABILIZER SHAFT<F59> FRAME PRESS KOUGYOU<7RZ>	8-97202-417-0	02	1	0502-			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0211-0501	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0502-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>	8-94258-963-0	02	1	0502-			●
446	07.112 STIFFENER; SPRING STOPPER FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97170-790-0	02	1	0211-0501	●
446	07.112 STIFFENER; SPRING STOPPER (B) REAR	8-97170-790-0	02	1	0211-0501			●
446	07.112 STIFFENER; SPRING STOPPER FRAME STRAIGHT TYPE<7KJ> (B) REAR	8-97170-790-0	02	1	0502-	●
446	07.112 STIFFENER; SPRING STOPPER EXC. MINI BUS CHASSIS(V4B) (B) REAR	8-97170-790-0	02	1	0502-			●
446	07.112 STIFFENER; SPRING STOPPER FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97180-433-0	02	1	0211-0501	●
446	07.112 STIFFENER; SPRING STOPPER (A) FRONT	8-97180-433-0	02	1	0211-0501			●
446	07.112 STIFFENER; SPRING STOPPER FRAME STRAIGHT TYPE<7KJ> (A) FRONT	8-97180-433-0	02	1	0502-	●
446	07.112 STIFFENER; SPRING STOPPER EXC. MINI BUS CHASSIS(V4B) (A) FRONT	8-97180-433-0	02	1	0502-			●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
118	07.529 NUT; STOPPER 07.242 M8 LOCK NUT	9-09131-508-0	02	1	0211-0501	●	●	●
118	07.529 NUT; STOPPER 07.242 M8 LOCK NUT	9-09131-508-0	02	1	0502-0603	●	●		●
118	07.529 NUT; STOPPER EXC. MINI BUS CHASSIS(V4B) 07.242 M8 LOCK NUT	9-09131-508-0	02	1	0502-0603			●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0604-	●	●		●
118	07.529 NUT; STOPPER EXC. MINI BUS CHASSIS(V4B) M8 LOCK NUT	0-91370-008-0	02	1	0604-			●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 M10X25 FLANGE	0-28081-025-0	08	1	0211-0501	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 M10X25 FLANGE	0-28081-025-0	08	1	0502-0512	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X30 TAPER END	9-06750-830-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X30 TAPER END	9-06750-830-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (O) D12X38 TAPER END	9-06751-238-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.112 (O) D12X38 TAPER END	9-06751-238-0	AR	1	0502-	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (P) D12X40 TAPER END	9-06751-240-0	AR	1	0211-0501	●	●	●
376	07.039 RIVET; FRAME 07.112 (P) D12X40 TAPER END	9-06751-240-0	AR	1	0502-	●	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> (E)	8-97360-900-0	01	1	0211-0302	●
1	07.003 FRAME ASM FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ> (E)	8-97360-900-1	01	1	0303-	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0211-0302	●
1	07.003 FRAME ASM EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-014-0	01	1	0303-	●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (D)	8-97360-895-1	01	1	0211-		●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (E)	8-97351-005-0	01	1	0211-		●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97350-882-1	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-882-1	01	1	0502-0502	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-504-0	01	1	0502-	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-97350-759-0	01	1	0211-0501	●
1	07.003 FRAME ASM FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (A)	8-98003-459-0	01	1	0502-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-883-1	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-97350-883-1	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) (B)	8-98003-508-1	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0211-0501			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-97350-762-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),FR AME PRESS KOUGYOU<7RZ> (B)	8-98003-475-0	01	1	0502-			●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (D)	8-97381-177-0	01	1	0405-0501	●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) EXC. FRAME PRESS KOUGYOU<7RZ> (C)	8-97351-002-0	01	1	0502-				●
1	07.003 FRAME ASM FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B) (B)	8-97350-766-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-478-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-97350-887-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1> (B)	8-98003-510-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-97350-765-0	01	1	0502-0502			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59>, STABILIZER REAR<GN1>,FRAME PRESS KOUGYOU<7RZ> (B)	8-98003-477-0	01	1	0502-			●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME PRESS KOUGYOU<7RZ> (B)	8-98000-981-0	01	1	0502-0703			●
1	07.003 FRAME ASM 4HF1-S ENG(RLS) FRAME PRESS KOUGYOU<7RZ> (C)	8-98073-763-0	01	1	0704-				●
1	07.003 FRAME ASM 4HG1 ENG(RJH) FRONT STABILIZER SHAFT<F59> STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> (B)	8-98073-759-0	01	1	0704-			●

105 215 214 215 142 103 103 140 51 31 31 39 31 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0211-0501	●	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0502-	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR (A)	8-97046-283-1	02	1	0211-0501		●
39	07.112 BRACKET; FRT SPR,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97046-283-1	02	1	0211-0501	●
39	07.112 BRACKET; FRT SPR,RR (A)	8-97046-283-1	02	1	0502-		●		●
39	07.112 BRACKET; FRT SPR,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97046-283-1	02	1	0502-	●
39	07.112 BRACKET; FRT SPR,RR FRAME STRAIGHT TYPE<7KJ> (B)	8-97079-495-1	02	1	0211-	●
39	07.112 BRACKET; FRT SPR,RR (B)	8-97079-495-1	02	1	0211-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-97202-415-1	02	1	0211-0501		●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0211-0501	●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97202-415-1	02	1	0211-0501	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-97202-415-1	02	1	0502-		●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0502-	●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97202-415-1	02	1	0502-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> FRONT STABILIZER SHAFT<F59> FRAME PRESS KOUGYOU<7RZ>	8-97202-415-1	02	1	0502-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0211-0501	●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ>	8-97046-284-1	02	1	0502-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> EXC. FRONT STABILIZER SHAFT<F59>	8-97046-284-1	02	1	0502-			●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.112 (A)	8-94101-392-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0211-0501		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97223-750-0	02	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (C)	8-97223-750-0	02	1	0502-		●		●
103	07.420 STOPPER; SUB SPR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97223-750-0	02	1	0502-	●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> 07.524 (D)	8-97079-659-1	02	1	0211-	●
103	07.420 STOPPER; SUB SPR 07.524 (D)	8-97079-659-1	02	1	0211-			●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0211-0501	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	0211-0501			●
103	07.420 STOPPER; SUB SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-97223-748-0	04	1	0502-	●
103	07.420 STOPPER; SUB SPR EXC. MINI BUS CHASSIS(V4B) (B)	8-97223-748-0	04	1	0502-			●
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0211-0501	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94459-511-1	01	1	0502-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0211-0501	●	●	●
105	07.112 BRACKET; RR SPR,RR	8-94459-512-1	01	1	0502-	●	●	●	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0211-0501		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0211-0501	●
140	07.112 BRACKET; S/ABS,RR 07.395 (B)	8-94101-303-0	01	1	0502-		●		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B)	8-94101-303-0	01	1	0502-	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0211-0501		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0211-0501	●
140	07.112 BRACKET; S/ABS,RR (A)	8-97012-285-0	01	1	0502-		●		●
140	07.112 BRACKET; S/ABS,RR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97012-285-0	01	1	0502-	●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ> 07.395 (D)	8-97302-511-0	02	1	0211-0402	●		●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0403-0501	●
140	07.112 BRACKET; S/ABS,RR 07.395 (D)	8-97302-511-0	02	1	0403-0501			●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> 07.395 (D)	8-97302-511-0	02	1	0502-	●
140	07.112 BRACKET; S/ABS,RR EXC. MINI BUS CHASSIS(V4B) 07.395 (D)	8-97302-511-0	02	1	0502-			●
140	07.112 BRACKET; S/ABS,RR FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-884-0	02	1	0211-	●
140	07.112 BRACKET; S/ABS,RR (C)	8-97080-884-0	02	1	0211-			●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97040-876-3	01	1	0211-0501		●
142	04.845 BRACKET; FLEX HOSE,BRAKE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97040-876-3	01	1	0211-0501	●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97040-876-3	01	1	0502-		●		●
142	04.845 BRACKET; FLEX HOSE,BRAKE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97040-876-3	01	1	0502-	●
214	07.112 BRACKET; GEAR CONT	8-97094-811-2	01	1	0211-0501		●
214	07.112 BRACKET; GEAR CONT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97094-811-2	01	1	0211-0501	●
214	07.112 BRACKET; GEAR CONT	8-97094-811-2	01	1	0502-		●		●
214	07.112 BRACKET; GEAR CONT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97094-811-2	01	1	0502-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0211-0501	●	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0502-	●	●	●	●

75 345 345 75 198 139 139 198 201 201 130 130 137 75 198 75 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0211-0501		●
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0211-0501	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0502-		●		●
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER	8-94258-068-1	02	1	0502-	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0211-0501		●
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0211-0501	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0502-		●		●
75	07.039 GUSSET; 5TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER	8-94258-069-1	02	1	0502-	●
75	07.039 GUSSET; 5TH C/MBR FRAME STRAIGHT TYPE<7KJ> LOWER	8-97080-878-0	01	1	0211-	●
75	07.039 GUSSET; 5TH C/MBR LOWER	8-97080-878-0	01	1	0211-			●
75	07.039 GUSSET; 5TH C/MBR FRAME STRAIGHT TYPE<7KJ> LOWER	8-97109-777-0	01	1	0211-	●
75	07.039 GUSSET; 5TH C/MBR LOWER	8-97109-777-0	01	1	0211-			●
75	07.039 GUSSET; 5TH C/MBR FRAME STRAIGHT TYPE<7KJ> UPPER	8-97118-875-1	01	1	0211-	●
75	07.039 GUSSET; 5TH C/MBR UPPER	8-97118-875-1	01	1	0211-			●
75	07.039 GUSSET; 5TH C/MBR FRAME STRAIGHT TYPE<7KJ> UPPER	8-97118-876-1	01	1	0211-	●
75	07.039 GUSSET; 5TH C/MBR UPPER	8-97118-876-1	01	1	0211-			●
130	07.014 MEMBER; CROSS,END (A)	8-97179-414-0	01	1	0211-0806		●
130	07.014 MEMBER; CROSS,END EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97179-414-0	01	1	0211-0806	●
130	07.014 MEMBER; CROSS,END EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97179-414-0	01	1	0807-	●	●
130	07.014 MEMBER; CROSS,END FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-872-0	01	1	0211-	●
130	07.014 MEMBER; CROSS,END (C)	8-97128-806-0	01	1	0211-0605			●
130	07.014 MEMBER; CROSS,END (C)	8-97205-394-0	01	1	0606-			●
130	07.014 MEMBER; CROSS,END FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-292-2	01	1	0807-	●	●
137	07.629 BRACKET; SPARE TIRE (A)	8-97076-885-1	01	1	0211-		●
137	07.629 BRACKET; SPARE TIRE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97076-885-1	01	1	0211-	●
137	07.629 BRACKET; SPARE TIRE (B)	8-97205-235-1	01	1	0211-		●
137	07.629 BRACKET; SPARE TIRE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97205-235-1	01	1	0211-	●
139	07.012 MEMBER; CROSS,6TH (A)	8-94101-290-1	01	1	0211-0501		●
139	07.012 MEMBER; CROSS,6TH EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-290-1	01	1	0211-0501	●
139	07.012 MEMBER; CROSS,6TH (A)	8-94101-290-1	01	1	0502-		●		●
139	07.012 MEMBER; CROSS,6TH EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-290-1	01	1	0502-	●
139	07.012 MEMBER; CROSS,6TH FRAME STRAIGHT TYPE<7KJ> (B)	8-97107-384-0	01	1	0211-	●
139	07.012 MEMBER; CROSS,6TH (B)	8-97107-384-0	01	1	0211-			●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0211-0501		●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0211-0501	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0502-		●		●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	0502-	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0211-0501		●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0211-0501	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0502-		●		●
198	07.039 GUSSET; 6TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	0502-	●
198	07.039 GUSSET; 6TH C/MBR FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-882-1	02	1	0211-	●
198	07.039 GUSSET; 6TH C/MBR (B)	8-97080-882-1	02	1	0211-			●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0211-0501	●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0502-0709	●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0710-	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	02	1	0710-			●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	04	1	0211-0709			●
201	07.039 GUSSET; C/MBR (B)	8-97128-805-0	02	1	0211-			●
345	07.012 MEMBER; CROSS,5TH (A)	8-97095-654-1	01	1	0211-0501		●
345	07.012 MEMBER; CROSS,5TH EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97095-654-1	01	1	0211-0501	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97095-654-1	01	1	0502-		●		●
345	07.012 MEMBER; CROSS,5TH EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97095-654-1	01	1	0502-	●
345	07.012 MEMBER; CROSS,5TH FRAME STRAIGHT TYPE<7KJ> (B)	8-97175-993-3	01	1	0211-	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97175-993-3	01	1	0211-			●

196 196 201 325 131 414 130 201 132 123 123 325 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
123	07.039 NUT 06.606 M12	8-94139-015-0	16	1	0211-0408			●
123	07.039 NUT IDENTIFICATION LABEL FOR KD<6UT> 06.606 M12	8-94139-015-0	12	1	0409-0501			●
123	07.039 NUT 06.606 M12	8-94139-015-0	16	1	0502-0610			●
123	07.039 NUT 07.395 M12	8-97360-126-0	16	1	0611-			●
123	07.039 NUT EXC. IDENTIFICATION LABEL FOR KD<6UT> 06.606 M12	8-94139-015-0	16	1	0409-0501			●
130	07.014 MEMBER; CROSS,END (A)	8-97179-414-0	01	1	0211-0806		●
130	07.014 MEMBER; CROSS,END EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97179-414-0	01	1	0211-0806	●
130	07.014 MEMBER; CROSS,END EXC. FRAME STRAIGHT TYPE<7KJ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97179-414-0	01	1	0807-	●	●
130	07.014 MEMBER; CROSS,END FRAME STRAIGHT TYPE<7KJ> (B)	8-97080-872-0	01	1	0211-	●
130	07.014 MEMBER; CROSS,END (C)	8-97128-806-0	01	1	0211-0605			●
130	07.014 MEMBER; CROSS,END (C)	8-97205-394-0	01	1	0606-			●
130	07.014 MEMBER; CROSS,END FRAME PRESS KOUGYOU<7RZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94101-292-2	01	1	0807-	●	●
131	07.014 BOLT; END C/MBR 09.003 M10X25 FLANGE	0-28691-025-0	08	1	0211-0512			●
131	07.014 BOLT; END C/MBR 07.833 M10X25 FLANGE	0-28661-025-0	08	1	0601-			●
132	07.014 NUT; END C/MBR 04.785 M10 FLANGE	0-91150-110-0	08	1	0211-0602			●
132	07.014 NUT; END C/MBR 03.162 M10 FLANGE	0-91180-110-0	08	1	0603-			●
196	07.242 BRACKET; STAB TO FRAME FRONT STABILIZER SHAFT<F59> MINI BUS CHASSIS(V4B)	8-97118-620-2	02	1	0502-			●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0211-0501	●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0502-0709	●
201	07.039 GUSSET; C/MBR FRAME STRAIGHT TYPE<7KJ> (A)	8-97096-871-0	02	1	0710-	●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	02	1	0710-			●
201	07.039 GUSSET; C/MBR (A)	8-97096-871-0	04	1	0211-0709			●
201	07.039 GUSSET; C/MBR (B)	8-97128-805-0	02	1	0211-			●
325	07.039 EXTENSION; FRAME	8-97222-891-1	01	1	0211-			●
325	07.039 EXTENSION; FRAME	8-97222-892-1	01	1	0211-			●
414	07.011 BOLT 07.874 M12X30 FLANGE	0-28691-230-0	12	1	0211-0512			●
414	07.011 BOLT 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0601-			●

331 331 437 2 2 2 219 219 17 17 24 20 20 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	07.010 MEMBER; CROSS,1ST FRAME STRAIGHT TYPE<7KJ> (B)	8-97106-560-2	01	1	0211-0212	●
2	07.010 MEMBER; CROSS,1ST (B)	8-97106-560-2	01	1	0211-0212			●
2	07.010 MEMBER; CROSS,1ST (B)	8-97106-560-2	01	1	0301-0501			●
2	07.010 MEMBER; CROSS,1ST EXC. MINI BUS CHASSIS(V4B) (B)	8-97106-560-2	01	1	0502-			●
2	07.010 MEMBER; CROSS,1ST (A)	8-97038-318-5	01	1	0211-0308		●
2	07.010 MEMBER; CROSS,1ST EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97038-318-5	01	1	0211-0308	●
2	07.010 MEMBER; CROSS,1ST 07.011 (A)	8-97100-041-1	01	1	0309-0501		●
2	07.010 MEMBER; CROSS,1ST EXC. FRAME STRAIGHT TYPE<7KJ> 07.011 (A)	8-97100-041-1	01	1	0309-0501	●
2	07.010 MEMBER; CROSS,1ST 07.011 (A)	8-97100-041-1	01	1	0502-		●		●
2	07.010 MEMBER; CROSS,1ST EXC. FRAME STRAIGHT TYPE<7KJ> 07.011 (A)	8-97100-041-1	01	1	0502-	●
2	07.010 MEMBER; CROSS,1ST FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-862-3	01	1	0301-0501	●
2	07.010 MEMBER; CROSS,1ST FRAME STRAIGHT TYPE<7KJ> (C)	8-97080-862-4	01	1	0502-	●
2	07.010 MEMBER; CROSS,1ST MINI BUS CHASSIS(V4B) (C)	8-97080-862-4	01	1	0502-			●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0211-0501		●
17	07.039 GUSSET; 1ST C/MBR EXC. FRAME STRAIGHT TYPE<7KJ>	8-97088-205-1	02	1	0211-0501	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0502-		●		●
17	07.039 GUSSET; 1ST C/MBR EXC. FRAME STRAIGHT TYPE<7KJ>	8-97088-205-1	02	1	0502-	●
20	07.012 MEMBER; CROSS,2ND (B)	8-97136-320-0	01	1	0211-0302		●
20	07.012 MEMBER; CROSS,2ND EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97136-320-0	01	1	0211-0302	●
20	07.012 MEMBER; CROSS,2ND 4HF1-S ENG(RLS) (B)	8-97136-320-0	01	1	0303-0501		●
20	07.012 MEMBER; CROSS,2ND EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97136-320-0	01	1	0303-0501	●
20	07.012 MEMBER; CROSS,2ND (B)	8-97136-320-0	01	1	0502-		●		●
20	07.012 MEMBER; CROSS,2ND EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97136-320-0	01	1	0502-	●
20	07.012 MEMBER; CROSS,2ND FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ>,HYDRO BRAKE BOOSTER<7QQ>,FRAME PRESS KOUGYOU<7RZ> (A)	8-97136-228-0	01	1	0405-0501	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-864-1	01	1	0211-0501		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-864-1	01	1	0211-0501	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-864-1	01	1	0502-		●		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-864-1	01	1	0502-	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-865-1	01	1	0211-0501		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-865-1	01	1	0211-0501	●
24	07.105 BRACKET; FRT SPR,FRT	8-97020-865-1	01	1	0502-		●		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97020-865-1	01	1	0502-	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-568-1	01	1	0211-0501		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-568-1	01	1	0211-0501	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-568-1	01	1	0502-		●		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-568-1	01	1	0502-	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-569-1	01	1	0211-0501		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-569-1	01	1	0211-0501	●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-94129-569-1	01	1	0502-		●		●
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA EXC. FRAME STRAIGHT TYPE<7KJ>	8-94129-569-1	01	1	0502-	●
331	07.039 BRACKET; STRG UNIT FRAME STRAIGHT TYPE<7KJ> 07.112	8-97096-864-0	01	1	0211-	●
331	07.039 BRACKET; STRG UNIT 07.112	8-97096-864-0	01	1	0211-			●
331	07.039 BRACKET; STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-97096-865-1	01	1	0211-	●
331	07.039 BRACKET; STRG UNIT	8-97096-865-1	01	1	0211-			●
437	07.010 MEMBER; CROSS,BUMPER FRAME STRAIGHT TYPE<7KJ> 07.011	8-97100-041-1	01	1	0211-	●
437	07.010 MEMBER; CROSS,BUMPER 07.011	8-97100-041-1	01	1	0211-			●

42 80 372 34 80 372 34 74 188 74 74 74 344 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
34	07.012 MEMBER; CROSS,3RD (A)	8-97042-818-0	01	1	0211-0501		●
34	07.012 MEMBER; CROSS,3RD EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-818-0	01	1	0211-0501	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97042-818-0	01	1	0502-		●		●
34	07.012 MEMBER; CROSS,3RD EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-818-0	01	1	0502-	●
34	07.012 MEMBER; CROSS,3RD FRAME STRAIGHT TYPE<7KJ> 07.010 (B)	8-97096-875-2	01	1	0211-	●
34	07.012 MEMBER; CROSS,3RD 07.010 (B)	8-97096-875-2	01	1	0211-			●
42	07.011 MEMBER; CROSS,ENG MTG	8-97165-924-1	01	1	0211-0501		●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-97165-924-1	01	1	0211-0501	●
42	07.011 MEMBER; CROSS,ENG MTG	8-97165-924-1	01	1	0502-		●		●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRAME STRAIGHT TYPE<7KJ>	8-97165-924-1	01	1	0502-	●
42	07.011 MEMBER; CROSS,ENG MTG FRAME STRAIGHT TYPE<7KJ>	8-97165-925-2	01	1	0211-	●
42	07.011 MEMBER; CROSS,ENG MTG	8-97165-925-2	01	1	0211-			●
74	07.039 GUSSET; 4TH C/MBR (A) RH UPPER,LH LOWER	8-97083-107-1	02	1	0211-		●
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER	8-97083-107-1	02	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (A) RH LOWER,LH UPPER	8-97083-108-1	02	1	0211-		●
74	07.039 GUSSET; 4TH C/MBR EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER	8-97083-108-1	02	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR FRAME STRAIGHT TYPE<7KJ> (B) UPPER	8-97080-878-0	01	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (B) UPPER	8-97080-878-0	01	1	0211-			●
74	07.039 GUSSET; 4TH C/MBR FRAME STRAIGHT TYPE<7KJ> (B) UPPER	8-97109-777-0	01	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (B) UPPER	8-97109-777-0	01	1	0211-			●
74	07.039 GUSSET; 4TH C/MBR FRAME STRAIGHT TYPE<7KJ> (B) LOWER	8-97118-875-1	01	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (B) LOWER	8-97118-875-1	01	1	0211-			●
74	07.039 GUSSET; 4TH C/MBR FRAME STRAIGHT TYPE<7KJ> (B) LOWER	8-97118-876-1	01	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (B) LOWER	8-97118-876-1	01	1	0211-			●
80	07.039 BRACKET; C/MBR FRAME STRAIGHT TYPE<7KJ> EXC. FRAME PRESS KOUGYOU<7RZ>	8-97139-128-0	02	1	0211-0402	●		●
80	07.039 BRACKET; C/MBR MINI BUS CHASSIS(V4B)	8-97139-128-0	02	1	0502-			●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	0211-		●
188	07.039 BRACKET; SUPPORT,CTR BRG EXC. FRAME STRAIGHT TYPE<7KJ>	8-97083-157-1	01	1	0211-	●
344	07.012 MEMBER; CROSS,4TH (B)	8-97083-106-3	01	1	0211-		●
344	07.012 MEMBER; CROSS,4TH EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97083-106-3	01	1	0211-	●
344	07.012 MEMBER; CROSS,4TH FRAME STRAIGHT TYPE<7KJ> (A)	8-97175-993-3	01	1	0211-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-97175-993-3	01	1	0211-			●
372	07.039 BRACKET FRAME STRAIGHT TYPE<7KJ> FRAME PRESS KOUGYOU<7RZ>	8-97139-128-0	02	1	0211-0402	●		●
372	07.039 BRACKET FRAME STRAIGHT TYPE<7KJ>	8-97139-128-0	02	1	0403-0501	●
372	07.039 BRACKET	8-97139-128-0	02	1	0403-0501			●
372	07.039 BRACKET FRAME STRAIGHT TYPE<7KJ>	8-97139-128-0	02	1	0502-	●
372	07.039 BRACKET EXC. MINI BUS CHASSIS(V4B)	8-97139-128-0	02	1	0502-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
