◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

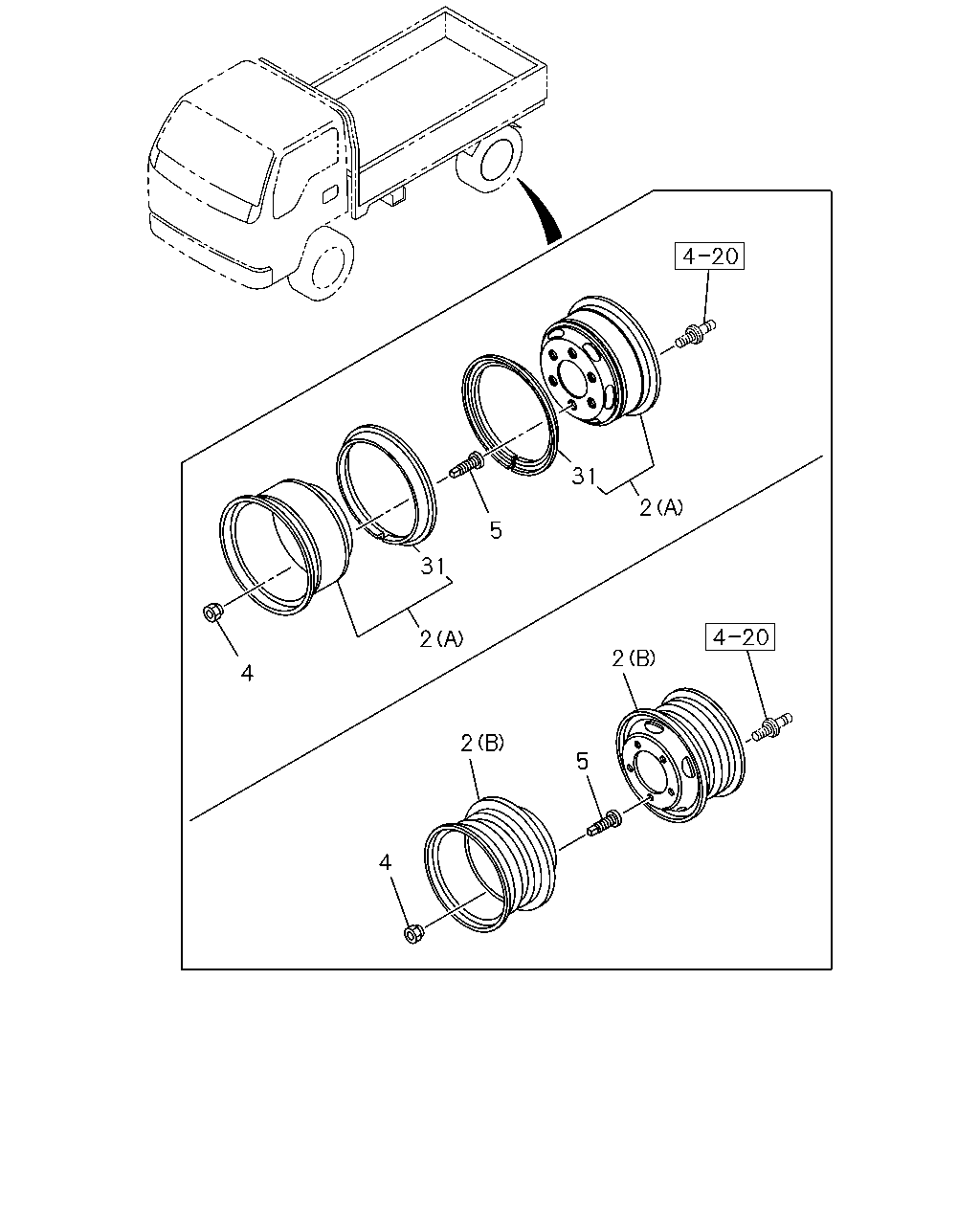

4-80 — ROAD WHEEL (#37984) — 275 parça
çizim 19807
31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ●
çizim 21018
31 3 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0211-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-94365-147-0 05 1 0211-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 RH THREAD 		8-98007-907-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0211-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-94365-148-0 05 1 0211-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) M18 LH THREAD 		8-98007-908-0 05 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0502-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-97359-807-0 06 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0211-0501 ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0502-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0502-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-97359-808-0 06 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0611- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ●
çizim 75600
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) SPARE 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 01 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0211-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) (A) FRONT,REAR 6.0SGX16 OFFSET=127 BLACK 5-HOLE 		8-94135-596-2 06 1 0707- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-0701 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-12 7(AUS) (B) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0211-0505 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0506-0604 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0605-0608 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0211-0501 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0502-0505 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0506-0706 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0707- ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0211- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128(CNY),FRT&RR 215/85R16 16X6K-128(CSC) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205/85R16 DISC 16-5.5J-116. 5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0506-0706 ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 225/85R16 16X6K-128 SILVER(CTZ), FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB) (B) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE 		8-97233-665-1 06 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0805- ● ●
2 05.803 WHEEL; DISC
FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILV ER(CUA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0805- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0702-1010 ● ●
2 05.803 WHEEL; DISC
F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (B) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-94365-145-0 05 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-94365-146-0 05 1 0211-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M30 		1-42333-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> M30 		1-42333-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0502-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 RH THREAD 		8-97359-809-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0611- ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD 		1-42334-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD 		1-42334-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0211-0501 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 0502-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0502-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) M30 LH THREAD 		8-97359-810-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0211-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0211-0501 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0211-0501 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0502-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0502-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0211-0501 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0211-0501 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0502-0610 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0502-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) SPARE 16X6.00GS STAMP, BLACK 		8-94135-602-0 01 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127(BPS),FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0211-0706 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR TIRE 7.5R-16-12 DISC 6GSX16-127(BUN),FRT&RR 7.5-16-10 6GSX16-127 5-WHL/NUT GULF(BXQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94135-602-0 06 1 0707- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0211-0501 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-WHL/NUT(BPT),FRT&RR 7.5-16-1 0 6GSX16-127 6-WHL/NUT GULF(BQQ), FRT&RRTIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 DISC 6.00GSX16-127 6-W HL/NUT(BPT) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0502-0505 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-12 DISC 6.00GSX16-127 6-W HL/NUT(BPR),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT GULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7 .5-16-10 6GSX16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0506-0706 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT G ULF(BQQ),FRT&RR TIRE 7.5R-16-12 6GSX16-127 6-WHL/NUT(BUM),FRT&RR 7.5-16-10 6GS X16-127 DISC 6-WHL/NUT (97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0707- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0211- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/N UT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-1356-WHL/NUT(9ZP) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
