7-40 — INSTRUMENT PANEL AND BOX (#37981) — 246 parça

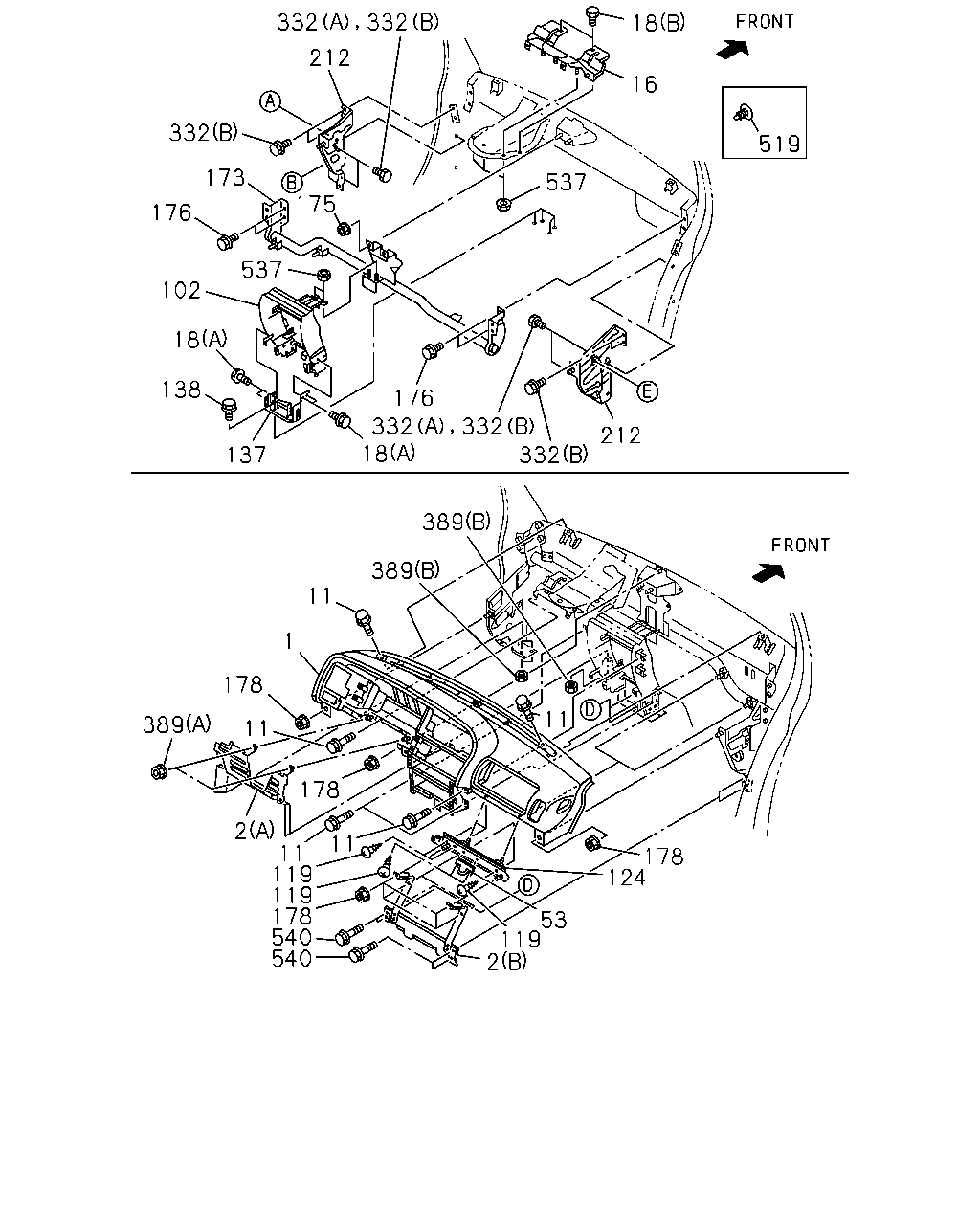

çizim 17741
332 18 212 16 332 519 173 537 175 176 537 102 18 138 176 332 18 212 137 332 389 389 11 1 178 11 389 11 178 2 11 11 119 119 178 540 540 178 124 53 119 2 332 332
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.080 PANEL; INST
AIR BAG PASSENGER<7FA> EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97157-872-1 01 1 9712-9908 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY 		8-97157-872-1 01 1 9909-0005 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) AIR BAG PASSENGER<7FA> DARK GRAY 		8-97157-872-2 01 1 0006- ● ●
1 16.080 PANEL; INST
AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-650-5 01 1 9712-9908 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-650-5 01 1 9909-0005 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97098-650-6 01 1 0006- ● ●
1 16.080 PANEL; INST
EXC. AIR BAG PASSENGER<7FA> DARK GRAY 		8-97152-350-5 01 1 9712-9908 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG PASSENGER<7FA> DARK GRAY 		8-97152-350-5 01 1 9909-0007 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG PASSENGER<7FA> DARK GRAY 		8-97152-350-6 01 1 0008- ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4) DARK BEIGE 		8-97290-781-5 01 1 9909-0005 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK BEIGE 		8-97290-781-6 01 1 0006-0105 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) AIR BAG PASSENGER<7FA> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK BEIGE 		8-97290-781-6 01 1 0106- ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EXC. AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-025-5 01 1 9909-0007 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EXC. AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-025-6 01 1 0008-0105 ● ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EXC. AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-025-6 01 1 0106- ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-056-1 01 1 9909-0005 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-056-2 01 1 0006-0105 ● ●
1 16.080 PANEL; INST
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) AIR BAG PASSENGER<7FA> DARK BEIGE 		8-97292-056-2 01 1 0106- ●
2 16.081 REINFORCEMENT; INST PNL,LWR
(B) 		8-97142-742-1 01 1 9712-0007 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
(B) 		8-97142-742-2 01 1 0008- ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
AIR BAG DRIVER<AJ3> (A) 		8-97110-154-0 01 1 9909-9909 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
AIR BAG DRIVER<AJ3> (A) 		8-97080-481-1 01 1 9909- ● ●
11 16.090 BOLT; INST PNL
16.328 M6X18 W/LK&PL WASHER 		8-97060-719-0 06 1 9712-0007 ● ●
11 16.090 BOLT; INST PNL
16.328 M6X18 W/LK&PL WASHER 		8-97060-719-0 06 1 0008- ● ● ●
16 16.085 BRACKET; INST PNL 8-97133-385-0 01 1 9712-9908 ● ●
16 16.085 BRACKET; INST PNL
EXC. AIR BAG DRIVER<AJ3> 		8-97133-385-0 01 1 9909-0007 ● ●
16 16.085 BRACKET; INST PNL
EXC. AIR BAG DRIVER<AJ3> 		8-97133-385-0 01 1 0008- ● ●
16 16.085 BRACKET; INST PNL 8-97133-385-0 01 1 0008- ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER<AJ3> 		8-97133-384-0 01 1 9909- ● ●
18 16.085 BOLT; BRKT
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 04 1 9712-0007 ● ●
18 16.085 BOLT; BRKT
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 04 1 0008- ● ● ●
18 16.085 BOLT; BRKT
16.716 (B) M8X25 		8-94493-360-1 02 1 9712-0007 ● ●
18 16.085 BOLT; BRKT
16.716 (B) M8X25 		8-94493-360-1 02 1 0008- ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97064-753-0 01 1 9712-0007 ● ●
53 16.115 STRIKER; GLOVE BOX 8-97064-753-0 01 1 0008- ● ● ●
102 16.085 BRACKET; INST PANEL TO FLOOR 8-97133-232-1 01 1 9712-9908 ● ●
102 16.085 BRACKET; INST PANEL TO FLOOR
EXC. AIR BAG DRIVER<AJ3> 		8-97133-232-1 01 1 9909-0007 ● ●
102 16.085 BRACKET; INST PANEL TO FLOOR
EXC. AIR BAG DRIVER<AJ3> 		8-97133-232-1 01 1 0008- ● ●
102 16.085 BRACKET; INST PANEL TO FLOOR 8-97133-232-1 01 1 0008- ●
102 16.085 BRACKET; INST PANEL TO FLOOR
AIR BAG DRIVER<AJ3> 		8-97110-153-2 01 1 9909- ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 08 1 9712-9901 ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9902-0007 ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0008- ● ● ●
119 14.655 SCREW; BRKT TO INST
16.115 M5X16 TAPPING 		9-09829-188-0 04 1 9902-0007 ● ●
119 14.655 SCREW; BRKT TO INST
16.115 M5X16 TAPPING 		9-09829-188-0 04 1 0008- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG PASSENGER<7FA> 		8-97080-122-3 01 1 9712- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. AIR BAG PASSENGER<7FA> 		8-97176-081-0 01 1 9712-0007 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. AIR BAG PASSENGER<7FA> 		8-97176-081-0 01 1 0008- ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97176-081-0 01 1 0008- ●
137 16.085 BRACKET; INST PNL MTG 8-97115-363-0 01 1 9712-0007 ● ●
137 16.085 BRACKET; INST PNL MTG 8-97115-363-0 01 1 0008- ● ● ●
138 16.085 BOLT; BRKT TO BODY
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 06 1 9712-0007 ● ●
138 16.085 BOLT; BRKT TO BODY
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 06 1 0008- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97138-017-0 01 1 9712-0007 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97138-017-0 01 1 0008- ● ● ●
175 16.085 NUT; CROSS BEAM
07.833 M6 FLANGE 		8-97063-399-0 02 1 9712-0007 ● ●
175 16.085 NUT; CROSS BEAM
07.833 M6 FLANGE 		8-97063-399-0 02 1 0008- ● ● ●
176 16.085 BOLT; CROSS BEAM
08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 9712-0007 ● ●
176 16.085 BOLT; CROSS BEAM
08.143 M6X16 W/PL WASHER 		8-94204-636-0 04 1 0008- ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 W/DISHED WASHER 		8-94170-192-0 07 1 9712-0007 ● ●
178 16.085 NUT; INST PANEL
07.833 M6 W/DISHED WASHER 		8-94170-192-0 07 1 0008- ● ● ●
212 16.085 BRACKET; INST PNL SIDE 8-97083-247-6 01 1 9712-0007 ● ●
212 16.085 BRACKET; INST PNL SIDE 8-97083-247-6 01 1 0008- ● ● ●
212 16.085 BRACKET; INST PNL SIDE 8-97083-246-5 01 1 9712-0007 ● ●
212 16.085 BRACKET; INST PNL SIDE 8-97083-246-5 01 1 0008- ● ● ●
332 16.085 BOLT; SIDE CLUSTER
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9712-9908 ● ●
332 16.085 BOLT; SIDE CLUSTER
16.063 (A) 		8-94250-305-0 04 1 9909-0007 ● ●
332 16.085 BOLT; SIDE CLUSTER
16.063 (A) 		8-94250-305-0 04 1 0008-0110 ● ● ●
332 16.085 BOLT; SIDE CLUSTER
08.143 (B) M6X16 W/PL WASHER 		8-94204-636-0 04 1 9712-0007 ● ●
332 16.085 BOLT; SIDE CLUSTER
08.143 (B) M6X16 W/PL WASHER 		8-94204-636-0 04 1 0008-0110 ● ● ●
332 16.085 BOLT; SIDE CLUSTER
08.143 (B) M6X16 W/PL WASHER 		8-94204-636-0 08 1 0111- ● ● ●
389 16.085 NUT; REINF
AIR BAG DRIVER<AJ3> 04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9909- ● ●
389 16.085 NUT; REINF
AIR BAG DRIVER<AJ3> 01.540 (B) M8 FLANGE 		0-91150-208-0 04 1 9909- ● ●
519 16.085 PLUG; DASH UPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.069 OD=12 L=14.8 		8-94279-921-0 01 1 9712-9908 ● ●
519 16.085 PLUG; DASH UPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.069 OD=12 L=14.8 		8-94279-921-0 01 1 9909- ● ●
537 16.085 NUT; BRKT
07.833 M6 FLANGE 		8-97063-399-0 05 1 9712-0007 ● ●
537 16.085 NUT; BRKT
07.833 M6 FLANGE 		8-97063-399-0 05 1 0008- ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 9712-0007 ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0008- ● ● ●

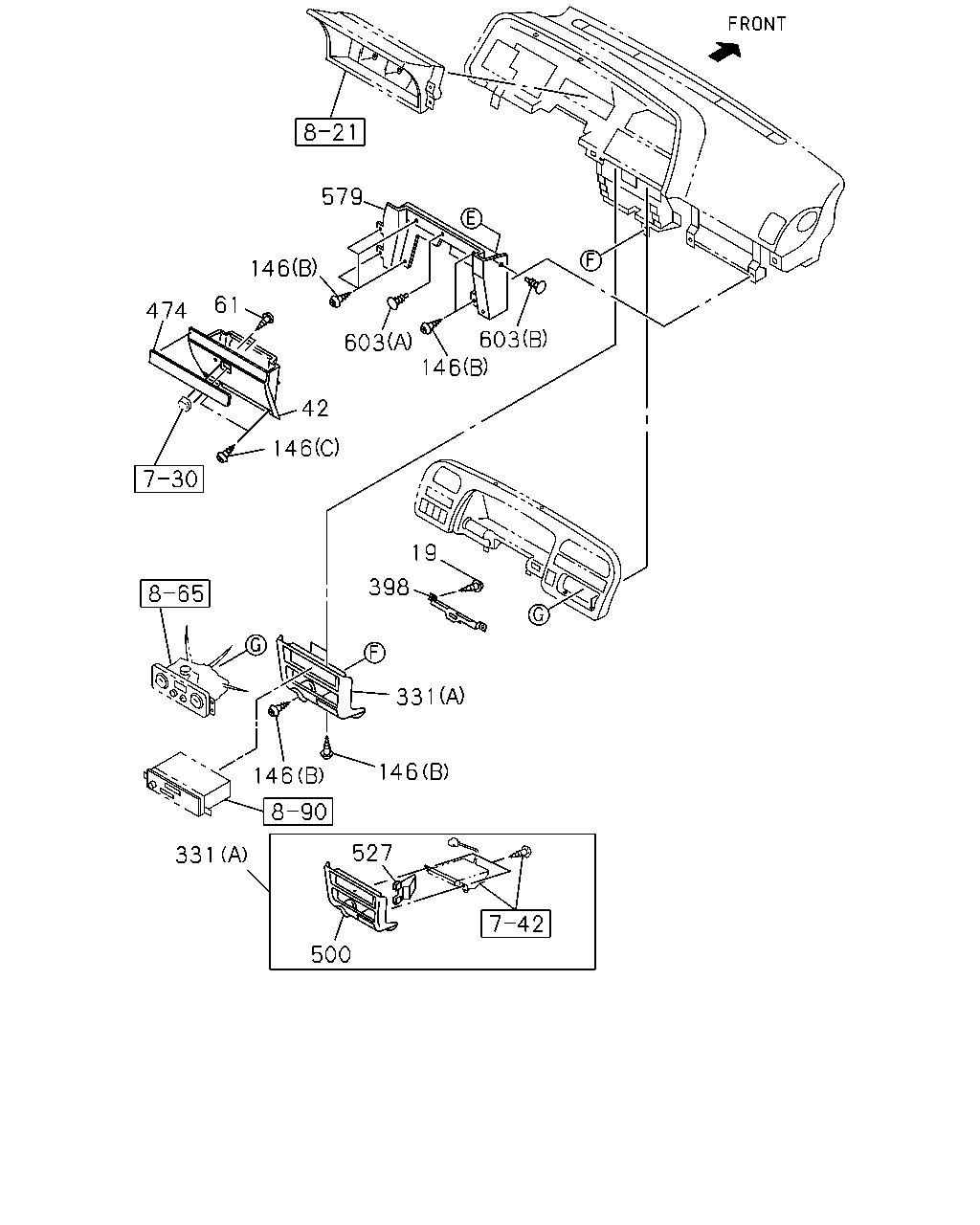

çizim 69090
579 146 61 474 603 146 603 42 146 19 398 331 146 146 527 331 500
BalonParca AdiParca NoAdetTipApplied Date A B C
19 16.081 SCREW; BRKT
CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 9712-0007 ● ●
19 16.081 SCREW; BRKT
CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 M5X16 TAPPING 		9-09829-323-1 06 1 0008- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97195-652-1 01 1 9712-9908 ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97195-652-2 01 1 9909-0007 ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97195-652-2 01 1 0008-0105 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97195-652-6 01 1 0106- ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97195-652-6 01 1 0106- ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-365-2 01 1 9909-0007 ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-365-2 01 1 0008-0105 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-365-6 01 1 0106- ● ●
61 16.100 SCREW; GLOVE BOX
M4X14 TAPPING 		8-97111-555-0 02 1 9712-0007 ● ●
61 16.100 SCREW; GLOVE BOX
M4X14 TAPPING 		8-97111-555-0 02 1 0008- ● ● ●
146 16.100 SCREW; TAP
09.663 (C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9712-0007 ● ●
146 16.100 SCREW; TAP
09.663 (C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0008- ● ● ●
146 16.100 SCREW; TAP
09.744 (B) M5X14 TAPPING 		1-72548-072-0 12 1 9712-0007 ● ●
146 16.100 SCREW; TAP
09.744 (B) M5X14 TAPPING 		1-72548-072-0 12 1 0008- ● ● ●
146 16.100 SCREW; TAP
16.190 (A) M5X12 TAPPING 		9-09829-321-1 05 1 9712-0007 ● ●
146 16.100 SCREW; TAP
16.190 (A) M5X12 TAPPING 		9-09829-321-1 05 1 0008- ● ● ●
146 16.100 SCREW; TAP
(A) M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 04 1 9712-0007 ● ●
146 16.100 SCREW; TAP
(A) M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 04 1 0008- ● ● ●
331 09.743 CLUSTER; INST SIDE
(B) 		8-97160-266-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
(B) 		8-97160-266-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97160-266-1 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-356-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-356-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97165-356-2 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-2 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97263-486-3 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97263-489-3 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97263-488-3 01 1 0106- ● ● ●
398 16.085 BRACKET; SUPPORT
CLUSTER AUDIO DIN 'E' FORM<7LG> 16.080 		8-97111-352-1 02 1 9712-0007 ● ●
398 16.085 BRACKET; SUPPORT
CLUSTER AUDIO DIN 'E' FORM<7LG> 16.080 		8-97111-352-1 02 1 0008- ● ● ●
474 16.069 PANEL ASM; ORNAMENT
WOOD GRAIN TRIM<7FB> 		8-97169-721-0 01 1 9712-0007 ●
474 16.069 PANEL ASM; ORNAMENT
WOOD GRAIN TRIM<7FB> 		8-97169-721-0 01 1 0008-0105 ● ●
474 16.069 PANEL ASM; ORNAMENT
WOOD GRAIN TRIM<7FB> EXC. WOOD PRINT TRIM<7QR> 		8-97169-721-1 01 1 0106- ● ●
474 16.069 PANEL ASM; ORNAMENT
WOOD PRINT TRIM<7QR> 		8-97169-721-1 01 1 0106- ● ●
500 16.081 CLUSTER; INST CENTER
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743 		8-97160-270-0 01 1 9712-0007 ● ●
500 16.081 CLUSTER; INST CENTER
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743 		8-97160-270-0 01 1 0008-0105 ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743 		8-97160-270-1 01 1 0106- ● ● ●
500 16.081 CLUSTER; INST CENTER
WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG> 		8-97287-989-2 01 1 0106- ● ● ●
500 16.081 CLUSTER; INST CENTER
WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 		8-97287-988-2 01 1 0106- ● ● ●
500 16.081 CLUSTER; INST CENTER
CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743 		8-97160-271-0 01 1 9712-0007 ● ●
500 16.081 CLUSTER; INST CENTER
CLUSTER AUDIO DIN 'E' FORM<7LG> 09.743 		8-97160-271-0 01 1 0008-0105 ● ● ●
500 16.081 CLUSTER; INST CENTER
CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> 09.743 		8-97160-271-0 01 1 0106- ● ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 9712-0007 ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 0008-0201 ● ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 0202- ● ● ●
579 16.080 COVER; INST PNL
DARK GRAY 		8-97154-461-1 01 1 9712-9908 ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-461-2 01 1 9909-0007 ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-461-2 01 1 0008-0105 ● ● ●
579 16.080 COVER; INST PNL
DARK GRAY 		8-97154-461-4 01 1 0106- ●
579 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-461-4 01 1 0106- ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-561-2 01 1 9909-0007 ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-561-2 01 1 0008-0105 ● ● ●
579 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-561-4 01 1 0106- ● ●
603 16.090 CLIP; COVER
16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 9712-0007 ● ●
603 16.090 CLIP; COVER
16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ● ● ●
603 16.090 CLIP; COVER
(B) DARK GRAY 		8-97151-280-1 02 1 9712-9908 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 9909-0007 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 0008-0105 ● ● ●
603 16.090 CLIP; COVER
(B) DARK GRAY 		8-97151-280-1 02 1 0106- ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 0106- ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 9909-0007 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 0008-0105 ● ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 0106- ● ●

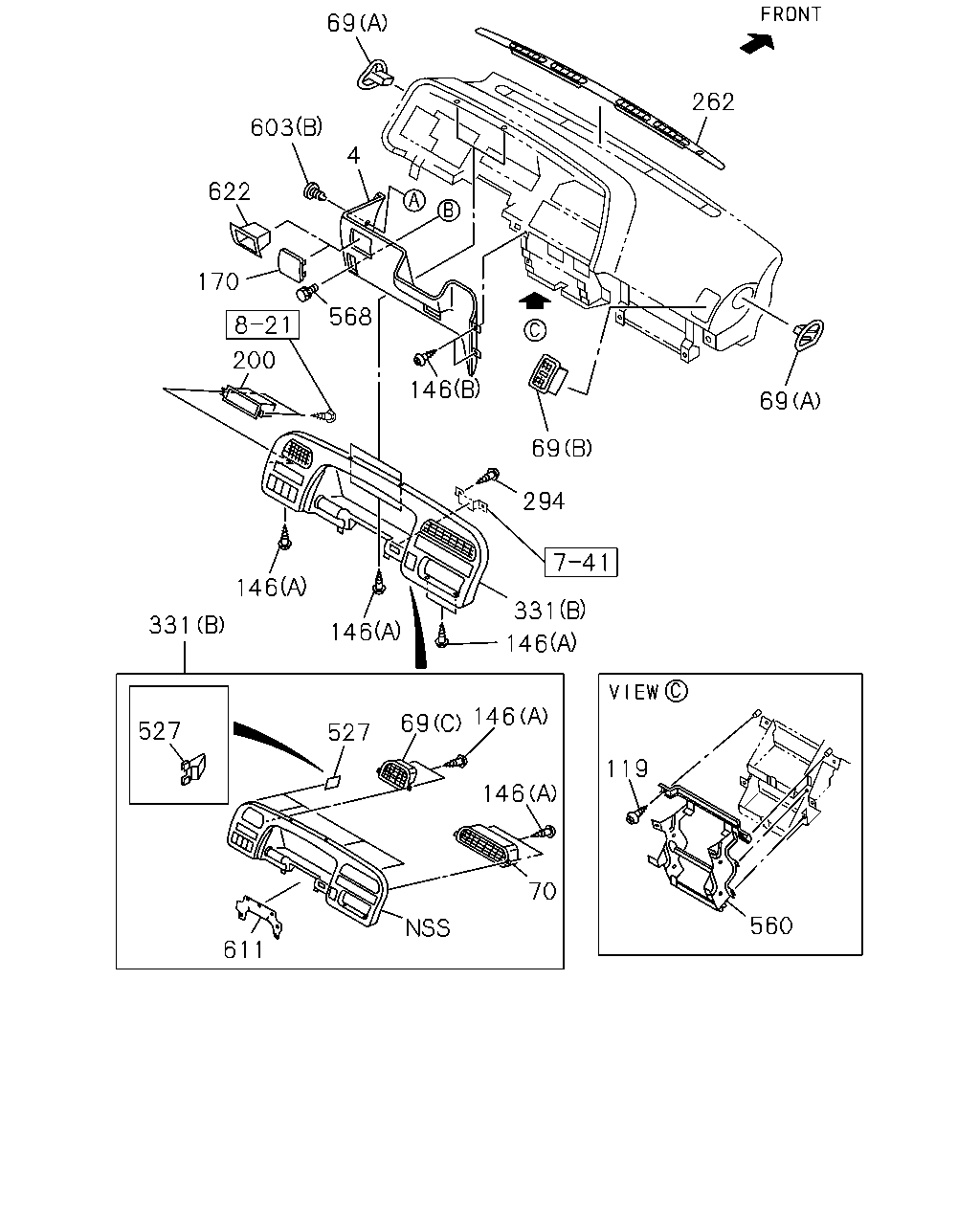

çizim 69508
69 262 603 4 622 170 568 200 146 69 69 294 146 331 331 146 146 146 69 527 527 119 146 70 560 611
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.080 COVER; INST PNL
DARK GRAY 		8-97098-308-6 01 1 9712-9908 ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-308-7 01 1 9909-0007 ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-308-7 01 1 0008-0105 ● ● ●
4 16.080 COVER; INST PNL
DARK GRAY 		8-97098-308-9 01 1 0106- ●
4 16.080 COVER; INST PNL
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-308-9 01 1 0106- ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-559-7 01 1 9909-0007 ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-559-7 01 1 0008-0105 ● ● ●
4 16.080 COVER; INST PNL
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-559-9 01 1 0106- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
WOOD GRAIN TRIM CLUSTER<BC1> (C) BLACK 		8-97091-908-1 01 1 9712-0202 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) BLACK 		8-97091-908-1 01 1 0203- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97080-486-1 01 1 9712-0007 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97080-486-2 01 1 0008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-143-1 01 1 9712-9908 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-143-1 01 1 9909-0007 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-143-1 01 1 0008-0105 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97313-410-0 01 1 0106- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97151-142-1 01 1 9712-9908 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-142-1 01 1 9909-0007 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-142-1 01 1 0008-0105 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) BLACK 		8-97313-409-0 01 1 0106- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-572-1 01 1 9909-0007 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-572-1 01 1 0008-0105 ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-571-1 01 1 9909-0007 ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
INTERIOR COLOR BEIGE(181) (A) DARK BEIGE 		8-97290-571-1 01 1 0008-0105 ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET
WOOD GRAIN TRIM CLUSTER<BC1> BLACK 		8-97091-909-2 01 1 9712-0202 ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET
BLACK 		8-97091-909-2 01 1 0203- ● ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 08 1 9712-9901 ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9902-0007 ● ●
119 14.655 SCREW; BRKT TO INST
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0008- ● ● ●
119 14.655 SCREW; BRKT TO INST
16.115 M5X16 TAPPING 		9-09829-188-0 04 1 9902-0007 ● ●
119 14.655 SCREW; BRKT TO INST
16.115 M5X16 TAPPING 		9-09829-188-0 04 1 0008- ● ● ●
146 16.100 SCREW; TAP
09.663 (C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9712-0007 ● ●
146 16.100 SCREW; TAP
09.663 (C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0008- ● ● ●
146 16.100 SCREW; TAP
09.744 (B) M5X14 TAPPING 		1-72548-072-0 12 1 9712-0007 ● ●
146 16.100 SCREW; TAP
09.744 (B) M5X14 TAPPING 		1-72548-072-0 12 1 0008- ● ● ●
146 16.100 SCREW; TAP
16.190 (A) M5X12 TAPPING 		9-09829-321-1 05 1 9712-0007 ● ●
146 16.100 SCREW; TAP
16.190 (A) M5X12 TAPPING 		9-09829-321-1 05 1 0008- ● ● ●
146 16.100 SCREW; TAP
(A) M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 04 1 9712-0007 ● ●
146 16.100 SCREW; TAP
(A) M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 04 1 0008- ● ● ●
170 16.165 COVER; HOLE
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) AIR BAG DRIVER<AJ3> LIGHT BEIGE 		8-97290-560-2 01 1 9909-0105 ● ●
170 16.165 COVER; HOLE
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) AIR BAG DRIVER<AJ3> LIGHT BEIGE 		8-97290-560-2 01 1 0106- ●
170 16.165 COVER; HOLE
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) AIR BAG DRIVER<AJ3> DARK GRAY 		8-97098-843-2 01 1 9909- ● ●
200 09.743 BOX; CENTER CLUSTER
M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> 		8-97103-473-1 01 1 9712-9712 ● ●
200 09.743 BOX; CENTER CLUSTER
EXC. ANTI THEFT<UA6> 		8-97103-473-1 01 1 9801-0007 ● ●
200 09.743 BOX; CENTER CLUSTER
EXC. ANTI THEFT<UA6> 		8-97103-473-1 01 1 0008-0105 ● ● ●
200 09.743 BOX; CENTER CLUSTER
EXC. ANTI THEFT<UA6> 		8-97313-413-0 01 1 0106- ● ● ●
262 09.264 GRILLE; DEFROSTER
DARK GRAY 		8-97098-380-2 01 1 9712-9908 ● ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-380-2 01 1 9909-0007 ● ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-380-2 01 1 0008-0105 ● ● ●
262 09.264 GRILLE; DEFROSTER
DARK GRAY 		8-97098-380-2 01 1 0106- ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-380-2 01 1 0106- ● ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97290-568-2 01 1 9909-0007 ● ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97290-568-2 01 1 0008-0105 ● ● ●
262 09.264 GRILLE; DEFROSTER
INTERIOR COLOR BEIGE(181) DARK BEIGE 		8-97290-568-2 01 1 0106- ● ●
294 09.744 SCREW; BEZEL
07.829 M4X14 TAPPING W/PL WASHER 		0-74300-414-0 02 1 9712-0007 ● ●
294 09.744 SCREW; BEZEL
07.829 M4X14 TAPPING W/PL WASHER 		0-74300-414-0 02 1 0008- ● ● ●
331 09.743 CLUSTER; INST SIDE
(B) 		8-97160-266-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
(B) 		8-97160-266-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97160-266-1 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-356-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-356-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. WOOD GRAIN TRIM CLUSTER<BC1> (A) 		8-97165-356-2 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-0 01 1 9712-0007 ● ●
331 09.743 CLUSTER; INST SIDE
EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-0 01 1 0008-0105 ● ● ●
331 09.743 CLUSTER; INST SIDE
EXC. WOOD GRAIN TRIM CLUSTER<BC1>, CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97165-355-2 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> (B) 		8-97263-486-3 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97263-489-3 01 1 0106- ● ● ●
331 09.743 CLUSTER; INST SIDE
WOOD GRAIN TRIM CLUSTER<BC1> EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) 		8-97263-488-3 01 1 0106- ● ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 9712-0007 ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 0008-0201 ● ● ●
527 16.100 CLIP; INST CLUSTER
T=0.5 		8-97137-828-0 04 1 0202- ● ● ●
560 16.085 BRACKET 8-97080-119-1 01 1 9712-0007 ● ●
560 16.085 BRACKET 8-97080-119-1 01 1 0008- ● ● ●
568 09.744 BOLT; COVER
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 9712-9908 ● ●
568 09.744 BOLT; COVER
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9909-0006 ● ●
568 09.744 BOLT; COVER
08.015 M6X20 W/WASHER 		8-94112-987-1 01 1 0007-0007 ● ●
568 09.744 BOLT; COVER
08.015 M6X20 W/WASHER 		8-94112-987-1 01 1 0008- ● ● ●
603 16.090 CLIP; COVER
16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 9712-0007 ● ●
603 16.090 CLIP; COVER
16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 0008- ● ● ●
603 16.090 CLIP; COVER
(B) DARK GRAY 		8-97151-280-1 02 1 9712-9908 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 9909-0007 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 0008-0105 ● ● ●
603 16.090 CLIP; COVER
(B) DARK GRAY 		8-97151-280-1 02 1 0106- ●
603 16.090 CLIP; COVER
INTERIOR COLOR MEDIUM GRAY(113) (B) DARK GRAY 		8-97151-280-1 02 1 0106- ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 9909-0007 ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 0008-0105 ● ● ●
603 16.090 CLIP; COVER
INTERIOR COLOR BEIGE(181) (B) LIGHT BEIGE 		8-97290-744-1 02 1 0106- ● ●
611 16.081 SHEET
WOOD GRAIN TRIM CLUSTER<BC1> 		8-97103-470-1 01 1 9712-0202 ● ● ●
611 16.081 SHEET 8-97103-470-1 01 1 0203- ● ● ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) EXC. AIR BAG DRIVER<AJ3> LIGHT BEIGE 		8-97291-335-0 01 1 9909-0007 ● ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) EXC. AIR BAG DRIVER<AJ3> LIGHT BEIGE 		8-97291-335-0 01 1 0008-0105 ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-335-0 01 1 0008-0105 ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR BEIGE(181) EXC. AIR BAG DRIVER<AJ3> LIGHT BEIGE 		8-97291-335-0 01 1 0106- ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97291-335-0 01 1 0106- ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) DARK GRAY 		8-97153-696-0 01 1 9712-9908 ● ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97153-696-0 01 1 9909-0007 ● ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97153-696-0 01 1 0008-0105 ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-696-0 01 1 0008-0105 ●
622 16.100 BOX; IDLE CONT
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) INTERIOR COLOR MEDIUM GRAY(113) EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97153-696-0 01 1 0106- ● ●
622 16.100 BOX; IDLE CONT
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97153-696-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
