6-86 — TRUNK OPENER AND FUEL LID (#37974) — 62 parça

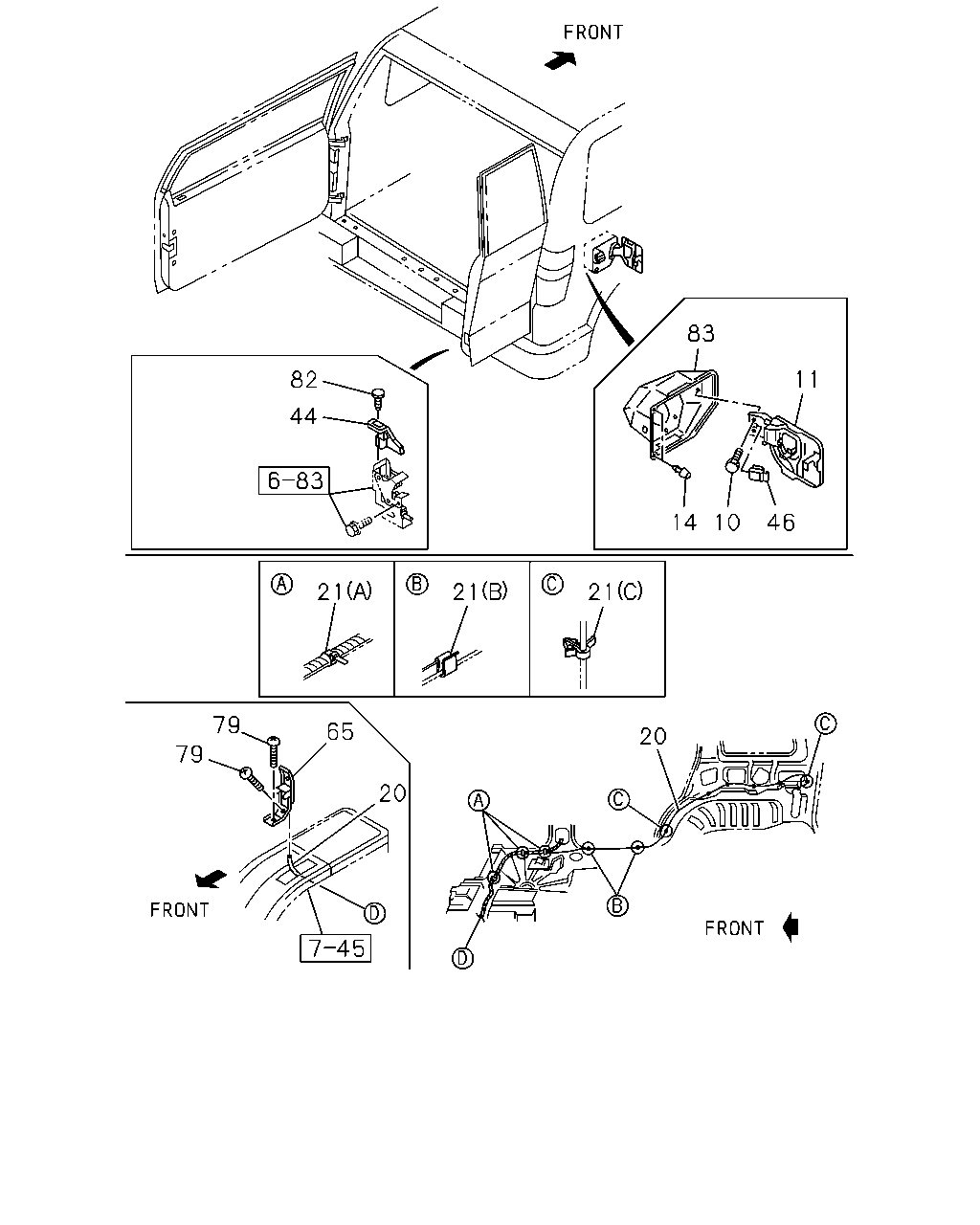

83 82 11 44 10 46 14 21 21 79 79 65 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	17.505 BOLT; FUEL FILLER LID 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-0007	●	●
10	17.505 BOLT; FUEL FILLER LID 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0008-	●	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	9712-0007	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	0008-	●	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	9712-0007	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	0008-	●	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-377-0	01	1	9712-0002	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-540-0	01	1	0003-	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-376-0	01	1	9712-0002		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-541-0	01	1	0003-0007		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-541-0	01	1	0008-		●	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9712-	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-1	03	1	9712-0007	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-1	03	1	0008-	●	●	●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	9712-0007		●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	0008-		●	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9712-0007		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	0008-		●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	9712-0007	●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	0008-	●	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	9712-0007	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	0008-	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	9712-0007	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	0008-	●	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	9712-0007	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	0008-	●	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	9712-0007	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	0008-0112	●	●	●
82	16.345 CLIP; COVER 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0201-	●	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	9712-0007	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	0008-	●	●	●

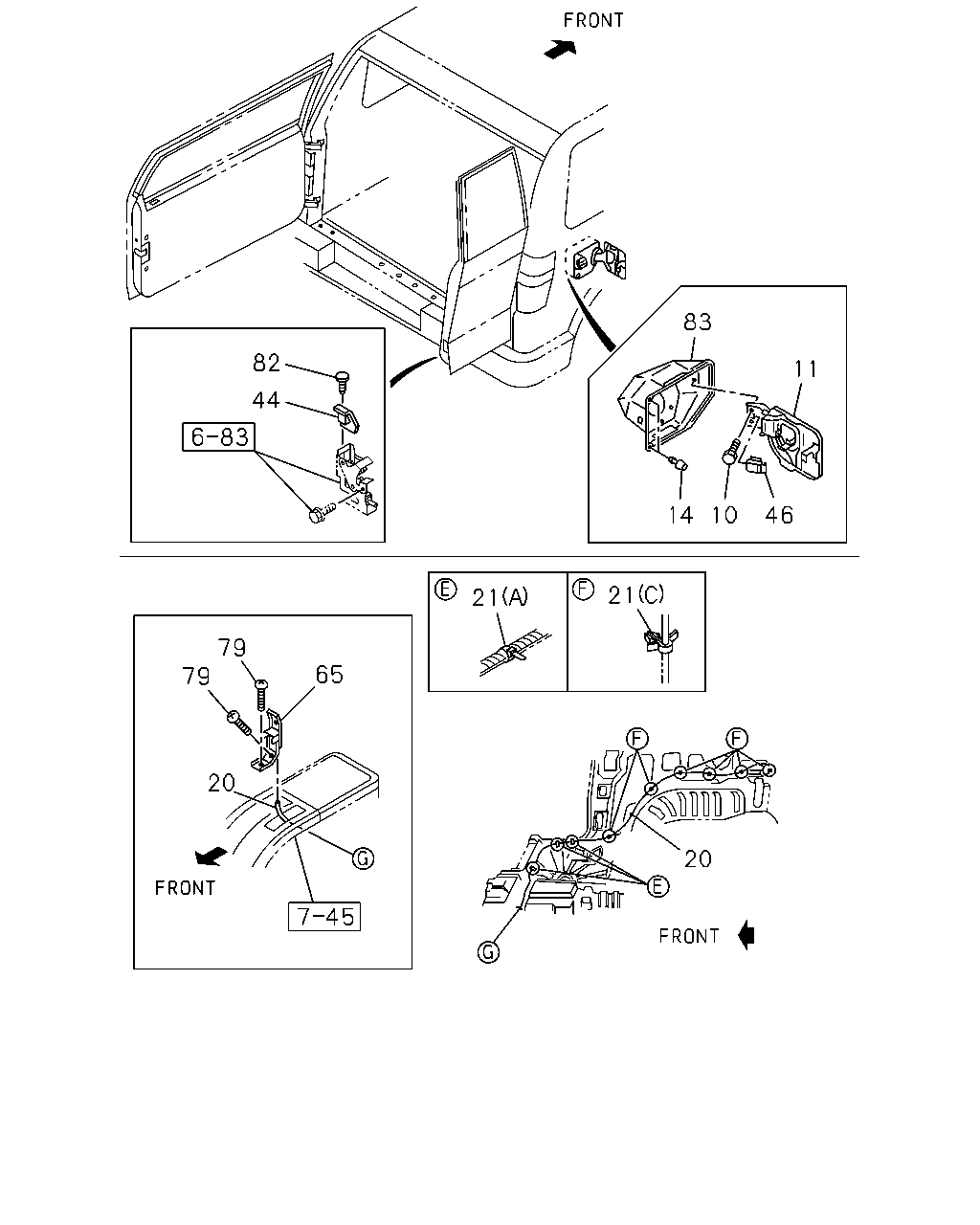

83 11 82 44 10 46 14 21 21 21 79 65 20 79 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	17.505 BOLT; FUEL FILLER LID 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-0007	●	●
10	17.505 BOLT; FUEL FILLER LID 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0008-	●	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	9712-0007	●	●
11	17.505 LID; FUEL	8-94358-634-5	01	1	0008-	●	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	9712-0007	●	●
14	17.505 CUSHION; RUBBER,FUEL LID 12.945	8-94466-607-0	02	1	0008-	●	●	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-377-0	01	1	9712-0002	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-540-0	01	1	0003-	●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97811-376-0	01	1	9712-0002		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-541-0	01	1	0003-0007		●
20	17.505 CABLE; TRUNK LID & FUEL FILLER	8-97256-541-0	01	1	0008-		●	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	06	1	9712-	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-1	03	1	9712-0007	●	●
21	17.090 CLIP; CABLE,TAIL GATE 03.162 (A) L=140	5-09707-031-1	03	1	0008-	●	●	●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	9712-0007		●
21	17.090 CLIP; CABLE,TAIL GATE 14.683 (B) B=8.4 H=16 CR-PLATED	8-94116-002-3	02	1	0008-		●	●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	9712-0007		●
21	17.090 CLIP; CABLE,TAIL GATE 09.787 (C) ID=6	8-94417-625-0	02	1	0008-		●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	9712-0007	●	●
44	16.345 COVER; LK CYL	8-97163-766-0	01	1	0008-	●	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	9712-0007	●	●
46	17.505 SPRING; FUEL FILLER DOOR	8-97811-383-0	01	1	0008-	●	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	9712-0007	●	●
65	17.505 KNOB; FUEL FILLER DOOR BLACK	8-97817-143-2	01	1	0008-	●	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	9712-0007	●	●
79	17.225 SCREW; LEVER TO ROCKER PNL 09.743 M5X16	8-94295-854-0	02	1	0008-	●	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	9712-0007	●	●
82	16.345 CLIP; COVER BLACK	8-94259-671-0	01	1	0008-0112	●	●	●
82	16.345 CLIP; COVER 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0201-	●	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	9712-0007	●	●
83	16.750 RECESS; FILLER NECK	8-97164-304-0	01	1	0008-	●	●	●
