◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-81 - BACK DOOR AND HINGE ▶
6-81 — BACK DOOR AND HINGE (#37970) — 57 parça

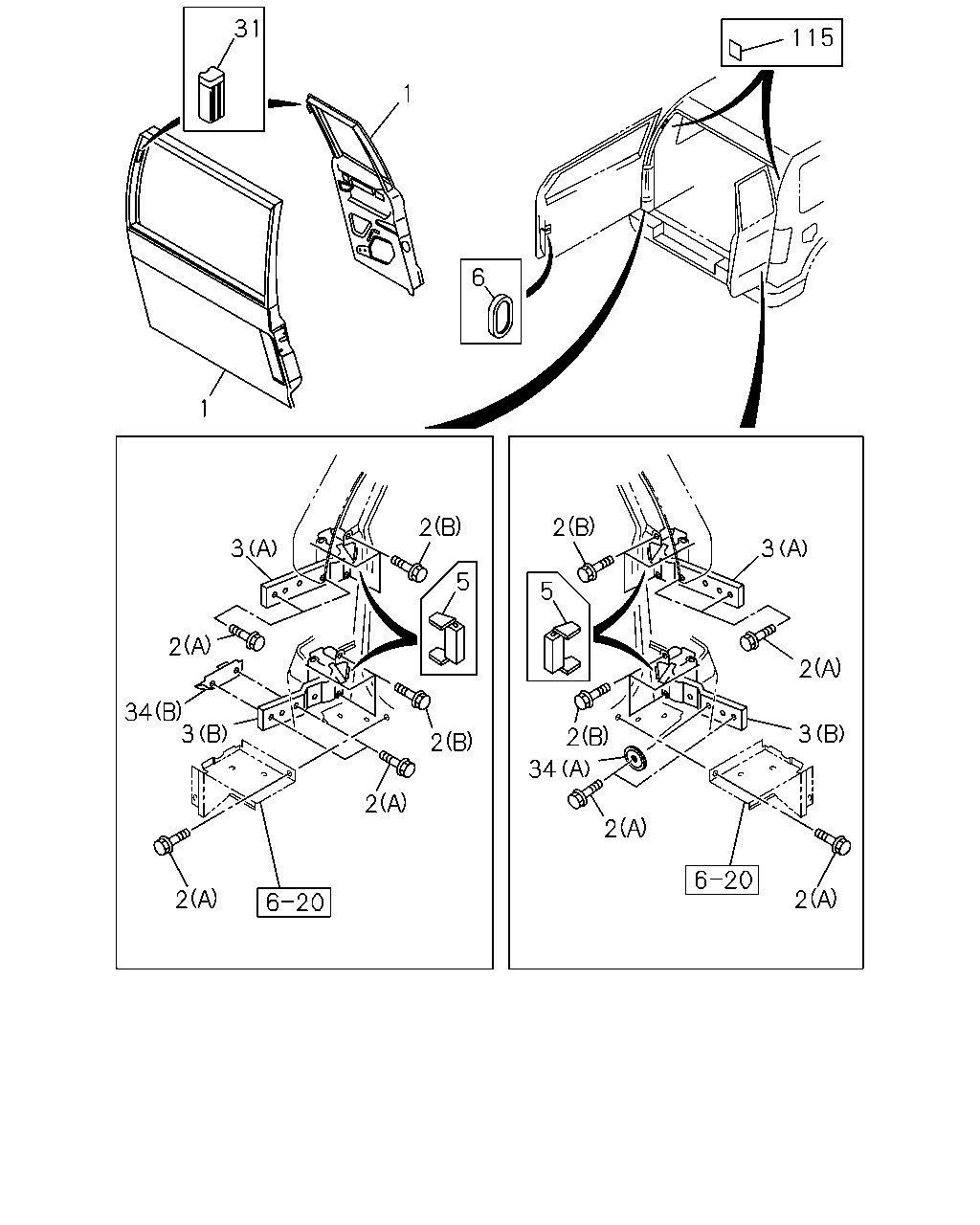

çizim 69971
31 115 1 6 1 2 2 3 3 5 5 2 2 34 3 3 2 2 34 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4) 		8-97167-385-0 01 1 9909-0011 ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97167-385-0 01 1 9909-0011 ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4) 		8-97263-791-0 01 1 0012-0301 ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97263-791-0 01 1 0012-0301 ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4) 		8-97364-862-0 01 1 0302- ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97364-862-0 01 1 0302- ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4) 		8-97167-388-0 01 1 9909-0007 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97167-388-0 01 1 9909-0007 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4) 		8-97167-388-0 01 1 0008-0011 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97167-388-0 01 1 0008-0011 ●
1 16.152 DOOR ASM; BACK 8-97167-388-0 01 1 0008-0011 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4) 		8-97263-789-0 01 1 0012-0301 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97263-789-0 01 1 0012-0301 ●
1 16.152 DOOR ASM; BACK 8-97263-789-0 01 1 0012-0301 ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4) 		8-97364-861-0 01 1 0302- ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97364-861-0 01 1 0302- ●
1 16.152 DOOR ASM; BACK 8-97364-861-0 01 1 0302- ●
1 16.152 DOOR ASM; BACK 8-97183-085-0 01 1 9712-0007 ● ●
1 16.152 DOOR ASM; BACK 8-97183-085-0 01 1 0008-0301 ● ● ●
1 16.152 DOOR ASM; BACK 8-97183-085-0 01 1 0302- ● ● ●
1 16.152 DOOR ASM; BACK
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97167-385-0 01 1 9712-9908 ● ●
1 16.152 DOOR ASM; BACK
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97167-388-0 01 1 9712-9908 ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 (B) M8X23 FLANGE 		8-94174-559-2 12 1 9712-0007 ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 (B) M8X23 FLANGE 		8-94174-559-2 12 1 0008- ● ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 06 1 9712-0007 ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 06 1 0008- ● ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 04 1 9712-0007 ● ●
2 16.165 BOLT; HINGE TO BODY,BACK DOOR
(A) M8X30 		8-97035-384-0 04 1 0008- ● ● ●
3 16.320 HINGE; BACK DOOR
(B) 		8-97129-336-0 01 1 9712-0007 ● ●
3 16.320 HINGE; BACK DOOR
(B) 		8-97129-336-0 01 1 0008- ● ● ●
3 16.320 HINGE; BACK DOOR
(A) 		8-97811-385-0 01 1 9712-0007 ● ●
3 16.320 HINGE; BACK DOOR
(A) 		8-97811-385-0 01 1 0008- ● ● ●
3 16.320 HINGE; BACK DOOR
(A) 		8-97811-384-0 01 1 9712-0007 ● ●
3 16.320 HINGE; BACK DOOR
(A) 		8-97811-384-0 01 1 0008- ● ● ●
3 16.320 HINGE; BACK DOOR
(B) 		8-97811-386-0 01 1 9712-0007 ● ●
3 16.320 HINGE; BACK DOOR
(B) 		8-97811-386-0 01 1 0008- ● ● ●
5 16.320 SEAT; RUBBER,DOOR HINGE 8-97809-623-1 04 1 9712-0007 ● ●
5 16.320 SEAT; RUBBER,DOOR HINGE 8-97809-623-1 04 1 0008- ● ● ●
6 17.185 SEAL; BACK DOOR HINGE
EXC. EUROPE EQUIPMENT(EK4) 		8-94355-937-0 01 1 9712-9908 ● ●
6 17.185 SEAL; BACK DOOR HINGE
3RD SEAT 7 PASSENGERS(AS3) EUROPE EQUIPMENT(EK4) 		8-94355-937-0 01 1 9712-9908 ●
6 17.185 SEAL; BACK DOOR HINGE
EUROPE EQUIPMENT(EK4) HANDLE BACK DOOR INNER<S2A> 		8-94355-937-0 01 1 9909-0005 ● ●
6 17.185 SEAL; BACK DOOR HINGE
EXC. EUROPE EQUIPMENT(EK4) 		8-94355-937-0 01 1 9909-0005 ● ●
6 17.185 SEAL; BACK DOOR HINGE
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) HANDLE BACK DOOR INNER<S2A> 		8-94355-937-0 01 1 0006-0007 ● ●
6 17.185 SEAL; BACK DOOR HINGE
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94355-937-0 01 1 0006-0007 ● ●
6 17.185 SEAL; BACK DOOR HINGE
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) HANDLE BACK DOOR INNER<S2A> 		8-94355-937-0 01 1 0008-0105 ● ●
6 17.185 SEAL; BACK DOOR HINGE
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94355-937-0 01 1 0008-0105 ● ●
6 17.185 SEAL; BACK DOOR HINGE 8-94355-937-0 01 1 0008-0105 ●
6 17.185 SEAL; BACK DOOR HINGE
HANDLE BACK DOOR INNER<S2A> 		8-94355-937-0 01 1 0106- ●
6 17.185 SEAL; BACK DOOR HINGE 8-94355-937-0 01 1 0106- ●
31 16.165 BUFFER; BACK DOOR 8-97808-519-1 02 1 9712-0007 ● ●
31 16.165 BUFFER; BACK DOOR 8-97808-519-1 02 1 0008- ● ● ●
34 16.320 SPACER; DOOR HINGE
(B) 		8-97808-701-0 01 1 9712-0007 ● ●
34 16.320 SPACER; DOOR HINGE
(B) 		8-97808-701-0 01 1 0008- ● ● ●
34 16.320 SPACER; DOOR HINGE
(A) 		8-97134-959-0 01 1 9712-0007 ● ●
34 16.320 SPACER; DOOR HINGE
(A) 		8-97134-959-0 01 1 0008- ● ● ●
115 16.350 TAPE; PROTECTION 8-97809-445-1 02 1 9712-0007 ● ●
115 16.350 TAPE; PROTECTION 8-97809-445-1 02 1 0008- ● ● ●
