◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#37969) — 24 parça

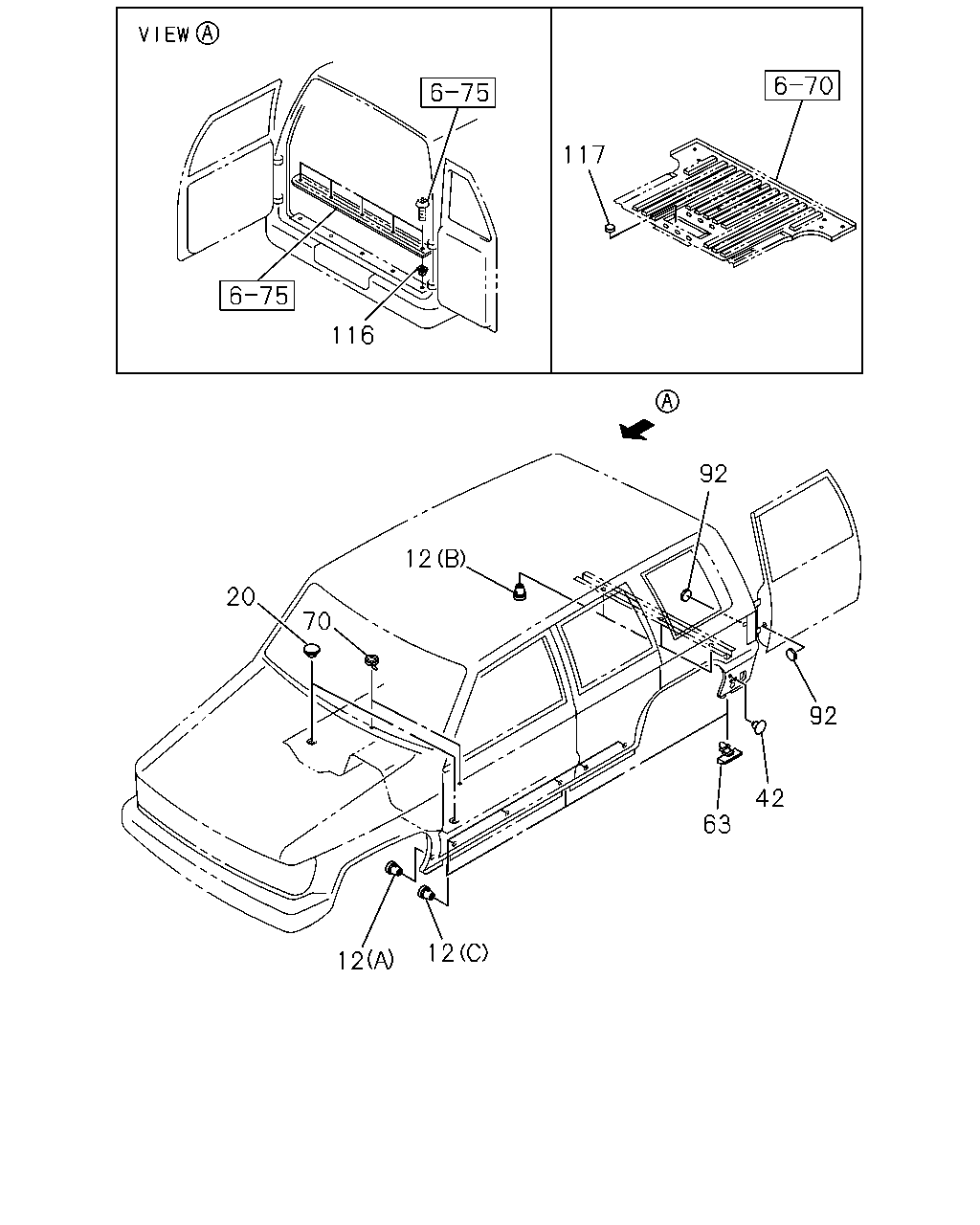

çizim 71216
117 92 12 20 70 92 42 63 12 12 116
BalonParca AdiParca NoAdetTipApplied Date A B C
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
15.222 (C) OD=35 		8-94122-971-0 11 1 9712- ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
15.222 (B) OD=35 		8-94122-971-0 03 1 9712-0007 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
15.222 (B) OD=35 		8-94122-971-0 03 1 0008- ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
09.775 (A) OD=18 		8-94211-224-0 02 1 9712-0007 ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
09.775 (A) OD=18 		8-94211-224-0 02 1 0008- ● ● ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
15.222 (C) OD=35 		8-94122-971-0 13 1 9712-0007 ●
12 16.547 GROMMET; DRAIN HOLE,ROCKER RR
15.222 (C) OD=35 		8-94122-971-0 13 1 0008- ● ●
20 16.547 GROMMET; FLOOR HOLE
16.800 OD=60 T=9.8 		8-94107-654-0 02 1 9712-0007 ● ●
20 16.547 GROMMET; FLOOR HOLE
16.800 OD=60 T=9.8 		8-94107-654-0 02 1 0008- ● ● ●
42 16.570 GROMMET; SIDE PNL
16.742 DARK GRAY 		8-97804-484-0 02 1 9712-0007 ● ●
42 16.570 GROMMET; SIDE PNL
16.742 DARK GRAY 		8-97804-484-0 02 1 0008- ● ● ●
63 16.549 PLUG; DUST SEAL 8-97800-964-1 03 1 9712- ●
63 16.549 PLUG; DUST SEAL 8-97800-963-1 03 1 9712- ●
63 16.549 PLUG; DUST SEAL 8-97800-964-1 04 1 9712-0007 ●
63 16.549 PLUG; DUST SEAL 8-97800-964-1 04 1 0008- ● ●
63 16.549 PLUG; DUST SEAL 8-97800-963-1 04 1 9712-0007 ●
63 16.549 PLUG; DUST SEAL 8-97800-963-1 04 1 0008- ● ●
70 09.775 PLUG; METAL,FLOOR
OD=44.8 		8-97167-296-0 04 1 9712-0007 ● ●
70 09.775 PLUG; METAL,FLOOR
OD=44.8 		8-97167-296-0 04 1 0008- ● ● ●
92 09.775 SEAL; LOCATION HOLE 8-94359-327-0 02 1 9712-0201 ● ●
92 09.775 SEAL; LOCATION HOLE
16.547 OD=45 BLACK 		1-76798-017-0 02 1 0202- ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT 8-97134-566-0 05 1 9712-0007 ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT 8-97134-566-0 05 1 0008- ● ● ●
117 16.800 COVER; HOLE,LUGGAGE FLOOR
15.222 OD=16 		8-94111-207-1 02 1 9712- ●
