◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#37968) — 44 parça

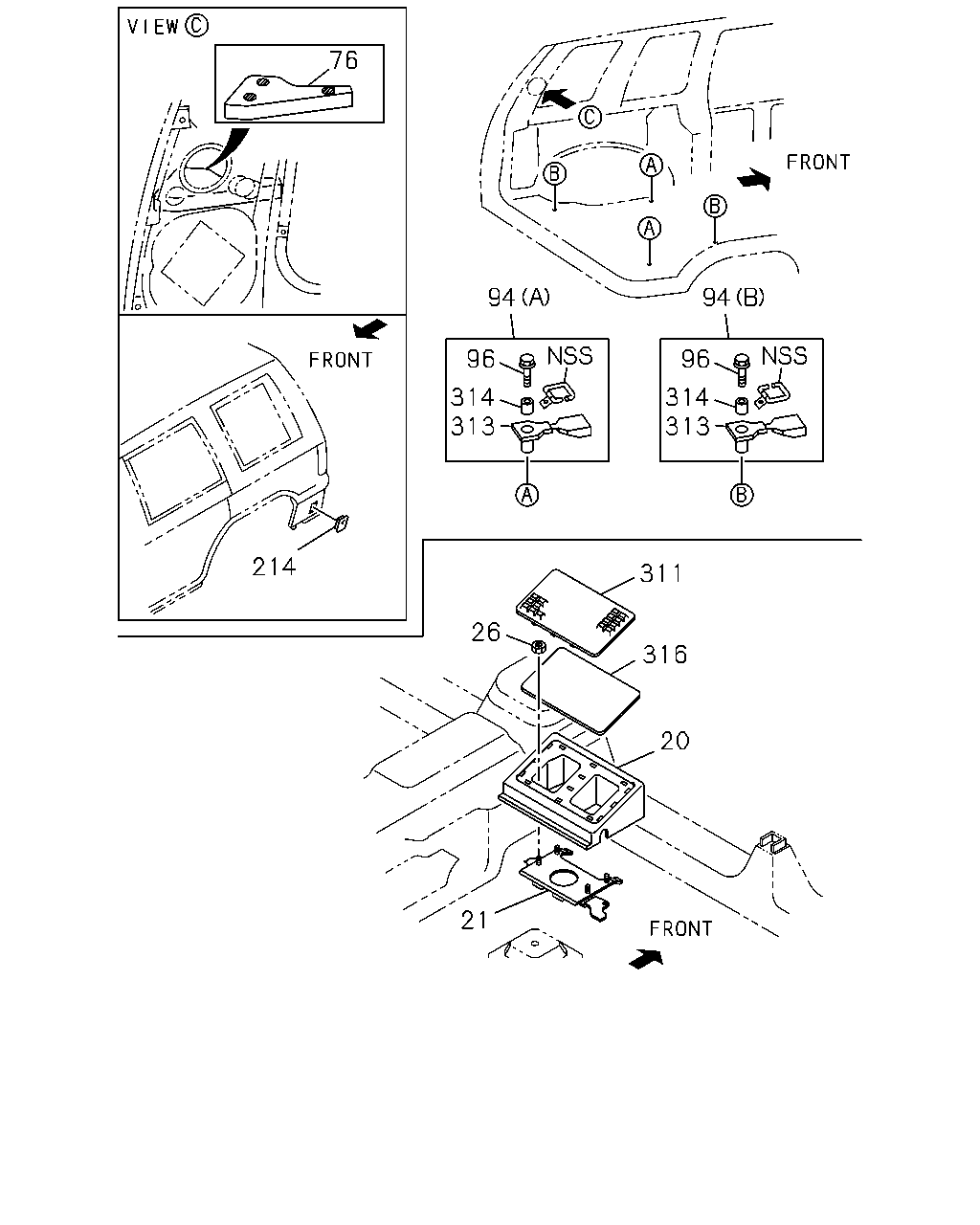

çizim 68859
76 94 94 96 96 314 313 314 313 214 311 26 316 20 21
BalonParca AdiParca NoAdetTipApplied Date A B C
20 16.547 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97151-275-0 01 1 9712-0105 ● ●
20 16.547 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97151-274-0 01 1 9712-0105 ● ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97111-183-0 01 1 9712-0007 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97111-183-0 01 1 0008-0105 ●
21 16.549 BRACKET; FOOT REST 8-97111-183-0 01 1 0008-0105 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97111-182-0 01 1 9712-9908 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> 		8-97111-182-0 01 1 9909-0007 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> 		8-97111-182-0 01 1 0008-0105 ●
21 16.549 BRACKET; FOOT REST 8-97111-182-0 01 1 0008-0105 ●
21 16.549 BRACKET; FOOT REST
RR FOOT REST<6WM> TORQUE ON DEMAND<7HA> 		8-97113-166-0 01 1 9909-0105 ●
21 16.549 BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 		8-97161-000-0 01 1 9909-0105 ●
21 16.549 BRACKET; FOOT REST
TORQUE ON DEMAND<7HA> 		8-97161-000-1 01 1 0106- ●
26 16.549 NUT; FLANGE
RR FOOT REST<6WM> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9712-9908 ●
26 16.549 NUT; FLANGE
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9909-0007 ●
26 16.549 NUT; FLANGE
RR FOOT REST<6WM> EXC. TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0008-0105 ●
26 16.549 NUT; FLANGE
04.594 M6 FLANGE 		0-91150-106-0 04 1 0008-0105 ●
26 16.549 NUT; FLANGE
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9909-0105 ●
26 16.549 NUT; FLANGE
TORQUE ON DEMAND<7HA> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ●
76 16.549 CUSHION; SUPPORT COVER
DUST PROTECTION PACKAGE<7HQ> 		8-97811-231-0 02 1 9712-0007 ● ●
76 16.549 CUSHION; SUPPORT COVER
DUST PROTECTION PACKAGE<7HQ> 		8-97811-231-0 02 1 0008- ● ● ●
94 16.545 HOOK ASM; ROPE
(A) BLACK 		8-97151-775-0 02 1 9712-0007 ● ●
94 16.545 HOOK ASM; ROPE
(A) BLACK 		8-97151-775-0 02 1 0008- ● ● ●
94 16.545 HOOK ASM; ROPE
(B) BLACK 		8-97151-776-0 02 1 9712-0007 ● ●
94 16.545 HOOK ASM; ROPE
(B) BLACK 		8-97151-776-0 02 1 0008- ● ● ●
96 16.545 BOLT; ROPE HOOK FIX
M8X40 FLANGE 		0-28690-840-0 04 1 9712-0007 ● ●
96 16.545 BOLT; ROPE HOOK FIX
M8X40 FLANGE 		0-28690-840-0 04 1 0008- ● ● ●
214 16.549 SEAL; HOLE COVER 8-97803-265-1 02 1 9712-0007 ● ●
214 16.549 SEAL; HOLE COVER 8-97803-265-1 02 1 0008- ● ● ●
311 16.547 PAD; FOOT REST
RR FOOT REST<6WM> BLACK 		8-97807-585-3 02 1 9712-0105 ● ●
313 16.545 COVER; ROPE HOOK
BLACK 		8-97151-777-0 04 1 9712-0007 ● ●
313 16.545 COVER; ROPE HOOK
BLACK 		8-97151-777-0 04 1 0008- ● ● ●
314 16.545 COLLAR; ROPE HOOK 8-97803-657-0 04 1 9712-0007 ● ●
314 16.545 COLLAR; ROPE HOOK 8-97803-657-0 04 1 0008- ● ● ●
316 16.549 INSULATOR; BRKT
RR FOOT REST<6WM> 		8-97808-527-0 02 1 9712-0007 ●
316 16.549 INSULATOR; BRKT
RR FOOT REST<6WM> 		8-97808-527-0 02 1 0008-0105 ●
316 16.549 INSULATOR; BRKT 8-97808-527-0 02 1 0008-0105 ●
316 16.549 INSULATOR; BRKT
TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM> 		8-97808-527-0 01 1 9909-0105 ●
316 16.549 INSULATOR; BRKT
TORQUE ON DEMAND<7HA> 		8-97808-527-0 01 1 0106- ●

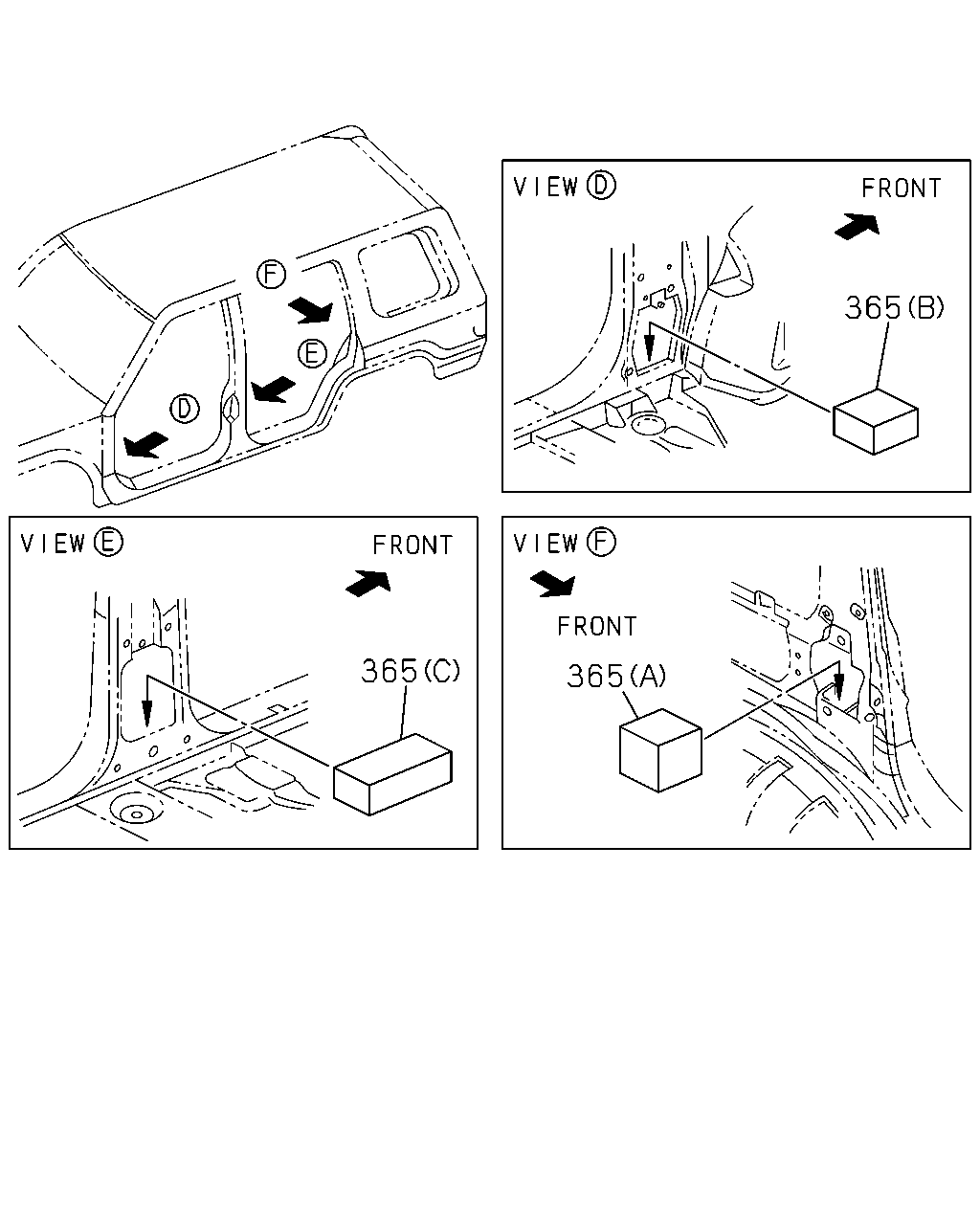

çizim 72455
365 365 365
BalonParca AdiParca NoAdetTipApplied Date A B C
365 16.800 SEAL; DASH SIDE LWR
(B) 		8-97185-279-0 02 1 9712-0007 ● ●
365 16.800 SEAL; DASH SIDE LWR
(B) 		8-97185-279-0 02 1 0008- ● ● ●
365 16.800 SEAL; DASH SIDE LWR
(A) 		8-97184-089-0 02 1 9712-0007 ●
365 16.800 SEAL; DASH SIDE LWR
(A) 		8-97184-089-0 02 1 0008- ● ●
365 16.800 SEAL; DASH SIDE LWR
(C) 		8-97185-548-0 02 1 9712-0007 ●
365 16.800 SEAL; DASH SIDE LWR
(C) 		8-97185-548-0 02 1 0008- ● ●
