◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#37966) — 266 parça

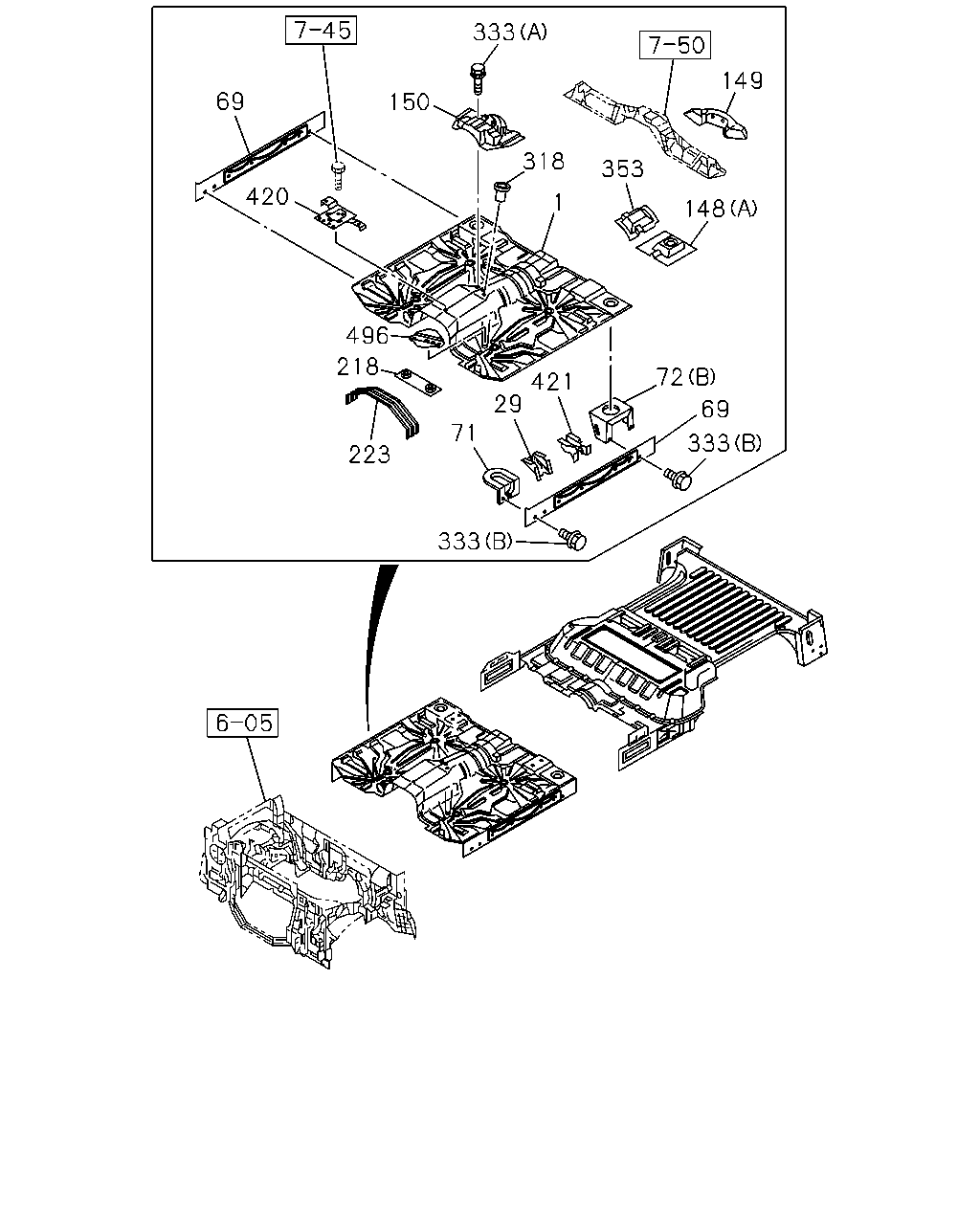

çizim 69044
333 149 69 150 318 353 420 148 496 218 72 421 29 69 71 333 223 333 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97121-265-3 01 1 9712- ●
1 16.545 PANEL; FLOOR 8-97121-264-2 01 1 9712-0007 ●
1 16.545 PANEL; FLOOR 8-97121-264-3 01 1 0008-0105 ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97121-264-3 01 1 0106- ●
1 16.545 PANEL; FLOOR 8-97121-264-3 01 1 0106- ●
1 16.545 PANEL; FLOOR
A/T THM(RMQ) 		8-97161-709-1 01 1 0106- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9712-0007 ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 0008- ● ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 9712-0007 ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 0008- ● ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 9712-0007 ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 0008- ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9712-0007 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 0008- ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9712-0007 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 0008- ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 0008- ● ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9712- ●
148 16.674 BRACKET; SEAT
(F) 		8-94359-659-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9712- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 0008-0012 ● ●
148 16.674 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101- ● ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 0008- ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9712-0007 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 0008- ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9712- ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9712-0007 ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 0008- ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9712-0007 ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 0008- ● ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9712-0007 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 0008- ● ● ●
318 16.545 NUT; COVER
16.570 M8 POP NUT 		8-94279-538-0 02 1 9712-0007 ● ●
318 16.545 NUT; COVER
16.570 M8 POP NUT 		8-94279-538-0 02 1 0008- ● ● ●
333 16.545 BOLT; BRKT
03.417 (A) M10X25 FLANGE 		0-28081-025-0 02 1 9712-0110 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9712- ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 9712-0007 ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 0008-0110 ● ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 0111- ● ● ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9712-0007 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 0008- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9712-0007 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0008- ● ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97164-322-0 01 1 9712-0007 ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97164-322-0 01 1 0008- ● ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9712-0007 ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 0008- ● ● ●
496 16.545 BRACKET; INSULATOR 8-97302-312-2 01 1 0106- ● ●
496 16.545 BRACKET; INSULATOR
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97302-312-2 01 1 0106- ●

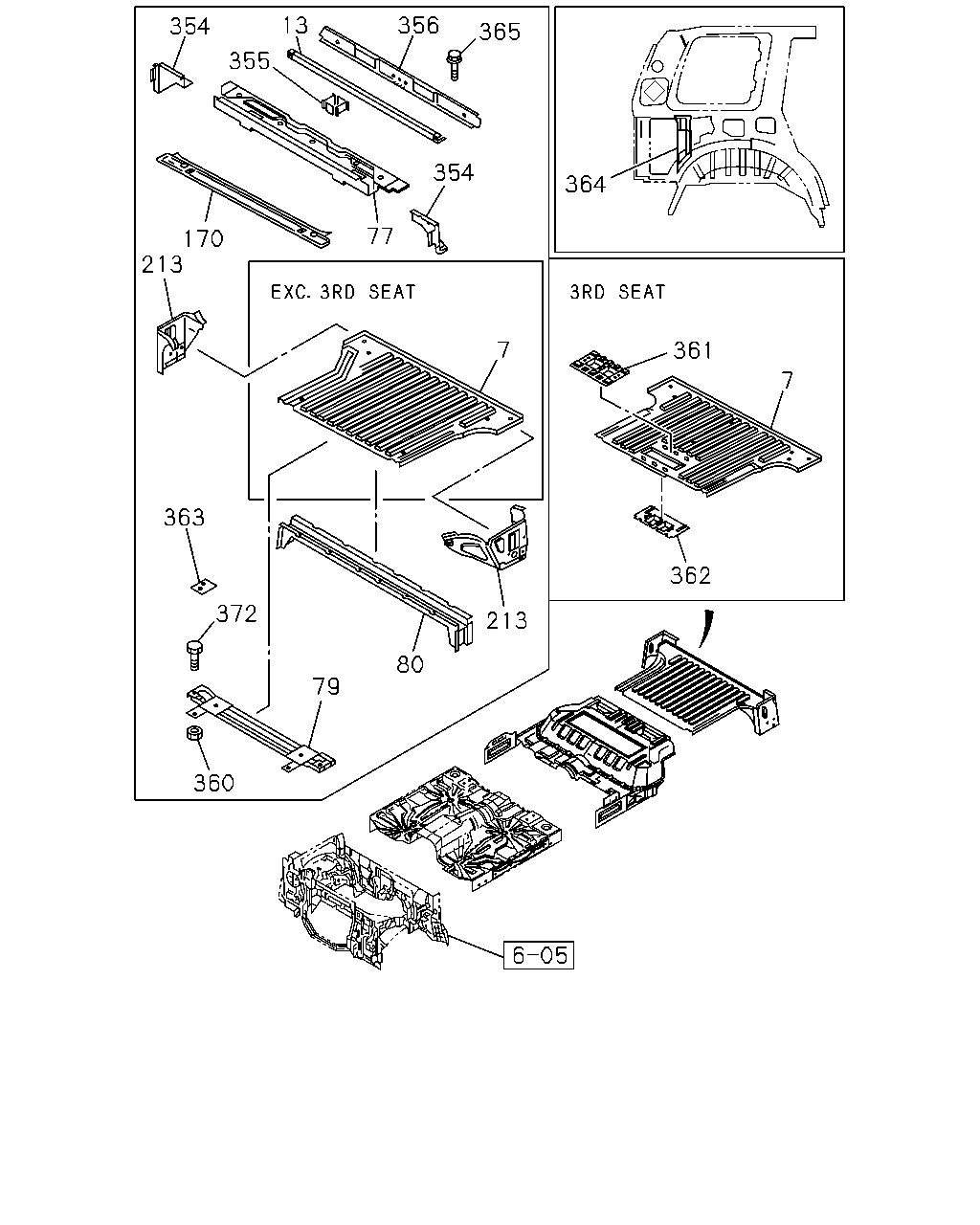

çizim 69374
13 356 354 365 355 354 364 77 170 213 7 361 7 363 362 372 213 80 79 360
BalonParca AdiParca NoAdetTipApplied Date A B C
7 16.545 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9712- ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9712-0007 ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 0008- ● ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9712-0007 ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 0008- ● ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 9712-0007 ● ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 0008- ● ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 9712-0007 ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 0008- ● ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9712-0007 ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 0008- ● ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9712-0007 ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 0008- ● ● ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9712-0007 ● ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 0008- ● ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9712-0007 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 0008- ● ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9712-0007 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 0008- ● ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9712-0007 ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 0008- ● ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9712-0007 ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 0008- ● ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-1 02 1 9712-0007 ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-1 02 1 0008- ● ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 9712-0007 ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 0008- ● ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 9712-0007 ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 0008- ● ●
360 16.545 NUT; BRKT
08.143 		8-94334-769-0 02 1 0008- ●
361 16.545 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9712- ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9712-0007 ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 0008- ● ●
362 16.545 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9712- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9712-0007 ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 0008- ● ●
363 16.545 PATCH; TETHER ANCHOR 8-97803-596-1 01 1 9712-0007 ●
363 16.545 PATCH; TETHER ANCHOR 8-97803-596-1 01 1 0008- ● ●
364 16.545 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 9712-0007 ●
364 16.545 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 0008- ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9712-0007 ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ● ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9712-0007 ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ● ●
372 16.545 BOLT; PATCH
M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ●

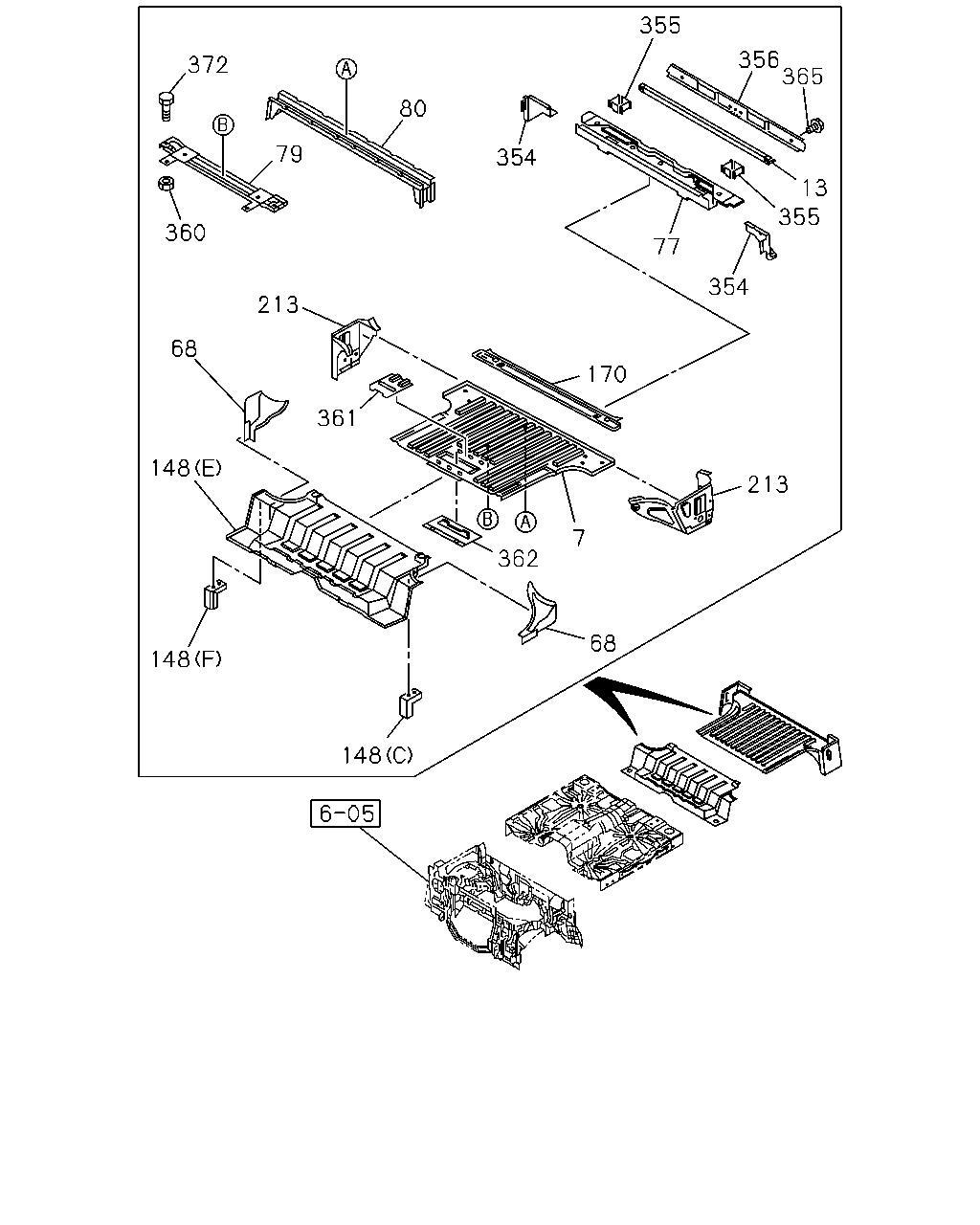

çizim 69479
355 356 365 372 80 79 354 13 355 360 77 354 213 68 170 361 148 213 7 362 68 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C
7 16.545 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9712- ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9712-0007 ●
7 16.545 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 0008- ● ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9712-0007 ●
7 16.545 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 0008- ● ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 9712-0007 ● ●
13 16.545 PANEL; FAIRING RR 8-94358-823-5 01 1 0008- ● ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-841-0 01 1 9712- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-840-0 01 1 9712- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-2 01 1 9712-0007 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-3 01 1 0008- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-2 01 1 9712-0007 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-3 01 1 0008- ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 9712-0007 ● ●
77 16.545 BOLSTER ASM; END 8-97127-025-0 01 1 0008- ● ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9712-0007 ● ●
79 16.545 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 0008- ● ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9712-0007 ● ●
80 16.545 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 0008- ● ● ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9712- ●
148 16.674 BRACKET; SEAT
(F) 		8-94359-659-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9712- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 0008-0012 ● ●
148 16.674 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101- ● ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 0008- ● ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9712-0007 ● ●
170 16.545 EXTENSION; RR FLOOR 8-94358-828-1 01 1 0008- ● ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9712-0007 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 0008- ● ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9712-0007 ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 0008- ● ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9712-0007 ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-682-3 01 1 0008- ● ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9712-0007 ● ●
354 16.545 EXTENSION; END BOLSTER 8-94359-681-3 01 1 0008- ● ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-1 02 1 9712-0007 ● ●
355 16.545 BRACKET; END BOLSTER 8-94359-683-1 02 1 0008- ● ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 9712-0007 ● ●
356 16.545 CLOSING; END BOLSTER 8-97803-733-1 01 1 0008- ● ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 9712-0007 ● ●
360 16.545 NUT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.143 		8-94334-769-0 02 1 0008- ● ●
360 16.545 NUT; BRKT
08.143 		8-94334-769-0 02 1 0008- ●
361 16.545 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9712- ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9712-0007 ●
361 16.545 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 0008- ● ●
362 16.545 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9712- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9712-0007 ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 0008- ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9712-0007 ● ●
365 16.545 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ● ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9712-0007 ● ●
372 16.545 BOLT; PATCH
EXC. EUROPE EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ● ●
372 16.545 BOLT; PATCH
M6X20 W/PL WASHER 		8-97808-622-0 02 1 0008- ●

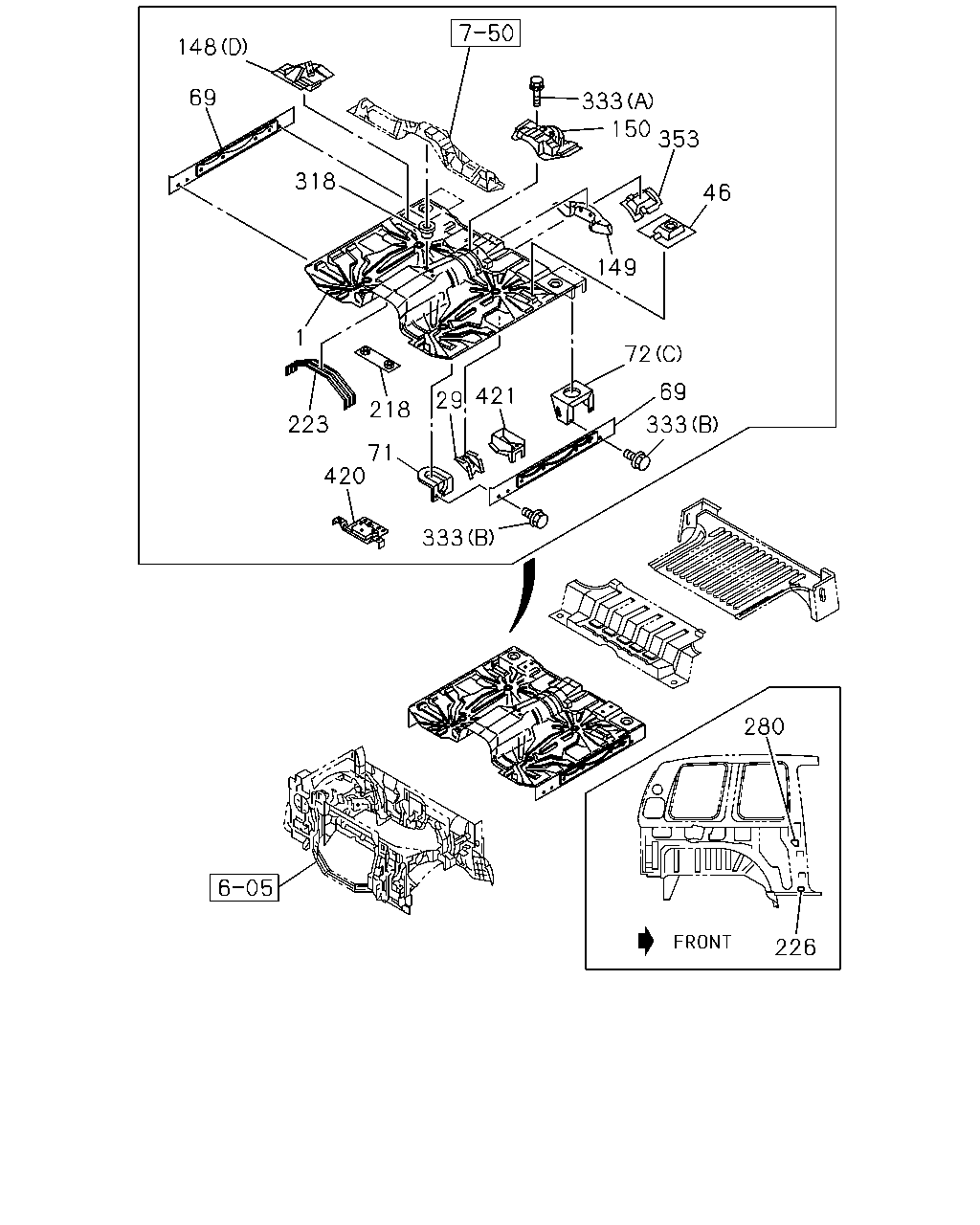

çizim 71783
148 69 333 150 353 318 46 149 1 72 69 421 29 218 223 333 71 420 333 280 226
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97121-265-3 01 1 9712- ●
1 16.545 PANEL; FLOOR 8-97121-264-2 01 1 9712-0007 ●
1 16.545 PANEL; FLOOR 8-97121-264-3 01 1 0008-0105 ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97121-264-3 01 1 0106- ●
1 16.545 PANEL; FLOOR 8-97121-264-3 01 1 0106- ●
1 16.545 PANEL; FLOOR
A/T THM(RMQ) 		8-97161-709-1 01 1 0106- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9712-0007 ● ●
29 16.545 GUSSET 8-94359-305-0 02 1 0008- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
16.674 		8-94435-642-0 01 1 9712- ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 9712-0007 ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-308-2 01 1 0008- ● ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 9712-0007 ● ●
69 16.545 PANEL; ROCKER INNER 8-94359-307-2 01 1 0008- ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9712-0007 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 0008- ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9712-0007 ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 0008- ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 0008- ● ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9712- ●
148 16.674 BRACKET; SEAT
(F) 		8-94359-659-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9712- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 0008-0012 ● ●
148 16.674 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101- ● ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 0008- ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9712-0007 ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 0008- ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9712- ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9712-0007 ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 0008- ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 9712-0007 ● ●
218 04.008 PATCH; A/T CONT LEVER 8-97800-803-1 01 1 0008- ● ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9712-0007 ● ●
223 16.650 PATCH; CONSOLE BOX 8-97109-933-0 01 1 0008- ● ● ●
226 16.585 PATCH; SEAT BELT,LWR 8-97801-964-1 02 1 9712- ●
280 16.545 PATCH; SEAT BELT 8-97803-584-1 01 1 9712- ●
280 16.545 PATCH; SEAT BELT 8-97803-583-1 01 1 9712- ●
318 16.545 NUT; COVER
16.570 M8 POP NUT 		8-94279-538-0 02 1 9712-0007 ● ●
318 16.545 NUT; COVER
16.570 M8 POP NUT 		8-94279-538-0 02 1 0008- ● ● ●
333 16.545 BOLT; BRKT
03.417 (A) M10X25 FLANGE 		0-28081-025-0 02 1 9712-0110 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9712- ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 9712-0007 ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 0008-0110 ● ●
333 16.545 BOLT; BRKT
07.832 (A) M10X25 		8-94126-841-0 02 1 0111- ● ● ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9712-0007 ●
333 16.545 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 0008- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9712-0007 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 0008- ● ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97164-322-0 01 1 9712-0007 ● ●
420 16.545 BRACKET; SENSOR,SIR 8-97164-322-0 01 1 0008- ● ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9712-0007 ● ●
421 16.545 GUSSET; CAB STOPPER 8-97121-305-2 02 1 0008- ● ● ●

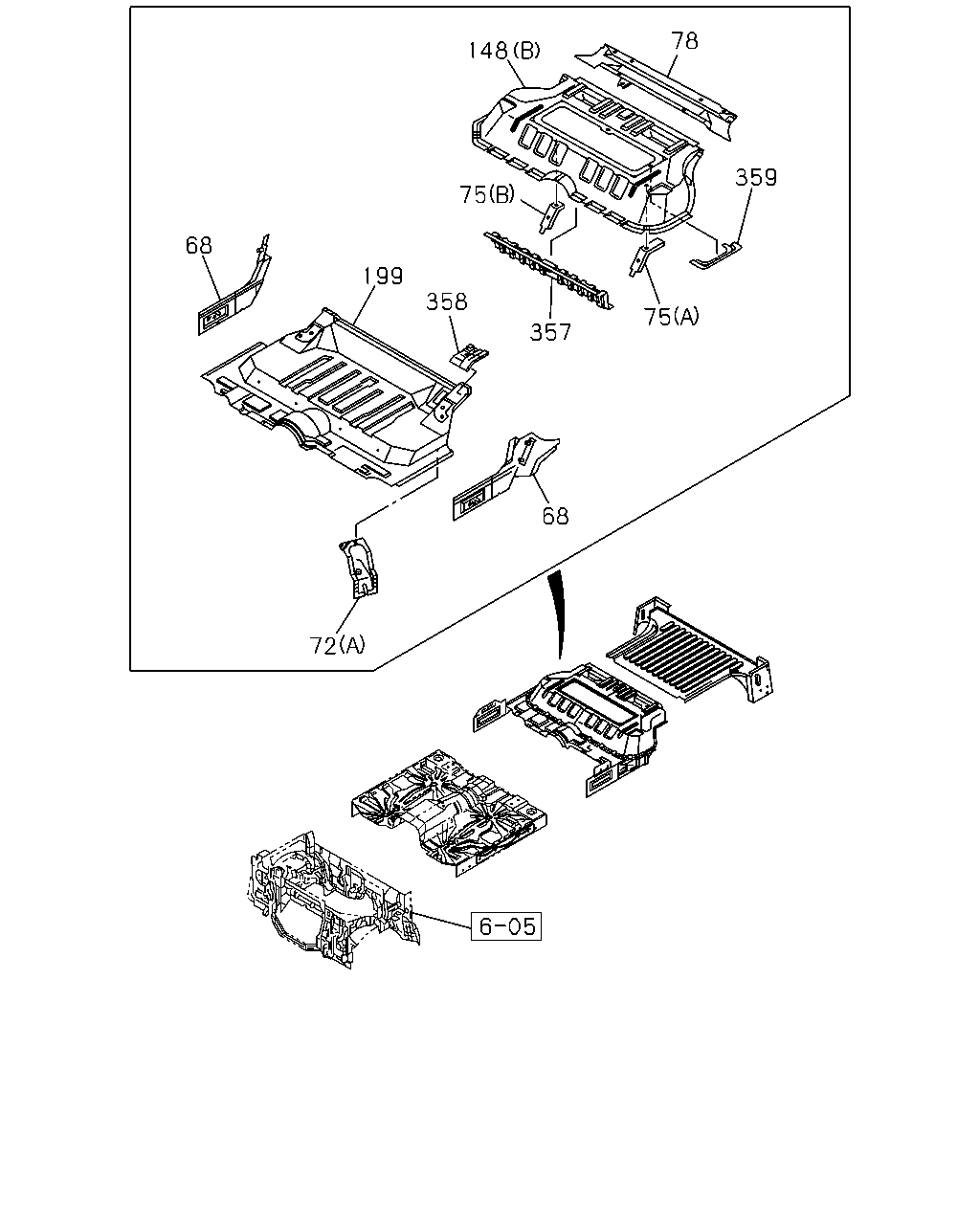

çizim 72416
78 148 359 75 68 199 358 75 357 68 72
BalonParca AdiParca NoAdetTipApplied Date A B C
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-841-0 01 1 9712- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94359-840-0 01 1 9712- ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-2 01 1 9712-0007 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-751-3 01 1 0008- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-2 01 1 9712-0007 ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-97802-750-3 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-499-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(C) 		8-97803-498-0 01 1 9712- ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 0008- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9712-0007 ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 0008- ● ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (A) 		8-94359-649-0 02 1 9712-0007 ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (A) 		8-94359-649-0 02 1 0008- ● ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (B) 		8-94359-653-1 02 1 9712-0007 ●
75 16.674 REINFORCEMENT; RR SEAT BELT,CENT
16.545 (B) 		8-94359-653-1 02 1 0008- ● ●
78 16.545 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 9712-0007 ●
78 16.545 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 0008- ● ●
148 16.674 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9712- ●
148 16.674 BRACKET; SEAT
(F) 		8-94359-659-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9712- ●
148 16.674 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9712- ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(B) 		8-94358-363-5 01 1 0008-0012 ● ●
148 16.674 BRACKET; SEAT
(B) 		8-97263-877-1 01 1 0101- ● ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9712-0007 ●
148 16.674 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 0008- ● ●
199 16.545 PANEL; RR FLOOR 8-97164-296-0 01 1 9712-0007 ●
199 16.545 PANEL; RR FLOOR 8-97164-296-1 01 1 0008- ● ●
357 16.545 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 9712-0007 ●
357 16.545 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 0008- ● ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 9712-0007 ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 0008- ● ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 9712-0007 ●
358 16.545 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 0008- ● ●
359 16.545 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 9712-0007 ●
359 16.545 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 0008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
