◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-65 - SUNROOF ▶
6-65 — SUNROOF (#37963) — 117 parça

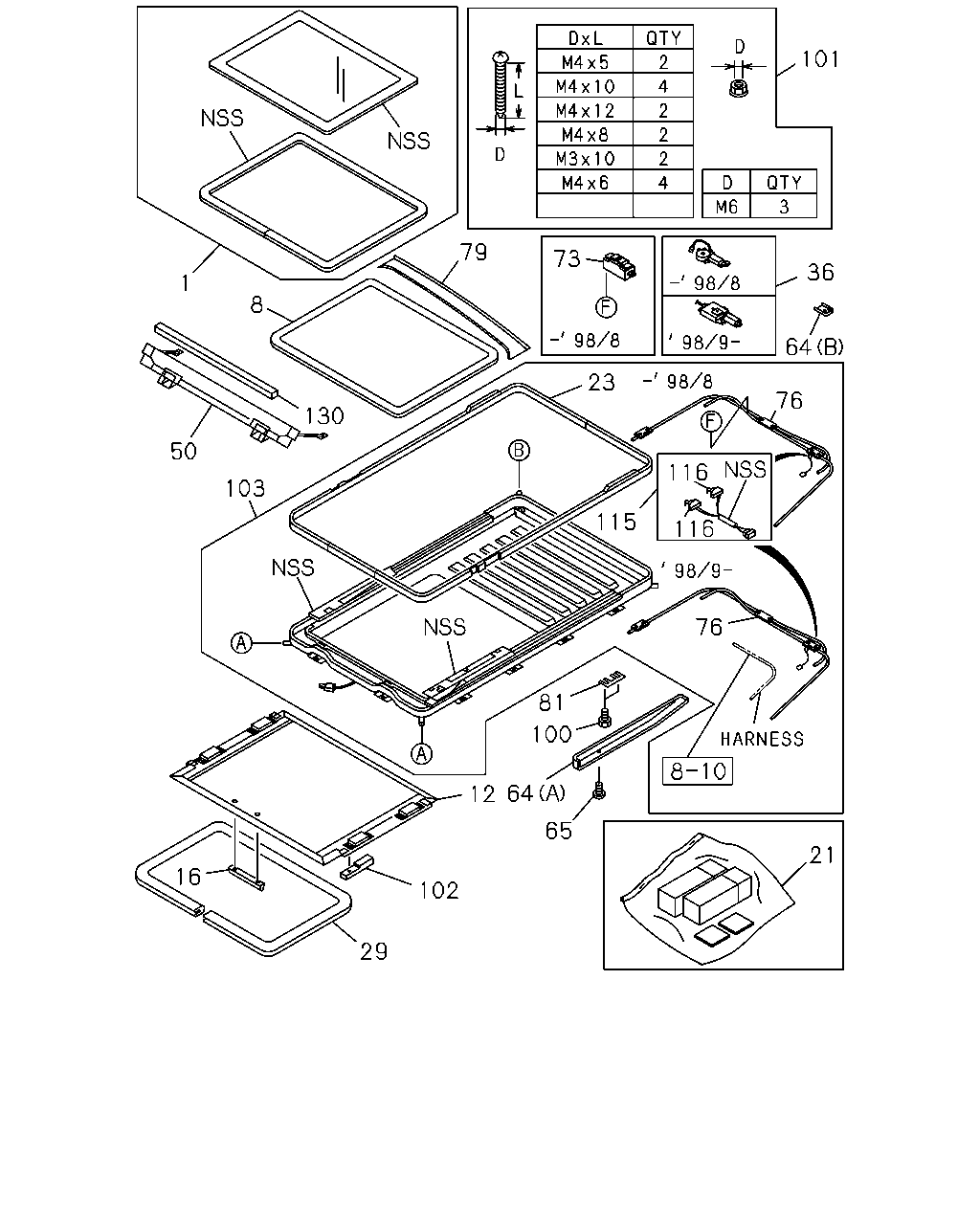

çizim 69593
101 79 73 36 1 8 64 23 76 130 50 116 103 115 116 76 81 100 64 12 65 21 16 102 29
BalonParca AdiParca NoAdetTipApplied Date A B C
1 14.090 GLASS; SUNROOF
SUNROOF<CF5> 		8-97121-755-1 01 1 9712-0007 ● ●
1 14.090 GLASS; SUNROOF
SUNROOF<CF5> 		8-97121-755-2 01 1 0008-0210 ● ● ●
1 14.090 GLASS; SUNROOF
SUNROOF<CF5> 		8-97333-700-0 01 1 0211- ● ● ●
8 16.585 WEATHERSTRIP; OUTER SUNROOF
SUNROOF<CF5> 		8-97186-458-0 01 1 9712-0007 ● ●
8 16.585 WEATHERSTRIP; OUTER SUNROOF
SUNROOF<CF5> 		8-97186-458-0 01 1 0008- ● ● ●
12 14.090 SUNSHADE; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97151-535-4 01 1 9712-9801 ● ●
12 14.090 SUNSHADE; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97196-097-0 01 1 9802-9908 ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97196-097-0 01 1 9909-9912 ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97294-775-0 01 1 0001-0007 ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97294-775-0 01 1 0008-0103 ● ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97298-766-0 01 1 0104-0105 ● ● ●
12 14.090 SUNSHADE; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97298-766-0 01 1 0106- ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97298-766-0 01 1 0106- ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-893-0 01 1 9909-9912 ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97294-776-0 01 1 0001-0007 ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97294-776-0 01 1 0008-0103 ● ●
12 14.090 SUNSHADE; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97298-767-0 01 1 0104- ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
SUNROOF<CF5> LIGHT GRAY 		8-97151-537-0 01 1 9712-9908 ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97151-537-0 01 1 9909-0007 ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97151-537-0 01 1 0008-0105 ● ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
SUNROOF<CF5> LIGHT GRAY 		8-97151-537-0 01 1 0106- ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97151-537-0 01 1 0106- ● ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-914-0 01 1 9909-0007 ●
16 14.575 LOCK; ROTARY,SUNSHADE
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-914-0 01 1 0008- ● ●
21 12.810 SEAL; RR,SUNROOF
SUNROOF<CF5> 		8-97146-874-0 01 1 9712-0007 ● ●
21 12.810 SEAL; RR,SUNROOF
SUNROOF<CF5> 		8-97146-874-0 01 1 0008- ● ● ●
23 12.810 SEAL; RUBBER,SUNROOF,CENTER
SUNROOF<CF5> 		8-97805-702-0 01 1 9712- ●
23 12.810 SEAL; RUBBER,SUNROOF,CENTER
SUNROOF<CF5> 		8-97805-701-0 01 1 9712- ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-599-2 01 1 9909-0007 ● ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-599-2 01 1 0008-0105 ● ● ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR BEIGE(181) SUNROOF<CF5> LIGHT BEIGE 		8-97290-599-2 01 1 0106- ● ●
29 16.742 FINISHER; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97098-399-2 01 1 9712-9908 ● ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97098-399-2 01 1 9909-0007 ● ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97098-399-2 01 1 0008-0105 ● ● ●
29 16.742 FINISHER; SUNROOF
SUNROOF<CF5> LIGHT GRAY 		8-97098-399-2 01 1 0106- ●
29 16.742 FINISHER; SUNROOF
INTERIOR COLOR MEDIUM GRAY(113) SUNROOF<CF5> LIGHT GRAY 		8-97098-399-2 01 1 0106- ● ●
36 14.550 MOTOR; SUNROOF
SUNROOF<CF5> 		8-97805-524-1 01 1 9712-9808 ● ●
36 14.550 MOTOR; SUNROOF
SUNROOF<CF5> 		8-97202-594-0 01 1 9809-0007 ● ●
36 14.550 MOTOR; SUNROOF
SUNROOF<CF5> 		8-97202-594-0 01 1 0008- ● ● ●
50 14.090 DEFLECTOR; SUNROOF
SUNROOF<CF5> 		8-97806-599-1 01 1 9712-0007 ● ●
50 14.090 DEFLECTOR; SUNROOF
SUNROOF<CF5> 		8-97806-599-1 01 1 0008- ● ● ●
64 14.090 COVER; SUNROOF DECORATION
SUNROOF<CF5> 14.575 (A) 		8-97805-527-0 01 1 9712-0007 ● ●
64 14.090 COVER; SUNROOF DECORATION
SUNROOF<CF5> 14.575 (A) 		8-97805-527-0 01 1 0008- ● ● ●
64 14.090 COVER; SUNROOF DECORATION
SUNROOF<CF5> 14.575 (A) 		8-97805-526-0 01 1 9712-0007 ● ●
64 14.090 COVER; SUNROOF DECORATION
SUNROOF<CF5> 14.575 (A) 		8-97805-526-0 01 1 0008- ● ● ●
64 14.090 COVER; SUNROOF DECORATION
SUNROOF<CF5> EUROPE EQUIPMENT(EK4) (B) 		8-97811-425-0 01 1 9712-9902 ● ●
65 16.585 SCREW; DECORATION COVER
SUNROOF<CF5> 16.115 M4X6 		9-03494-406-0 04 1 9712-0007 ● ●
65 16.585 SCREW; DECORATION COVER
SUNROOF<CF5> 16.115 M4X6 		9-03494-406-0 04 1 0008- ● ● ●
73 14.090 CONTROLLER; SUNROOF
SUNROOF<CF5> 		8-97810-119-0 01 1 9712-9808 ● ●
76 14.550 DRIVE UNIT; SUNROOF
SUNROOF<CF5> 		8-97805-522-0 01 1 9712-9808 ● ●
76 14.550 DRIVE UNIT; SUNROOF
SUNROOF<CF5> 		8-97202-833-0 01 1 9809-0007 ● ●
76 14.550 DRIVE UNIT; SUNROOF
SUNROOF<CF5> 		8-97202-833-0 01 1 0008- ● ● ●
79 14.575 DRAIN ASM; SUNROOF
SUNROOF<CF5> 		8-97805-523-1 01 1 9712-0007 ● ●
79 14.575 DRAIN ASM; SUNROOF
SUNROOF<CF5> 		8-97805-523-1 01 1 0008- ● ● ●
81 14.575 SHIM; SUNROOF
SUNROOF<CF5> 		8-97805-529-0 AR 1 9712-0007 ● ●
81 14.575 SHIM; SUNROOF
SUNROOF<CF5> 		8-97805-529-0 AR 1 0008- ● ● ●
100 14.090 BOLT; LID
SUNROOF<CF5> M6X9 		8-97808-813-0 AR 1 9712-0007 ● ●
100 14.090 BOLT; LID
SUNROOF<CF5> M6X9 		8-97808-813-0 AR 1 0008-0201 ● ● ●
100 14.090 BOLT; LID
SUNROOF<CF5> M6X11 		8-97808-812-0 AR 1 0202- ● ● ●
101 14.090 FIXING KIT; SUNROOF
SUNROOF<CF5> 		8-97810-404-1 01 1 9712-0007 ● ●
101 14.090 FIXING KIT; SUNROOF
SUNROOF<CF5> 		8-97810-404-1 01 1 0008- ● ● ●
102 14.090 STOPPER; SUN SHADE
SUNROOF<CF5> 		8-97810-405-0 02 1 9712-0007 ● ●
102 14.090 STOPPER; SUN SHADE
SUNROOF<CF5> 		8-97810-405-0 02 1 0008- ● ● ●
103 16.585 SUNROOF SET
SUNROOF<CF5> 		8-97184-890-0 01 1 9712-9808 ●
103 16.585 SUNROOF SET
SUNROOF<CF5> 		8-97202-587-0 01 1 9809- ●
103 16.585 SUNROOF SET
SUNROOF<CF5> 		8-97184-891-0 01 1 9712-9808 ●
103 16.585 SUNROOF SET
SUNROOF<CF5> 		8-97202-588-0 01 1 9809- ●
115 16.585 SWITCH KIT
SUNROOF<CF5> 		8-97148-298-0 01 1 9712-0007 ● ●
115 16.585 SWITCH KIT
SUNROOF<CF5> 		8-97148-298-0 01 1 0008- ● ● ●
116 16.585 SWITCH; MICRO
SUNROOF<CF5> 		8-97148-297-0 02 1 9712-0007 ● ●
116 16.585 SWITCH; MICRO
SUNROOF<CF5> 		8-97148-297-0 02 1 0008- ● ● ●
130 12.810 SEAL; SUNROOF
SUNROOF<CF5> 		8-97186-534-0 01 1 9712-0007 ● ●
130 12.810 SEAL; SUNROOF
SUNROOF<CF5> 		8-97186-534-0 01 1 0008- ● ● ●
çizim 69724
72 43 43 43 43 86 43 42 43 99 86 43 44 97 44 98 98 98 44 44 98
BalonParca AdiParca NoAdetTipApplied Date A B C
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUNROOF<CF5> 		8-97809-581-0 01 1 9712-0007 ● ●
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUNROOF<CF5> 		8-97809-581-0 01 1 0008- ● ● ●
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUNROOF<CF5> 		8-97809-580-0 01 1 9712-0007 ● ●
42 16.585 HOSE; DRAIN,FRT,SUNROOF
SUNROOF<CF5> 		8-97809-580-0 01 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> 01.219 (A) ID=13 		8-94238-571-0 04 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> 01.219 (A) ID=13 		8-94238-571-0 04 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> 02.559 (D) L=100 		8-94279-939-0 02 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> 02.559 (D) L=100 		8-94279-939-0 02 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (B) 		8-97809-577-0 08 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (B) 		8-97809-577-0 08 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (C) 		8-97809-579-0 02 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (C) 		8-97809-579-0 02 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (E) 		8-97809-576-0 01 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (E) 		8-97809-576-0 01 1 0008- ● ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (F) 		8-97809-578-0 01 1 9712-0007 ● ●
43 03.163 CLIP; DRAIN HOSE
SUNROOF<CF5> (F) 		8-97809-578-0 01 1 0008- ● ● ●
44 01.409 GROMMET; DRAIN HOSE
SUNROOF<CF5> 08.854 (A) 		5-09333-026-1 02 1 9712-0007 ● ●
44 01.409 GROMMET; DRAIN HOSE
SUNROOF<CF5> 08.854 (A) 		5-09333-026-1 02 1 0008- ● ● ●
44 01.409 GROMMET; DRAIN HOSE
SUNROOF<CF5> (B) 		8-97809-167-0 02 1 9712-0007 ● ●
44 01.409 GROMMET; DRAIN HOSE
SUNROOF<CF5> (B) 		8-97809-167-0 02 1 0008- ● ● ●
44 01.409 GROMMET; DRAIN HOSE
EXC. SUNROOF<CF5> 12.182 (C) OD=26 		8-94141-484-0 04 1 9712-0007 ● ●
44 01.409 GROMMET; DRAIN HOSE
EXC. SUNROOF<CF5> 12.182 (C) OD=26 		8-94141-484-0 04 1 0008- ● ● ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-585-0 01 1 9712- ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-584-0 01 1 9712- ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-583-0 01 1 9712-0007 ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-583-0 01 1 0008- ● ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-474-0 01 1 9712-0007 ●
72 16.585 PIPE ASM; SUNROOF DRAIN
SUNROOF<CF5> 		8-97809-474-0 01 1 0008- ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-161-2 01 1 9712- ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-160-2 01 1 9712- ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (B) 		8-97809-472-0 01 1 9712-0007 ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (B) 		8-97809-472-0 01 1 0008- ● ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (B) 		8-97809-472-0 01 1 9712-0007 ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (B) 		8-97809-472-0 01 1 0008- ● ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-159-2 01 1 9712-0007 ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-159-2 01 1 0008- ● ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-158-2 01 1 9712-0007 ●
86 16.585 HOSE; DRAIN,SUNROOF RR
SUNROOF<CF5> (A) 		8-97809-158-2 01 1 0008- ● ●
97 14.550 CUSHION; SUNROOF
SUNROOF<CF5> 		8-97809-154-1 02 1 9712-0007 ● ●
97 14.550 CUSHION; SUNROOF
SUNROOF<CF5> 		8-97809-154-1 02 1 0008- ● ● ●
98 14.472 TAPE; DRAIN HOSE
SUNROOF<CF5> 		8-97809-155-0 13 1 9712-0007 ● ●
98 14.472 TAPE; DRAIN HOSE
SUNROOF<CF5> 		8-97809-155-0 13 1 0008- ● ● ●
99 16.585 TAPE; SUNROOF
SUNROOF<CF5> 14.472 		8-97809-155-0 02 1 9712-0007 ●
99 16.585 TAPE; SUNROOF
SUNROOF<CF5> 14.472 		8-97809-155-0 02 1 0008- ● ●
