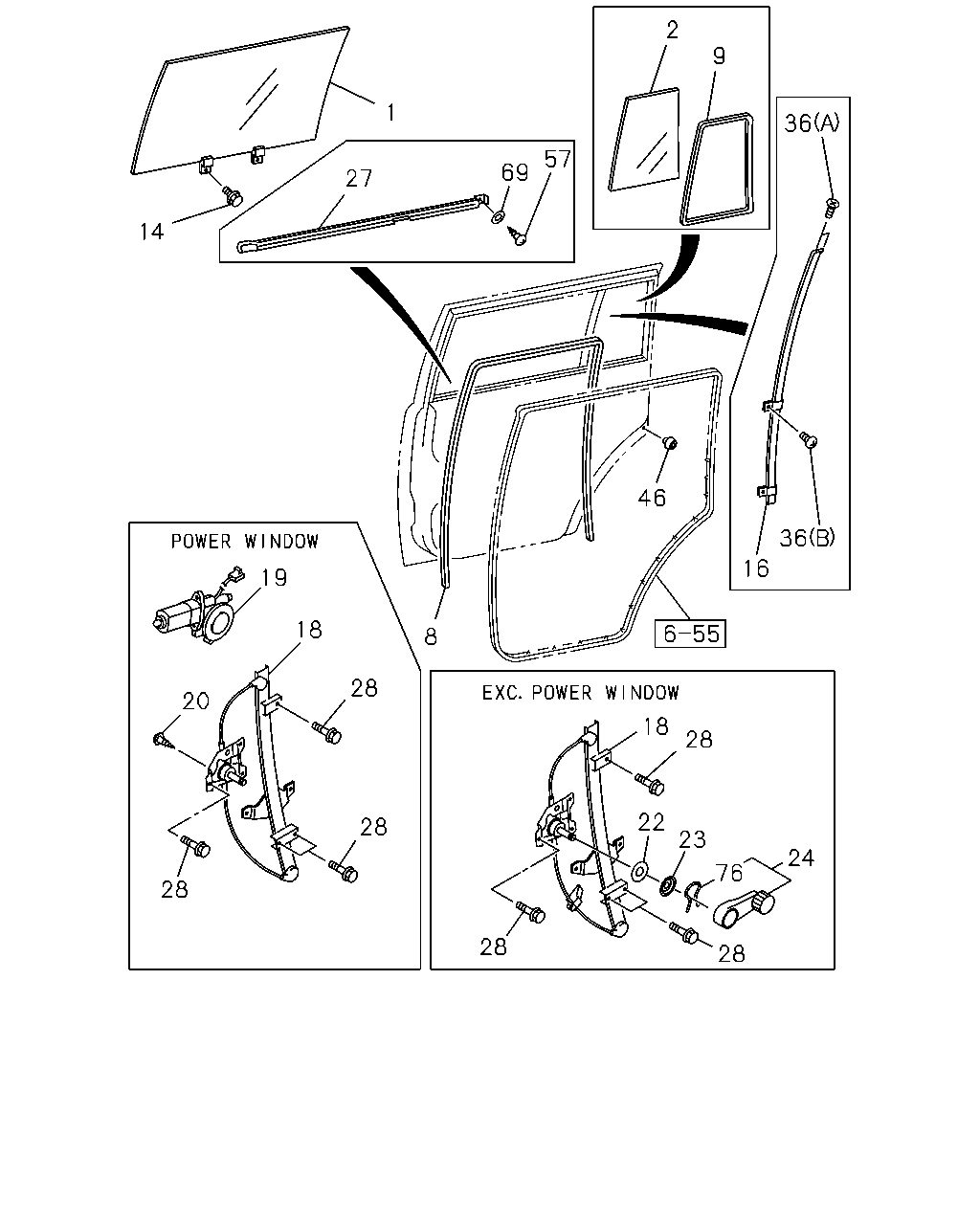

6-51 — REAR DOOR GLASS AND REGULATOR (#37959) — 108 parça

2 9 1 36 57 69 27 14 46 36 16 19 18 8 28 20 18 28 22 28 23 24 76 28 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.180 GLASS; RR DOOR GLASS ALL BRONZE(X72)	8-97810-975-2	01	1	9712-0007	●
1	16.180 GLASS; RR DOOR GLASS ALL BRONZE(X72)	8-97810-975-2	01	1	0008-	●	●
1	16.180 GLASS; RR DOOR GLASS ALL BRONZE(X72)	8-97810-974-2	01	1	9712-0007	●
1	16.180 GLASS; RR DOOR GLASS ALL BRONZE(X72)	8-97810-974-2	01	1	0008-	●	●
1	16.180 GLASS; RR DOOR EXC. GLASS ALL BRONZE(X72)	8-97121-748-2	01	1	9712-0008	●
1	16.180 GLASS; RR DOOR GLASS LAMINATED TINTED(YM4)	8-97121-748-2	01	1	0009-0105	●
1	16.180 GLASS; RR DOOR UV CUT GLASS(7UY)	8-97263-681-0	01	1	0106-	●	●
1	16.180 GLASS; RR DOOR EXC. GLASS ALL BRONZE(X72)	8-97121-747-2	01	1	9712-0008	●
1	16.180 GLASS; RR DOOR GLASS LAMINATED TINTED(YM4)	8-97121-747-2	01	1	0009-0105	●
1	16.180 GLASS; RR DOOR UV CUT GLASS(7UY)	8-97263-680-0	01	1	0106-	●	●
2	16.180 GLASS; RR DOOR,RR GLASS ALL BRONZE(X72)	8-97810-993-1	01	1	9712-0007	●
2	16.180 GLASS; RR DOOR,RR GLASS ALL BRONZE(X72)	8-97810-993-1	01	1	0008-	●	●
2	16.180 GLASS; RR DOOR,RR GLASS ALL BRONZE(X72)	8-97810-992-1	01	1	9712-0007	●
2	16.180 GLASS; RR DOOR,RR GLASS ALL BRONZE(X72)	8-97810-992-1	01	1	0008-	●	●
2	16.180 GLASS; RR DOOR,RR EXC. GLASS ALL BRONZE(X72)	8-97121-750-1	01	1	9712-0008	●
2	16.180 GLASS; RR DOOR,RR GLASS LAMINATED TINTED(YM4)	8-97121-750-1	01	1	0009-0105	●
2	16.180 GLASS; RR DOOR,RR UV CUT GLASS(7UY)	8-97263-693-0	01	1	0106-	●	●
2	16.180 GLASS; RR DOOR,RR EXC. GLASS ALL BRONZE(X72)	8-97121-749-1	01	1	9712-0008	●
2	16.180 GLASS; RR DOOR,RR GLASS LAMINATED TINTED(YM4)	8-97121-749-1	01	1	0009-0105	●
2	16.180 GLASS; RR DOOR,RR UV CUT GLASS(7UY)	8-97263-692-0	01	1	0106-	●	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-690-0	01	1	9712-0007	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-690-0	01	1	0008-	●	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-689-0	01	1	9712-0007	●
8	16.190 RUN; GLASS,RR DOOR	8-97128-689-0	01	1	0008-	●	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-614-1	01	1	9712-0007	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-614-1	01	1	0008-0008	●	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-614-1	01	1	0009-	●	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-613-1	01	1	9712-0007	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-613-1	01	1	0008-0008	●	●
9	16.225 WEATHERSTRIP; RR DOOR	8-94358-613-1	01	1	0009-	●	●
14	16.270 BOLT; RR DOOR GLASS 10.701 M6X8	8-94155-893-0	04	1	9712-0007	●
14	16.270 BOLT; RR DOOR GLASS 10.701 M6X8	8-94155-893-0	04	1	0008-	●	●
16	16.190 SASH ASM; DIVISION	8-94358-584-4	01	1	9712-0007	●
16	16.190 SASH ASM; DIVISION	8-94358-584-4	01	1	0008-	●	●
16	16.190 SASH ASM; DIVISION	8-94358-583-4	01	1	9712-0007	●
16	16.190 SASH ASM; DIVISION	8-94358-583-4	01	1	0008-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30>	8-97165-870-1	01	1	9712-0007	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30>	8-97165-870-1	01	1	0008-	●
18	16.260 REGULATOR; WINDOW,RR DOOR	8-97165-870-1	01	1	0008-		●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30>	8-97165-869-1	01	1	9712-0007	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW<A30>	8-97165-869-1	01	1	0008-	●
18	16.260 REGULATOR; WINDOW,RR DOOR	8-97165-869-1	01	1	0008-		●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97164-500-1	01	1	9712-	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW<A30>	8-97164-499-1	01	1	9712-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97165-872-1	01	1	9712-0007	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97165-872-1	01	1	0008-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR	8-97165-872-1	01	1	0008-		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97165-871-1	01	1	9712-0005	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW<A30>	8-97165-871-1	01	1	0106-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR	8-97165-871-1	01	1	0106-		●
20	16.270 SCREW POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER	9-03910-614-0	06	1	9712-0007	●
20	16.270 SCREW 01.277 M6X14 W/LK WASHER	9-03910-614-0	06	1	0008-	●	●
20	16.270 SCREW POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER	9-03910-614-0	06	1	0008-	●
20	16.270 SCREW 01.277 M6X14 W/LK WASHER	9-03910-614-0	06	1	0008-		●
22	16.270 GASKET; DUST SEAL,WINDOW REG EXC. POWER WINDOW<A30> 10.783	8-94106-830-1	02	1	9712-	●
23	16.270 ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30> 10.805	8-94220-668-1	02	1	9712-	●
24	16.270 HANDLE; WINDOW REG,RR DOOR EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY	8-97151-346-0	02	1	9712-9908	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY	8-97151-346-0	02	1	9909-0005	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. POWER WINDOW<A30> DARK GRAY	8-97151-346-0	02	1	0006-	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> LIGHT BEIGE	8-97291-381-0	02	1	9909-0005	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. POWER WINDOW<A30> LIGHT BEIGE	8-97291-381-0	02	1	0006-0105	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BEIGE(181) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) LIGHT BEIGE	8-97290-627-0	02	1	9909-0005	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR BEIGE(181) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) LIGHT BEIGE	8-97290-627-0	02	1	0006-0105	●
24	16.270 HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY	8-97098-453-0	02	1	9712-9908	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY	8-97098-453-0	02	1	9909-0005	●
24	16.270 HANDLE; WINDOW REG,RR DOOR INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY	8-97098-453-0	02	1	0006-	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	9712-9908	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	0006-0007	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	0006-0007	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	0008-	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-663-3	01	1	0008-	●
27	16.183 SEAL; WAIST,RR DOOR	8-94358-663-3	01	1	0008-		●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	9712-9908	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	0006-0007	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	0006-0007	●
27	16.183 SEAL; WAIST,RR DOOR GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	0008-	●
27	16.183 SEAL; WAIST,RR DOOR BRIGHT PARTS PACKAGE<6CX>	8-94358-662-3	01	1	0008-	●
27	16.183 SEAL; WAIST,RR DOOR	8-94358-662-3	01	1	0008-		●
27	16.183 SEAL; WAIST,RR DOOR EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-618-5	01	1	9712-9908	●
27	16.183 SEAL; WAIST,RR DOOR GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-618-5	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>	8-94358-618-5	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-618-6	01	1	0006-	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ)	8-94358-618-6	01	1	0006-	●
27	16.183 SEAL; WAIST,RR DOOR EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-617-5	01	1	9712-9908	●
27	16.183 SEAL; WAIST,RR DOOR GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-617-5	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>	8-94358-617-5	01	1	9909-0005	●
27	16.183 SEAL; WAIST,RR DOOR GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX>	8-94358-617-6	01	1	0006-	●
27	16.183 SEAL; WAIST,RR DOOR EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ)	8-94358-617-6	01	1	0006-	●
28	16.181 BOLT; WINDOW REG 10.701 M6X8	8-94155-893-0	14	1	9712-0007	●
28	16.181 BOLT; WINDOW REG 10.701 M6X8	8-94155-893-0	14	1	0008-	●	●
36	16.320 SCREW; DIVISION SASH 10.701 (B) M6X8	8-94155-893-0	04	1	9712-0007	●
36	16.320 SCREW; DIVISION SASH 10.701 (B) M6X8	8-94155-893-0	04	1	0008-	●	●
36	16.320 SCREW; DIVISION SASH 10.747 (A) M4X8	9-03800-408-0	02	1	9712-0007	●
36	16.320 SCREW; DIVISION SASH 10.747 (A) M4X8	9-03800-408-0	02	1	0008-	●	●
46	16.400 BUFFER; RR DOOR	8-94358-581-0	02	1	9712-0007	●
46	16.400 BUFFER; RR DOOR	8-94358-581-0	02	1	0008-0101	●	●
46	16.400 BUFFER; RR DOOR	8-97304-237-0	02	1	0102-	●	●
57	16.183 SCREW; WAIST OUTER SEAL	8-97802-968-1	02	1	9712-0007	●
57	16.183 SCREW; WAIST OUTER SEAL	8-97802-968-1	02	1	0008-	●	●
69	16.225 WASHER; WAIST SEAL 08.054 D=16	8-94427-941-0	02	1	9712-0007	●
69	16.225 WASHER; WAIST SEAL 08.054 D=16	8-94427-941-0	02	1	0008-	●	●
76	16.260 PIN EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) 16.270	8-94220-591-0	02	1	9712-0005	●		●
76	16.260 PIN EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 16.270	8-94220-591-0	02	1	0006-0105	●
76	16.260 PIN INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 16.270	8-94220-591-0	02	1	0106-	●
