◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#37958) — 97 parça

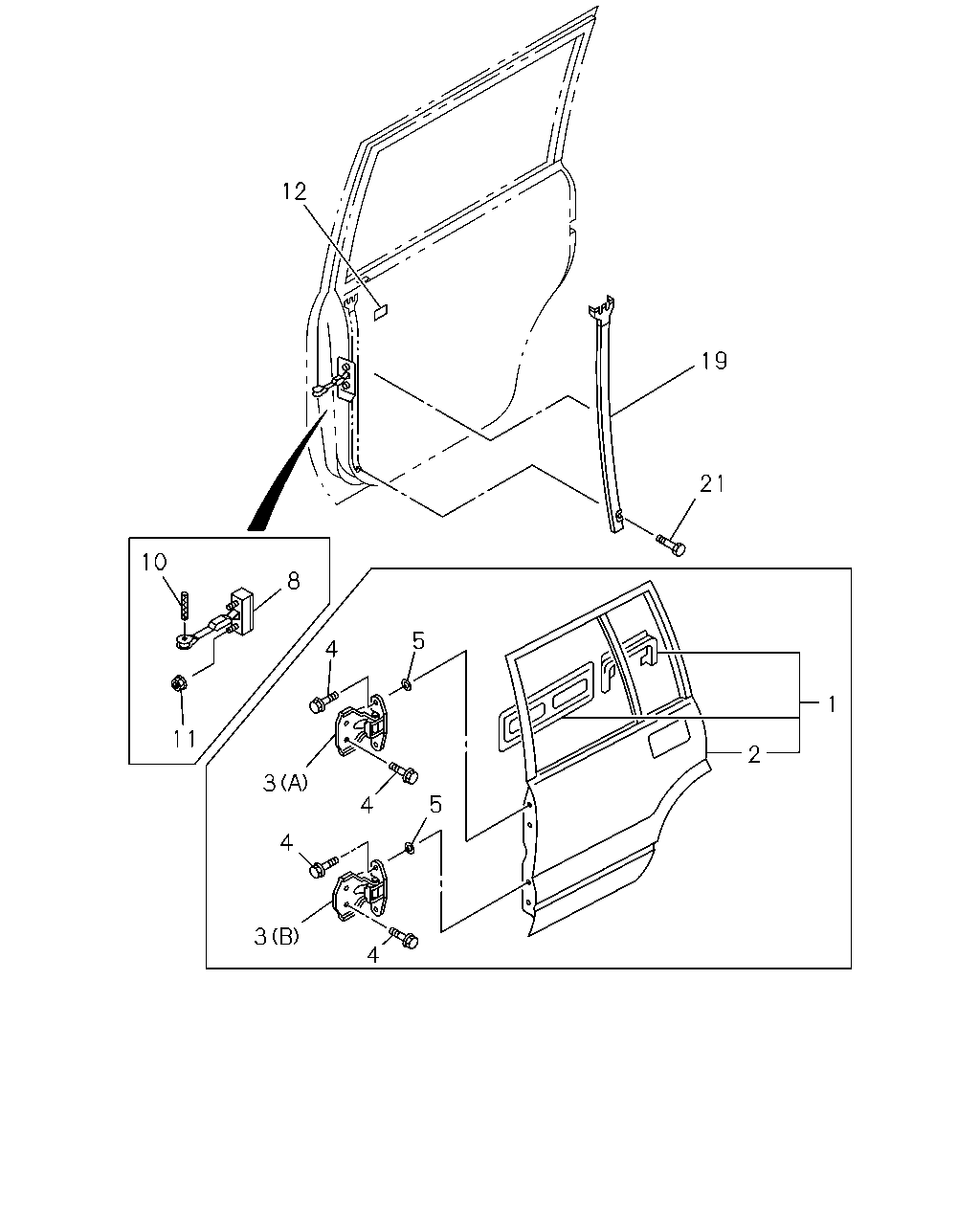

çizim 69826
12 19 21 10 8 5 4 1 11 2 3 5 4 4 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 9801-9908 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 0006-0301 ●
1 16.150 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-461-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 9801-9908 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 0006-0301 ●
1 16.150 DOOR ASM; REAR
EXC. OVER FENDER<6GH> 		8-97184-460-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) 		8-97184-461-0 01 1 9712-9712 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) 		8-97184-460-0 01 1 9712-9712 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-458-0 01 1 9712-9908 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) OVER FENDER<6GH> 		8-97184-458-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-458-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) OVER FENDER<6GH> 		8-97184-458-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-458-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-458-0 01 1 0006-0007 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-458-0 01 1 0008-0301 ●
1 16.150 DOOR ASM; REAR 8-97184-458-0 01 1 0008-0301 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-458-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR 8-97184-458-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-459-0 01 1 9712-9908 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) OVER FENDER<6GH> 		8-97184-459-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-459-0 01 1 9909-9912 ●
1 16.150 DOOR ASM; REAR
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) OVER FENDER<6GH> 		8-97184-459-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97184-459-0 01 1 0001-0005 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-459-0 01 1 0006-0007 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-459-0 01 1 0008-0301 ●
1 16.150 DOOR ASM; REAR 8-97184-459-0 01 1 0008-0301 ●
1 16.150 DOOR ASM; REAR
OVER FENDER<6GH> 		8-97184-459-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR 8-97184-459-0 01 1 0302- ●
1 16.150 DOOR ASM; REAR
EXC. EUROPE EQUIPMENT(EK4) 		8-97171-150-0 01 1 9712-9712 ●
1 16.150 DOOR ASM; REAR
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97171-150-0 01 1 9801-0005 ●
1 16.150 DOOR ASM; REAR
EXC. EUROPE EQUIPMENT(EK4) 		8-97171-149-0 01 1 9712-9712 ●
1 16.150 DOOR ASM; REAR
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97171-149-0 01 1 9801-0005 ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-012-2 01 1 9712-9908 ●
2 16.152 PANEL; RR DOOR OUTER
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) OVER FENDER<6GH> 		8-97103-012-2 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-012-2 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) OVER FENDER<6GH> 		8-97103-012-2 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-012-2 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-012-2 01 1 0006-0007 ●
2 16.152 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-012-2 01 1 0008- ●
2 16.152 PANEL; RR DOOR OUTER 8-97103-012-2 01 1 0008- ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-011-2 01 1 9712-9908 ●
2 16.152 PANEL; RR DOOR OUTER
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2) OVER FENDER<6GH> 		8-97103-011-2 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-011-2 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
AIR BAG DRIVER<AJ3> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) OVER FENDER<6GH> 		8-97103-011-2 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
EUROPE EQUIPMENT(EK4) OVER FENDER<6GH> 		8-97103-011-2 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-011-2 01 1 0006-0007 ●
2 16.152 PANEL; RR DOOR OUTER
OVER FENDER<6GH> 		8-97103-011-2 01 1 0008- ●
2 16.152 PANEL; RR DOOR OUTER 8-97103-011-2 01 1 0008- ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-377-3 01 1 9712-9712 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-377-3 01 1 9801-9908 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-377-3 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-94358-377-3 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-377-3 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-94358-377-3 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-94358-377-3 01 1 0006- ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-376-3 01 1 9712-9712 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-376-3 01 1 9801-9908 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-376-3 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
SAUDI ARABIA EQUIPMENT(EU2),ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-94358-376-3 01 1 9909-9912 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-376-3 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),ARGENTINA EQUIPMENT(7SZ) EXC. OVER FENDER<6GH> 		8-94358-376-3 01 1 0001-0005 ●
2 16.152 PANEL; RR DOOR OUTER
EXC. OVER FENDER<6GH> 		8-94358-376-3 01 1 0006- ●
3 16.335 HINGE; RR DOOR
(A) 		8-97076-891-0 01 1 9712-0007 ●
3 16.335 HINGE; RR DOOR
(A) 		8-97076-891-0 01 1 0008- ● ●
3 16.335 HINGE; RR DOOR
(B) 		8-97076-893-0 01 1 9712-0007 ●
3 16.335 HINGE; RR DOOR
(B) 		8-97076-893-0 01 1 0008- ● ●
3 16.335 HINGE; RR DOOR
(A) 		8-97076-890-0 01 1 9712-0007 ●
3 16.335 HINGE; RR DOOR
(A) 		8-97076-890-0 01 1 0008- ● ●
3 16.335 HINGE; RR DOOR
(B) 		8-97076-892-0 01 1 9712-0007 ●
3 16.335 HINGE; RR DOOR
(B) 		8-97076-892-0 01 1 0008- ● ●
4 16.335 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 16 1 9712-0007 ●
4 16.335 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 16 1 0008- ● ●
5 16.320 WASHER; PL,HINGE TO DOOR
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9712-0007 ●
5 16.320 WASHER; PL,HINGE TO DOOR
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 0008-0106 ● ●
5 16.320 WASHER; PL,HINGE TO DOOR 8-97308-583-0 04 1 0107- ● ●
8 16.320 ARM; CHECK,RR DOOR 8-94358-620-0 02 1 9712-0007 ●
8 16.320 ARM; CHECK,RR DOOR 8-94358-620-1 02 1 0008- ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-97020-859-0 02 1 9712-0007 ●
10 16.320 PIN; CHECK ARM
10.455 		8-97020-859-0 02 1 0008- ● ●
11 16.320 NUT
07.829 M6 FLANGE 		5-09440-004-0 04 1 9712-0007 ●
11 16.320 NUT
07.829 M6 FLANGE 		5-09440-004-0 04 1 0008- ● ●
12 16.165 SEAL; DOOR INNER PANEL 8-97808-226-1 02 1 9712-0007 ●
12 16.165 SEAL; DOOR INNER PANEL 8-97808-226-1 02 1 0008- ● ●
19 16.320 RAIL; FRT GUIDE,RR DOOR 8-97810-351-1 01 1 9712-0007 ●
19 16.320 RAIL; FRT GUIDE,RR DOOR 8-97810-351-1 01 1 0008- ● ●
19 16.320 RAIL; FRT GUIDE,RR DOOR 8-97810-350-1 01 1 9712-0007 ●
19 16.320 RAIL; FRT GUIDE,RR DOOR 8-97810-350-1 01 1 0008- ● ●
21 16.320 BOLT; GUIDE RAIL
10.701 M6X8 		8-94155-893-0 02 1 9712-0007 ●
21 16.320 BOLT; GUIDE RAIL
10.701 M6X8 		8-94155-893-0 02 1 0008- ● ●
