6-31 — FRONT DOOR GLASS AND REGULATOR (#37951) — 158 parça

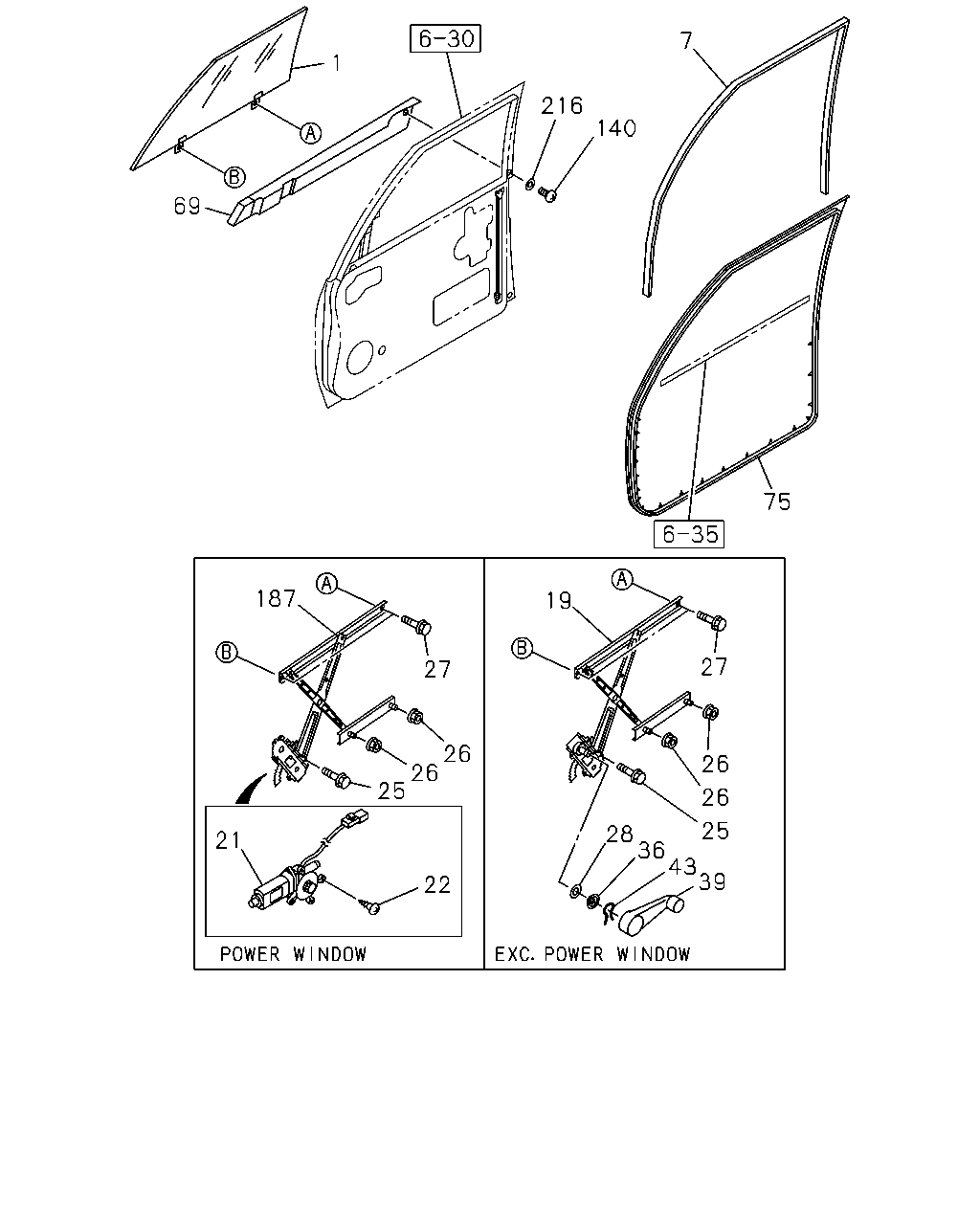

çizim 68898
7 1 216 140 69 75 187 19 27 27 26 26 25 26 26 25 28 36 43 39 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-220-2 01 1 9712-0007 ● ●
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-220-2 01 1 0008-0105 ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97811-220-2 01 1 0008-0105 ●
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-220-2 01 1 0106- ● ● ●
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-219-2 01 1 9712-0007 ● ●
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-219-2 01 1 0008-0105 ● ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97811-219-2 01 1 0008-0105 ●
1 16.180 GLASS; FRT DOOR
GLASS ALL BRONZE(X72) ASAHI 		8-97811-219-2 01 1 0106- ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. GLASS ALL BRONZE(X72) 		8-97121-780-2 01 1 9712-0008 ● ●
1 16.180 GLASS; FRT DOOR
GLASS LAMINATED TINTED(YM4) 		8-97121-780-2 01 1 0009-0105 ● ●
1 16.180 GLASS; FRT DOOR
UV CUT GLASS(7UY) 		8-97263-677-0 01 1 0106- ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. GLASS ALL BRONZE(X72) 		8-97121-779-2 01 1 9712-0008 ● ●
1 16.180 GLASS; FRT DOOR
GLASS LAMINATED TINTED(YM4) 		8-97121-779-2 01 1 0009-0105 ● ●
1 16.180 GLASS; FRT DOOR
UV CUT GLASS(7UY) 		8-97263-676-0 01 1 0106- ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-688-0 01 1 9712-0007 ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-688-0 01 1 0008- ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-687-0 01 1 9712-0007 ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97128-687-0 01 1 0008- ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-572-4 01 1 9712- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94358-571-4 01 1 9712- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-864-0 01 1 9712-0007 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-864-0 01 1 0008- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-864-0 01 1 0008- ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-863-0 01 1 9712-0007 ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97165-863-0 01 1 0008- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR 8-97165-863-0 01 1 0008- ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER 		9-03910-614-0 06 1 9712-0007 ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A30> 01.277 M6X14 W/LK WASHER 		9-03910-614-0 06 1 0008- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
01.277 M6X14 W/LK WASHER 		9-03910-614-0 06 1 0008- ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 08 1 9712-0007 ● ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 08 1 0008- ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
07.829 M6 FLANGE 		5-09440-004-0 04 1 9712-0007 ● ●
26 16.270 NUT; FLANGE,WINDOW REG
07.829 M6 FLANGE 		5-09440-004-0 04 1 0008- ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 9712-0007 ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 0008- ● ● ●
28 16.155 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 10.783 		8-94106-830-1 02 1 9712- ● ●
36 16.270 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 10.805 		8-94220-668-1 02 1 9712- ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 9712-9908 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 9909-0005 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 0006-0105 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 0106- ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 0106- ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) EXC. POWER WINDOW<A30> LIGHT BEIGE 		8-97291-381-0 02 1 9909-0005 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. POWER WINDOW<A30> LIGHT BEIGE 		8-97291-381-0 02 1 0006-0105 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) LIGHT BEIGE 		8-97290-627-0 02 1 9909-0005 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR BEIGE(181) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) LIGHT BEIGE 		8-97290-627-0 02 1 0006-0105 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-453-0 02 1 9712-9908 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-453-0 02 1 9909-0005 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97098-453-0 02 1 0006-0105 ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) DARK GRAY 		8-97098-453-0 02 1 0106- ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97098-453-0 02 1 0106- ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) 		8-94220-591-0 02 1 9712-0005 ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94220-591-0 02 1 0006-0105 ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4) 		8-94220-591-0 02 1 0106- ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
INTERIOR COLOR MEDIUM GRAY(113) EXC. POWER WINDOW<A30>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94220-591-0 02 1 0106- ●
69 16.225 SEAL; DOOR WAIST 8-94358-616-7 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST
EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-616-7 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST 8-94358-616-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-616-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX> 		8-94358-616-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST 8-94358-616-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-616-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-94358-616-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST 8-94358-615-7 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST
EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-615-7 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST 8-94358-615-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-615-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX> 		8-94358-615-7 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST 8-94358-615-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-615-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-94358-615-8 01 1 0006- ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 0006-0007 ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 0006-0007 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 0008- ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-661-6 01 1 0008- ●
69 16.225 SEAL; DOOR WAIST 8-94358-661-6 01 1 0008- ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 9712-9908 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 9909-0005 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 0006-0007 ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 0006-0007 ●
69 16.225 SEAL; DOOR WAIST
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 0008- ●
69 16.225 SEAL; DOOR WAIST
BRIGHT PARTS PACKAGE<6CX> 		8-94358-660-6 01 1 0008- ●
69 16.225 SEAL; DOOR WAIST 8-94358-660-6 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-680-1 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-680-1 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-680-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-680-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX> 		8-97128-680-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-680-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-680-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-97128-680-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97260-783-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97260-783-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-97260-783-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-679-1 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-679-1 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-679-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-679-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX> 		8-97128-679-1 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97128-679-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-679-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-97128-679-1 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97260-782-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE S/SE(RBA) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97260-782-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
EXC. EUROPE EQUIPMENT(EK4),BRIGHT PARTS PACKAGE<6CX>,ARGENTINA EQUIPMENT(7SZ) 		8-97260-782-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-682-0 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-682-0 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-682-0 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-682-0 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-682-0 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97260-785-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97260-785-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97260-785-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-681-0 01 1 9712-9908 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-681-0 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-681-0 01 1 9909-0004 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97128-681-0 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97128-681-0 01 1 0005-0007 ●
75 16.183 WEATHERSTRIP; FRT DOOR
GRADE LS/LTD(RBD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. BRIGHT PARTS PACKAGE<6CX> 		8-97260-784-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR
BRIGHT PARTS PACKAGE<6CX> 		8-97260-784-1 01 1 0008- ●
75 16.183 WEATHERSTRIP; FRT DOOR 8-97260-784-1 01 1 0008- ●
140 16.183 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 9712-0007 ● ●
140 16.183 SCREW; SUPPORT,DOOR SEAL 8-97802-968-1 02 1 0008- ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-862-2 01 1 9712-0007 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-862-4 01 1 0008- ● ●
187 16.260 REGULATOR ASM; DOOR 8-97165-862-4 01 1 0008- ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-861-2 01 1 9712-0007 ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97165-861-4 01 1 0008- ● ●
187 16.260 REGULATOR ASM; DOOR 8-97165-861-4 01 1 0008- ●
216 16.225 WASHER; WAIST SEAL
08.054 D=16 		8-94427-941-0 02 1 9712-0007 ● ●
216 16.225 WASHER; WAIST SEAL
08.054 D=16 		8-94427-941-0 02 1 0008- ● ● ●
çizim 69116
230 125 78 9 72 91 72
BalonParca AdiParca NoAdetTipApplied Date A B C
9 16.400 BUFFER; DOOR GLASS RUN 8-94358-581-0 04 1 9712-0007 ● ●
9 16.400 BUFFER; DOOR GLASS RUN 8-94358-581-0 04 1 0008-0101 ● ● ●
9 16.400 BUFFER; DOOR GLASS RUN 8-97304-237-0 04 1 0102- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-579-3 01 1 9712-0007 ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-579-3 01 1 0008- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-401-0 01 1 9712-0007 ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-401-0 01 1 0008- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-578-3 01 1 9712-0007 ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) 		8-97137-578-3 01 1 0008- ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-400-0 01 1 9712-0007 ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) 		8-97139-400-0 01 1 0008- ● ● ●
78 16.190 RAIL; FRT GUIDE 8-97810-349-1 01 1 9712-0007 ● ●
78 16.190 RAIL; FRT GUIDE 8-97810-349-1 01 1 0008- ● ● ●
78 16.190 RAIL; FRT GUIDE 8-97810-348-1 01 1 9712-0007 ● ●
78 16.190 RAIL; FRT GUIDE 8-97810-348-1 01 1 0008- ● ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 9712-0007 ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 0008- ● ● ●
125 16.183 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> 		8-97800-163-4 02 1 9712-0007 ● ●
125 16.183 SHEET; WATER PROOF,FRT DOOR
POWER WINDOW<A30> 		8-97800-163-4 02 1 0008- ● ●
125 16.183 SHEET; WATER PROOF,FRT DOOR 8-97800-163-4 02 1 0008- ●
125 16.183 SHEET; WATER PROOF,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97800-161-4 02 1 9712- ● ●
230 16.165 SEAL; DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9712-0007 ● ●
230 16.165 SEAL; DOOR
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
