◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#37950) — 71 parça

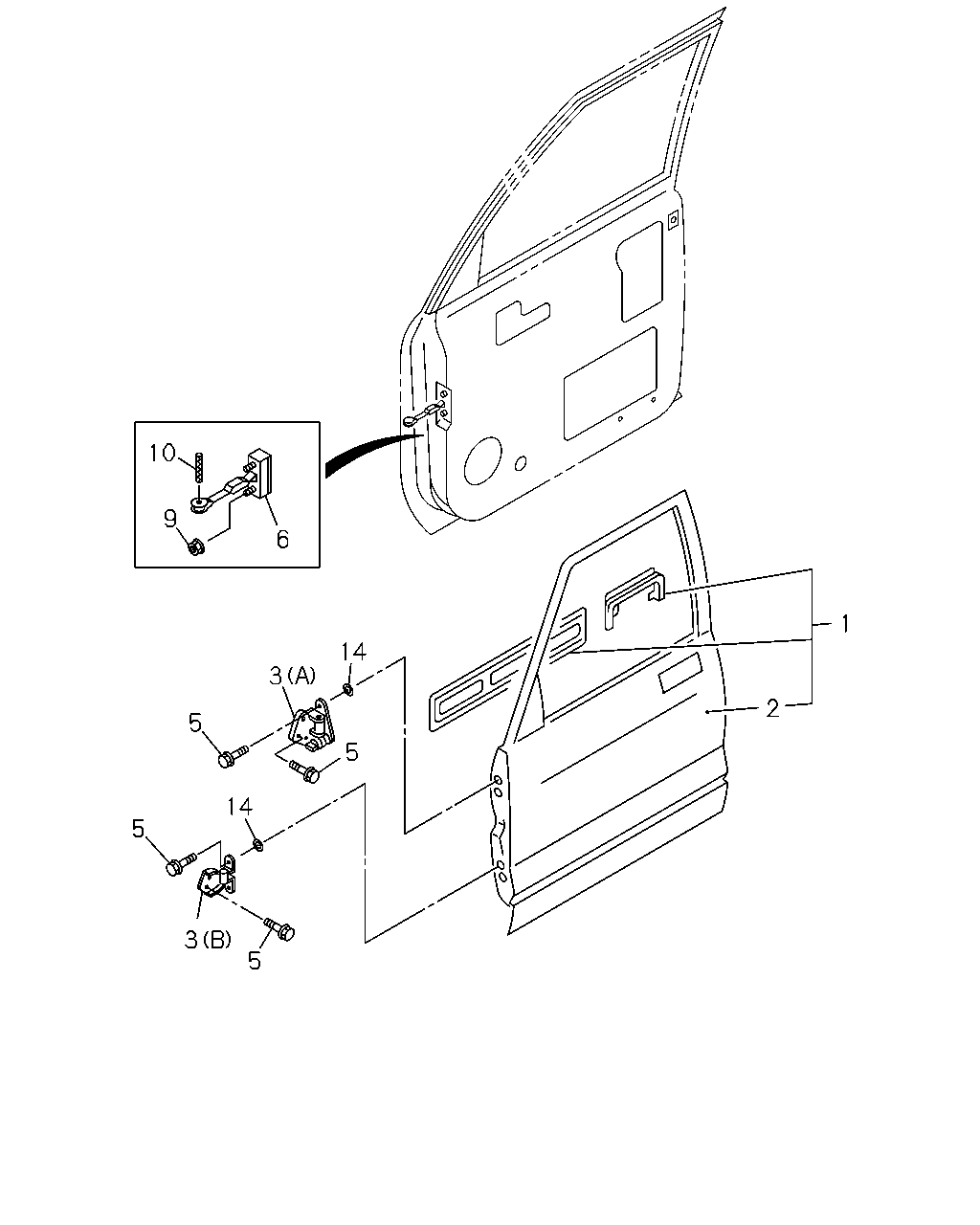

çizim 69543
10 9 6 1 14 3 2 5 5 14 5 3 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97184-456-0 01 1 9712-9908 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97184-455-0 01 1 9712-9908 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-959-0 01 1 9712-9908 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-958-0 01 1 9712-9811 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97213-209-0 01 1 9812-9908 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2) AIR BAG DRIVER<AJ3> 		8-97170-967-0 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-967-0 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) AIR BAG DRIVER<AJ3> 		8-97170-967-0 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-967-0 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97170-967-0 01 1 0006-0007 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97170-967-1 01 1 0008-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97364-855-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2) AIR BAG DRIVER<AJ3> 		8-97170-966-0 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-966-0 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) AIR BAG DRIVER<AJ3> 		8-97170-966-0 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97170-966-0 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97170-966-0 01 1 0006-0007 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97170-966-1 01 1 0008-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97364-854-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. AIR BAG DRIVER<AJ3> 		8-97213-210-1 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97213-210-1 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2) EXC. AIR BAG DRIVER<AJ3> 		8-97213-210-1 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97213-210-1 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) EXC. AIR BAG DRIVER<AJ3> 		8-97213-209-1 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97213-209-1 01 1 9909-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(EU2) EXC. AIR BAG DRIVER<AJ3> 		8-97213-209-1 01 1 0001-0005 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97213-209-1 01 1 0001-0005 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-373-2 01 1 9712-9811 ● ●
2 16.152 PANEL; FRT DOOR OUTER
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-373-2 01 1 9812-9908 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-373-2 01 1 9909-0007 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-373-3 01 1 0008- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-372-2 01 1 9712-9811 ● ●
2 16.152 PANEL; FRT DOOR OUTER
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-372-2 01 1 9812-9908 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-372-2 01 1 9909-0007 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94358-372-3 01 1 0008- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-373-2 01 1 9812-9908 ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-94358-372-2 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-314-2 01 1 9712-9811 ● ●
3 16.320 HINGE; DOOR FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 10.454 (B) LOWER 		8-94155-314-2 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-314-2 01 1 9909-0007 ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-314-2 01 1 0008- ● ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-392-4 01 1 9712-9811 ● ●
3 16.320 HINGE; DOOR FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) UPPER 		8-94230-392-4 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-392-4 01 1 9909-0007 ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-392-4 01 1 0008- ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-315-2 01 1 9712-9811 ● ●
3 16.320 HINGE; DOOR FRT
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 10.454 (B) LOWER 		8-94155-315-2 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-393-4 01 1 9712-9811 ● ●
3 16.320 HINGE; DOOR FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) UPPER 		8-94230-393-4 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-393-4 01 1 9909-0007 ● ●
3 16.320 HINGE; DOOR FRT
(A) UPPER 		8-94230-393-4 01 1 0008- ● ● ●
3 16.320 HINGE; DOOR FRT
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 10.454 (B) LOWER 		8-94155-315-2 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-315-2 01 1 9909-0007 ● ●
3 16.320 HINGE; DOOR FRT
10.454 (B) LOWER 		8-94155-315-2 01 1 0008- ● ● ●
3 16.320 HINGE; DOOR FRT
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 10.454 (B) LOWER 		8-94155-314-2 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) UPPER 		8-94230-392-4 01 1 9812-9908 ● ●
3 16.320 HINGE; DOOR FRT
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (A) UPPER 		8-94230-393-4 01 1 9812-9908 ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 24 1 9712-0007 ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 24 1 0008- ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94358-619-0 02 1 9712-0007 ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94358-619-1 02 1 0008- ● ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 9712-0007 ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 0008- ● ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-97020-859-0 02 1 9712-0007 ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-97020-859-0 02 1 0008- ● ● ●
14 16.320 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9712-9811 ● ●
14 16.320 WASHER; PL,HINGE
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9812-9908 ● ●
14 16.320 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9909-0007 ● ●
14 16.320 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 0008-0106 ● ● ●
14 16.320 WASHER; PL,HINGE 8-97308-583-0 04 1 0107- ● ● ●
14 16.320 WASHER; PL,HINGE
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ID=8.1 W/PL WASHER 		8-97173-691-0 08 1 9812-9908 ● ●
