Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#3795) — 418 parça

12 12 47 66 47 62 2 63 68 45 65 12 66 47 19 66 67 65 52 52 12 154 4 68 12 66 7 81 154 10 82 82 45 122 7 14 158 25 81 157 216 82 6 10 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

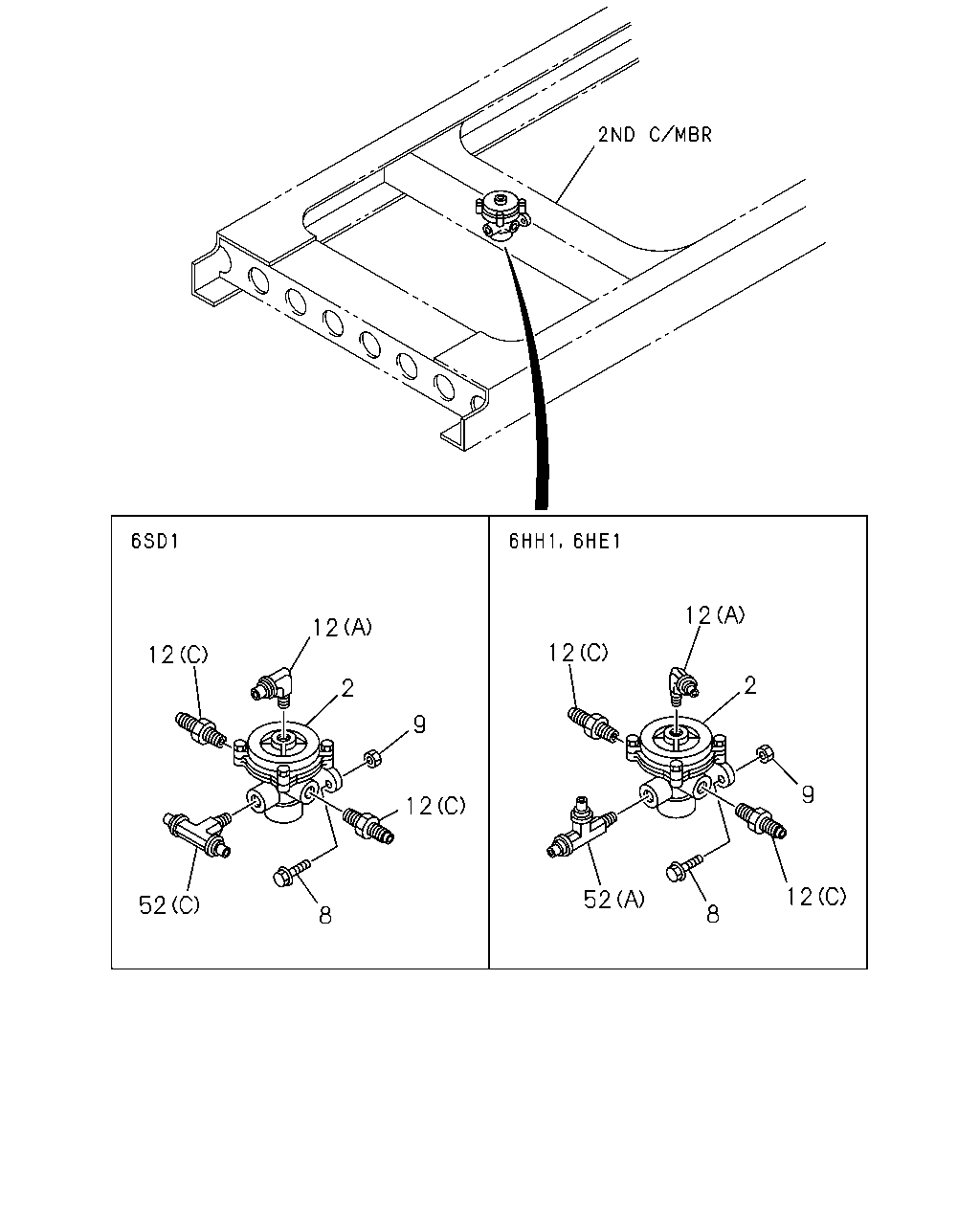

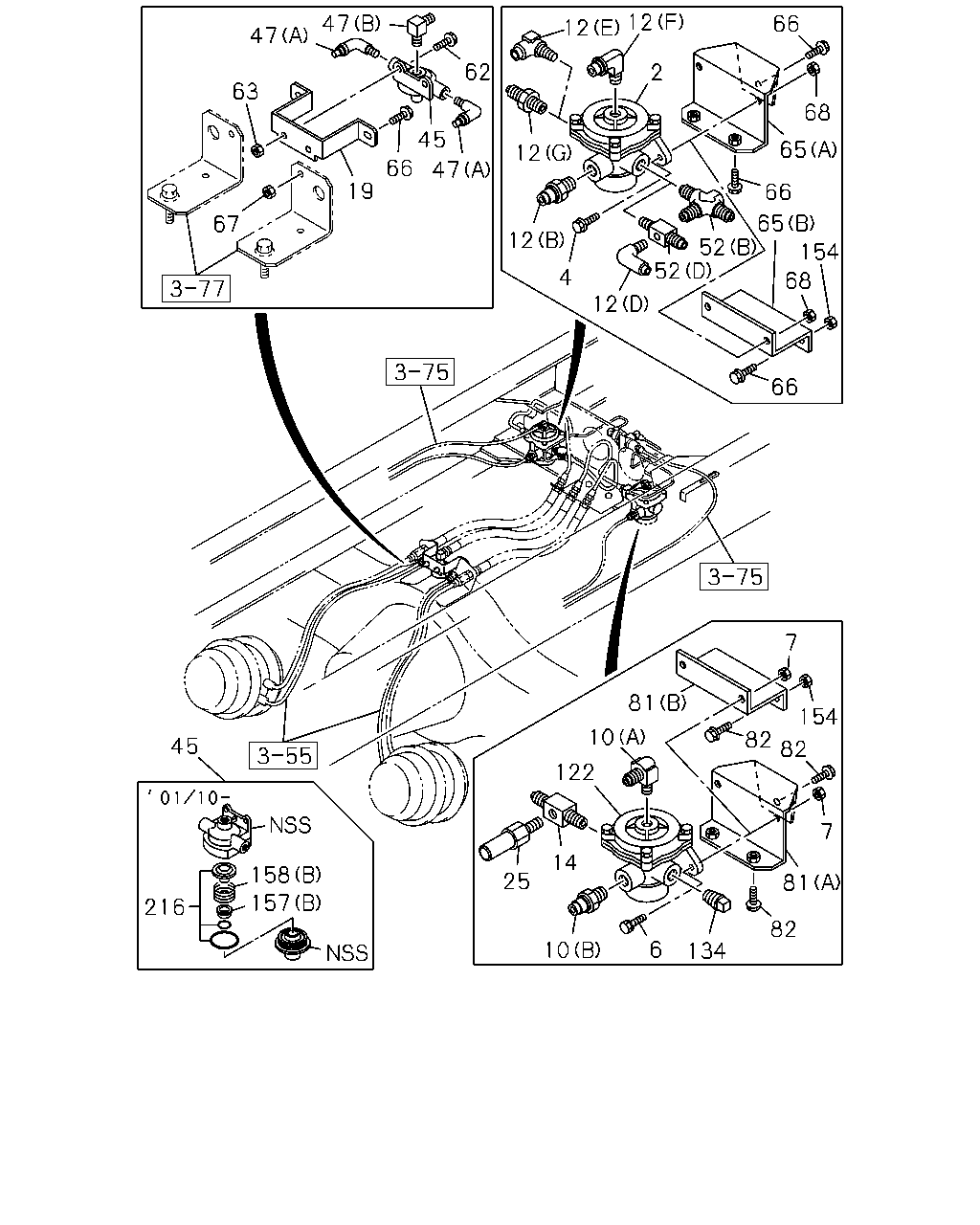

2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	02	1	9601-9806	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9804-0004		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9804-0004		●
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9601-9606	●	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9804-0004	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9804-0004		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9803	●	●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004		●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-0004	●	●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09656-476-0	01	1	9601-9803	●	●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	9804-0004	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09656-476-0	01	1	9804-0004		●
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	0005-	●	●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	9601-9803	●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-518-0	01	1	9601-9803		●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-518-0	01	1	9804-0004	●	●
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	0005-	●	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-0	01	1	9601-9803	●	●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9804-0004	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-0	01	1	9804-0004		●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	0005-	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	9601-9803	●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	01	1	9601-9803		●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	01	1	9804-0004	●	●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109	●	●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9803		●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9804-0004	●	●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9601-9803	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9601-9803		●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9804-0004	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	9804-0004	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09656-476-0	01	1	9804-0004		●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-719-1	01	1	9601-9705	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-09660-719-1	01	1	9706-9803	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-719-1	01	1	9706-9803		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-9806	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-9806		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9807-0004	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9807-0004		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-0607	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0608-	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0608-		●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-661-1	01	1	9601-9806	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9807-0004	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	9601-9803	●
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9601-9803		●
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9804-0004	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●	●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	9601-9803	●
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9803		●
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9804-0004	●	●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0512	●	●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-	●	●
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48495-132-0	01	1	9601-9803	●	●
65	BRACKET; RELAY VLV RR (B)	1-47477-964-0	01	1	9804-0004	●
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-964-0	01	1	9804-0004		●
65	BRACKET; RELAY VLV RR (B)	1-47477-964-0	01	1	0005-	●	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9601-9606	●	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	05	1	9607-9803	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	9804-0004		●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	9804-0004	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	02	1	9804-0004		●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●	●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	9804-0004	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	9804-0004	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9804-0004		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9601-9606	●	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0004	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9804-0004		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48495-132-0	01	1	9601-9803	●	●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-47477-964-0	01	1	9804-0004	●
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-964-0	01	1	9804-0004		●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-47477-964-0	01	1	0005-	●	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	9804-0207	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0512	●	●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●

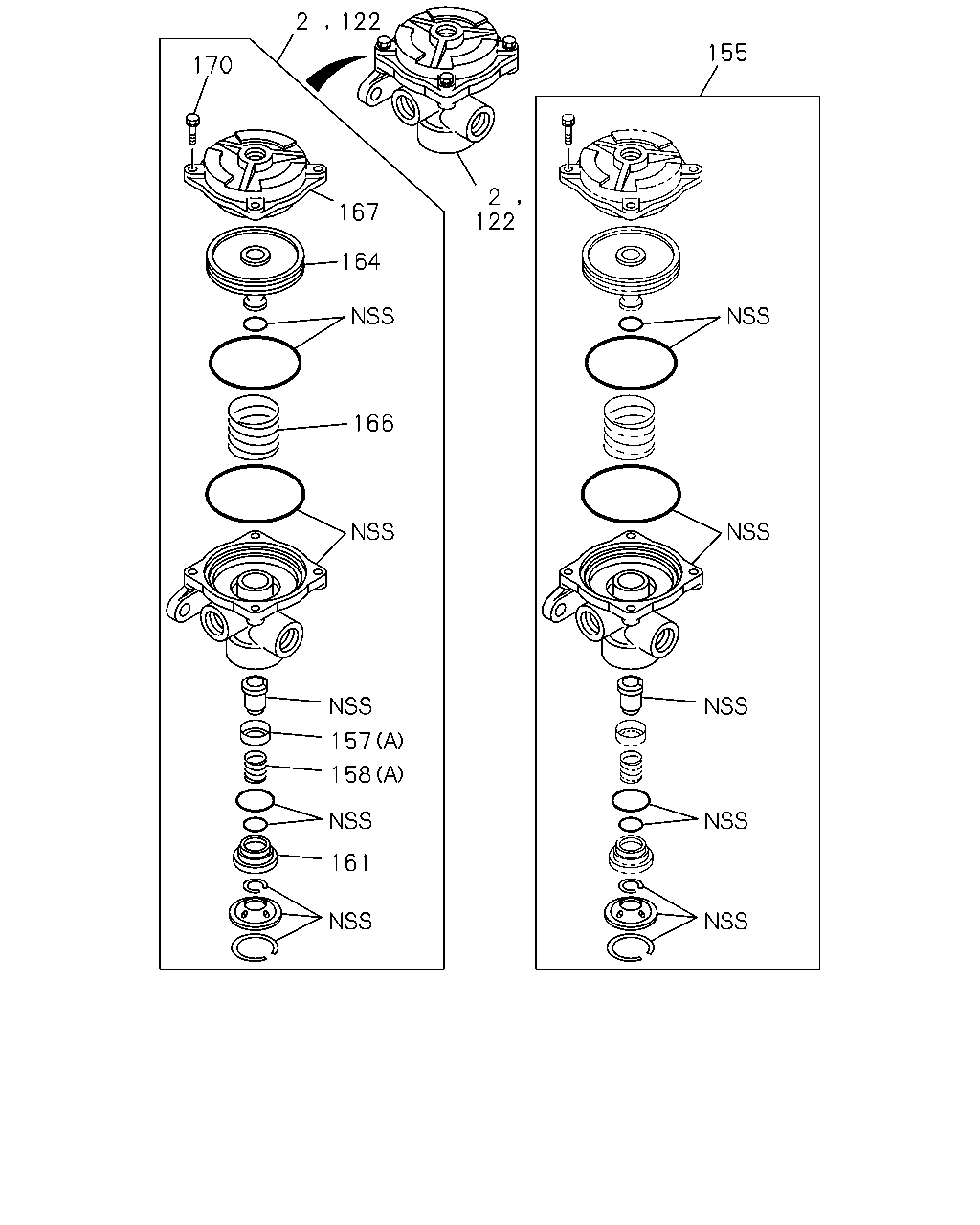

122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9601-9803	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9804-0004		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●	●
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	9601-9803	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9804-0004	●
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	9804-0004		●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	0005-	●	●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9804-0602	●	●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	9601-0004	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0211	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	9601-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-0004	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	9804-0004		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0211	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	9601-0004	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0211	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	9601-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-0004	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	9804-0004		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0211	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-	●	●

2 122 155 170 2 122 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	02	1	9601-9806	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9601-9803	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	9804-0004	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9804-0004		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-	●	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	02	1	9601-9803	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	9804-0004	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	02	1	9804-0004		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0005-0211	●	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9601-0004	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0211	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0212-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	9601-0004	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0211	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0212-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	9601-9803	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	9804-0004	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	9804-0004		●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0211	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	9601-0004	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0211	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0212-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	9601-9803	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9804-0004	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	9804-0004		●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0211	●	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9601-0004	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0211	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0212-	●	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9601-9803	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	9804-0004	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9804-0004		●
161	GUIDE; VALVE	1-48129-014-0	02	1	0005-0211	●	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9601-0004	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0211	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0212-	●	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	02	1	9601-9803	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	9804-0004	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	02	1	9804-0004		●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0005-0211	●	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9601-0004	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0211	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0212-	●	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	02	1	9601-9803	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	9804-0004	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	02	1	9804-0004		●
166	SPRING; PISTON	1-47819-090-0	02	1	0005-0211	●	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9601-0004	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0211	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0212-	●	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	02	1	9601-9803	●	●
167	COVER; VALVE	1-48219-070-0	02	1	9804-0004	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	02	1	9804-0004		●
167	COVER; VALVE	1-48219-070-0	02	1	0005-0211	●	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9601-0004	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0211	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0212-	●	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	08	1	9601-9803	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	9804-0004	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	08	1	9804-0004		●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0005-0211	●	●

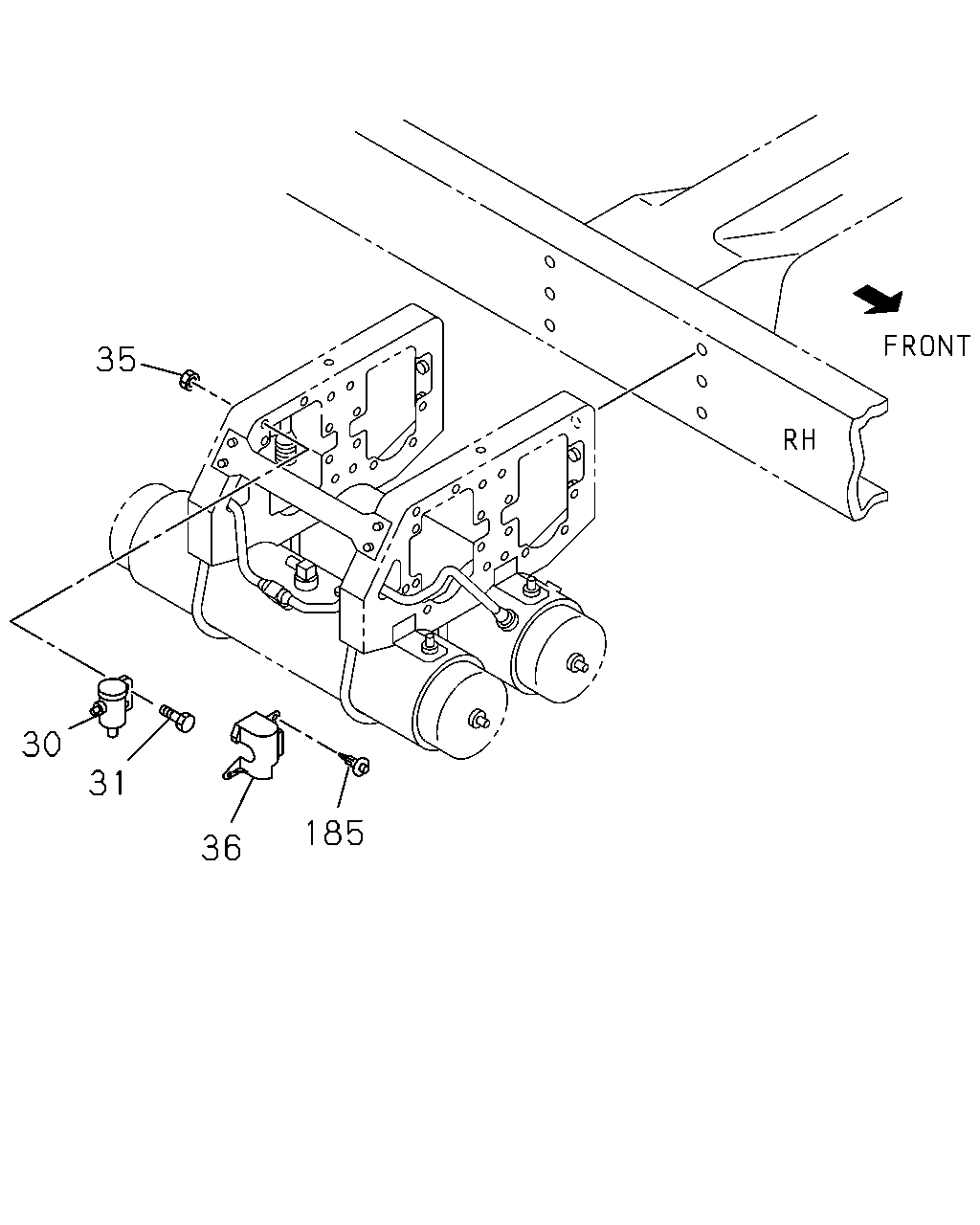

35 30 31 185 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9803	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9804-0004	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9602	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9804-0512	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
36	COVER; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-081-0	01	1	9601-9803		●
36	COVER; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-081-0	01	1	9804-0004		●
185	FASTENER; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09470-006-0	02	1	9601-0004		●

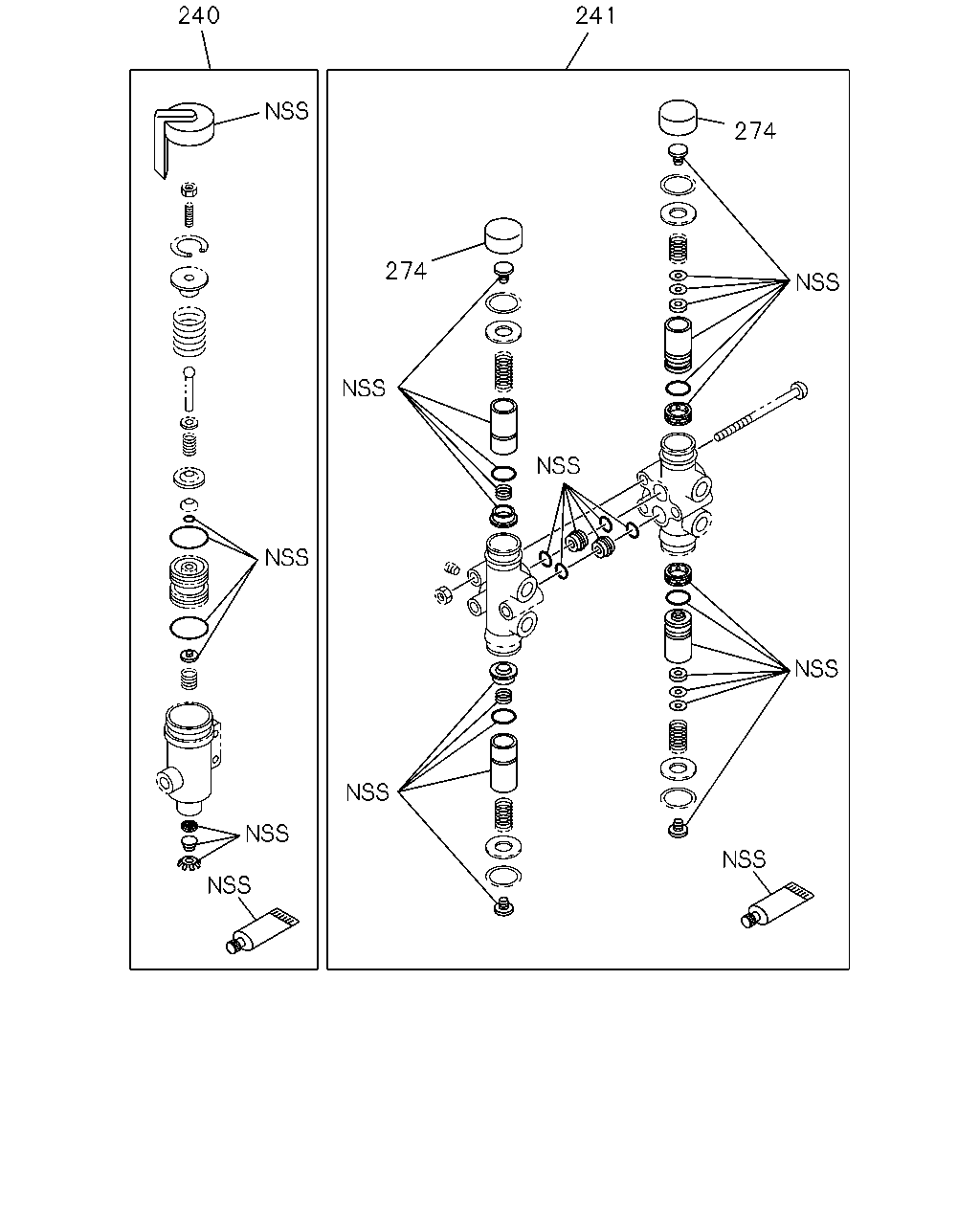

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-	●	●
241	REPAIR KIT; PROTECTION VALVE 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-85576-224-0	01	1	0005-		●
274	COVER; DUST 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0005-		●

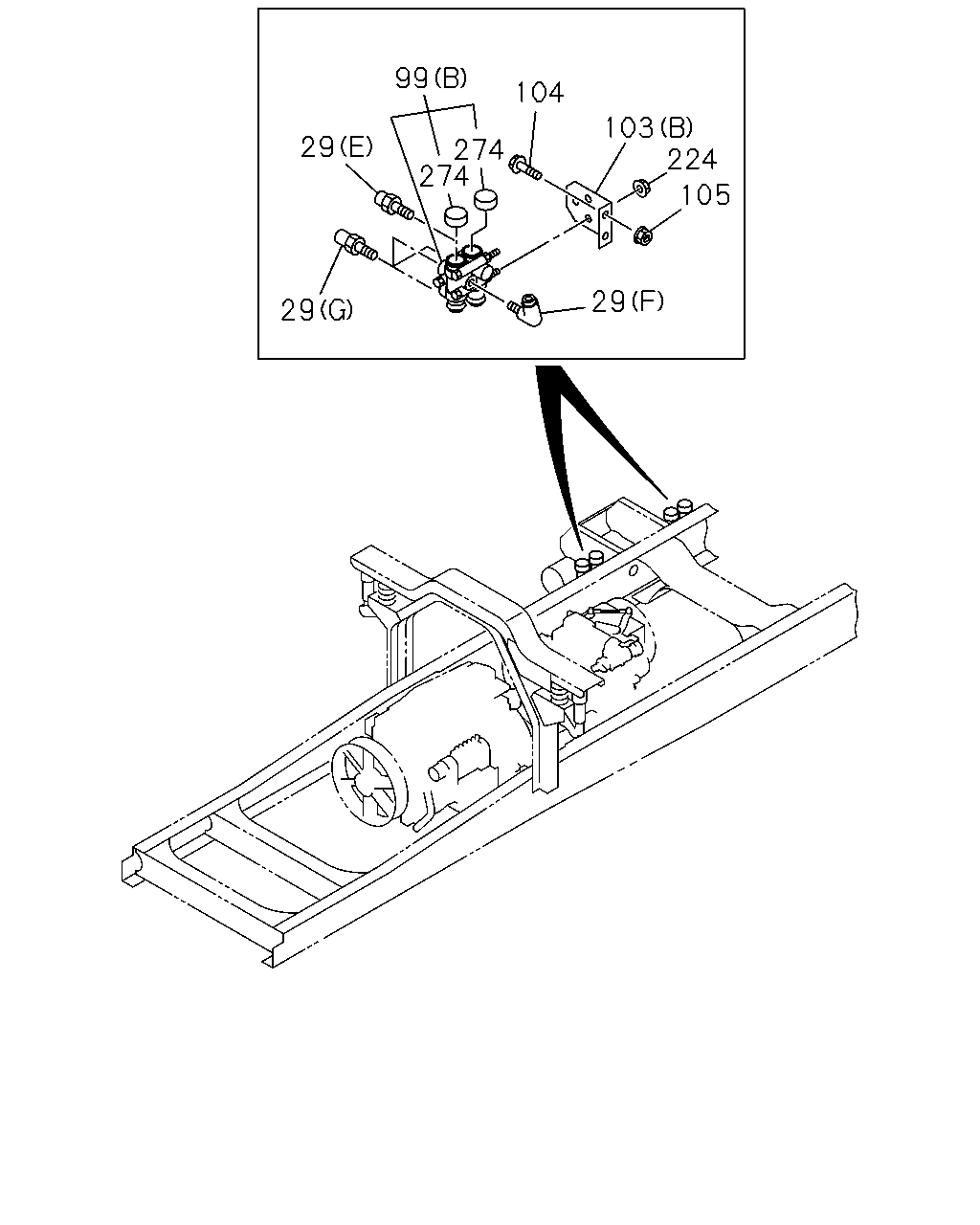

99 104 103 224 29 274 274 105 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9803	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9603	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9803	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9803	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-0004	●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803	●
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48110-079-0	01	1	9601-9803	●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-136-4	01	1	9804-0004	●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-135-5	01	1	0005-	●
99	VALVE; PROTECTION 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-114-4	01	1	9804-0004	●
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-47477-412-2	01	1	9601-9803	●
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-47477-860-0	01	1	9804-0004	●
103	BRACKET; PROTECTION VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-47477-860-0	01	1	0005-	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●
104	BOLT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
104	BOLT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	02	1	9601-9606	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
105	NUT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
105	NUT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	9902-0004	●
224	NUT; PROTECTION VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
224	NUT; PROTECTION VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	03	1	0603-	●
274	COVER; DUST 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-48119-450-0	02	1	0005-	●

12 12 12 12 2 2 9 9 12 12 52 52 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	02	1	9601-9806	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9807-0004	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-	●	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702	●	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9703-9803	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9804-0004	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9804-0004		●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9601-9606	●	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	9804-0004	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9804-0004		●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-0004	●	●
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9804-0004	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9803	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9804-0004		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09656-475-1	01	1	9601-9803	●	●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	9804-0004	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09656-476-0	01	1	9804-0004		●
52	CONNECTOR; RELAY VLV (D)	1-09656-476-0	01	1	0005-	●	●
52	CONNECTOR; RELAY VLV 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-719-1	01	1	9601-9705	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-09660-719-1	01	1	9706-9803	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-719-1	01	1	9706-9803		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-9806	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9804-9806		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9807-0004	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9807-0004		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-0607	●	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0608-	●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0608-		●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-661-1	01	1	9601-9806	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9807-0004	●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-	●	●

105 104 102 103 31 30 34 93 29 93 33 38 99 35 29 29 29 29 99 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9803		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9804-0004		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9603		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9803		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9803		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9804-0004		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9803		●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9803	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9804-0004	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9602	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9804-0512	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-045-0	01	1	9601-9803	●	●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9804-0004	●
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-045-0	01	1	9804-0004		●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-	●	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9601-9602	●	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004		●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9804-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9804-0004	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9804-0004		●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●	●
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48110-079-0	01	1	9601-9803		●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-136-4	01	1	9804-0004		●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-135-5	01	1	0005-		●
99	VALVE; PROTECTION 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48110-114-4	01	1	9804-0004		●
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28080-825-0	02	1	9601-9803		●
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-47477-412-2	01	1	9601-9803		●
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-47477-860-0	01	1	9804-0004		●
103	BRACKET; PROTECTION VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-47477-860-0	01	1	0005-		●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606		●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X35 FLANGE	0-28680-835-0	02	1	9607-9803		●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004		●
104	BOLT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512		●
104	BOLT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	02	1	9601-9606		●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9607-0004		●
105	NUT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
105	NUT; BRKT,VALVE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	02	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
