◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#37948) — 15 parça

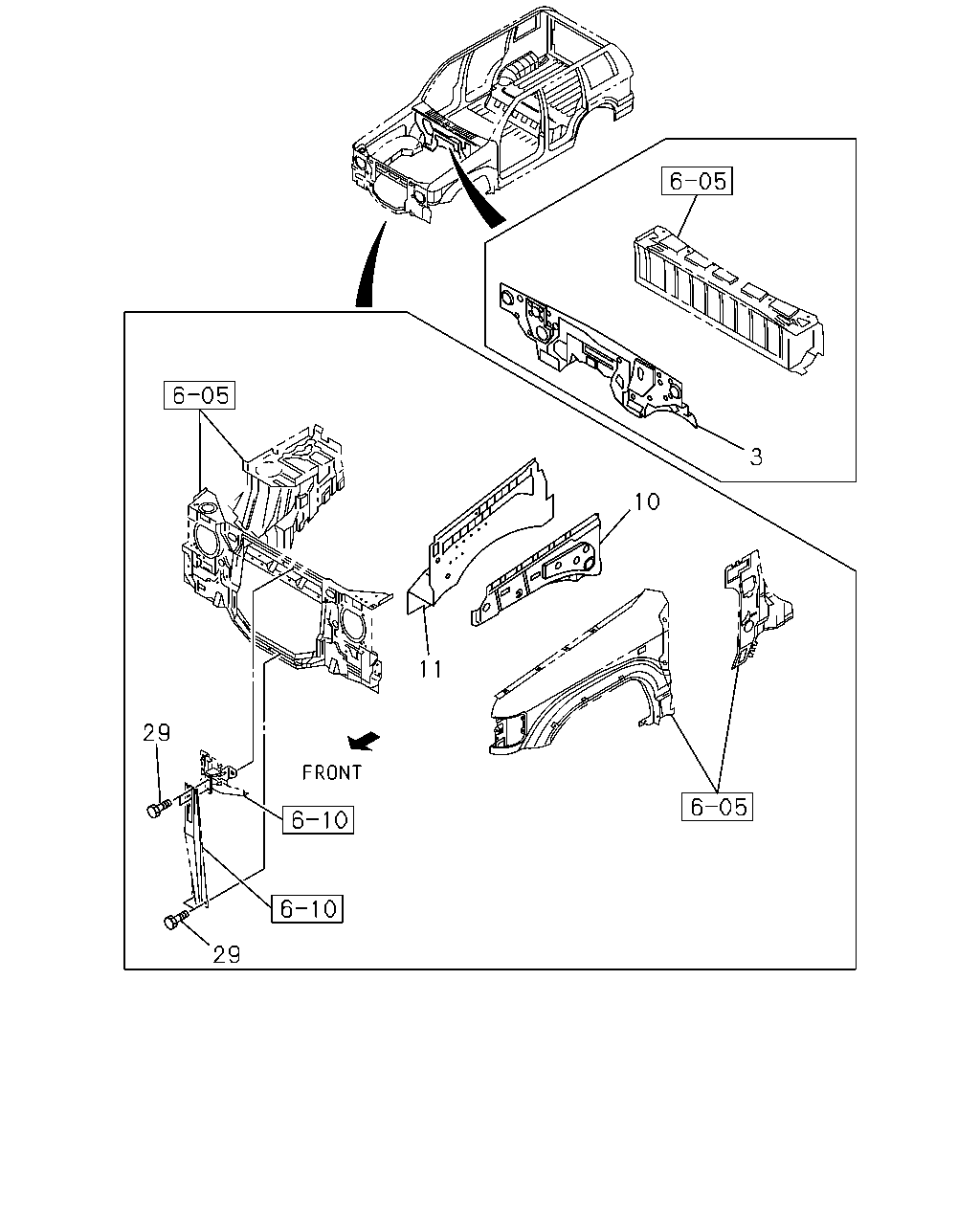

çizim 19114
3 10 11 29 29
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.550 PANEL; SUB,DASH LWR 8-97122-198-0 01 1 9712-0007 ● ●
3 16.550 PANEL; SUB,DASH LWR 8-97122-198-0 01 1 0008-0105 ● ● ●
3 16.550 PANEL; SUB,DASH LWR 8-97302-266-0 01 1 0106- ● ● ●
10 08.155 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-959-1 01 1 9712-0007 ● ●
10 08.155 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-959-1 01 1 0008- ● ● ●
10 08.155 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-958-1 01 1 9712-0007 ● ●
10 08.155 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-958-1 01 1 0008- ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97161-457-0 01 1 9712-0007 ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97161-457-0 01 1 0008-0012 ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97264-002-0 01 1 0101- ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97161-813-0 01 1 9712-0007 ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97161-813-0 01 1 0008-0012 ● ● ●
11 08.153 SKIRT; FRT FENDER PNL 8-97263-995-0 01 1 0101- ● ● ●
29 08.077 BOLT; STAY,FRT END PANEL
M6X18 		8-97071-681-0 04 1 9712-0007 ● ●
29 08.077 BOLT; STAY,FRT END PANEL
M6X18 		8-97071-681-0 04 1 0008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
