6-10 — ENGINE HOOD AND LOCK (#37947) — 104 parça

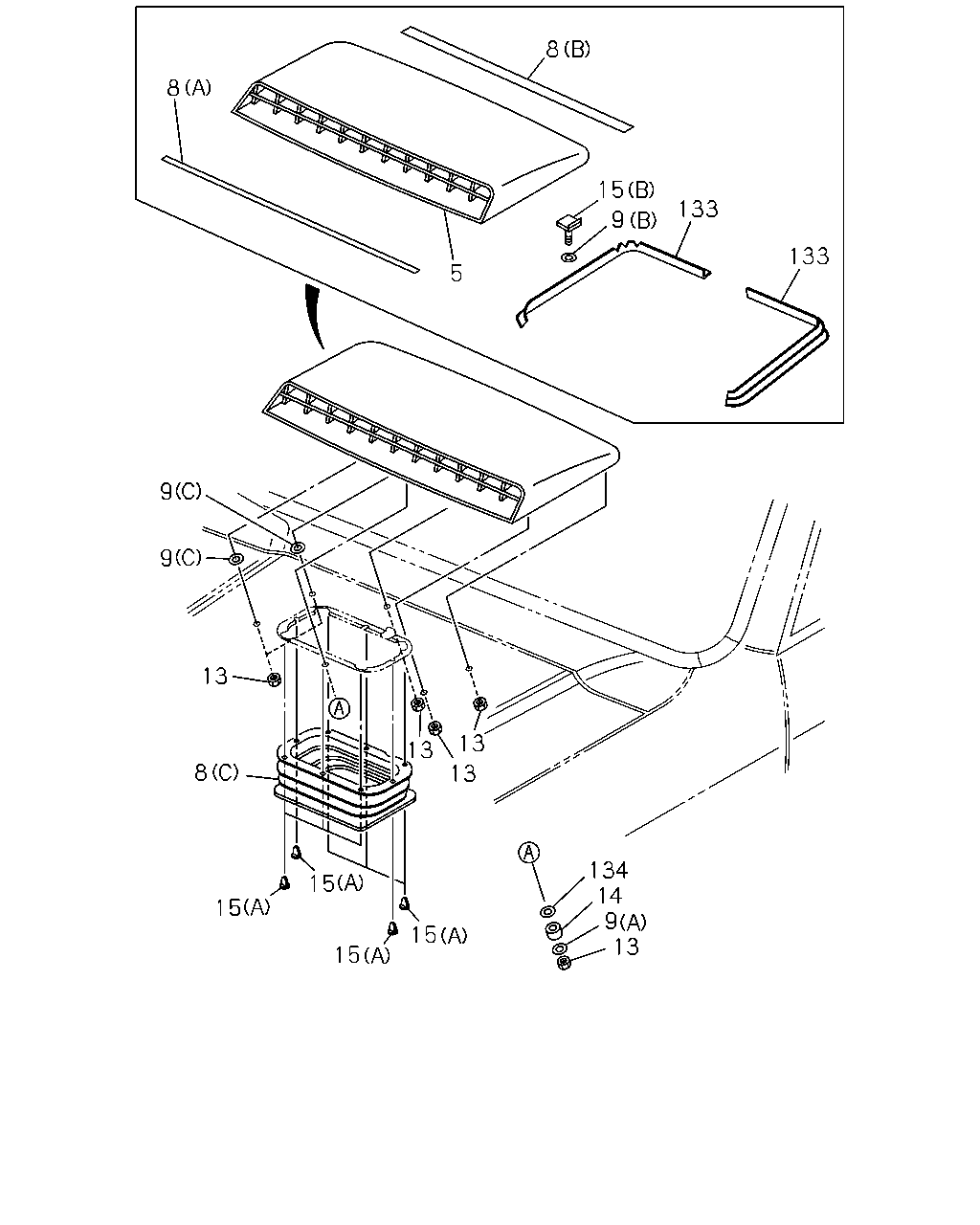

8 8 133 133 5 13 13 13 8 13 134 14 13 15 9 9 9 15 15 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG CHARGE AIR COOLER<6PL>	8-97180-854-1	01	1	9712-0007	●	●
5	08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG CHARGE AIR COOLER<6PL>	8-97180-854-1	01	1	0008-	●	●
5	08.054 SCOOP; AIR,CHARGE AIR COOLER,ENG	8-97180-854-1	01	1	0008-			●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	9712-0007	●	●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	0008-	●	●
8	08.054 SEAL; AIR SCOOP (A)	8-97810-476-0	01	1	0008-			●
8	08.054 SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97810-866-0	01	1	9712-9806	●	●
8	08.054 SEAL; AIR SCOOP 4JG2 ENG(RJC) CHARGE AIR COOLER<6PL> (C)	8-97133-889-0	01	1	9712-	●	●
8	08.054 SEAL; AIR SCOOP 4JX1 ENG(RJM) CHARGE AIR COOLER<6PL> (C)	8-97179-528-0	01	1	9712-0007	●	●
8	08.054 SEAL; AIR SCOOP 4JX1 ENG(RJM) CHARGE AIR COOLER<6PL> (C)	8-97179-528-0	01	1	0008-	●	●
8	08.054 SEAL; AIR SCOOP (C)	8-97179-528-0	01	1	0008-			●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> 08.131 (A) D=22	8-94358-648-0	01	1	9712-0007	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> 08.131 (A) D=22	8-94358-648-0	01	1	0008-	●	●
9	08.054 WASHER; PL,AIR SCOOP 08.131 (A) D=22	8-94358-648-0	01	1	0008-			●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (C) D=16	8-94427-941-0	AR	1	9712-0007	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (C) D=16	8-94427-941-0	AR	1	0008-	●	●
9	08.054 WASHER; PL,AIR SCOOP (C) D=16	8-94427-941-0	AR	1	0008-			●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (B) D=16	8-94427-941-0	05	1	9712-0007	●	●
9	08.054 WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (B) D=16	8-94427-941-0	05	1	0008-	●	●
9	08.054 WASHER; PL,AIR SCOOP (B) D=16	8-94427-941-0	05	1	0008-			●
13	08.054 NUT; AIR SCOOP CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	06	1	9712-0007	●	●
13	08.054 NUT; AIR SCOOP CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE	0-91150-106-0	06	1	0008-	●	●
13	08.054 NUT; AIR SCOOP 04.594 M6 FLANGE	0-91150-106-0	06	1	0008-			●
14	08.054 SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97810-466-0	01	1	9712-0007	●	●
14	08.054 SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97810-466-0	01	1	0008-	●	●
14	08.054 SPACER; AIR SCOOP,ENG HOOD	8-97810-466-0	01	1	0008-			●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	06	1	9712-0007	●	●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	06	1	0008-	●	●
15	08.054 CLIP; AIR SCOOP (A) L=13.5	8-97031-931-0	06	1	0008-			●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97806-845-2	05	1	9712-0007	●	●
15	08.054 CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97806-845-2	05	1	0008-	●	●
15	08.054 CLIP; AIR SCOOP (B)	8-97806-845-2	05	1	0008-			●
133	08.054 FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97162-066-1	02	1	9712-0007	●	●
133	08.054 FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97162-066-1	02	1	0008-	●	●
133	08.054 FINISHER; AIR SCOOP	8-97162-066-1	02	1	0008-			●
134	08.007 WASHER; BULGE CHARGE AIR COOLER<6PL> 11.377 D=22 T=1	8-94425-158-0	01	1	9712-0007	●	●
134	08.007 WASHER; BULGE CHARGE AIR COOLER<6PL> 11.377 D=22 T=1	8-94425-158-0	01	1	0008-	●	●
134	08.007 WASHER; BULGE 11.377 D=22 T=1	8-94425-158-0	01	1	0008-			●

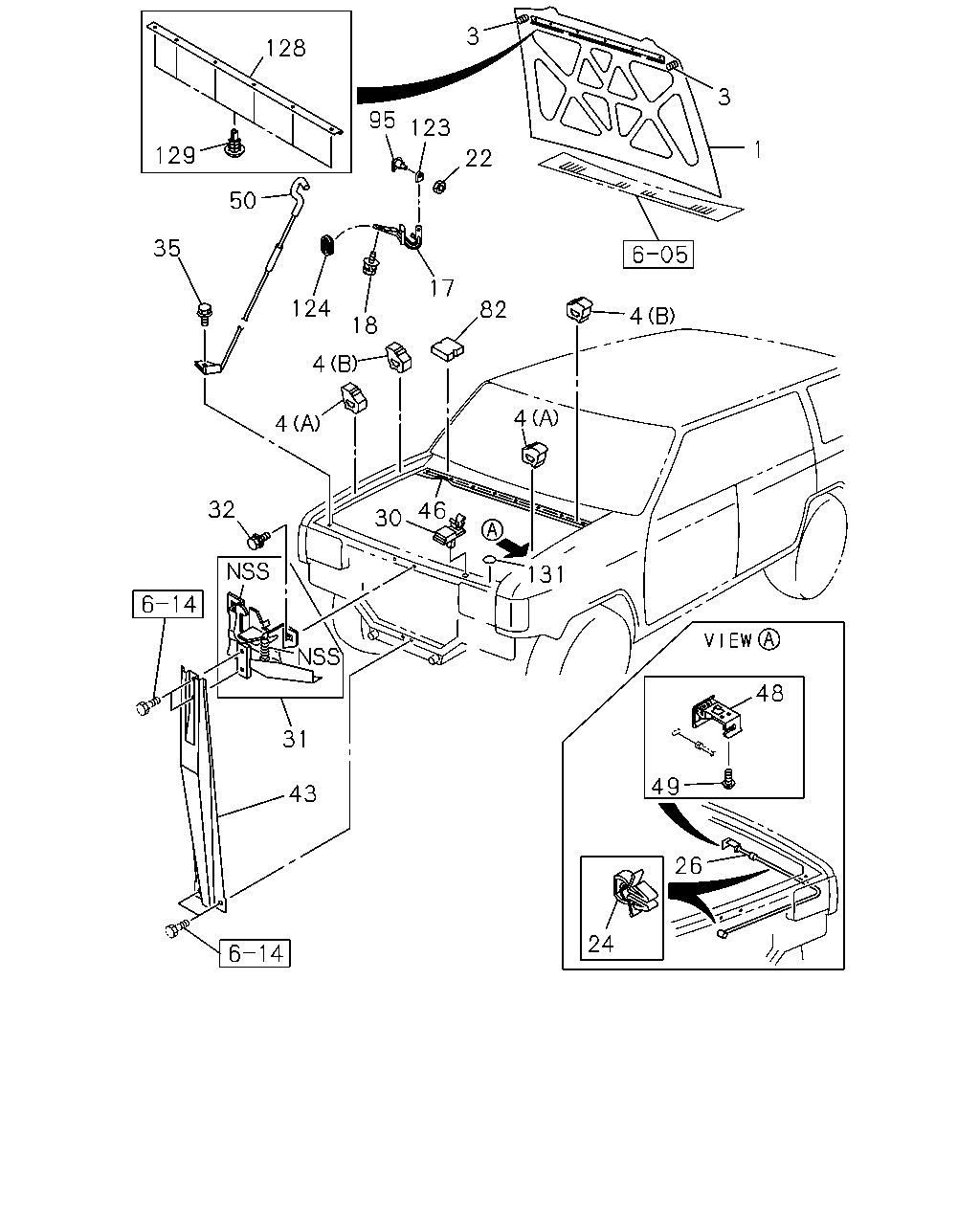

3 128 3 95 123 1 129 22 50 35 17 124 82 4 18 4 4 4 32 46 30 131 48 31 49 43 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97187-421-1	01	1	9712-0005	●	●
1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97187-421-1	01	1	0006-0007	●	●
1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97187-421-1	01	1	0008-0301	●	●
1	08.000 HOOD; ENG	8-97187-421-1	01	1	0008-0301			●
1	08.000 HOOD; ENG CHARGE AIR COOLER<6PL>	8-97366-900-0	01	1	0302-	●	●
1	08.000 HOOD; ENG	8-97366-900-0	01	1	0302-			●
1	08.000 HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-97191-329-0	01	1	9712-0005	●	●
1	08.000 HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-97187-420-1	01	1	0006-0301	●	●
1	08.000 HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-97366-901-0	01	1	0302-	●	●
3	08.077 BUFFER; ENG HOOD,FRT	8-97810-601-0	02	1	9712-0007	●	●
3	08.077 BUFFER; ENG HOOD,FRT	8-97810-601-0	02	1	0008-	●	●	●
4	08.024 REST; SIDE (A) FRONT	8-94358-784-1	02	1	9712-0007	●	●
4	08.024 REST; SIDE (A) FRONT	8-94358-784-1	02	1	0008-0112	●	●	●
4	08.024 REST; SIDE (B) REAR	8-97185-760-0	02	1	9712-0007	●	●
4	08.024 REST; SIDE (B) REAR	8-97185-760-0	02	1	0008-	●	●	●
17	08.015 HINGE; ENG HOOD	8-94358-436-4	01	1	9712-0007	●	●
17	08.015 HINGE; ENG HOOD	8-94358-436-4	01	1	0008-	●	●	●
17	08.015 HINGE; ENG HOOD	8-94358-435-4	01	1	9712-0007	●	●
17	08.015 HINGE; ENG HOOD	8-94358-435-4	01	1	0008-	●	●	●
18	08.015 BOLT; HINGE M6X20 W/WASHER	8-94112-987-1	04	1	9712-0007	●	●
18	08.015 BOLT; HINGE M6X20 W/WASHER	8-94112-987-1	04	1	0008-	●	●	●
22	08.015 NUT; HINGE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-0007	●	●
22	08.015 NUT; HINGE 04.594 M6 FLANGE	0-91150-106-0	02	1	0008-	●	●	●
24	08.077 CLIP; CONT CABLE	8-94225-098-0	02	1	9712-0007	●	●
24	08.077 CLIP; CONT CABLE	8-94225-098-0	02	1	0008-	●	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97180-675-0	01	1	9712-9907	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97229-158-0	01	1	9908-0007	●	●
26	08.075 CABLE; ENG HOOD CONT	8-97229-158-2	01	1	0008-	●	●	●
30	08.077 CLIP; SUPPORT ROD,HOOD	8-97104-427-0	01	1	9712-0007	●	●
30	08.077 CLIP; SUPPORT ROD,HOOD	8-97104-427-0	01	1	0008-	●	●	●
31	08.083 LOCK; ENG HOOD	8-97175-751-1	01	1	9712-0007	●	●
31	08.083 LOCK; ENG HOOD	8-97175-751-1	01	1	0008-	●	●	●
32	08.077 BOLT; HOOD LK M6X18	8-97071-681-0	02	1	9712-0007	●	●
32	08.077 BOLT; HOOD LK M6X18	8-97071-681-0	02	1	0008-	●	●	●
35	08.080 BOLT; STRIKER TO HOOD 10.230 M6X16 FLANGE	8-94380-676-1	01	1	9712-0007	●	●
35	08.080 BOLT; STRIKER TO HOOD 10.230 M6X16 FLANGE	8-94380-676-1	01	1	0008-0108	●	●	●
35	08.080 BOLT; STRIKER TO HOOD 16.325 M6X16 FLANGE	8-97808-792-1	01	1	0109-	●	●	●
43	08.077 STAY; ENG HOOD,FRT END	8-97162-509-0	01	1	9712-0007	●	●
43	08.077 STAY; ENG HOOD,FRT END	8-97162-509-1	01	1	0008-	●	●	●
46	01.272 SEAL; ENG HOOD	8-97811-326-0	01	1	9712-0007	●	●
46	01.272 SEAL; ENG HOOD	8-97811-326-1	01	1	0008-	●	●	●
48	08.083 LEVER; ENG HOOD BLACK	8-97808-822-0	01	1	9712-0007	●	●
48	08.083 LEVER; ENG HOOD BLACK	8-97808-822-0	01	1	0008-	●	●	●
49	08.083 SCREW; LEVER,ENG HOOD OPENER 08.077 M5X10	9-09829-185-0	02	1	9712-0007	●	●
49	08.083 SCREW; LEVER,ENG HOOD OPENER 08.077 M5X10	9-09829-185-0	02	1	0008-	●	●	●
50	08.015 ROD; SUPPORT,ENG HOOD	8-97804-823-3	01	1	9712-0007	●	●
50	08.015 ROD; SUPPORT,ENG HOOD	8-97804-823-3	01	1	0008-	●	●	●
82	08.054 RUBBER; CUSHION,ENG HOOD	8-97811-398-0	01	1	9712-0007	●	●
82	08.054 RUBBER; CUSHION,ENG HOOD	8-97811-398-1	01	1	0008-	●	●	●
95	08.015 PIN; HINGE,HOOD CENTER	8-94359-692-0	02	1	9712-0007	●	●
95	08.015 PIN; HINGE,HOOD CENTER	8-94359-692-0	02	1	0008-	●	●	●
123	08.015 SPACER; HINGE	8-97808-777-0	02	1	9712-0007	●	●
123	08.015 SPACER; HINGE	8-97808-777-0	02	1	0008-	●	●	●
124	08.015 SEAL; HINGE	8-94358-506-2	02	1	9712-0007	●	●
124	08.015 SEAL; HINGE	8-94358-506-2	02	1	0008-	●	●	●
128	08.010 SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60)	8-97102-694-1	01	1	9712-9808	●	●
128	08.010 SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60)	8-97211-177-0	01	1	9809-0007	●	●
128	08.010 SEAL; PLATFORM 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97211-177-0	01	1	0008-	●	●
128	08.010 SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-97211-177-0	01	1	0008-	●	●
128	08.010 SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60)	8-97211-177-0	01	1	0008-			●
129	08.010 CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60) 15.100 BLACK	8-94104-935-0	06	1	9712-0007	●	●
129	08.010 CLIP; ENG HOOD SEAL 4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 15.100 BLACK	8-94104-935-0	06	1	0008-	●	●
129	08.010 CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 15.100 BLACK	8-94104-935-0	06	1	0008-	●	●
129	08.010 CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60) 15.100 BLACK	8-94104-935-0	06	1	0008-			●
131	08.010 TAPE	8-97808-119-1	02	1	9712-0007	●	●
131	08.010 TAPE	8-97808-119-1	02	1	0008-	●	●	●
